MITUTOYO Dial Indicators

Includes AGD 1 and AGD 2 dial indicators designed to measure the general deviation of any component from the expected standard. Feature a glare-free flat crystal face tightly attached to a bezel to prohibit the penetration of fluids. Available in different dial sizes and graduations

Filter

MITUTOYO -

Lugs

Style	Model	Range	Dial Reading	Dial Size	Bearing Type	Range Per Revolution	Stem Thread Size	Stem Dia.	Accuracy	Price

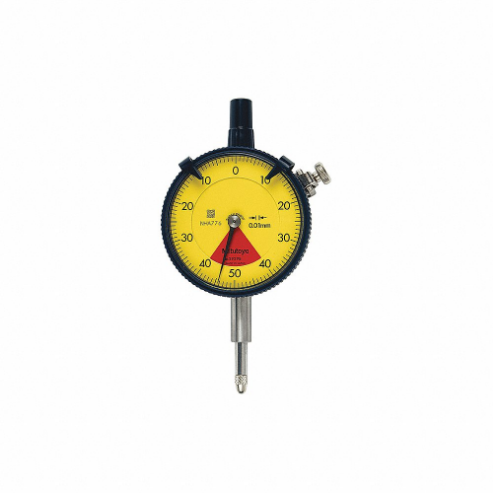

A	2929A	0 mm to 0.8 mm	40-0-40	57 mm	Jeweled	1 mm	M2.5 x 0.45	8 mm	-0.009 mm to +0.009 mm	€140.10

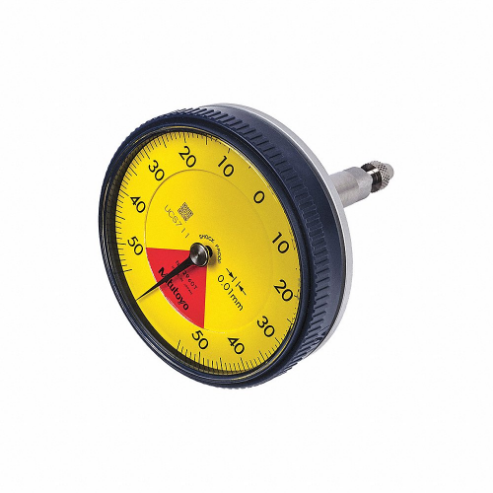

B	2960A	0 mm to 1 mm	50-0-50	57 mm	Plain	1.27 mm	M2.5 x 0.45	8 mm	-0.014 mm to +0.014 mm	€260.98

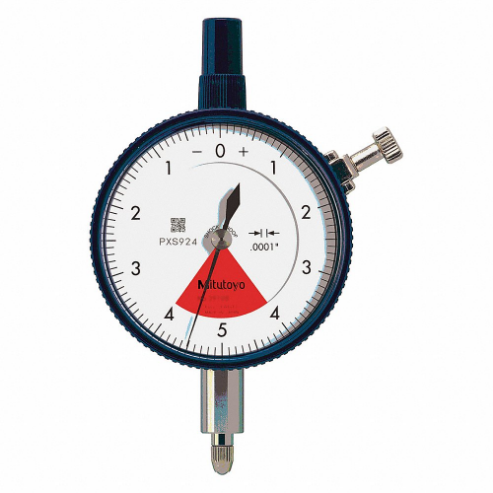

C	2910A-10	0" to 0.008"	4-0-4	2 6/25"	Jeweled	0.01"	#4-48	3/8"	-0.0001" to +0.0001"	€282.72

MITUTOYO -

1 Series Dial Indicators

Style	Model	Dial Reading	Range	Type	Range Per Rev.	Bearing Type	Dial Size	Contact Point Dia.	Stem Dia.	Price

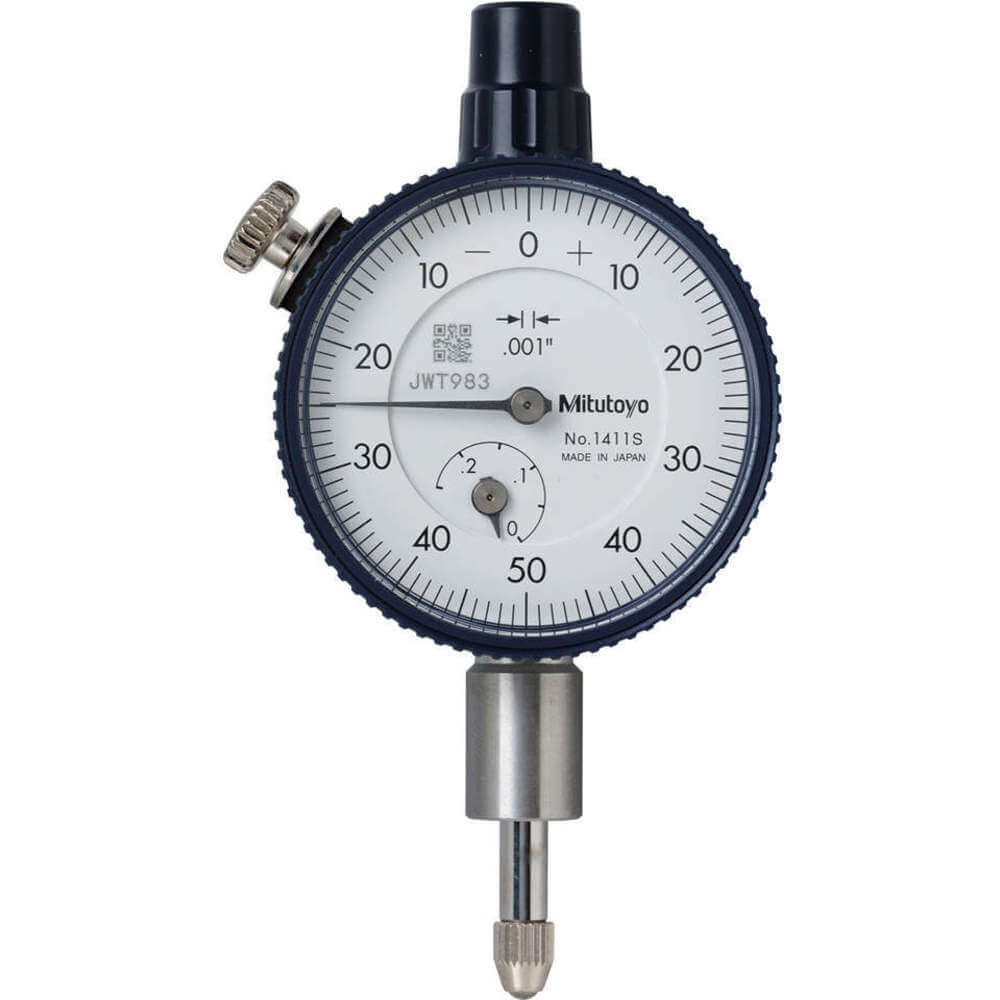

A	1411A	-	0" to 0.25"	-	-	Plain	1.57"	1/4"	-	€180.73

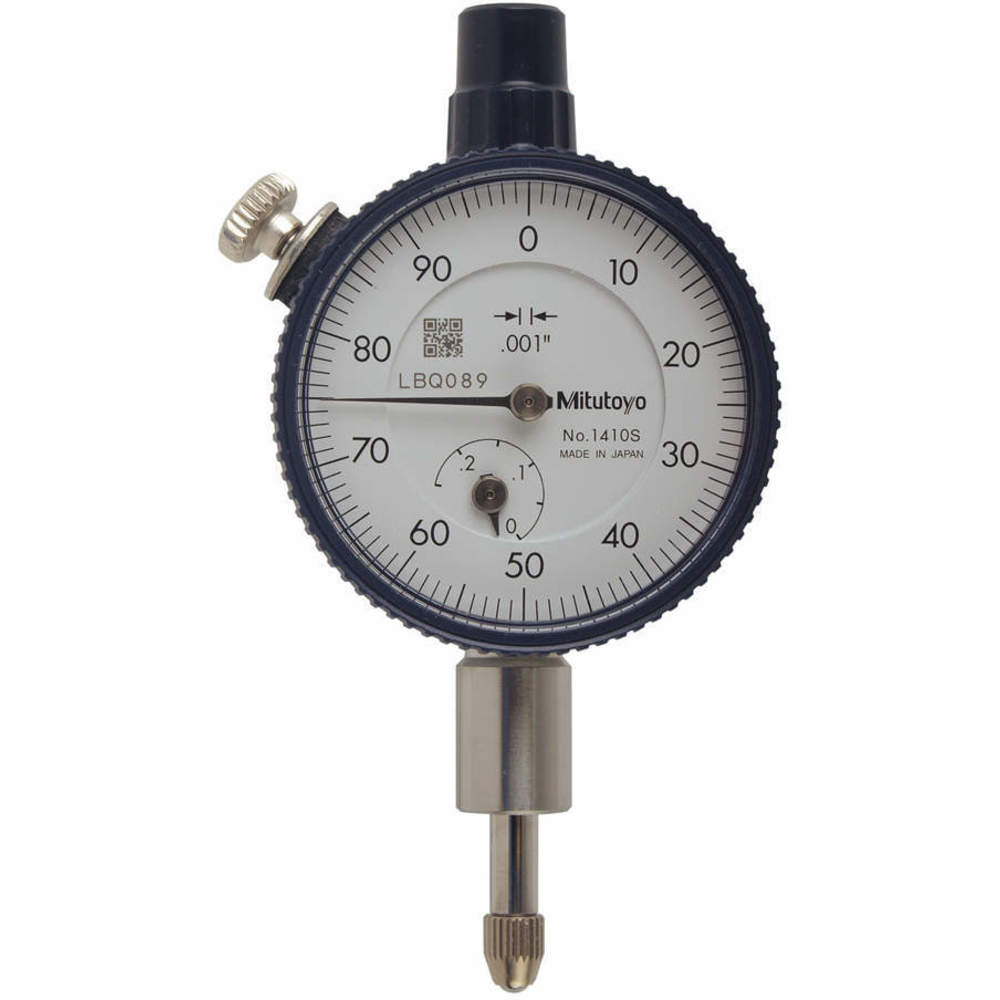

B	1410S-10CERT	-	0" to 0.25"	-	-	Jeweled	1.57"	1/4"	-	€235.27
C	1802a-10	0 to 10	1/4"	Dial Indicator	-	Jeweled	-	-	3/8"	€221.75	RFQ
C	1506sb	0 to 50	1/8"	ANSI, AGD Standard	0.05"	-	-	-	-	€126.05	RFQ

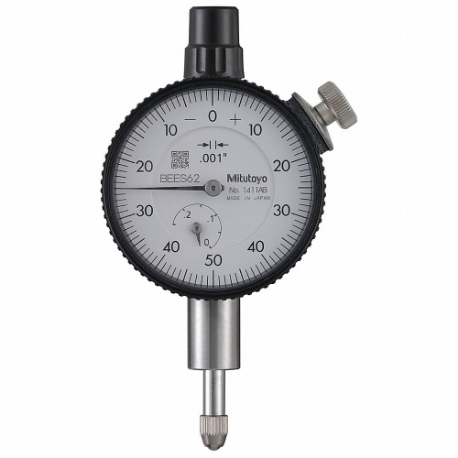

D	1411AB	0 to 50	0" to 0.25"	-	-	Plain	40 mm	3 mm	3/8"	€180.89

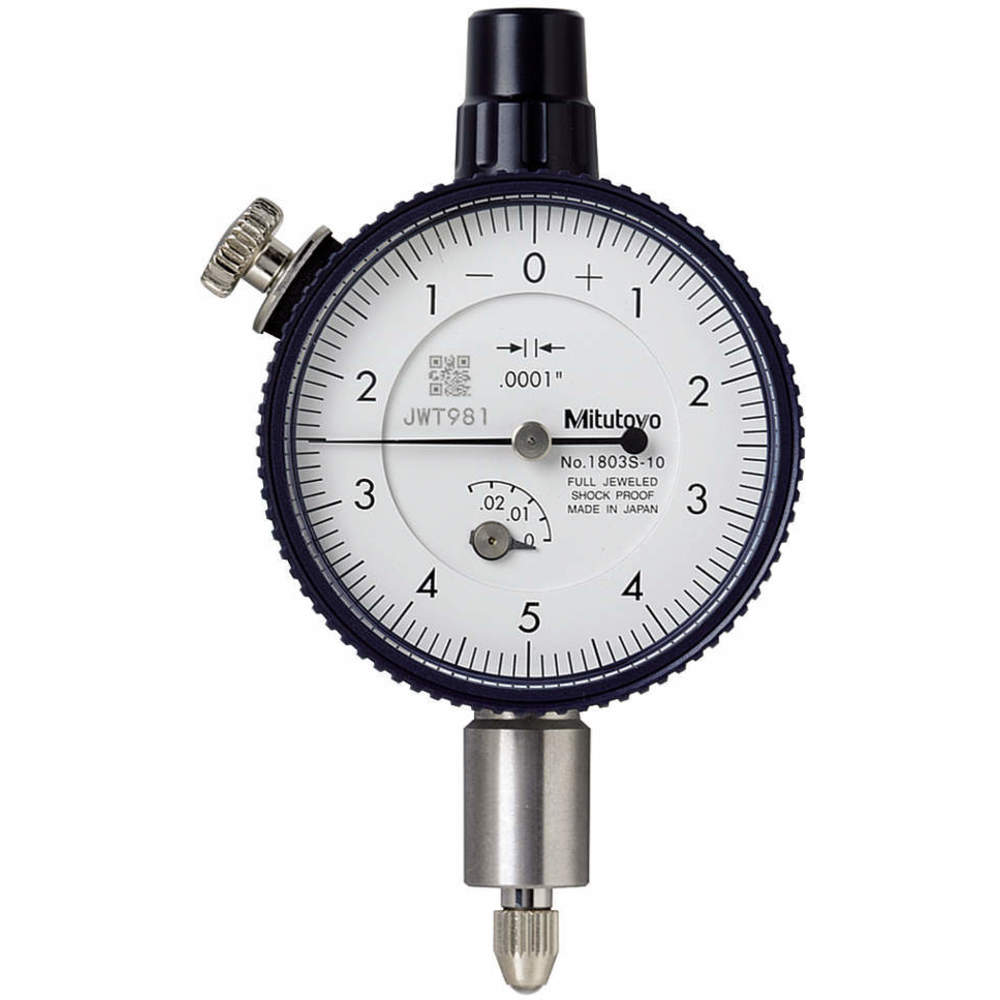

E	1803A-10	0-5-0	0" to 0.025"	-	-	Jeweled	40 mm	3 mm	0.375"	€268.83
C	1925a-10	0-5-0	0.025"	ANSI, AGD Standard	0.01"	-	-	-	-	€227.03	RFQ
C	1802ab-10	0-10	0.025"	ANSI, AGD Standard	0.01"	-	-	-	-	€220.42	RFQ
F	1923A-10	0-10-0	0.05"	ANSI, AGD Standard	0.02"	-	-	-	-	€239.00

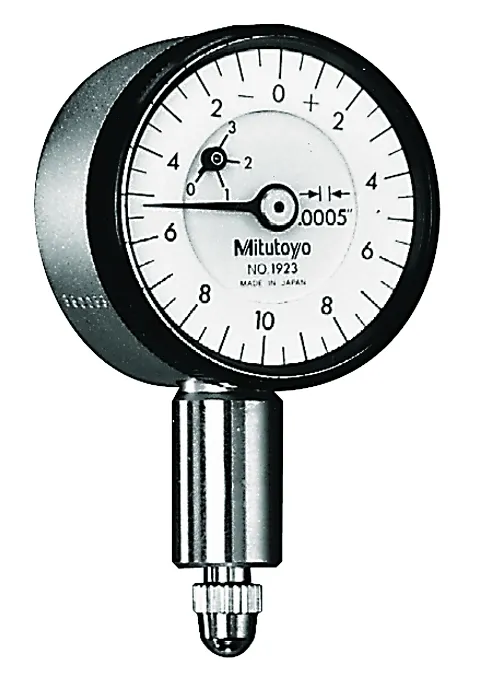

F	1923AB-10	0-10-0	0.05"	ANSI, AGD Standard	0.02"	-	-	-	-	€238.00

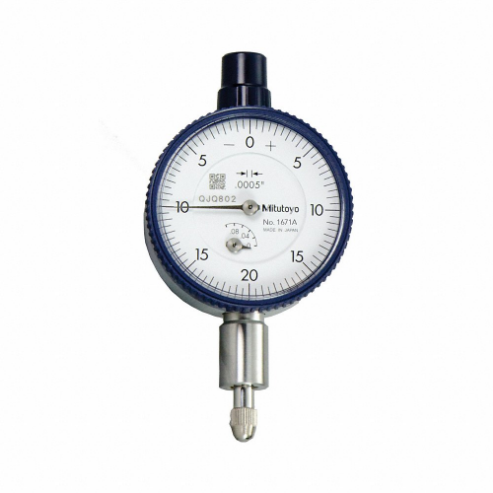

G	1671AB	0-20-0	0" to 0.1"	-	-	Plain	40 mm	3 mm	3/8"	€193.29
C	1921a-10	0-20-0	-	ANSI, AGD Standard	-	Jeweled	40 mm	3 mm	3/8"	€242.87	RFQ
C	1671a	0-20-0	0.1"	ANSI, AGD Standard	0.04"	-	-	-	-	€167.63	RFQ
C	1041ab	0-25-0	3.5 mm	EN ISO Standard	0.5 mm	-	-	-	-	€190.07	RFQ
H	1041A	0-25-0	3.5 mm	EN ISO Standard	0.5 mm	-	-	-	-	€114.00
C	1781ab	0-25-0	-	ANSI, AGD Standard	0.05"	Plain	40 mm	3 mm	3/8"	€137.26	RFQ

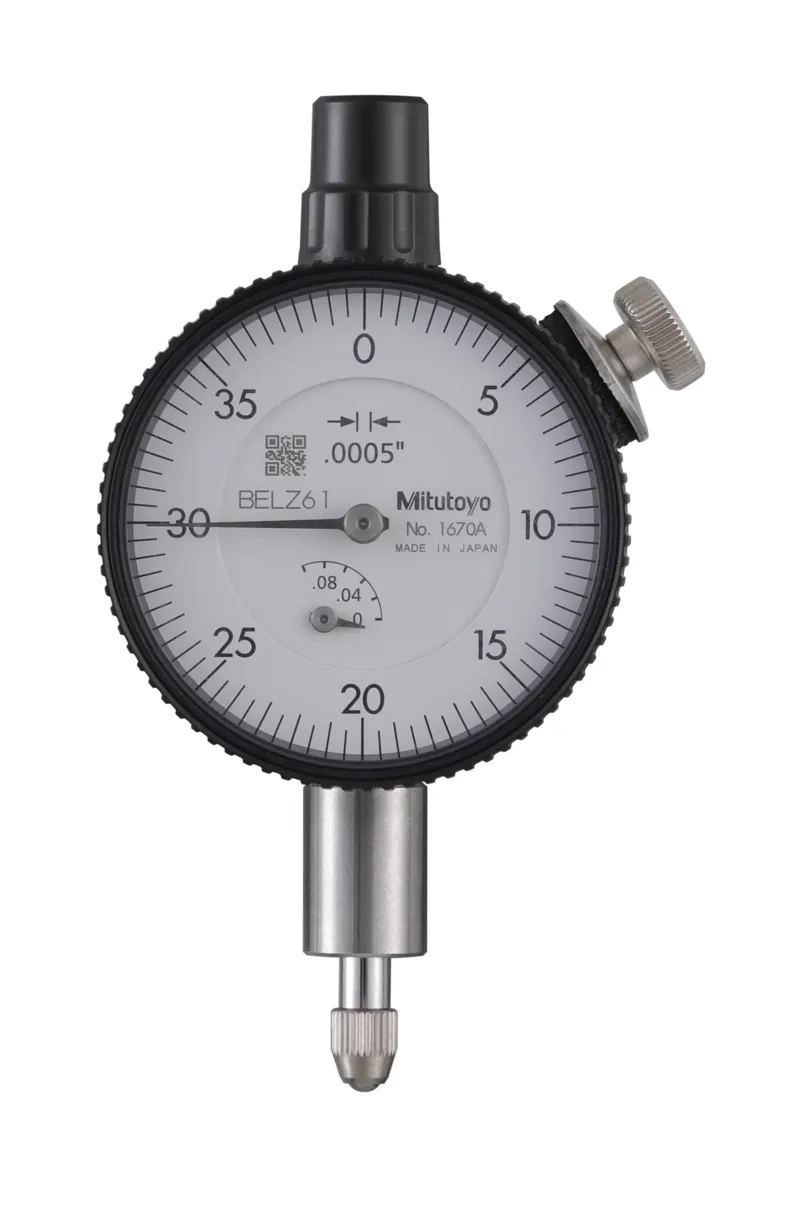

I	1670A	0-40	0.1"	ANSI, AGD Standard	0.04"	-	-	-	-	€113.00
J	1506A	0-50	0.125"	ANSI, AGD Standard	0.05"	-	-	-	-	€106.00
K	1780AB	0-50	0.125"	ANSI, AGD Standard	0.05"	-	-	-	-	€101.00

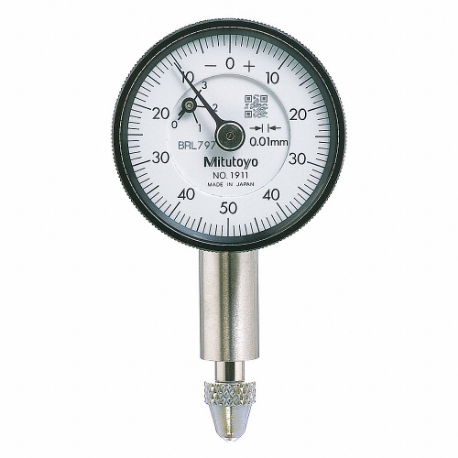

C	1911a-10	0-50-0	-	EN ISO Standard	-	Jeweled	40 mm	3 mm	-	€223.07	RFQ
L	1003AB	0-50-0	4 mm	EN ISO Standard	1 mm	-	-	-	-	-	RFQ
M	1045AB	0-50-0	5 mm	EN ISO Standard	1 mm	-	-	-	-	€83.00
L	1003A	0-50-0	4 mm	EN ISO Standard	1 mm	-	-	-	-	-	RFQ
M	1045A	0-50-0	5 mm	EN ISO Standard	1 mm	-	-	-	-	€82.00

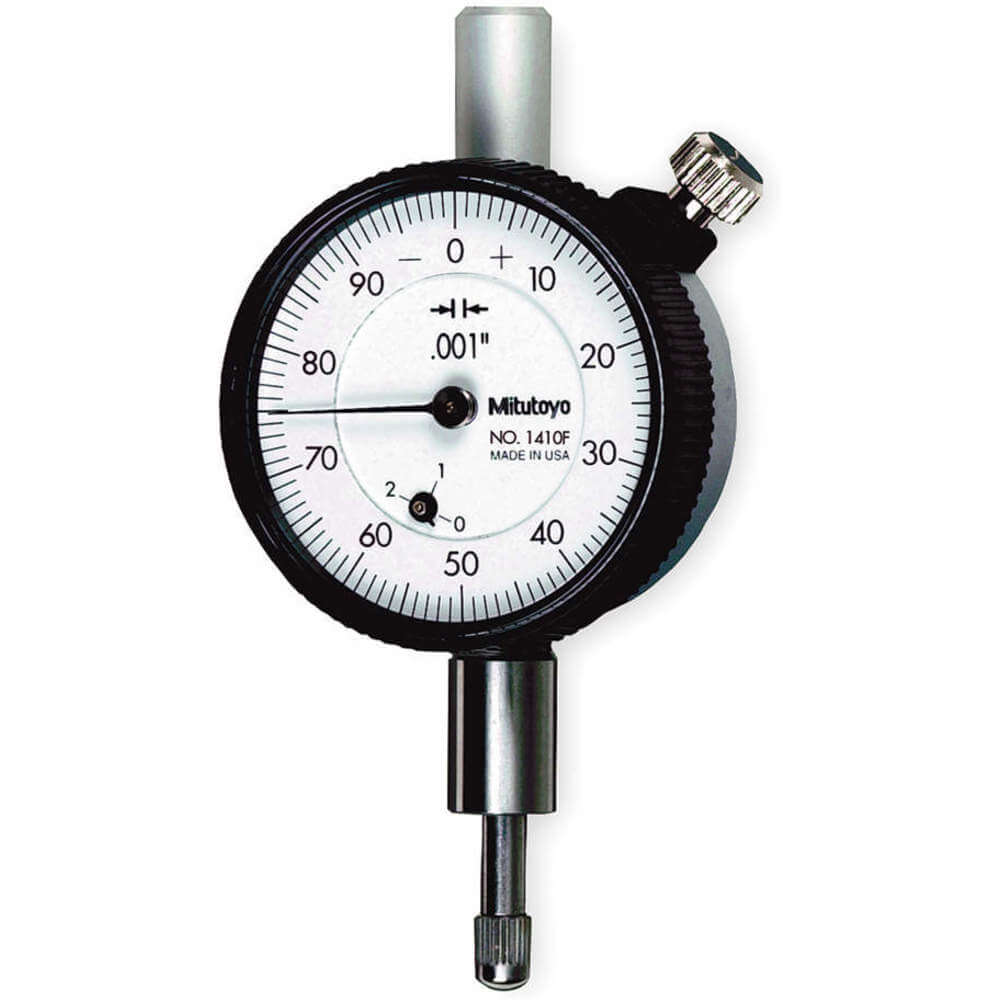

B	1410A-10	0-100	0" to 0.25"	-	-	Jeweled	40 mm	3 mm	0.375"	€168.97

MITUTOYO -

Dial Indicators
Dial indicators, also know as test indicators, are used for accurately measuring small distances and angles, as well as to measure the deflection of the arms in engine building operations. These units feature a stem to ensure fixture reliability and spindles that form the basis of accuracy, without causing any adverse effect to the indicator or work surface. The magnetic stand of these indicators accept all AGD-type dial indicators, test indicators and probes with lug back and a mounting hole. Choose from a range of these Mitutoyo dial indicators available in 0 to 0.050 inch and 0 to 1 inch range variants on Raptor Supplies.

Style	Model	Dial Color	Stem Dia.	Dial Reading	Bearing Type	Dial Size	Range Per Revolution	Stem Thread Size	Range	Price

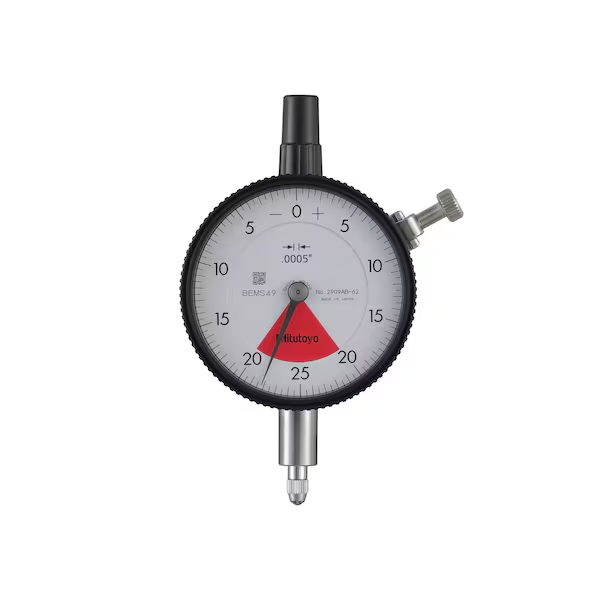

A	2909ab-62	-	-	-	-	-	-	-	-	€201.95	RFQ
B	2045s	-	-	-	-	-	-	-	-	€100.31	RFQ

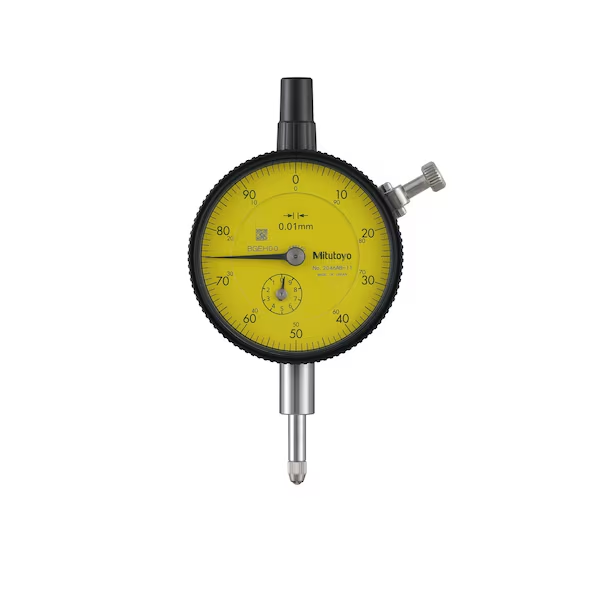

C	2046ab-11	-	-	-	-	-	-	-	-	€146.51	RFQ
D	3417a	-	3/8"	-	-	-	-	-	1"	€204.58	RFQ
E	193595	-	-	-	-	-	-	-	-	€4.00	RFQ
F	2044ab-09	-	-	-	-	-	-	-	-	€117.21	RFQ

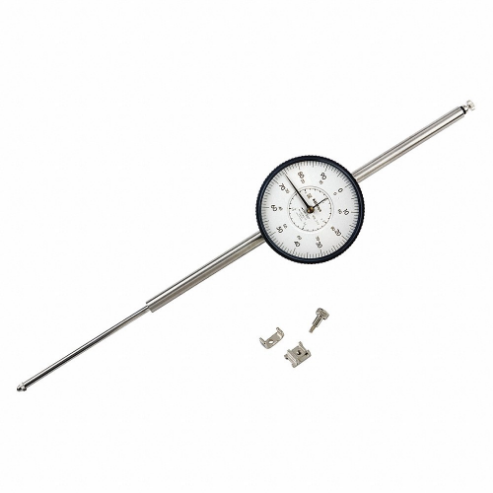

G	3428ab-19	-	-	-	-	-	-	-	-	€513.46	RFQ
B	2230sb-01	-	-	-	-	-	-	-	-	€164.98	RFQ

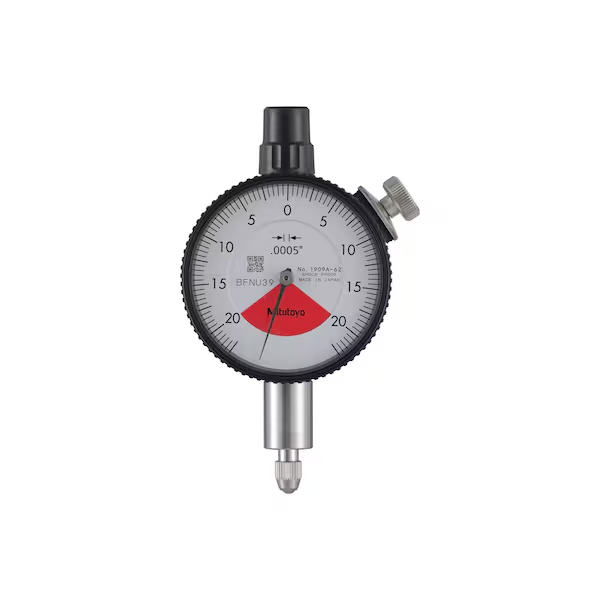

H	1909a-62	-	-	-	-	-	-	-	-	€159.71	RFQ
B	3050sb	-	-	-	-	-	-	-	-	€245.51	RFQ

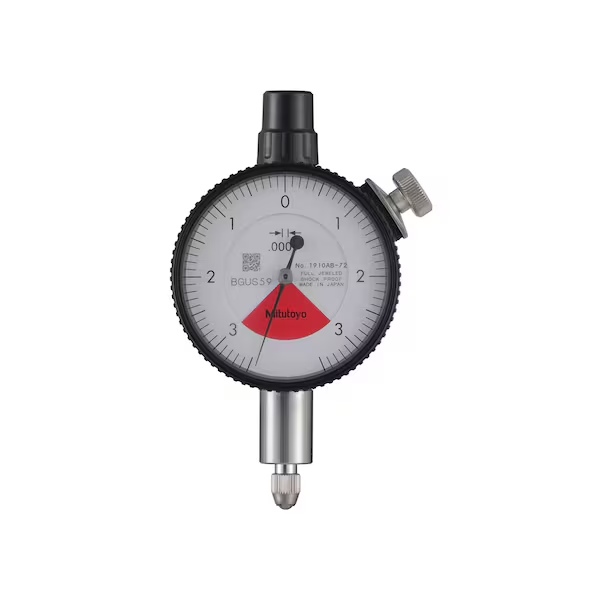

I	1910ab-72	-	3/8"	3-0-3	-	2 6/25"	-	-	-	€274.55	RFQ

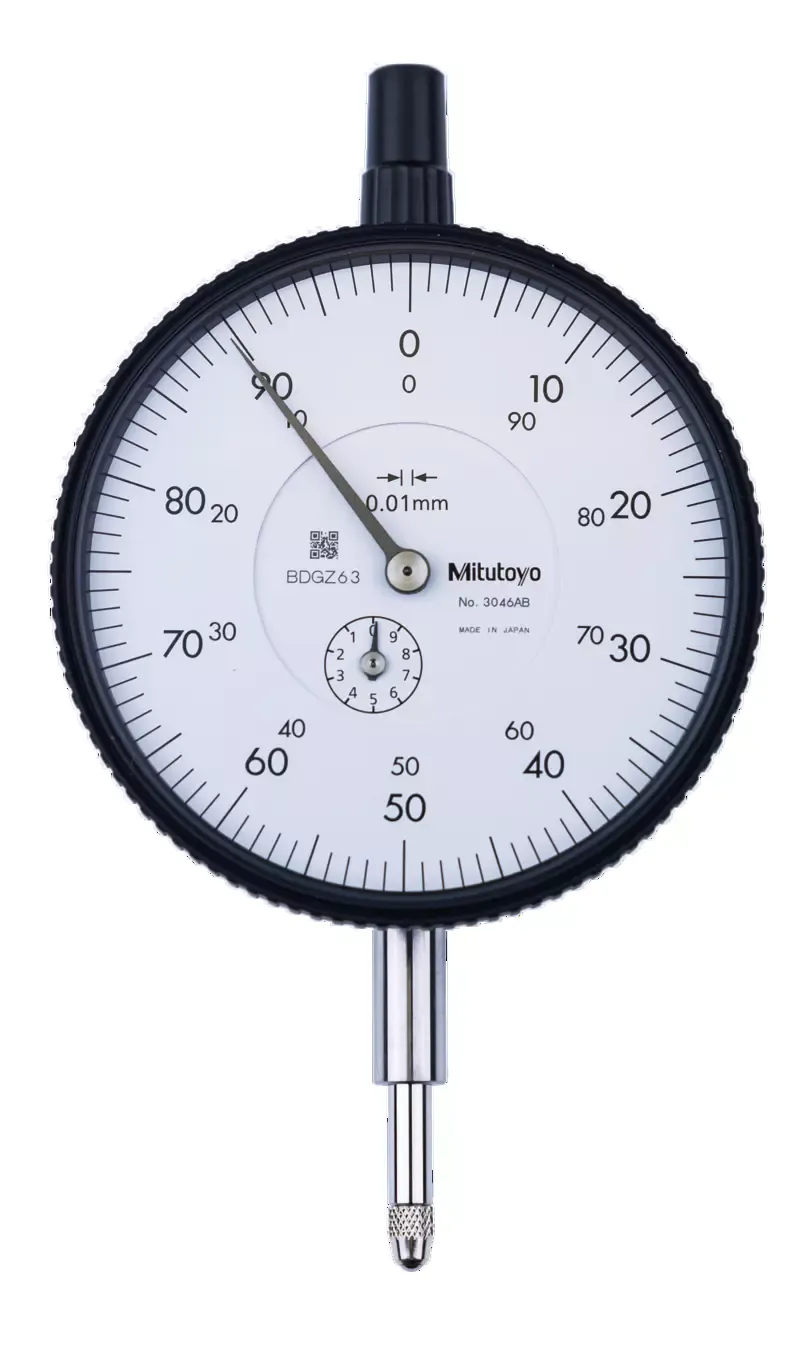

B	3046s	-	-	-	-	-	-	-	-	€190.07	RFQ
B	2320s-10	-	-	-	-	-	-	-	-	€220.42	RFQ
B	2048sb-10	-	-	-	-	-	-	-	-	€174.23	RFQ
J	193051	-	-	-	-	-	-	-	-	€6.00	RFQ
B	1010sb-11	-	-	-	-	-	-	-	-	€250.79	RFQ

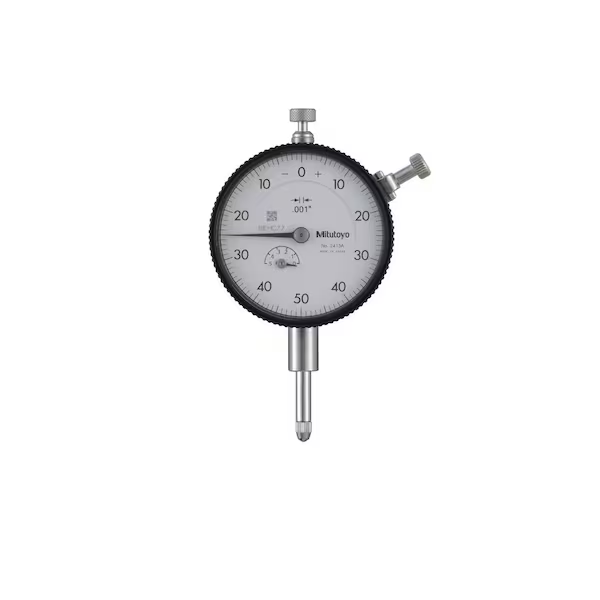

K	2802ab-10	-	-	-	-	-	-	-	-	€212.50	RFQ
B	1923tb-10	-	-	-	-	-	-	-	-	€234.95	RFQ
L	2976ab	-	3/8"	10	Plain	-	-	-	-	€119.92	RFQ
B	2915s-10	-	-	-	-	-	-	-	-	€168.94	RFQ
B	1923t-10	-	-	-	-	-	-	-	-	€254.75	RFQ
B	539-817r	-	-	-	-	-	-	-	-	€497.62	RFQ
B	1910s-72	-	-	-	-	-	-	-	-	€250.79	RFQ
M	1011S-11	Black	-	-	-	-	-	-	-	€231.93
N	1900S-10	Black	-	-	-	-	-	-	-	€250.31

MITUTOYO -

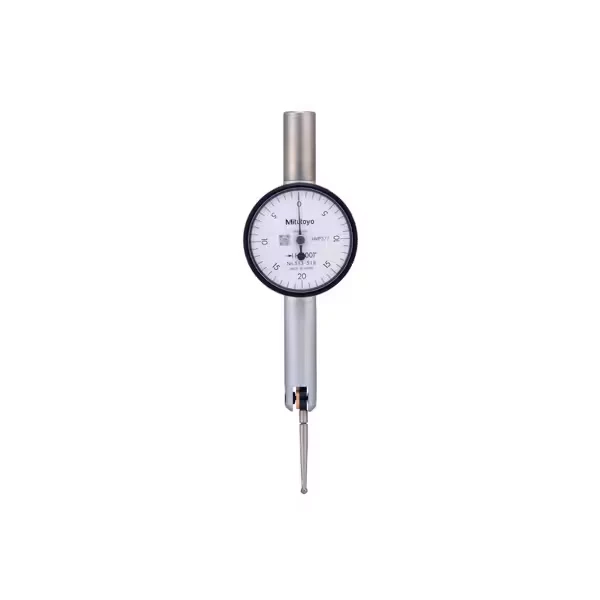

513 Series Dial Test Indicators

Style	Model	Range	Dial Reading	Dial Color	Dial Size	Contact Point Dia.	Stem Thread Size	Stylus Length	Range Per Revolution	Price

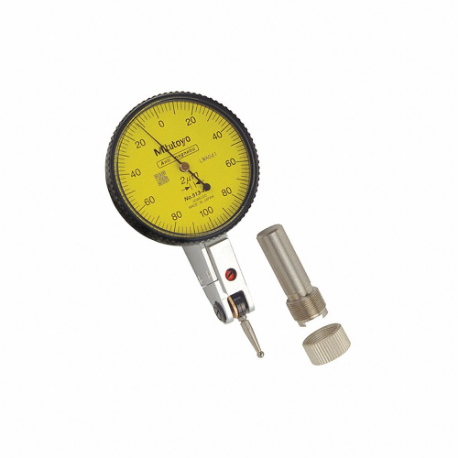

A	513-401-10E	-	-	Silver	-	-	-	-	-	€360.29

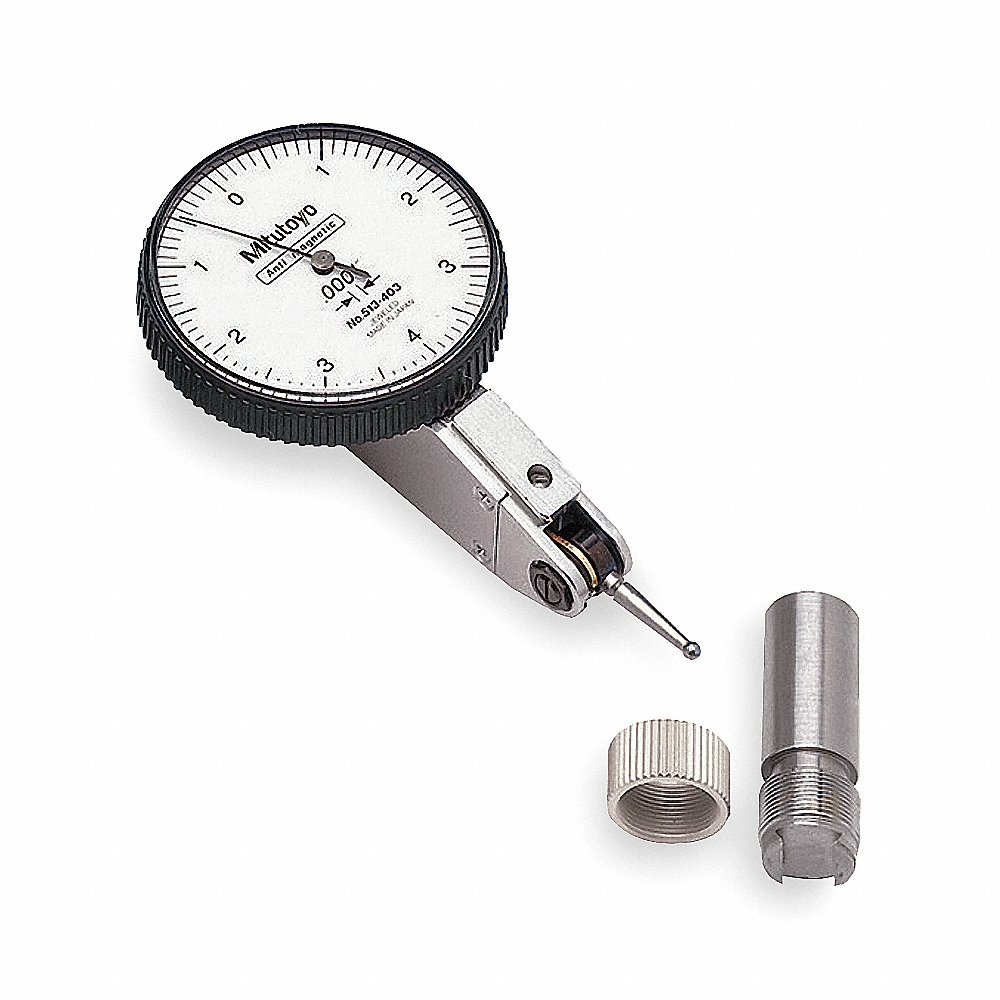

B	513-403-10E	-	0-4-0	White	40 mm	0.07812"	M6	0.61"	-	€225.65
C	513-517-10t	-	0-40-0	Silver	-	-	-	-	-	€223.07	RFQ

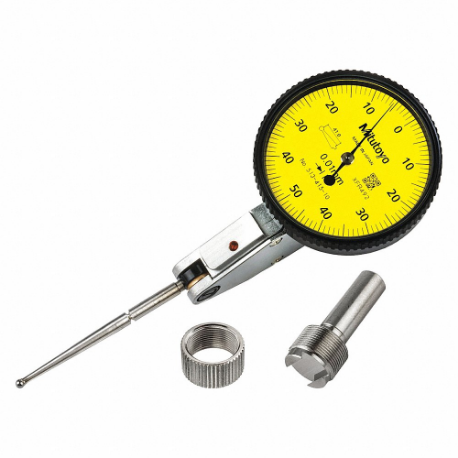

D	513-415-10H	-	-	Silver	-	-	-	-	-	€219.90

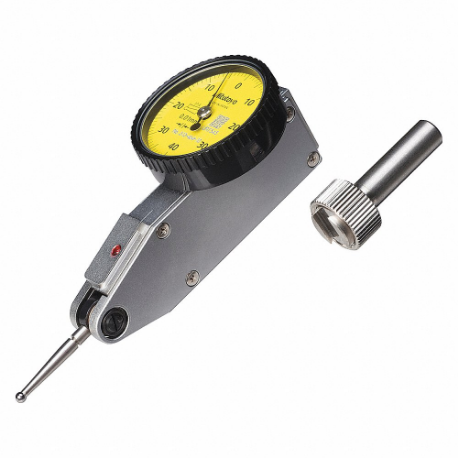

E	513-464-10E	-	-	Silver	-	-	-	-	-	€250.52

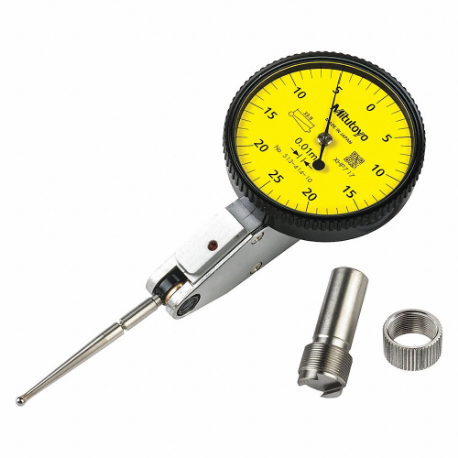

F	513-414-10E	-	-	-	-	-	-	-	-	€231.84

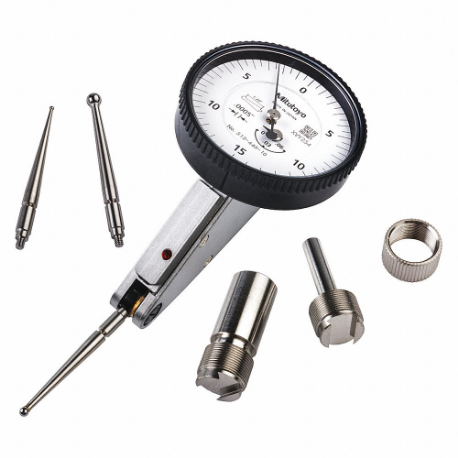

G	513-446-10A	-	-	Silver	-	-	-	-	-	€347.13

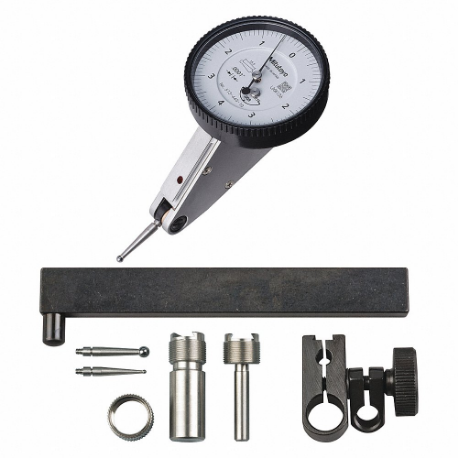

H	513-443-10T	-	-	Silver	-	-	-	-	-	€390.66

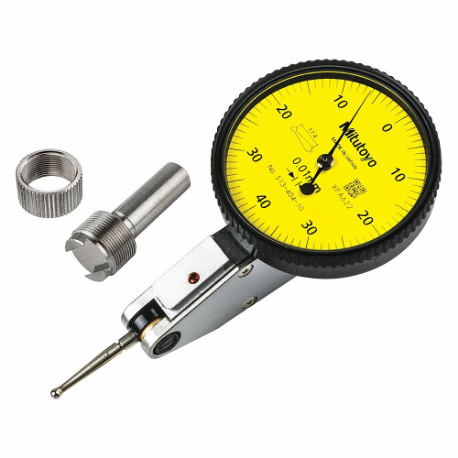

I	513-404-10H	-	-	Silver	-	-	-	-	-	€228.94

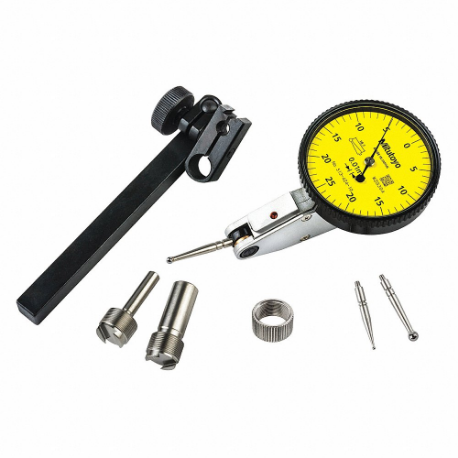

J	513-424-10T	-	-	Silver	-	-	-	-	-	€260.13

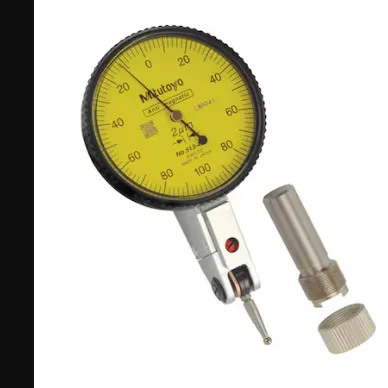

K	513-415-10T	-	0-50-0	Black, Silver	-	-	-	-	-	€324.56

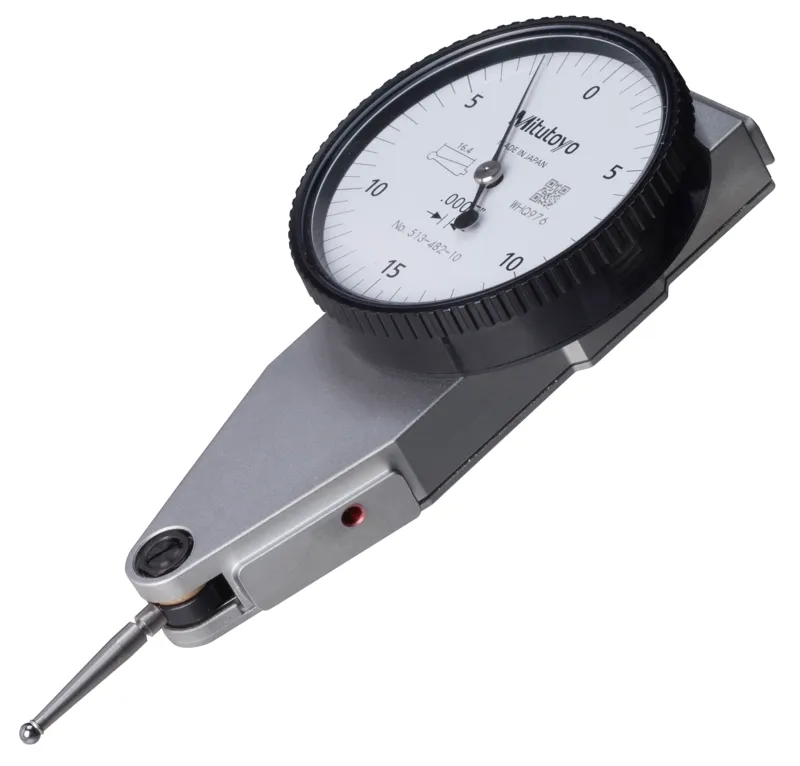

L	513-482-10T	-	0-15-0	-	-	-	-	-	-	€167.00

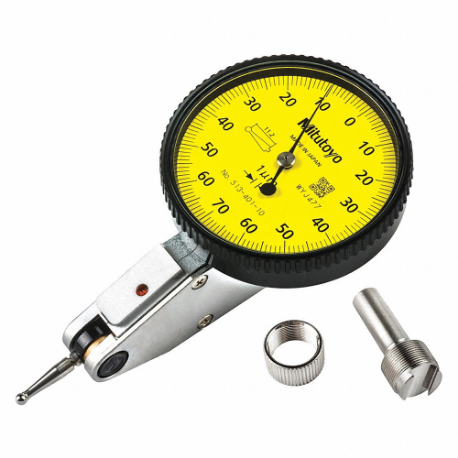

M	513-401-10H	-	-	Silver	-	-	-	-	-	€280.58

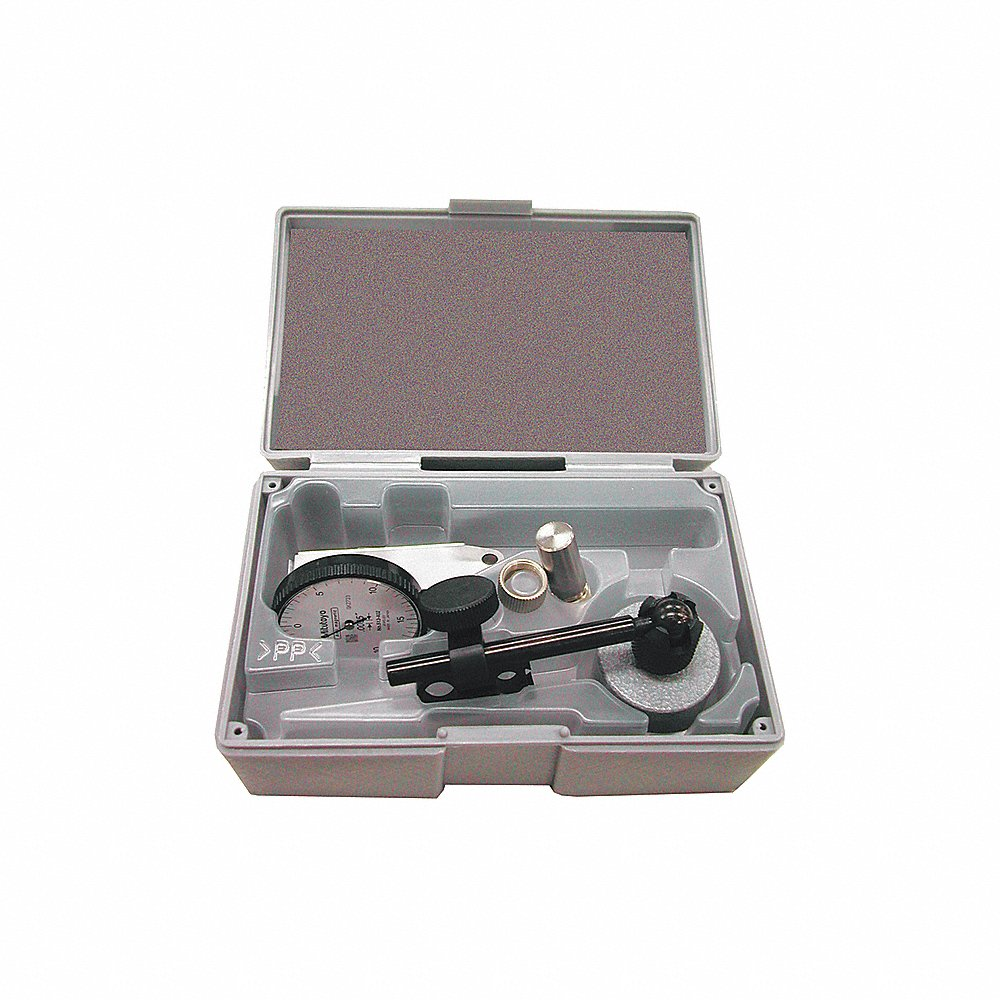

N	513-907-10E	-	0-15-0	White	232 mm	0.07812"	-	-	-	€277.19	RFQ
O	513-405-10E	-	0-100-0	Yellow	40 mm	-	-	-	-	€203.02

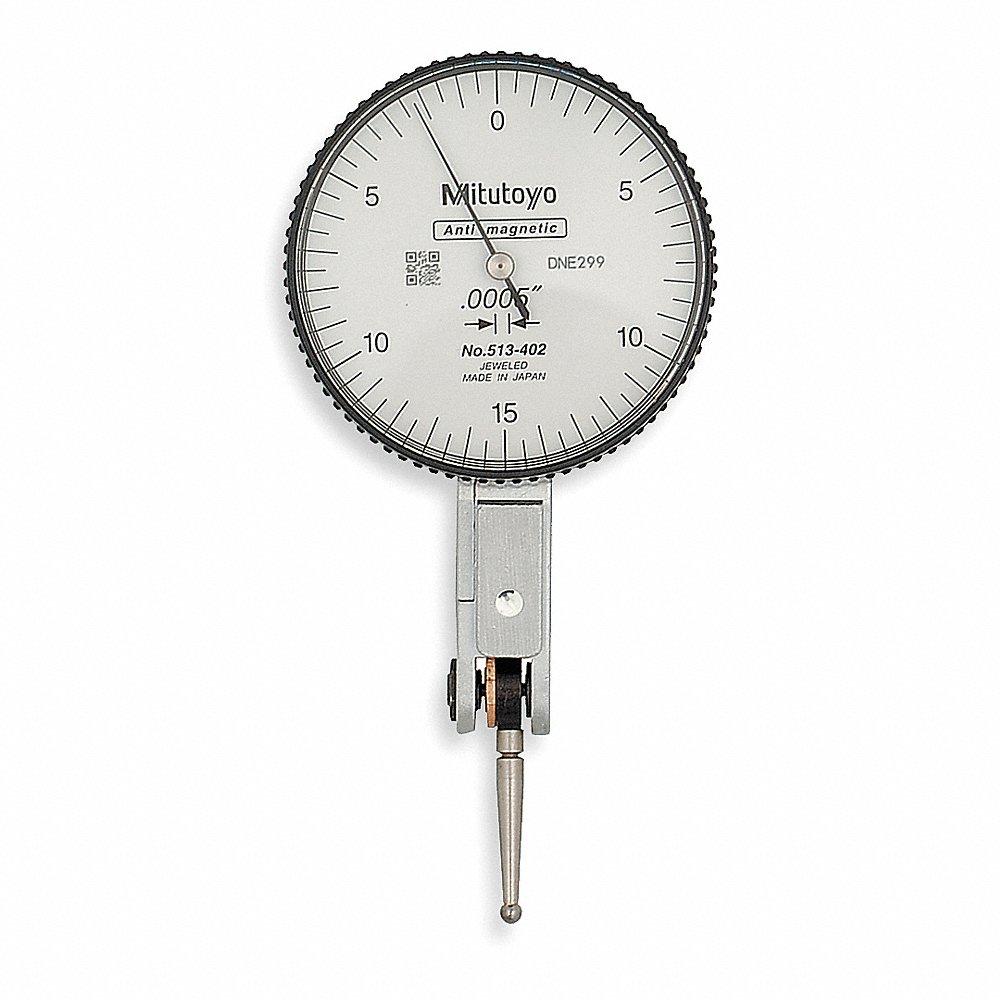

P	513-402-10E	-	0-15-0	-	1 1/2"	-	M6	1/2"	0.015"	€184.89
C	513-443-16t	-	0-4-0	Silver	-	-	-	-	-	€339.22	RFQ

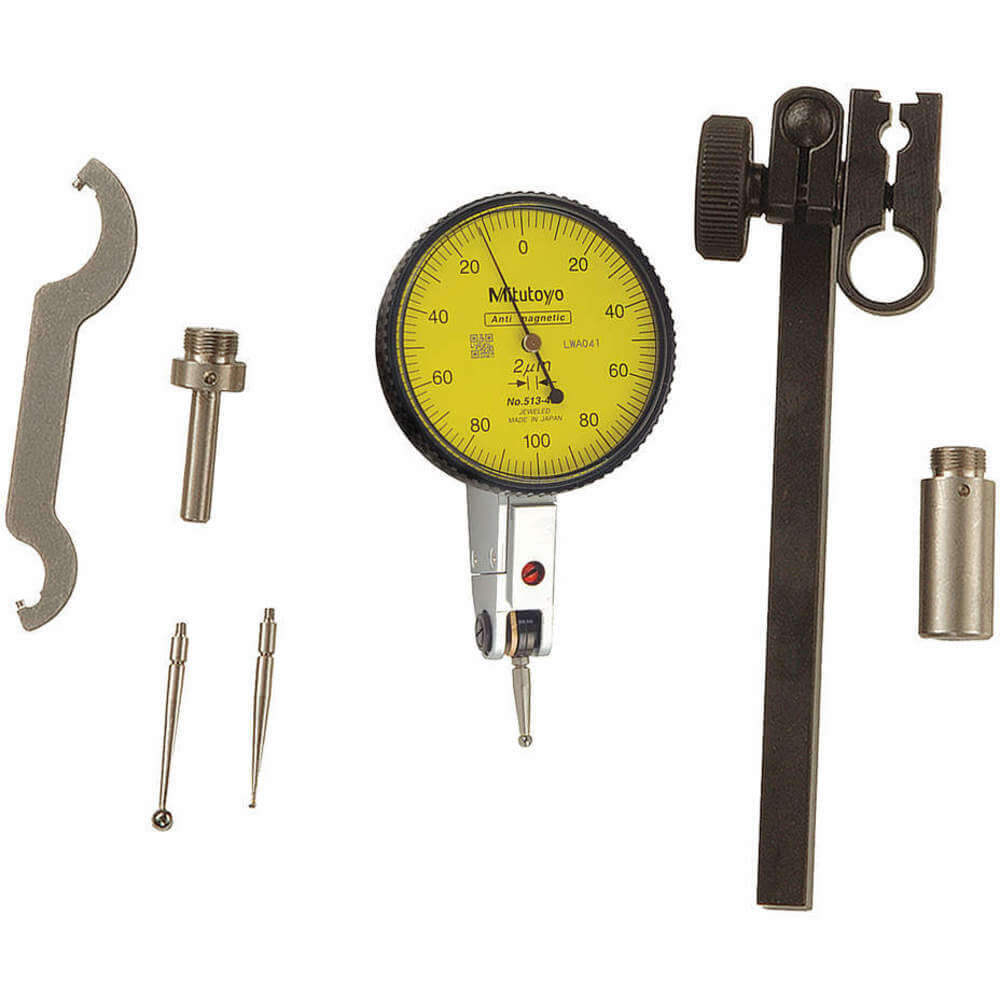

Q	513-405-10T	0 mm to 0.2 mm	0-100-0	Yellow	40 mm	2 mm	M6	14.7 mm	0.2 mm	€298.54

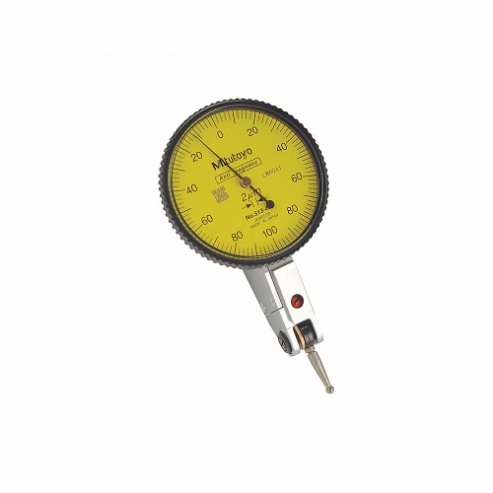

R	513-405-10H	0 mm to 0.2 mm	0 to 100	Yellow	40 mm	2 mm	M8 x 1	14.7 mm	0.2 mm	€250.15

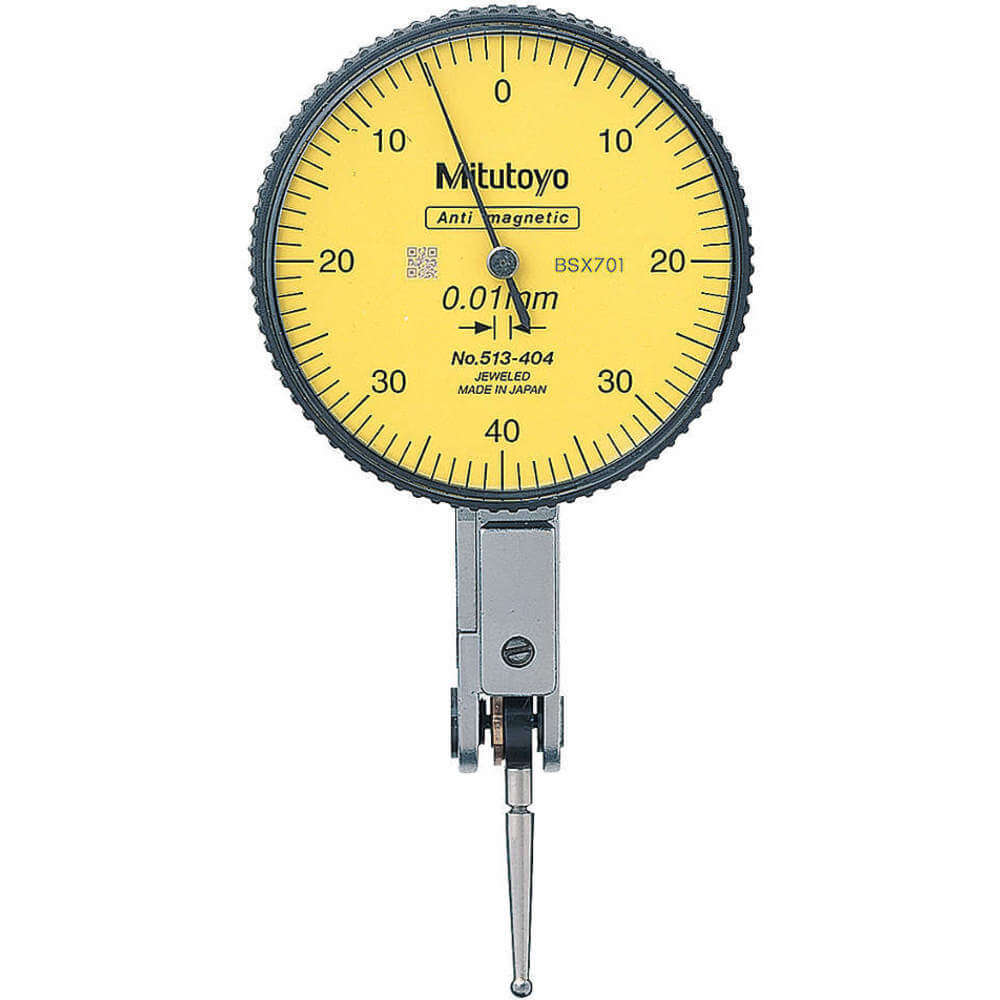

S	513-404-10E	0 mm to 0.8 mm	0-40-0	Yellow	40 mm	2 mm	M8 x 1	20.9 mm	-	€189.53

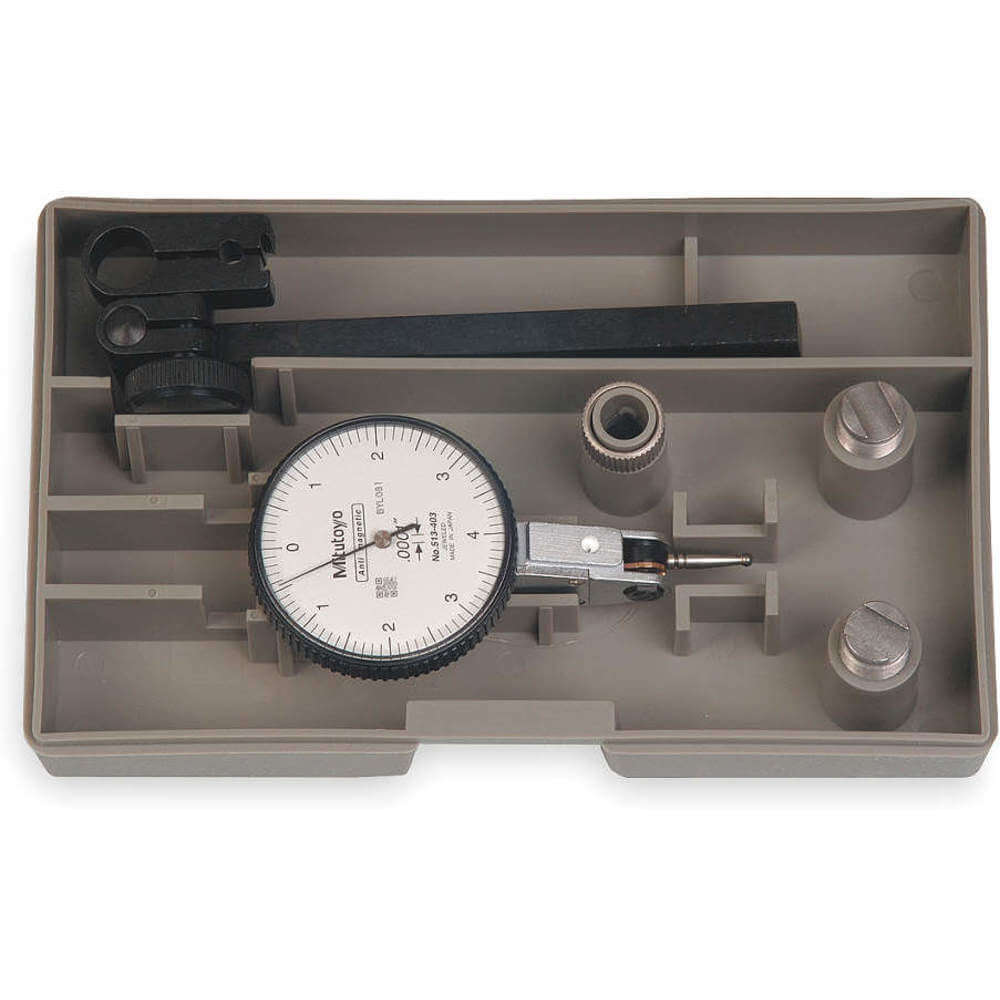

T	513-403-10T	0" to 0.008"	0-4-0	White	40 mm	1/32"	M6	0.61"	0.008"	€284.79
U	513-443-10A	0" to 0.016"	0-4-0	White	40 mm	5/64"	M8 x 1	15 mm	0.008"	€326.02
V	513-452-10T	0" to 0.03"	0-15-0	White	40 mm	0.039", 0.118"	M6	19.9 mm	0.03"	€266.85
W	513-412-10E	0" to 0.03"	0-15-0	White	40 mm	5/64"	M6	1.2"	0.03"	€250.02
X	513-452-10E	0" to 0.03"	0-15-0	White	40 mm	5/64"	M8 x 1	19.9 mm	0.005"	€260.77

MITUTOYO -

2 Series Dial Indicators

Style	Model	Dial Reading	Type	Range	Range Per Rev.	Bearing Type	Dial Color	Stem Dia.	Dial Size	Price
A	2804ab-10	0 to 10	ANSI, AGD Standard	0.05"	0.01"	Jeweled	-	3/8"	2 6/25"	€212.50	RFQ
A	2356ab-10	0 to 10	ANSI, AGD Standard	-	-	Jeweled	White	3/8"	57 mm	€285.11	RFQ
A	2048a-10	0 to 100	Dial Indicator	-	-	Jeweled	White	-	57 mm	€208.54	RFQ
A	2424ab-19	0 to 100	ANSI, AGD Standard	-	0.1"	Jeweled	White	3/8"	57 mm	€307.54	RFQ
A	2050ab-60	0 to 100	EN ISO Standard	20 mm	1 mm	-	-	-	-	€224.38	RFQ
A	2310a-10	0 to 100	Dial Indicator	-	-	Jeweled	White	-	-	€159.71	RFQ
A	2904ab	0 to 100	ANSI, AGD Standard	1"	-	Plain	White	3/8"	57 mm	€192.70	RFQ
A	2046a-09	0 to 100	Dial Indicator	-	-	Plain	White	-	-	€163.67	RFQ
B	2356A-10	0-10	ANSI, AGD Standard	0.25"	0.01"	-	-	-	-	€169.00

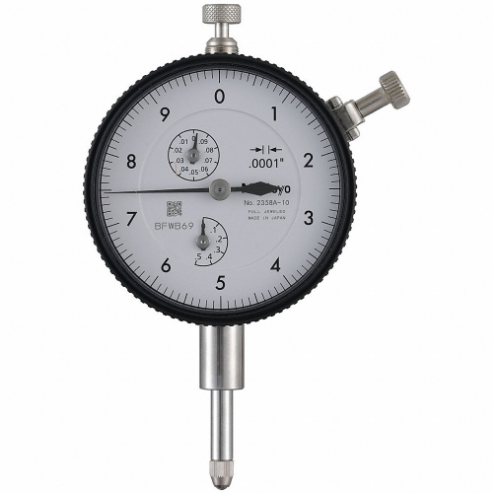

A	2358ab-10	0-10	ANSI, AGD Standard	0.5"	0.01"	-	-	-	-	€285.11	RFQ
A	2507ab	0-25-0	ANSI, AGD Standard	1/8"	0.05"	-	Black	-	-	€153.10	RFQ
C	2922AB	0-25-0	ANSI, AGD Standard	0.125"	0.05"	-	-	-	-	€107.00
D	2507A	0-25-0	ANSI, AGD Standard	0.125"	0.05"	-	-	-	-	€109.00
A	2922a	0-25-0	Dial Indicator	-	-	Plain	White	-	57 mm	€162.35	RFQ
E	2415AB	0-50-0	ANSI, AGD Standard	0.5"	0.1"	-	-	-	-	€94.00
A	2047ab	0-50-0	EN ISO Standard	10 mm	1 mm	-	-	-	-	€147.83	RFQ
F	2045A	0-50-0	EN ISO Standard	5 mm	1 mm	-	-	-	-	€75.00
A	2415a	0-50-0	ANSI, AGD Standard	0.5"	0.1"	-	-	-	-	€131.59	RFQ
A	2417ab	0-50-0	ANSI, AGD Standard	1"	0.1"	-	-	-	-	€163.67	RFQ
A	2045ab	0-50-0	EN ISO Standard	5 mm	1 mm	-	-	-	-	€100.57	RFQ

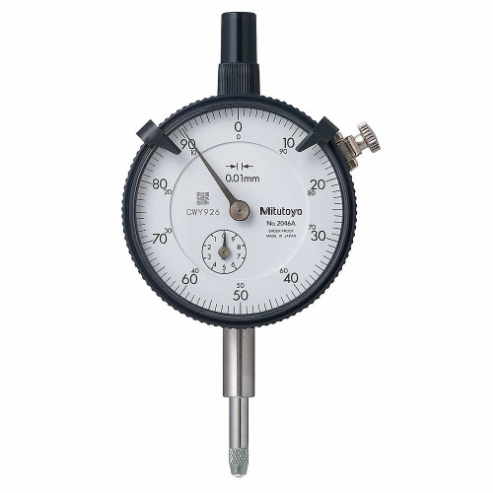

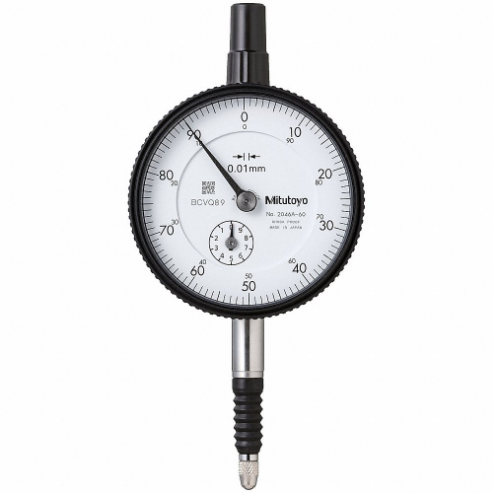

G	2046A-60	0-100	-	0 mm to 10 mm	-	Plain	White	8 mm	57 mm	€255.94
A	2119a-10	0-100-0	Dial Indicator	-	-	Jeweled	White	8 mm	-	€250.79	RFQ
A	2119ab-10	0-100-0	EN ISO Standard	5 mm	0.2 mm	-	-	-	-	€258.71	RFQ
A	2113a-10	0-100-0	EN ISO Standard	2 mm	0.2 mm	-	-	-	-	€246.83	RFQ

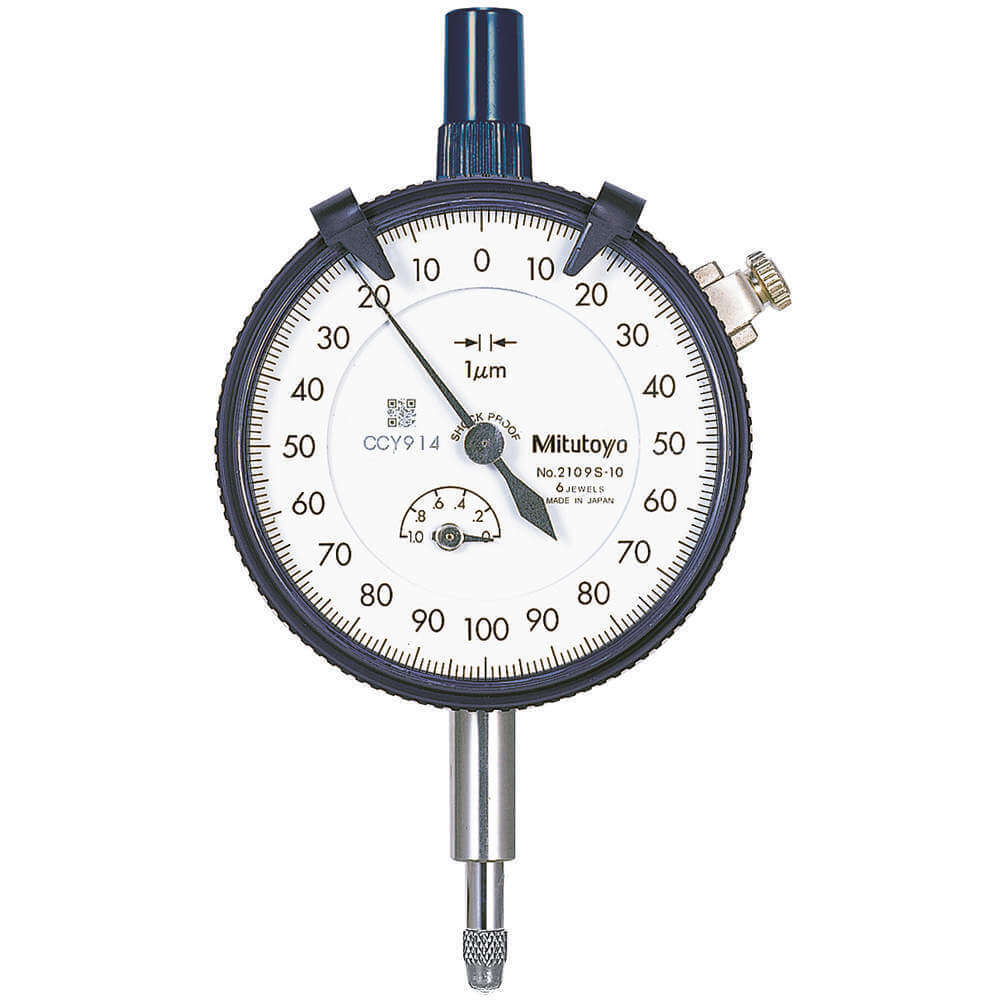

H	2113AB-10	0-100-0	EN ISO Standard	2 mm	0.2 mm	-	-	-	-	€136.00

MITUTOYO -

Metric Dial Indicators With 9.52 mm Stem

Style	Model	Range	Dial Reading	Range Per Rev.	Graduation	H Mpe(hysteresis)	R Mpe(repeatability)	Measuring Force	Mpe First One Revolution	Price
A	1011ab-11	0.5 mm	0-10-0	1.5 mm	0,002 mm	2 µm	-1 µm to +1 µm	0.4N to 1.5N	-2 µm to +2 µm	€246.83	RFQ

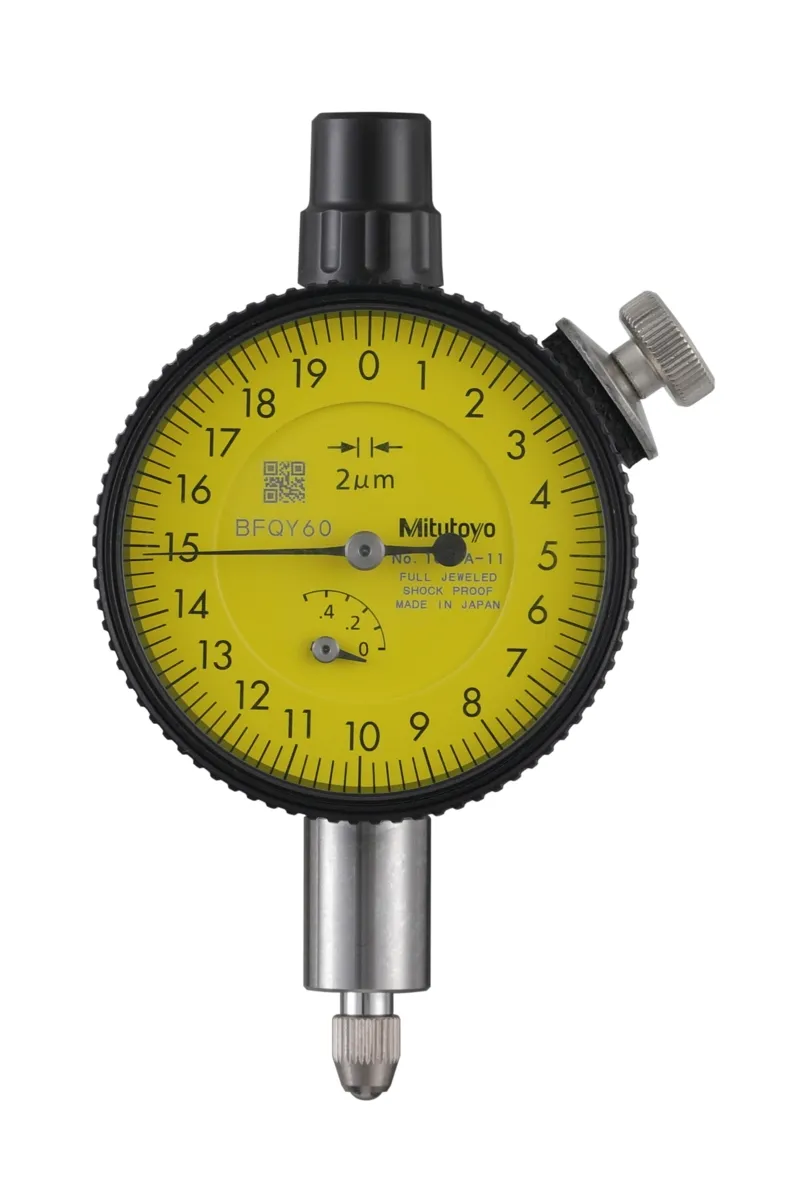

B	1010A-11	0.5 mm	0-20	1.5 mm	0,002 mm	2 µm	-1 µm to +1 µm	0.4N to 1.5N	-2 µm to +2 µm	-	RFQ

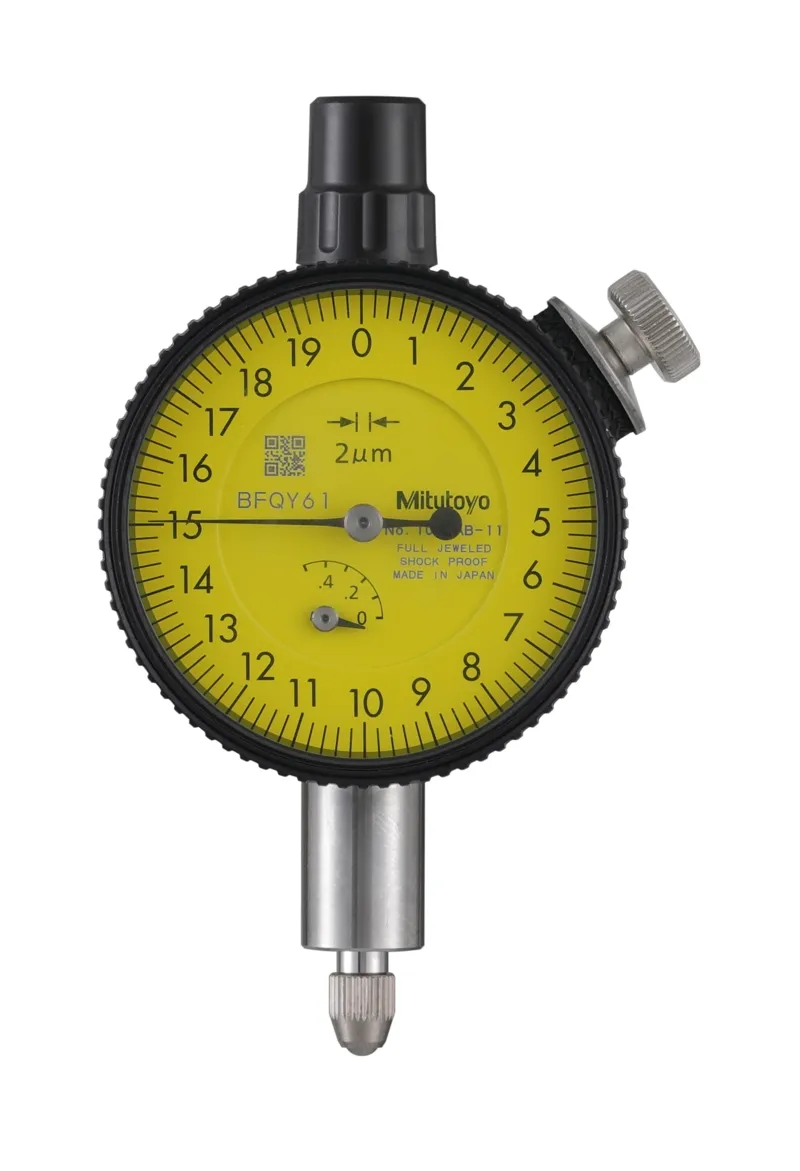

C	1010AB-11	0.5 mm	0-20	1.5 mm	0,002 mm	2 µm	-1 µm to +1 µm	0.4N to 1.5N	-2 µm to +2 µm	€213.00	RFQ

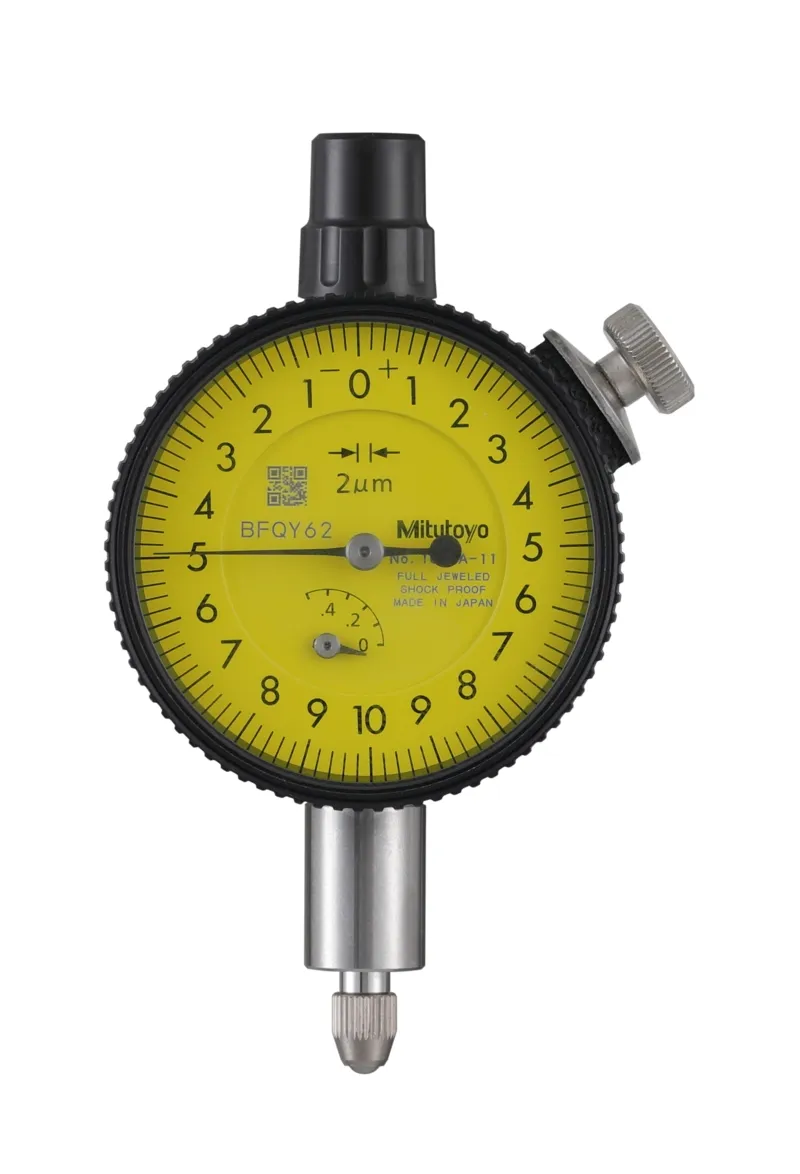

D	1011A-11	0.5 mm	0-10-0	1.5 mm	0,002 mm	2 µm	-1 µm to +1 µm	0.4N to 1.5N	-2 µm to +2 µm	€215.00	RFQ

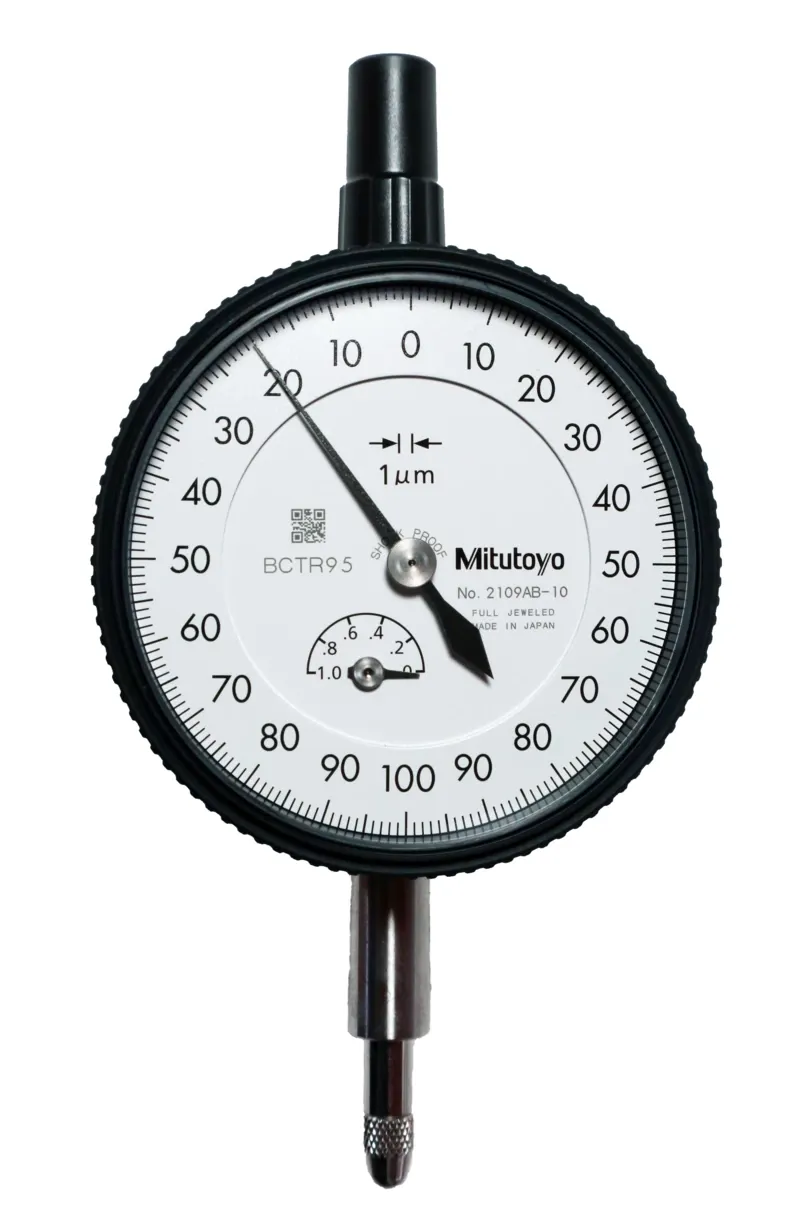

E	2109A-11	1 mm	0-10-0	0.2 mm	0,001 mm	2 µm	-0.3 µm to +0.3 µm	0.4N to 1.5N	-3 µm to +3 µm	€156.00	RFQ

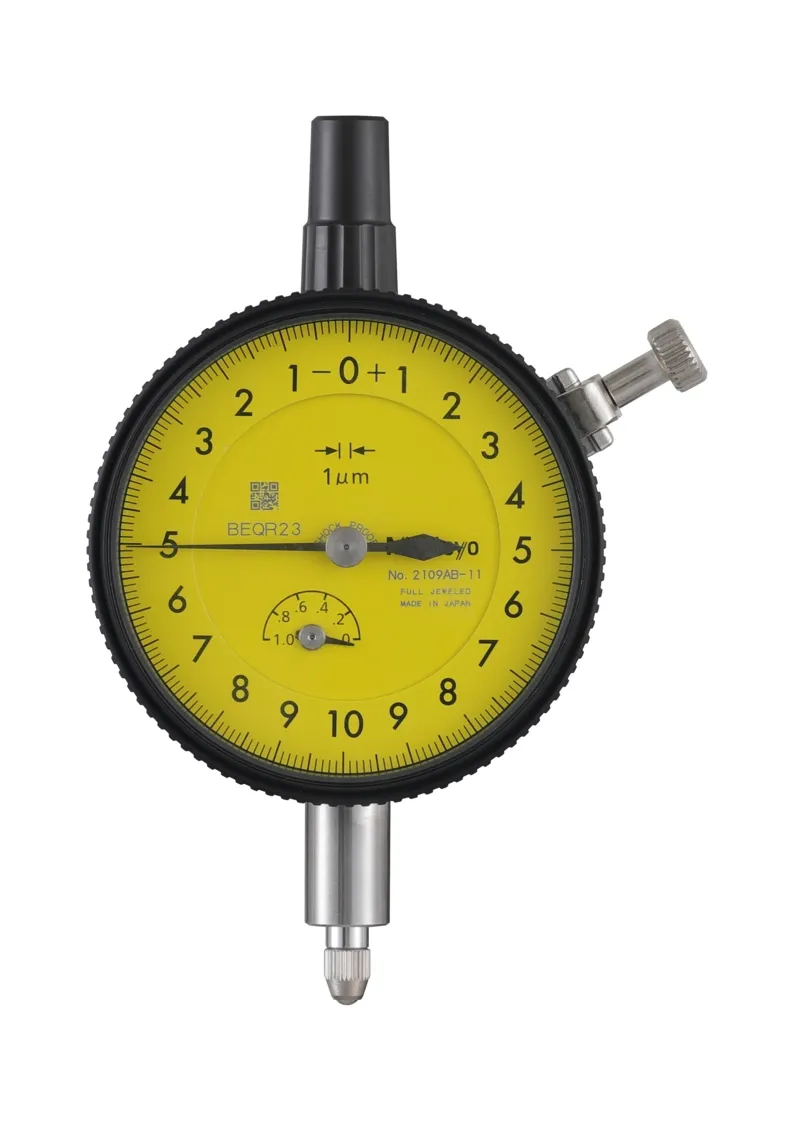

F	2109AB-11	1 mm	0-10-0	0.2 mm	0,001 mm	2 µm	-0.3 µm to +0.3 µm	0.4N to 1.5N	-3 µm to +3 µm	€151.00	RFQ

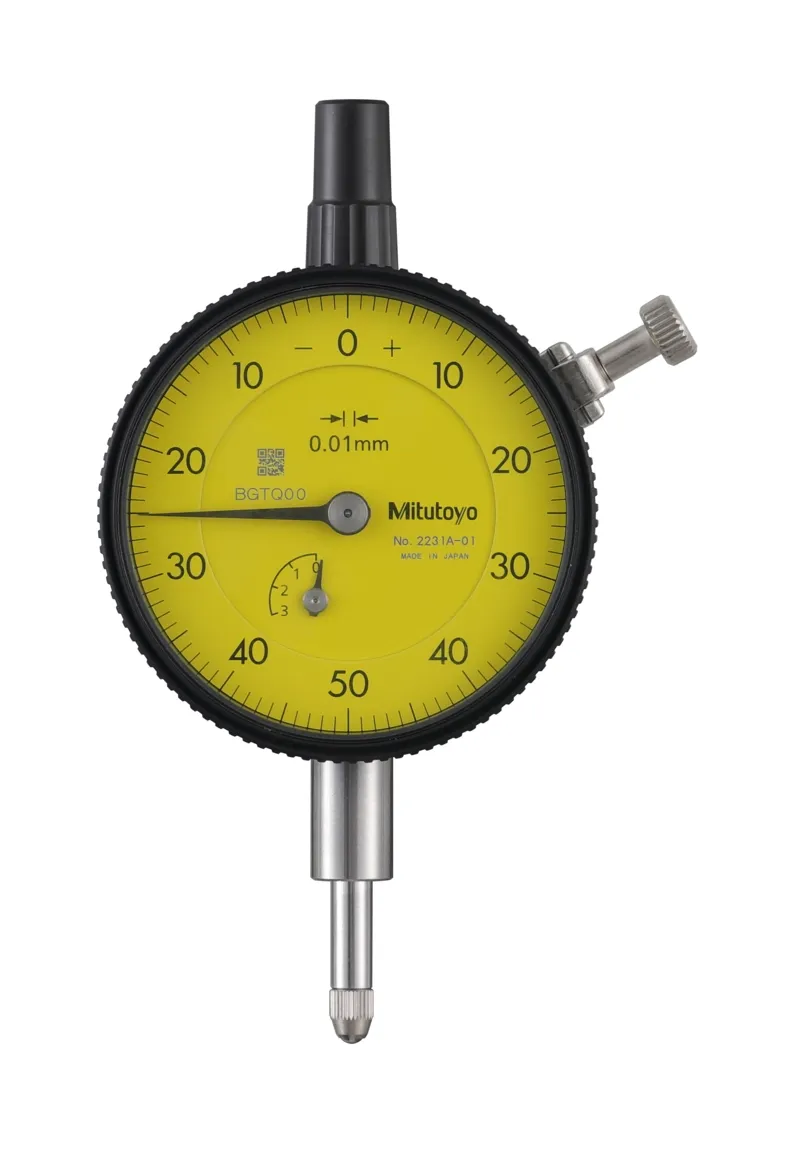

G	2231A-01	2.5 mm	0-50-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€98.00	RFQ

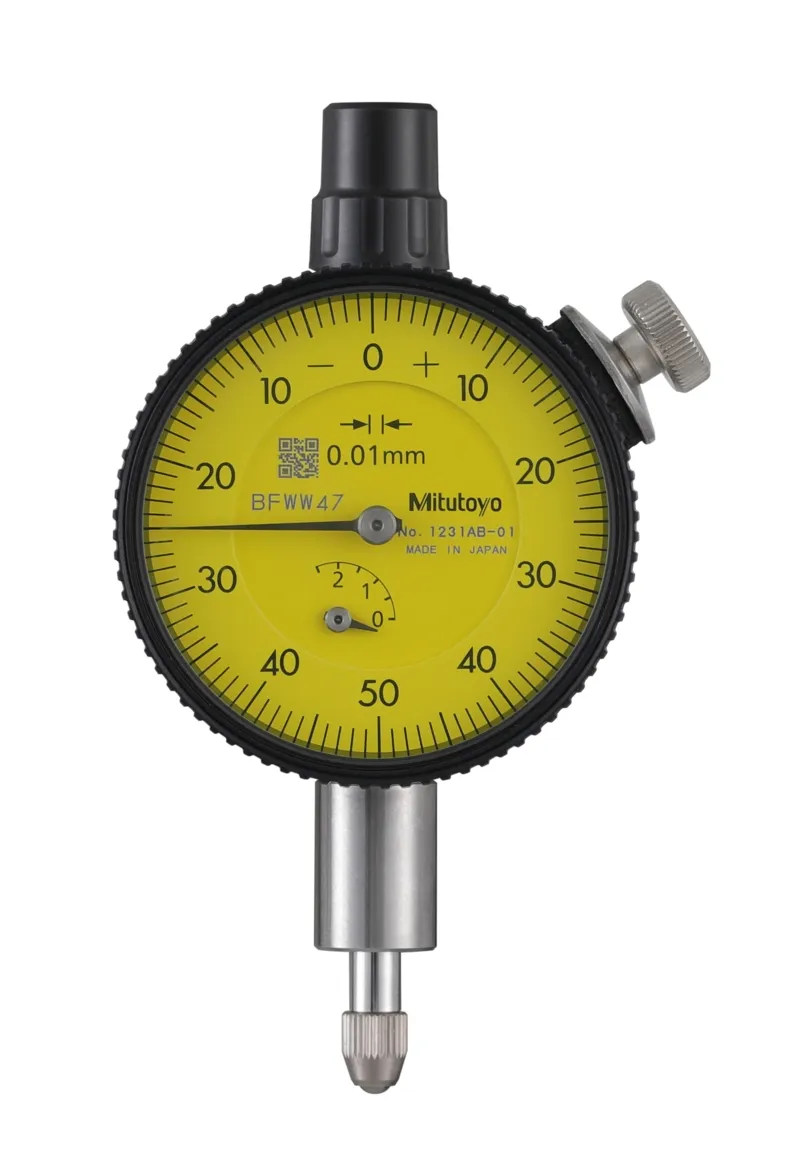

H	1231AB-01	2.5 mm	0-50-0	1 mm	0.01 mm	3 µm	-2 µm to +2 µm	0.4N to 1.4N	-10 µm to +10 µm	€121.00	RFQ
A	1230ab-01	2.5 mm	0-100	1 mm	0.01 mm	3 µm	-2 µm to +2 µm	0.4N to 1.4N	-10 µm to +10 µm	€157.06	RFQ
A	2231ab-01	2.5 mm	0-50-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€154.43	RFQ

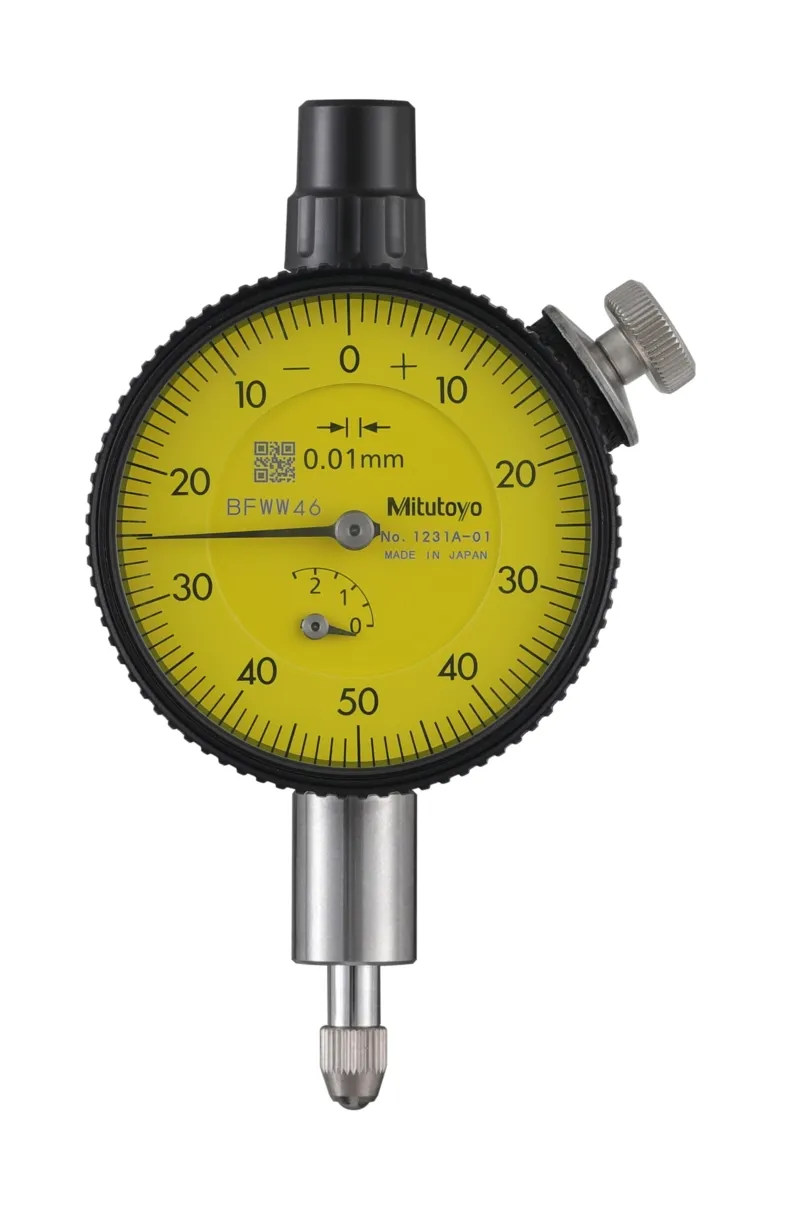

I	1231A-01	2.5 mm	0-50-0	1 mm	0.01 mm	3 µm	-2 µm to +2 µm	0.4N to 1.4N	-10 µm to +10 µm	€124.00	RFQ

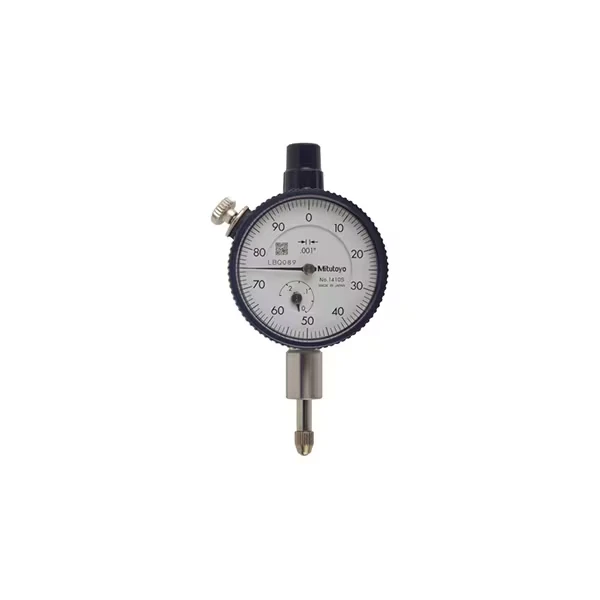

J	1230A-01	2.5 mm	0-100	1 mm	0.01 mm	3 µm	-2 µm to +2 µm	0.4N to 1.4N	-10 µm to +10 µm	€168.29
A	1045a-01	5 mm	0-50-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€145.18	RFQ
A	2119ab-11	5 mm	0-10-0	0.2 mm	0,001 mm	2.5 µm	-0.3 µm to +0.3 µm	0.4N to 1.5N	-7 µm to +7 µm	€258.71	RFQ
K	1044A-01	5 mm	±0-100	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€186.68	RFQ

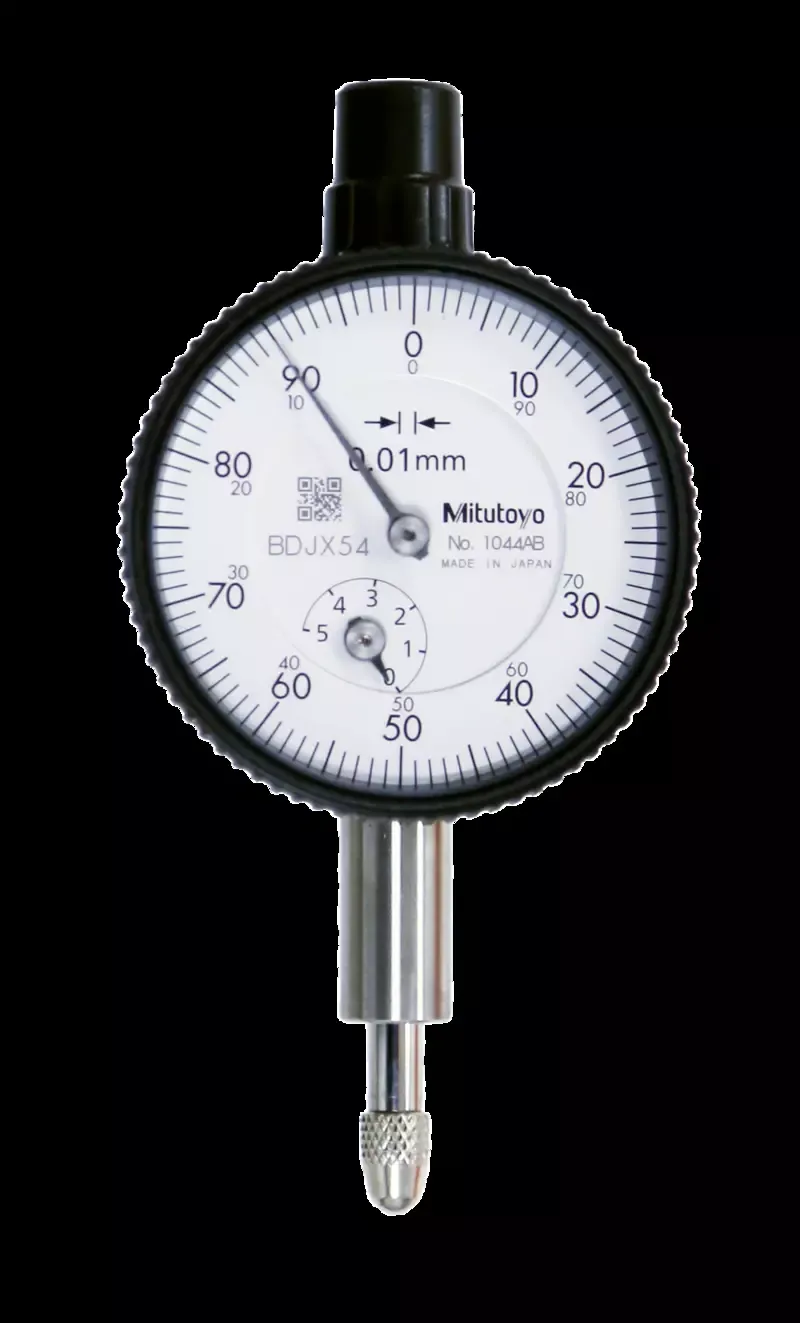

L	1044AB-01	5 mm	±0-100	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€111.00	RFQ

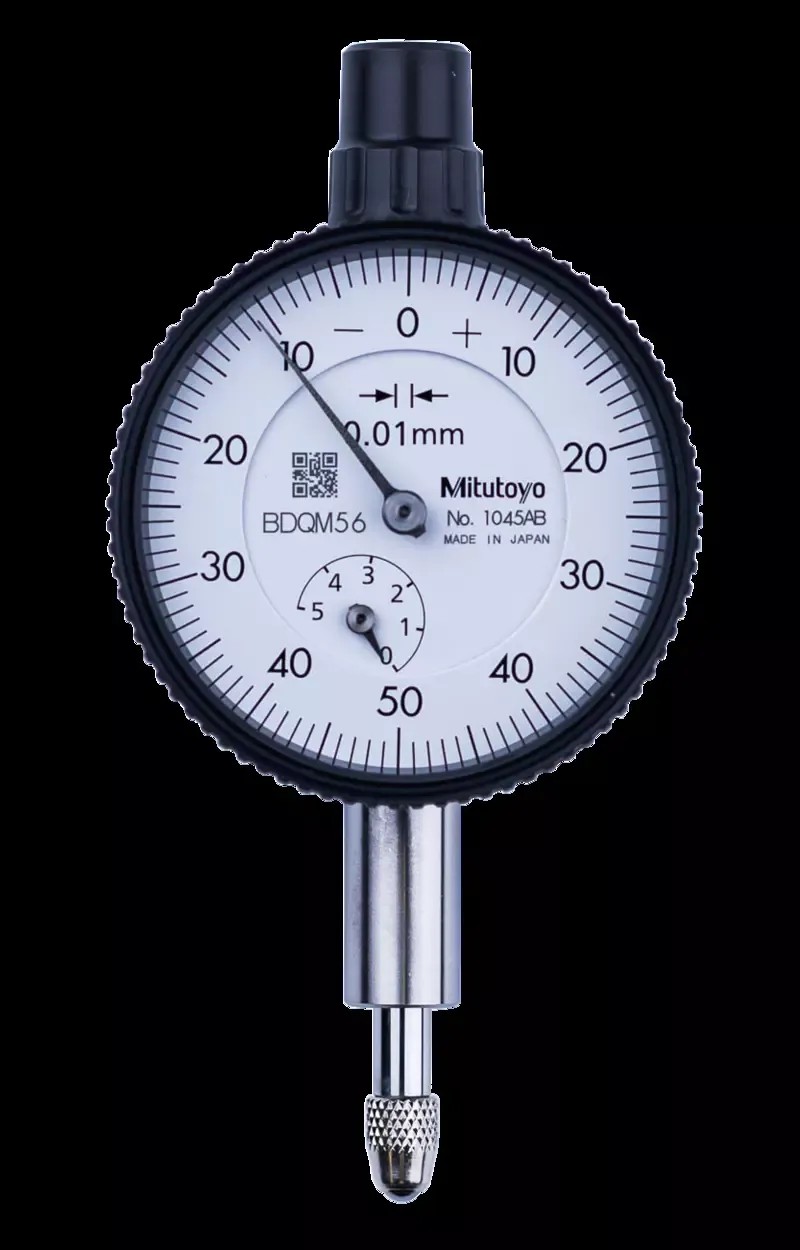

M	1045AB-01	5 mm	0-50-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€113.00

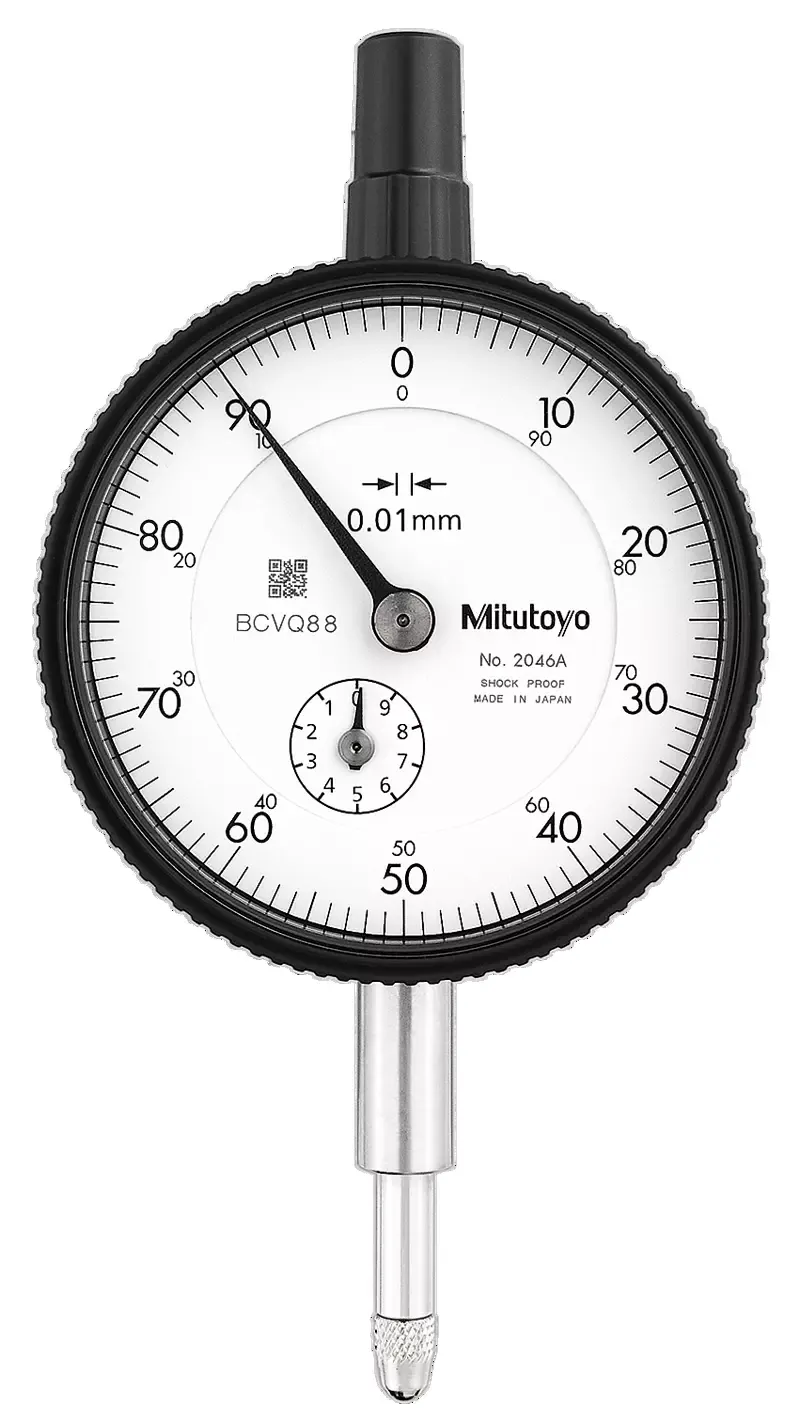

N	2046AB-01	10 mm	±0-100	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€96.00	RFQ

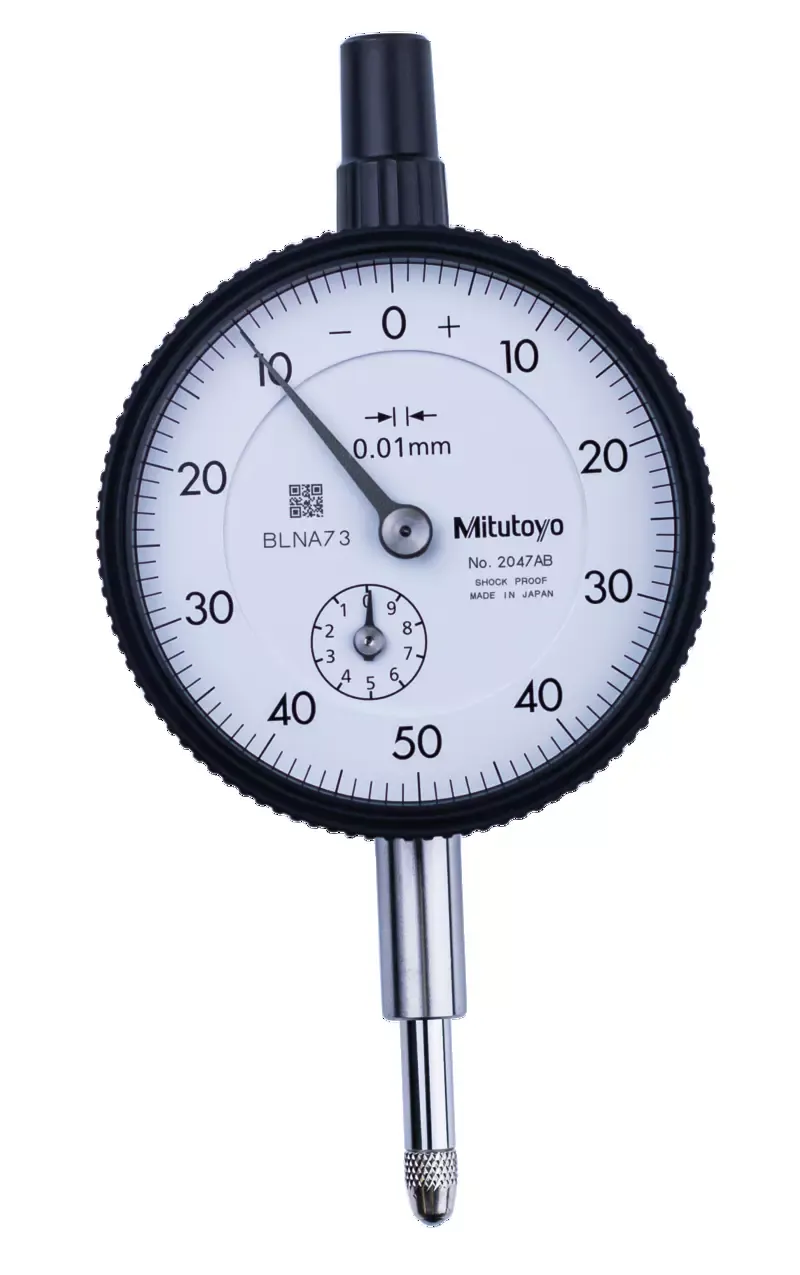

O	2047AB-01	10 mm	0-50-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€99.00	RFQ

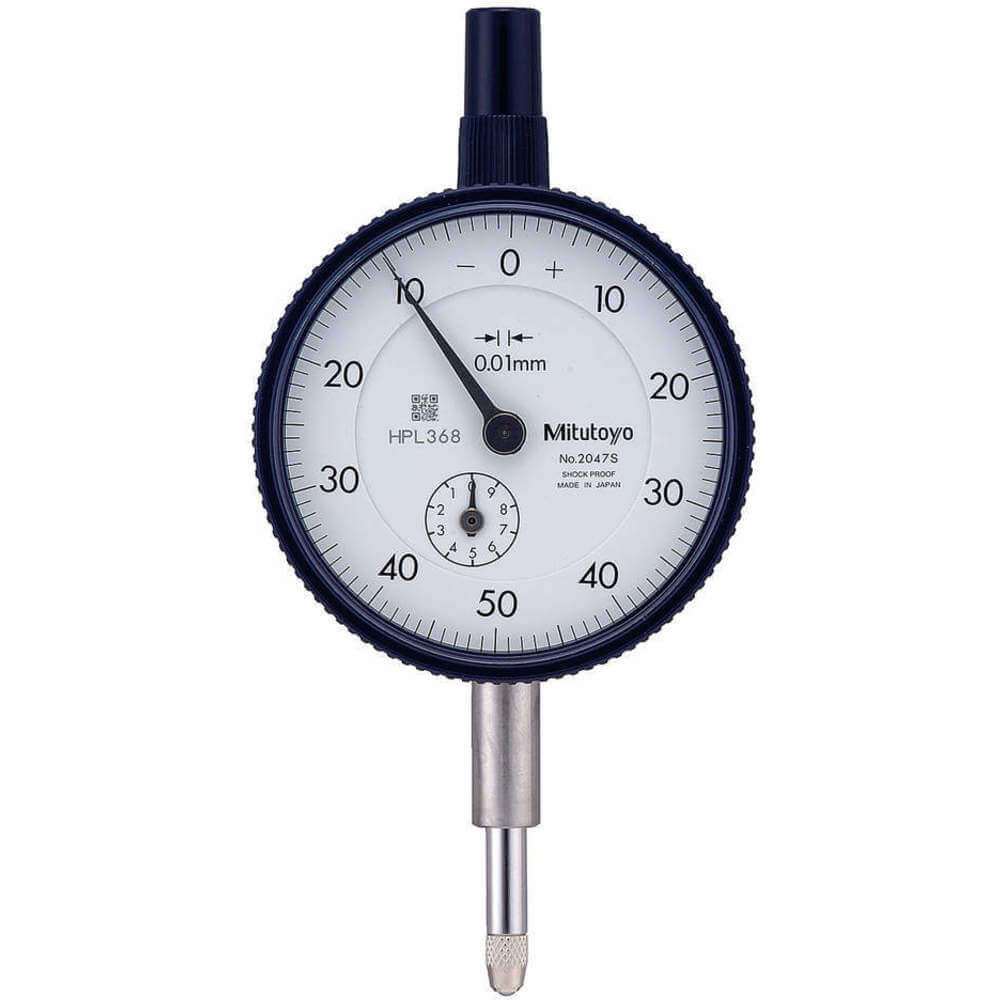

O	2047A-01	10 mm	0-50-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€101.00	RFQ
O	2047AB-11	10 mm	0-50-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€113.00	RFQ
A	2047a-11	10 mm	0-50-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€147.83	RFQ
A	2902a-01	10 mm	100-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€147.83	RFQ
A	2902ab-01	10 mm	100-0	1 mm	0.01 mm	3 µm	-3 µm to +3 µm	0.4N to 1.4N	-10 µm to +10 µm	€145.18	RFQ

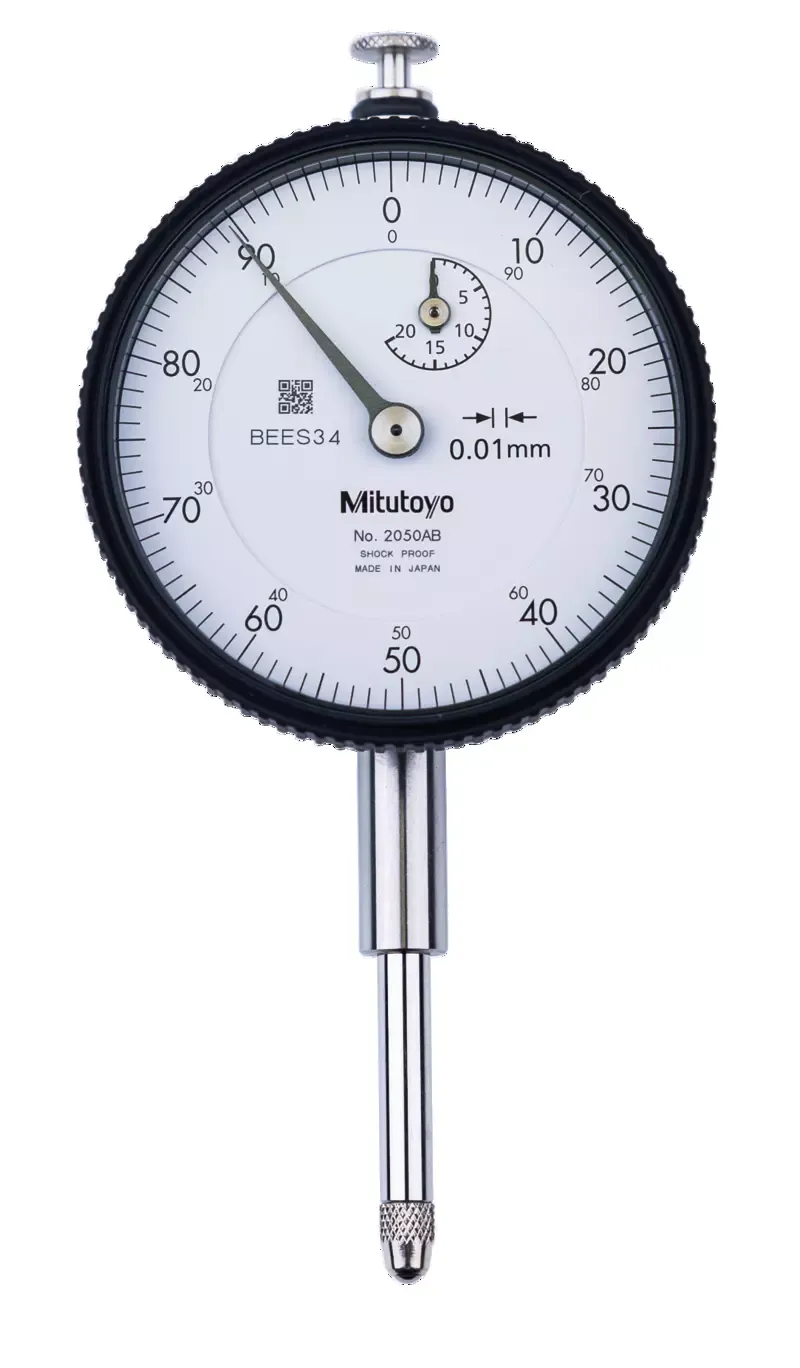

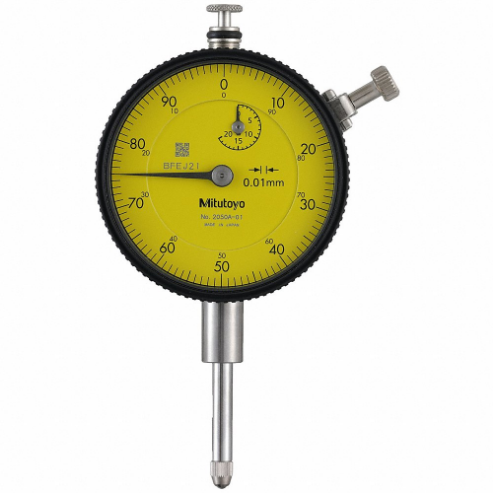

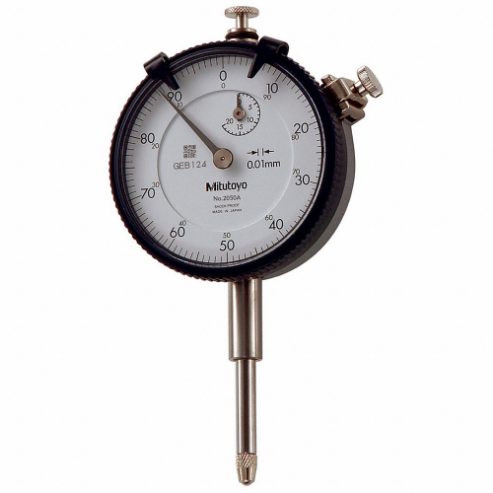

P	2050AB-01	20 mm	±0-100	1 mm	0.01 mm	4 µm	-3 µm to +3 µm	0.4N to 2N	-10 µm to +10 µm	€120.00	RFQ

MITUTOYO -

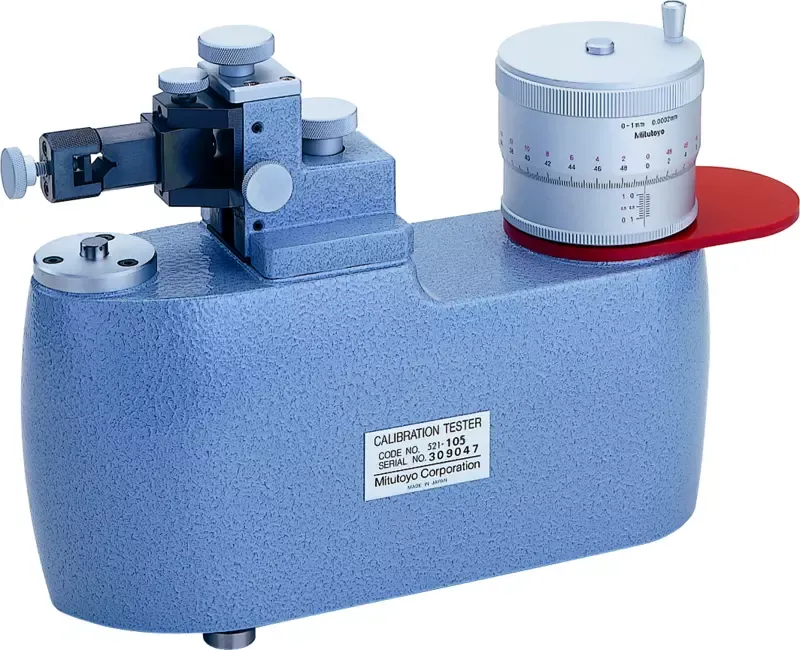

521 Series Dial Indicator Calibration Testers

Style	Model	Range	Inch-metric	Graduation	Accuracy	Hysteresis	Measuring Face	Price

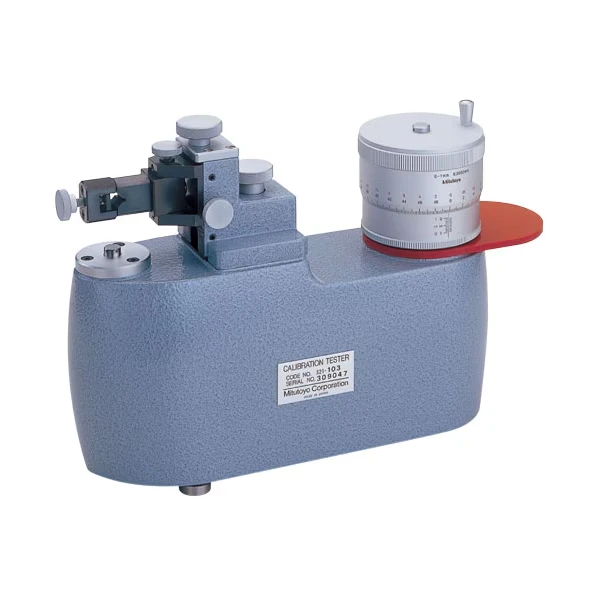

A	521-103	0 mm to 1 mm	Metric	0,2 µm	-	0.2 µm	Carbide Tipped	€7,338.37	RFQ
B	521-105	0 mm to 5 mm	Metric	0,2 µm	-	0.8 µm	Carbide Tipped	€7,187.00
A	521-104	0" to 0.05"	Inch	0,00001"	-0.00001" to +0.00001"	-	Carbide Tipped	€7,134.18	RFQ
C	521-106	0" to 0.2"	Inch	0,00001"	-0.00003" to +0.00003"	-	Carbide Tipped	€8,624.87	RFQ

MITUTOYO -

523 Series Digimatic/Mechanical Micrometers

Style	Model	Range	Flatness	Measuring Spindle	Mass	Repeatability	Accuracy Dial Comparator	Indicating	Inch-metric	Price
A	523-141	0 mm to 25 mm	0.3 ?m	10 mm, 8 mm	710g	0.4 ?m	-	-	-	€686.39	RFQ
A	523-121	0 mm to 25 mm	0.3 µm	10.8 mm	-	0.4 µm	1 Î¼M	-0.06 mm to +0.06 mm	Metric	€983.39	RFQ
A	523-131	0" to 1"	0.00001"	10 mm, 8 mm	740g	-	1.25m	-0.0023" to +0.0023"	-	€1,124.63	RFQ
A	523-152	1" to 2"	0.00001"	10 mm, 8 mm	810g	-	-	-	-	€661.31	RFQ

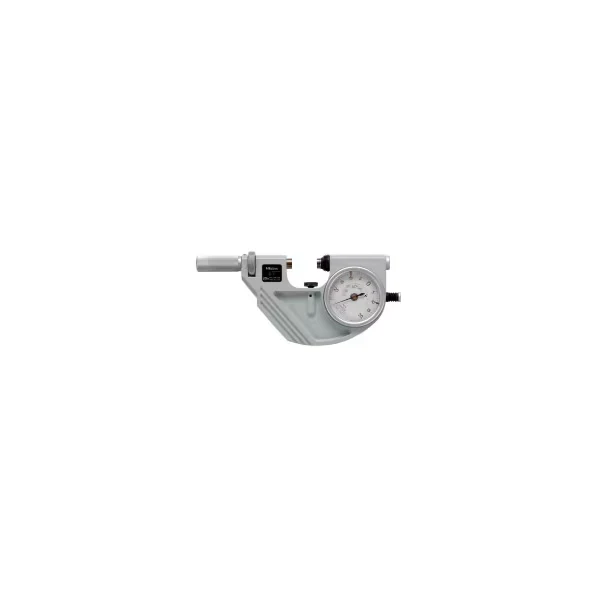

B	523-132	1" to 2"	0.000012"	10.8 mm	-	0.00002"	1 Î¼M	-0.0023" to +0.0023"	Inch	€1,128.59
A	523-153	2" to 3"	0.00001"	10 mm, 8 mm	920g	-	-	-	-	€902.87	RFQ
A	523-133	2" to 3"	0.00001"	10 mm, 8 mm	950g	-	1.25m	-0.002" to +0.002"	-	€1,411.07	RFQ
A	523-134	3" to 4"	0.00001"	10 mm, 8 mm	1080g	-	1.25m	-0.002" to +0.002"	-	€1,450.67	RFQ
A	523-142	25 mm to 50 mm	0.3 ?m	10 mm, 8 mm	810g	0.4 ?m	-	-	-	€782.74	RFQ
A	523-122	25 mm to 50 mm	0.3 µm	10.8 mm	-	0.4 µm	1 Î¼M	-0.06 mm to +0.06 mm	Metric	€1,053.35	RFQ
A	523-143	50 mm to 75 mm	0.3 ?m	10 mm, 8 mm	920g	0.4 ?m	-	-	-	€823.67	RFQ
A	523-123	50 mm to 75 mm	0.3 ?m	10 mm, 8 mm	950g	0.4 ?m	1.25m	-	-	€1,411.07	RFQ
A	523-144	75 mm to 100 mm	0.3 ?m	10 mm, 8 mm	1050g	0.4 ?m	-	-	-	€826.30	RFQ

MITUTOYO -

3 Series Dial Gauges For Dial Indicators

Style	Model	Type	Range	Dial Reading	Range Per Rev.	Dial Color	H Mpe(hysteresis)	R Mpe(repeatability)	Measuring Force	Price
A	3803AB-10	ANSI, AGD Standard	0.025"	0-5-0	0.01"	-	0.0001"	-0.00003" to +0.00003"	0.4N to 2N	€226.00
B	3802ab-10	ANSI, AGD Standard	0.025"	0-10	0.01"	-	0.0001"	-0.00003" to +0.00003"	0.4N to 2N	€281.15	RFQ
C	3415AB	ANSI, AGD Standard	0.5"	0-50-0	0.1"	-	0.0002"	-0.0002" to +0.0002"	0.4N to 1.8N	€175.00

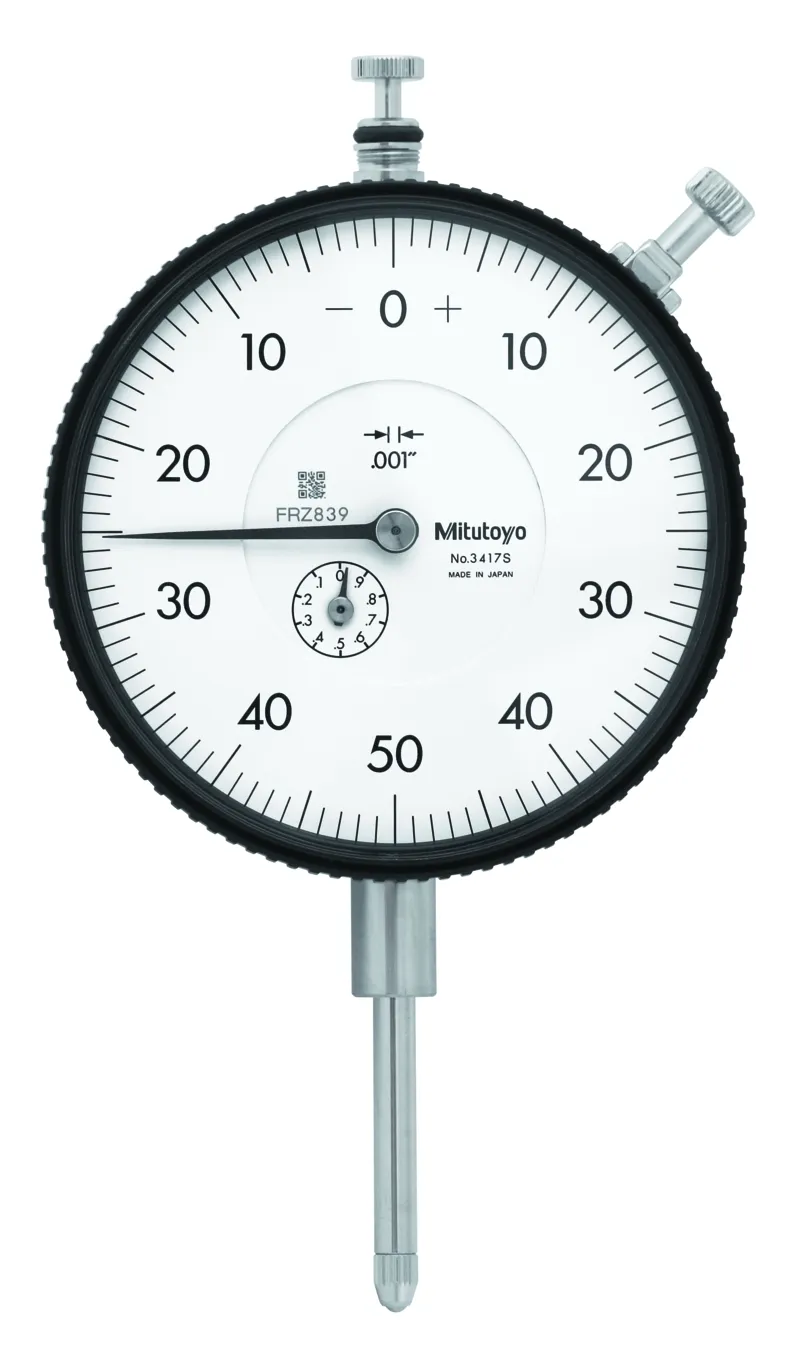

D	3417AB	ANSI, AGD Standard	1"	0-50-0	0.1"	-	0.0002"	-0.0002" to +0.0002"	0.4N to 1.8N	€177.00

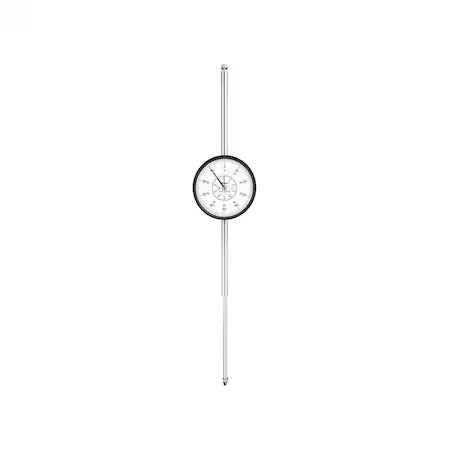

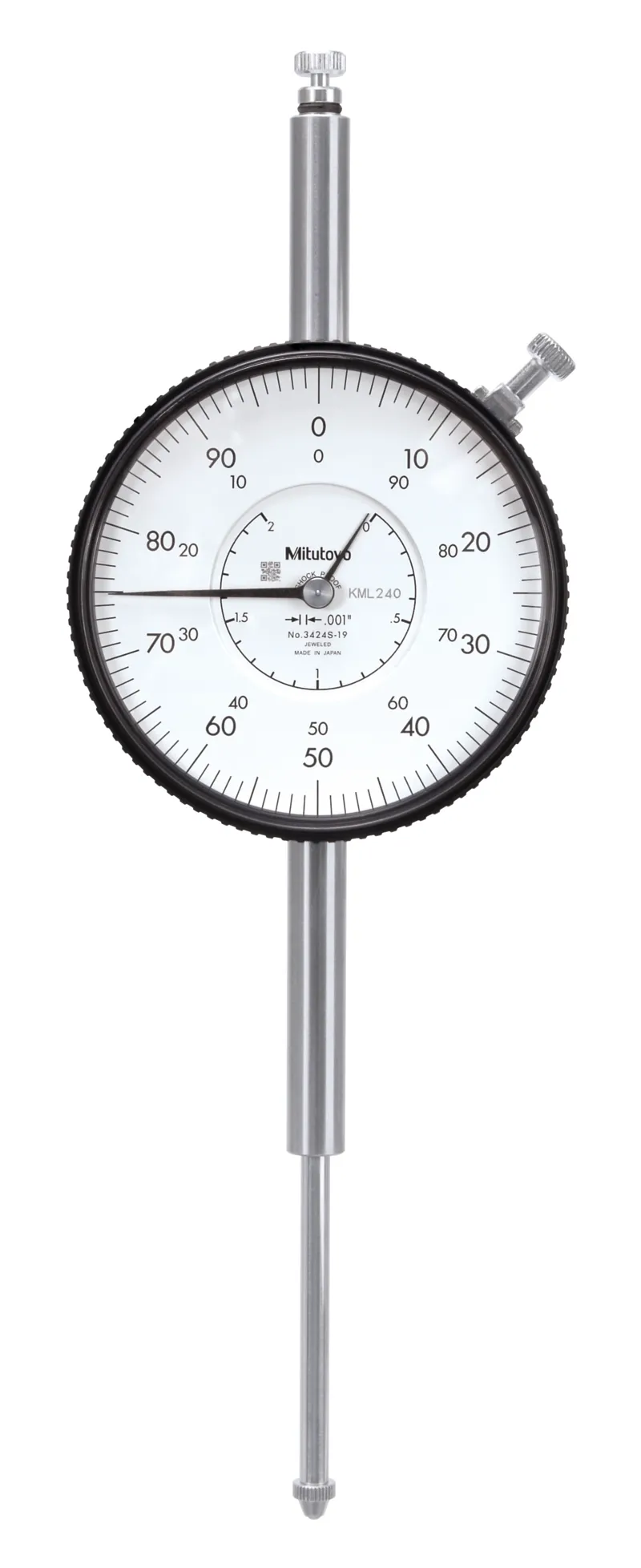

E	3424AB-19	ANSI, AGD Standard	2"	±0-100	0.1"	-	0.00033"	-0.0002" to +0.0002"	0.4N to 3N	€289.00
B	3416ab	ANSI, AGD Standard	1"	±0-100	0.1"	-	0.0002"	-0.0002" to +0.0002"	0.4N to 1.8N	€234.95	RFQ

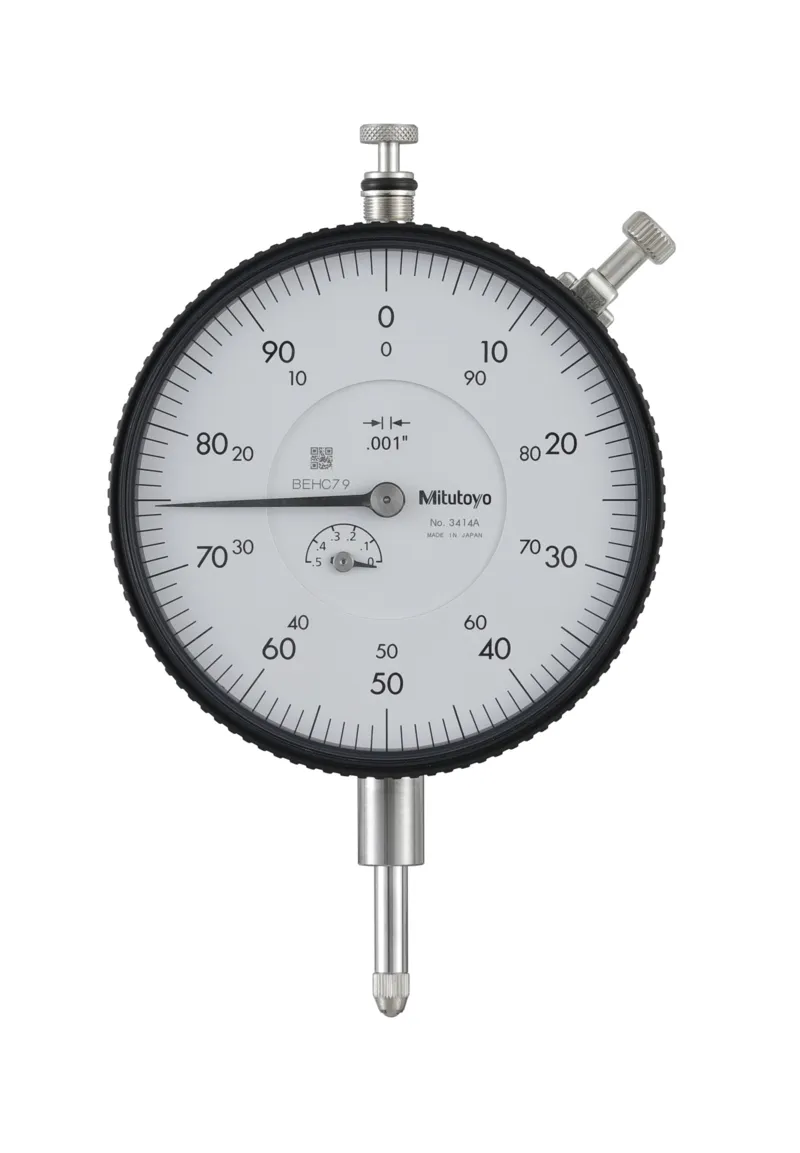

F	3414A	ANSI, AGD Standard	0.5"	±0-100	0.1"	-	0.0002"	-0.0002" to +0.0002"	0.4N to 1.8N	€177.00
B	3803a-10	ANSI, AGD Standard	0.025"	0-5-0	0.01"	-	0.0001"	-0.00003" to +0.00003"	0.4N to 2N	€275.86	RFQ
B	3414ab	ANSI, AGD Standard	0.5"	±0-100	0.1"	-	0.0002"	-0.0002" to +0.0002"	0.4N to 1.8N	€199.31	RFQ

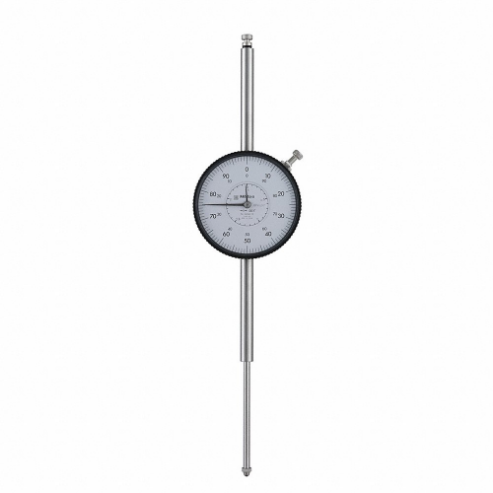

B	3426ab-19	ANSI, AGD Standard	3"	±0-100	0.1"	-	0.00033"	-0.0002" to +0.0002"	0.4N to 3N	€432.95	RFQ

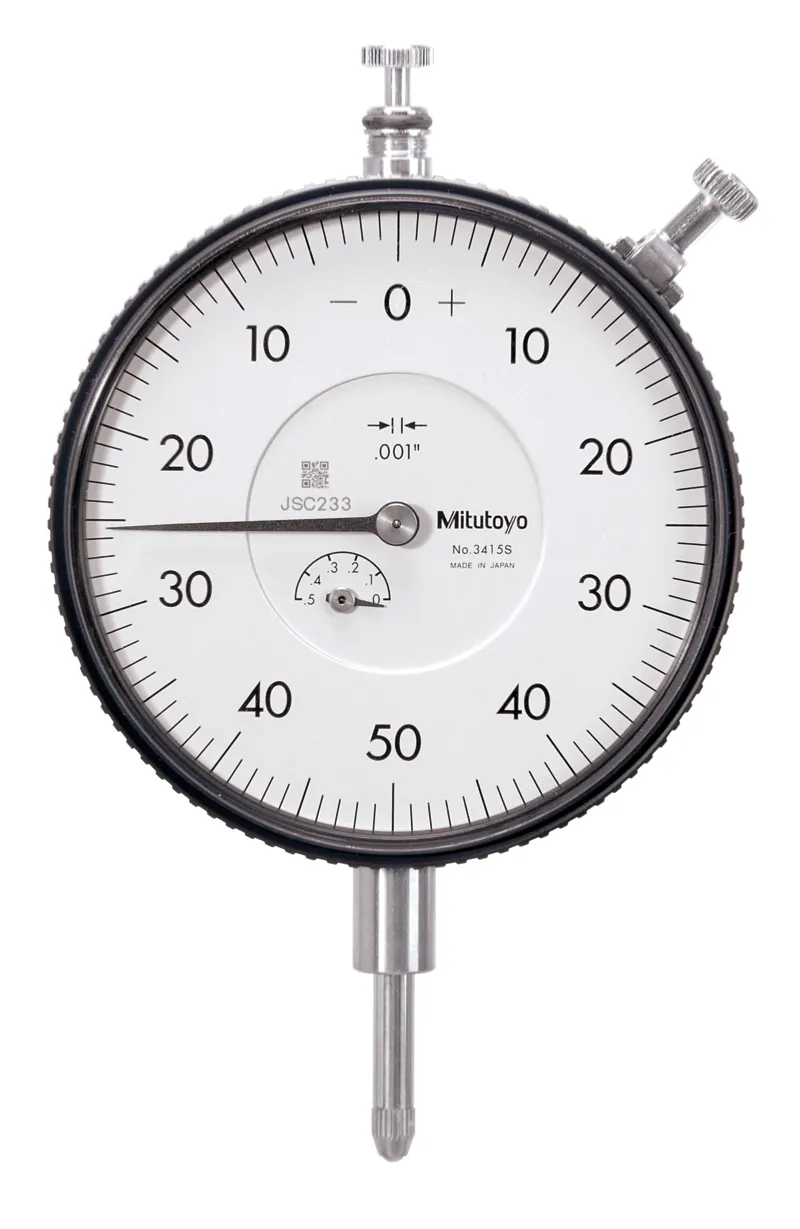

B	3415a	ANSI, AGD Standard	0.5"	0-50-0	0.1"	-	0.0002"	-0.0002" to +0.0002"	0.4N to 1.8N	€199.31	RFQ
B	3802a-10	ANSI, AGD Standard	0.025"	0-10	0.01"	-	0.0001"	-0.00003" to +0.00003"	0.4N to 2N	€299.62	RFQ
B	3062a-19	Dial Indicator	100 mm	0 to 100	-	-	9 mm	3 ?m	3.2n Or Less	€869.86	RFQ

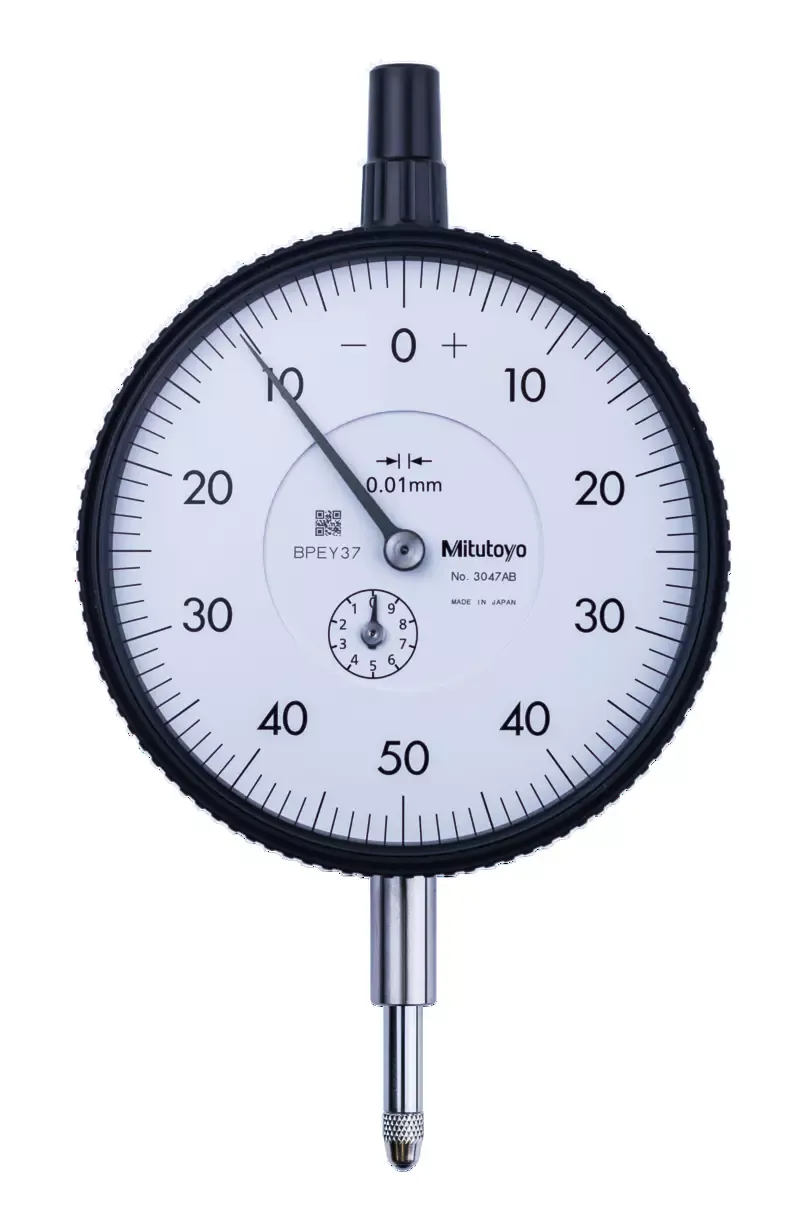

B	3047a	Dial Indicator	10 mm	0-50-0	-	Black	3 mm	3 ?m	1.4n Or Less	€203.27	RFQ

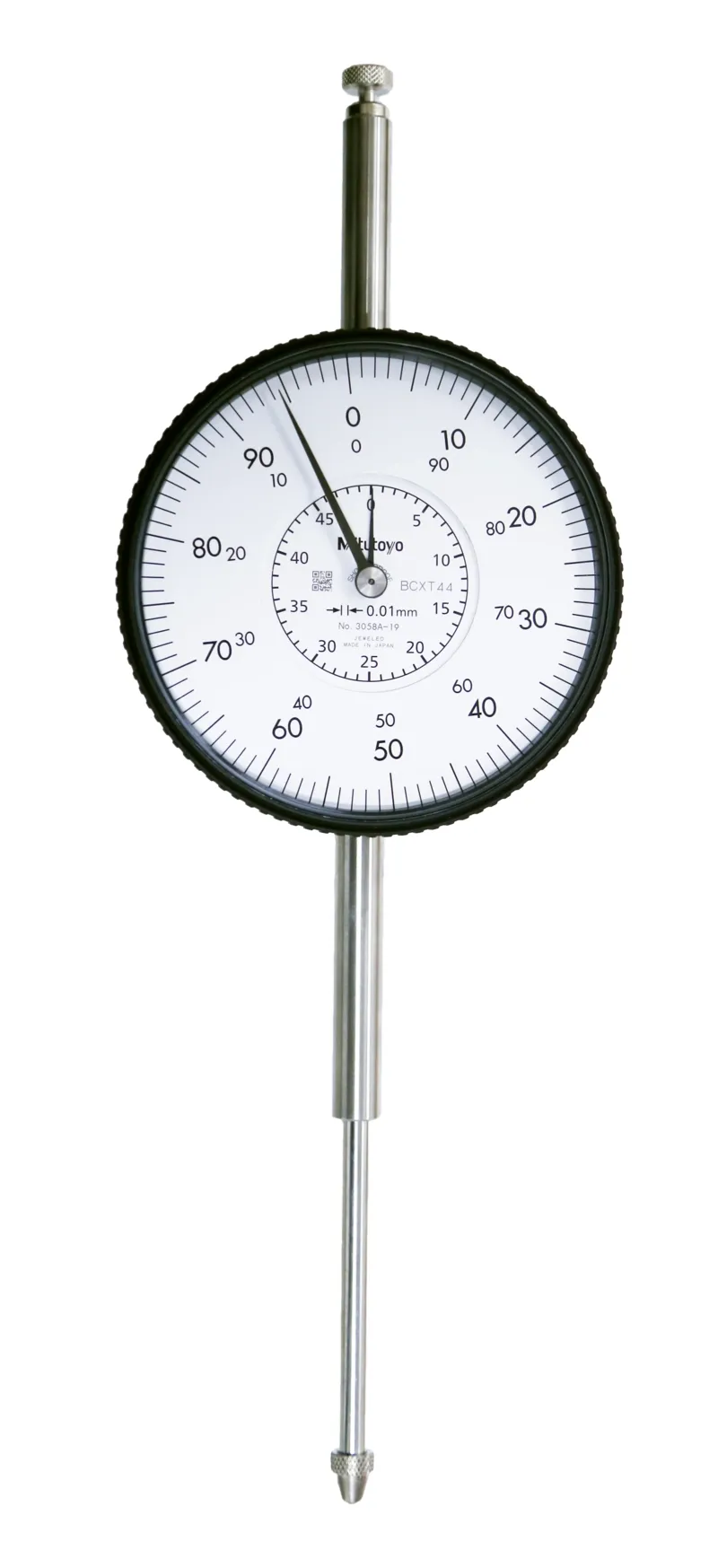

B	3058a-19	Dial Indicator	50 mm	0 to 100	-	-	6 mm	3 ?m	3n Or Less	€323.38	RFQ
B	3052ab-19	EN ISO Standard	-	0 to 100	-	White	5 mm	3 ?m	0.4N to 2.5N	€352.43	RFQ
G	3050AB	EN ISO Standard	20 mm	±0-100	1 mm	-	4 µm	3 µm	0.4N to 2N	€204.00

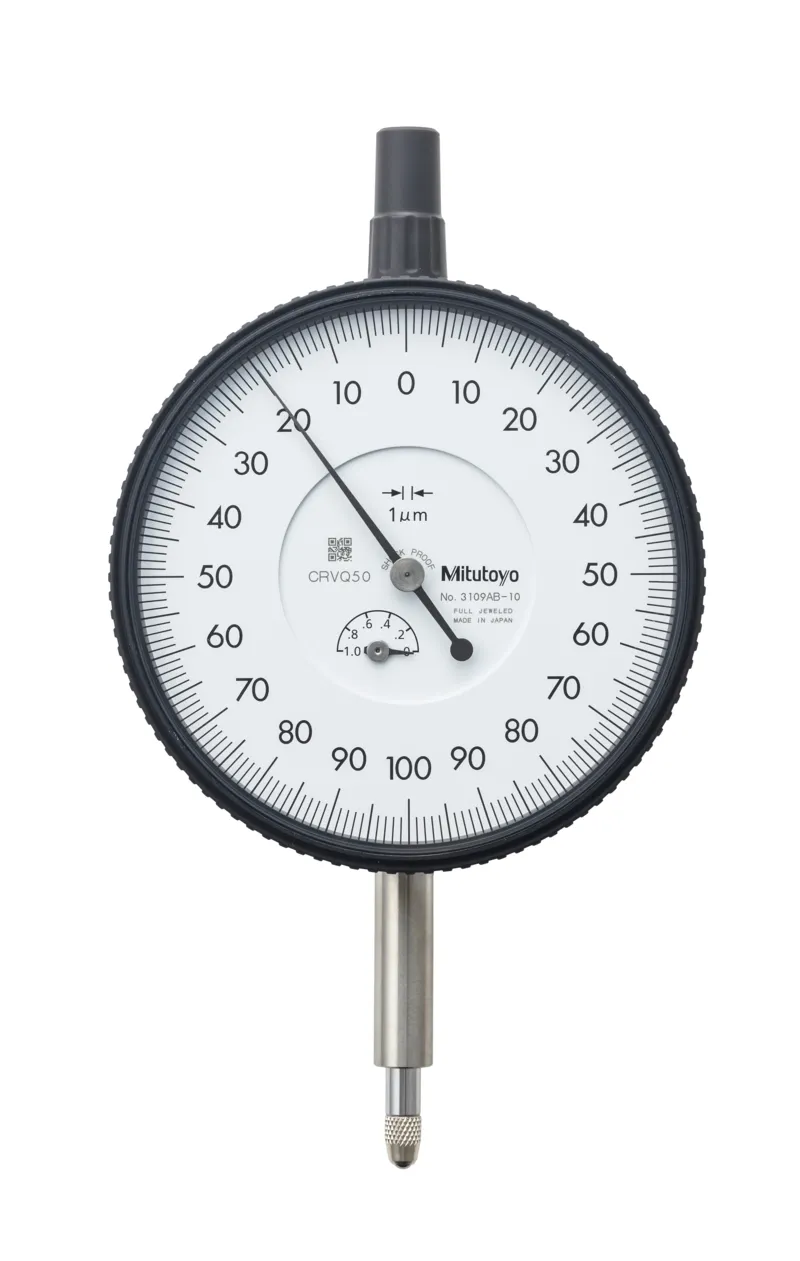

H	3109AB-10	EN ISO Standard	1 mm	0-100-0	0.2 mm	-	2 µm	1 µm	0.4N to 1.5N	€201.00
B	3052a-19	EN ISO Standard	30 mm	±0-100	1 mm	-	5 µm	3 µm	0.4N to 2.5N	€355.06	RFQ
I	3046AB	EN ISO Standard	10 mm	±0-100	1 mm	-	3 µm	3 µm	0.4N to 1.4N	€152.00
J	3047AB	EN ISO Standard	10 mm	0-50-0	1 mm	-	3 µm	3 µm	0.4N to 1.4N	€158.00
B	3062ab-19	EN ISO Standard	100 mm	-	1 mm	Black	9 mm	3 ?m	0.4N to 3.5N	€889.66	RFQ
K	3109A-10	EN ISO Standard	1 mm	0-100-0	0.2 mm	-	2 µm	1 µm	0.4N to 1.5N	€203.00
I	3046A	EN ISO Standard	10 mm	±0-100	1 mm	-	3 µm	3 µm	0.4N to 1.4N	€153.00
L	3058AB-19	EN ISO Standard	50 mm	±0-100	1 mm	-	6 µm	3 µm	0.4N to 3N	€237.00

MITUTOYO -

513 Series Pocket Dial Test Indicators

Style	Model	Range	Dial Reading	Range Per Revolution	Stem Thread Size	Stylus Length	Mounting Style	Included Dovetail Mount Attachments	Contact Point Dia.	Price
A	513-504-10E	0" to 0.01"	0-5-0	0.01"	M4 x 0.7	18.7 mm	Dovetail	No	5/64"	€224.78
B	513-504-10T	0" to 0.01"	0-5-0	0.01"	M4 x 0.35	18.7 mm	Holding Bars	Yes	0.039", 0.118"	€288.68
C	513-518-10T	0" to 0.04"	0-20-0	1/25"	M4 x 0.35	26.5 mm	Dovetail	No	0.039", 0.118"	€204.20
D	513-518-10E	0" to 0.04"	0-20-0	0.01"	M4 x 0.7	26.5 mm	Dovetail	No	-	€181.33
E	513-515-10T	1 mm	0-50-0	-	-	-	-	-	-	€290.49

MITUTOYO -

3 Series Dial Indicators

Style	Model	Range	Stem Thread Size	Stem Dia.	Accuracy	Operation Type	Contact Point Shape	Graduations	Reading	Price
A	3424A-19	0" to 2"	#4-48	3/8"	+/-0.003 (Overall), +/-0.001"	Plunger	Curved	0.001"	Continuous	€439.64
B	3426A-19	0" to 3"	#4-48	0.38"	-0.001" to +0.001"	Lug Back	Ball	0"	Reverse Reading Continuous	€476.58
C	3428A-19	0" to 4"	M2.5 x 0.45	3/8"	+/-0.001", +/-0.005" (Overall)	Plunger	Ball	0.001"	Continuous	€560.74

MITUTOYO -

1 Series Dial Indicators, Back Plunger Type

Style	Model	Range	Dial Reading	Dial Color	Range Per Revolution	Stem Thread Size	Accuracy	Contact Point Style	Reading	Price
A	1960A	0 mm to 1 mm	50-0-50	Yellow	1.27 mm	M2.5 x 0.45	-0.014 mm to +0.014 mm	Carbide Ball	Balanced	€233.82
B	1160A	0 mm to 5 mm	0-100	White	1 mm	M2.5 x 0.46	-0.016 mm to +0.016 mm	Ball	Continuous	€204.23

MITUTOYO -

2 Series Dial Indicators, Inch

Style	Model	Range	Dial Color	Dial Size	Bearing Type	Dial Reading	Stem Thread Size	Stem Dia.	Contact Point Dia.	Price
A	2802A-10	0" to 0.025"	White	57 mm	Jeweled	0-10	M2.5 x 0.45	3/8"	3 mm	€229.03
B	2803A-10	0" to 0.025"	White	57 mm	Jeweled	0-5-0	#4-48	0.375"	3 mm	€218.54
C	2805A-10	0" to 0.05"	White	57 mm	Jeweled	0-5-0	#4-48	3/8"	3 mm	€260.79
D	2923A-10	0" to 0.05"	White	57 mm	Jeweled	0-5-0	#4-48	0.375"	3 mm	€279.29
D	2923AB-10	0" to 0.05"	White	57 mm	Jeweled	0-5-0	#4-48	0.375"	3 mm	€262.69
E	2804A-10	0" to 0.05"	White	57 mm	Jeweled	0-10	M2.5 x 0.45	0.375"	3 mm	€234.55
F	2358A-10	0" to 0.5"	White	57 mm	Jeweled	0-10	#4-48	0.38"	3 mm	€311.87
G	2416S-10CERT	0" to 1"	White	57 mm	Jeweled	0-100	M2.5 x 0.45	0.375"	3 mm	€255.28
H	2776A	0" to 1"	White	57 mm	Plain	0-50	#4-48	0.375"	3 mm	€213.68
G	2416SCERT	0" to 1"	White	57 mm	Plain	0-100	M2.5 x 0.45	0.375"	3 mm	€225.85
H	2416A	0" to 1"	White	57 mm	Plain	0-100	#4-48	0.375"	3 mm	€167.04
I	2417A	0" to 1"	White	57 mm	Plain	0-50-0	M2.5 x 0.45	0.375"	3 mm	€184.38
J	2416A-10	0" to 1"	White	57 mm	Jeweled	0-100	#4-48	0.38"	-	€214.68
K	2904A	0" to 1"	Black	57 mm	Jeweled	0-100	1/4"	3/8"	3/8"	€193.93
H	2776SCERT	0" to 1"	White	57 mm	Plain	0-50	#4-48	0.375"	3 mm	€256.47
L	2414A	0" to 1/2"	White	57 mm	Plain	0-100	#4-48	0.38"	0.12 mm	€165.67
M	2514AB	0" to 1/2"	White	57 mm	Plain	0-50	#4-48	3/8"	3 mm	€206.42
F	2358A-10W/CERT	0" to 5"	White	57 mm	Jeweled	0-10	#4-48	0.38"	-	€356.49
N	2424A-19	2"	White	2.19"	Jeweled	-	-	-	1/8"	€359.90

MITUTOYO -

2 Series Dial Indicators, Metric

Style	Model	Range	Bearing Type	Range Per Revolution	Stem Dia.	Dial Reading	Dial Color	Stem Thread Size	Operation Type	Price
A	2929AB-62	0 mm to 0.8 mm	Plain	1 mm	8 mm	40-0-40	-	M2.5 x 0.45	Plunger	€179.97
B	2109AB-10	0 mm to 1 mm	Jeweled	0.2 mm	8 mm	0-100-0	Yellow	M2.5 x 0.45	Plunger	€283.25
B	2109A-10	0 mm to 1 mm	Jeweled	0.2 mm	8 mm	0-100-0	White	M2.5 x 0.45	Plunger	€296.72
C	2046A-11	0 mm to 10 mm	Jeweled	1 mm	0.375"	0-100	Yellow	#4-48	Plunger	€161.58
D	2047A	0 mm to 10 mm	Plain	1 mm	8 mm	0-50-0	White	M2.5 x 0.45	Plunger	€171.12
E	2046A-01	0 mm to 10 mm	Plain	1 mm	0.38"	1-100	Yellow	#4-48	Vertical	€139.94
F	2050A	0 mm to 10 mm	Plain	1 mm	8 mm	0-100	White	M2.5 x 0.45	Plunger	€197.85
G	2050A-01	0 mm to 20 mm	Plain	1 mm	0.38"	-	Yellow	-	Lug Back	€198.47
H	2050AB	0 mm to 20 mm	Plain	1 mm	8 mm	0-100	White	M2.5 x 0.45	Vertical	€205.85

MITUTOYO -

4 Series Dial Gauges For Dial Indicators

Style	Model	Range	Type	Range Per Rev.	Inch-metric	Graduation	H Mpe(hysteresis)	R Mpe(repeatability)	Measuring Force	Price
A	4887AB-19	3"	ANSI, AGD Standard	0.1"	Inch	0.001"	0.00033"	-0.0002" to +0.0002"	0.4N to 3N	€532.00
B	4046AB	10 mm	EN ISO Standard	1 mm	Metric	0.01 mm	3 µm	3 µm	0.4N to 1.4N	€229.00
B	4046A	10 mm	EN ISO Standard	1 mm	Metric	0.01 mm	3 µm	3 µm	0.4N to 1.4N	€234.00

MITUTOYO -

201 Series Dial Snap Gauges Without Indicator

Style	Model	Range	Inch-metric	Parallelism	Measuring Force	Measuring Face	Repeatability	Flatness	Anvil Retracting Stroke	Price
A	201-153	-	-	-	-	-	-	-	-	€808.11
B	201-101	0 mm to 25 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€586.91
B	201-151	0" to 1"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€569.94
C	201-156	5" to 6"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€615.00
D	201-159	8" to 9"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€945.10	RFQ
B	201-160	9" to 10"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€902.87
B	201-161	10" to 11"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€1,048.06
E	201-162	11" to 12"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€790.00
B	201-102	25 mm to 50 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€615.20
B	201-103	50 mm to 75 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€650.56
B	201-104	75 mm to 100 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€623.69
F	201-105	100 mm to 125 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€583.00
B	201-106	125 mm to 150 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€786.70
B	201-107	150 mm to 175 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€821.03
B	201-108	175 mm to 200 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€794.62
G	201-109	200 mm to 225 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€702.00
H	201-110	225 mm to 250 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€733.00
I	201-111	250 mm to 275 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€761.00
B	201-112	275 mm to 300 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€1,065.23

MITUTOYO -

Test Indicators

Style	Model	Dial Color	Range	Type	Bezel Dia	Graduations	Measuring Force	Repeatability Limit	Price
A	513-503	-	-	-	-	-	-	-	€221.75	RFQ
B	513-503T	Silver	0.2 mm	Pocket Type	29.2 mm	0.002 mm	0.4n Or Less	1 mm	€260.21
B	513-503E	Silver	-	-	-	-	-	-	€253.14

MITUTOYO -

Dial Test Ind, Pocket Type, .0-40-0

Model	Item	Price (ex. VAT)
513-527E	CY8NZB	€169.70

MITUTOYO -

Dial Indicator. 0-100, .01

Model	Item	Price (ex. VAT)
1044S-60	CY9EGC	€193.74

MITUTOYO -

Tension Gage, Dial, Ind Hand, 30-300

Model	Item	Price (ex. VAT)
546-138	CY9EYL	€316.79

MITUTOYO -

Dial

Model	Item	Price (ex. VAT)
101832	CH9ZNQ	-	RFQ

Popular Search Queries

Keyed Shaft

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Lugs

1 Series Dial Indicators

513 Series Dial Test Indicators

2 Series Dial Indicators

Metric Dial Indicators With 9.52 mm Stem

521 Series Dial Indicator Calibration Testers

523 Series Digimatic/Mechanical Micrometers

3 Series Dial Gauges For Dial Indicators

513 Series Pocket Dial Test Indicators

3 Series Dial Indicators

1 Series Dial Indicators, Back Plunger Type

2 Series Dial Indicators, Inch

2 Series Dial Indicators, Metric

4 Series Dial Gauges For Dial Indicators

201 Series Dial Snap Gauges Without Indicator

Test Indicators

Dial Test Ind, Pocket Type, .0-40-0

Dial Indicator. 0-100, .01

Tension Gage, Dial, Ind Hand, 30-300

Dial

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Dial Test Ind, Pocket Type, .0-40-0

Dial Indicator. 0-100, .01

Tension Gage, Dial, Ind Hand, 30-300

Dial

Popular Search Queries

Explore More
