Speedaire pneumatic cylinder position sensors are designed to detect the position of pneumatic cylinders. They are ideal for application in industrial automation systems to monitor the cylinder position and provide feedback to a control system.
SPEEDAIRE -

Dovetail NPN Switches

SPEEDAIRE dovetail NPN switches are suitable for automated machinery for detecting the position of a pneumatic cylinder. These switches also count piston cycles and change cylinder operation. These switches stay in normally open configuration, unless a signal is passed. They further have an LED indicator and can fit ports of bore diameters ranging from 3/4 to 4 inches. Choose between 1/2 and 9 feet lead lengths of these switches, available on Raptor Supplies.

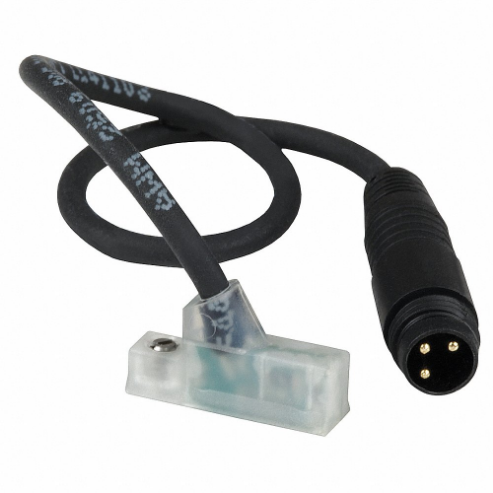

SPEEDAIRE 41H533A
SPEEDAIRE 41H530B
StyleModelLead LengthTypeFunctionFor Bore Dia.Switching VoltageDisplayTemp. RangeSwitching AmpsPrice
A41H5330.5 ft.DovetailNormally Open3/4" to 4"5-28V DCLED-4°F to +176°F0.2A€48.64
B41H5309 ft.DovetailNormally Open3/4" to 4"5-28V DCLED-4°F to +176°F0.2A€45.11
SPEEDAIRE -

Reed Switch Set 24vdc

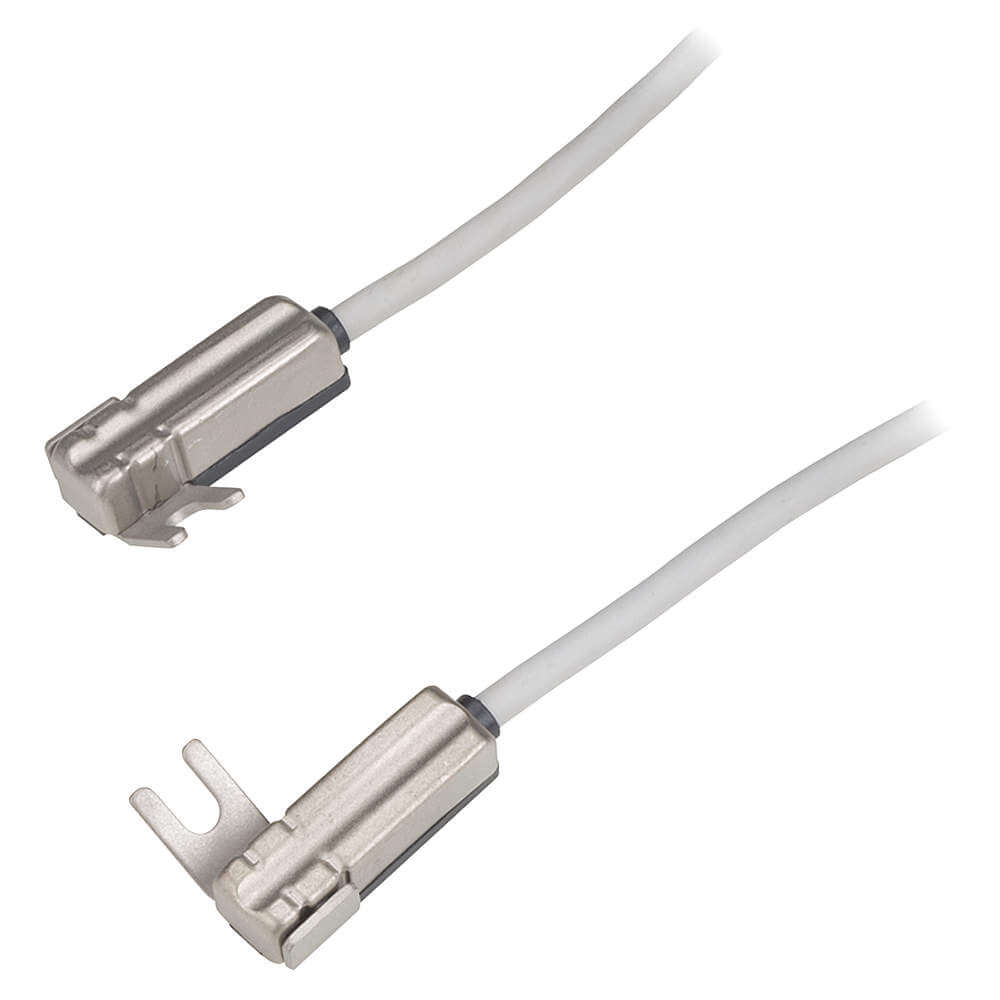

SPEEDAIRE RFKSS-GAP0011A
StyleModelFunctionSwitching VoltageNumber Of WiresLead LengthEnclosure TypeDisplayTemp. RangeSwitching AmpsPrice
ARFKSS-GAP0011Normally Open24V DC210 ft.IP67LED+14°F to +140°F40 mA€99.60
ARFKSS-GAP0012NPN24V DC210 ft.IP67LED+14°F to +140°F40 mA€121.70
SPEEDAIRE -

Dovetail Reed Switches

SPEEDAIRE dovetail reed switches remotely control various operations, such as valve timings and power supply. They are ideal for use with connection ports having bore diameter of 3/4 and 4 inches. These switches remain in normally open position until a signal is passed. They also have an LED indicator for alerting about the position of the switch. Choose between 1/2 and 9 feet lead lengths of these reed switches, available on Raptor Supplies.

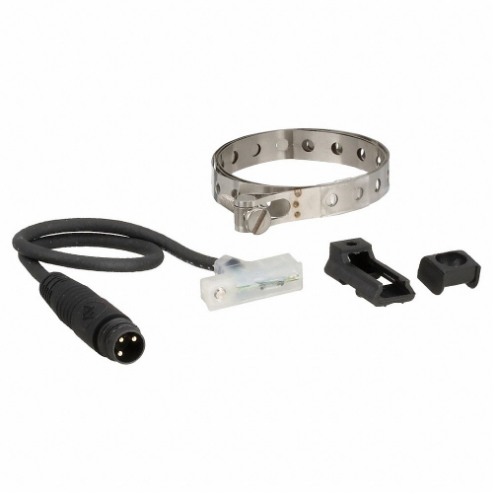

SPEEDAIRE 41H531A
SPEEDAIRE 41H528B
StyleModelLead LengthTypeFunctionFor Bore Dia.Switching VoltageSwitching CurrentDisplayTemp. RangePrice
A41H5310.5 ft.DovetailNormally Open3/4" to 4"0-120V AC30 mALED-4°F to +176°F€52.37
B41H5289 ft.DovetailNormally Open3/4" to 4"0-120V AC30 mALED-4°F to +176°F€33.79
SPEEDAIRE -

Dovetail PNP Switches

SPEEDAIRE dovetail PNP switches are used in automated machinery to detect the position of a pneumatic cylinder, count piston cycles and change cylinder operation. These switches remain in normally open configuration, unless a signal is passed. They have an LED to indicate about the operation and can fit ports having bore diameters ranging from 3/4 to 4 inches. Choose between 1/2 and 9 feet lead lengths of these PNP switches, available on Raptor Supplies.

SPEEDAIRE 41H532A
SPEEDAIRE 41H529B
StyleModelLead LengthTypeFunctionFor Bore Dia.Switching VoltageDisplayTemp. RangeSwitching AmpsPrice
A41H5320.5 ft.DovetailNormally Open3/4" to 4"5-28V DCLED-4°F to +176°F0.2A€48.64
B41H5299 ft.DovetailNormally Open3/4" to 4"5-28V DCLED-4°F to +176°F0.2A€45.11
SPEEDAIRE -

Switch Reed No Spst

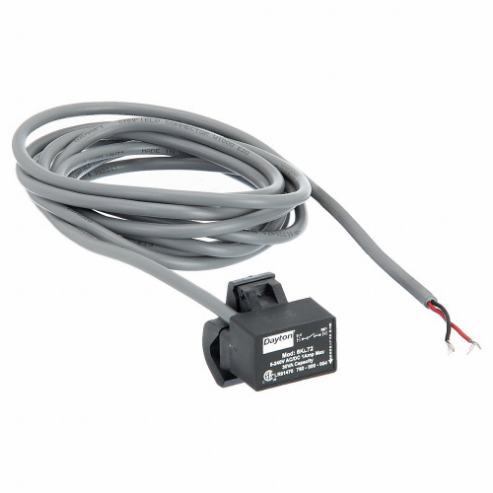

SPEEDAIRE 6KL72A
SPEEDAIRE 6KL75B
StyleModelFor Bore Dia.Switching VoltageSwitching AmpsFunctionNumber Of WiresEnclosure TypeTypeSwitching CurrentPrice
A6KL723 1/4" to 6"5-240V AC/DC1AN/O SPST2NEMA 4--€74.41
B6KL753/4" to 2 1/2"5-120V AC/DC0.03AN/O SPST2NEMA 4Two Wire Switch30 mA€67.56
SPEEDAIRE -

Cylinder Position Sensors

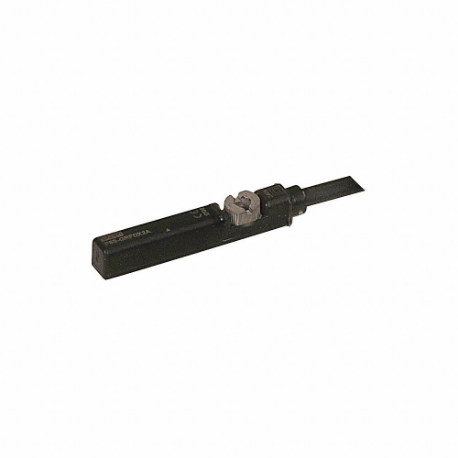

SPEEDAIRE 56JD45A

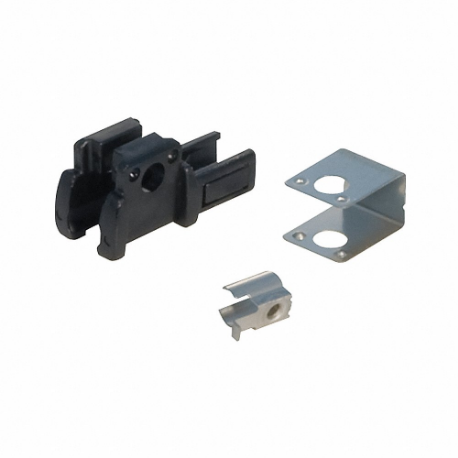

SPEEDAIRE BJ3-1B
SPEEDAIRE D-B54LC
SPEEDAIRE D-A54LD
SPEEDAIRE D-A93LE
SPEEDAIRE D-Y7PLF
SPEEDAIRE D-G5BALG
StyleModelTypeSwitching VoltageFunctionNumber Of WiresFor Bore Dia.Switching AmpsLead LengthEnclosure TypePrice
A56JD45-10-30V DC--Any Size---€119.09
BBJ3-1Mounting Adaptor------Composite€5.81
CD-B54LPrewired24V DCNormally Open220 mm to 63 mm5-50 mA3mComposite€37.45
DD-A54LPrewired24V DCNormally Open2-5-50 mA3mComposite€39.83
CD-C80LPrewired24V DCNormally Open2-50 mA3m-€36.42
ED-A93LPrewired24V DCNormally Open2-5-40 mA3mComposite€33.57
FD-Y7PLPrewired24V DCPNP2-40 mA3mComposite€77.80
DD-F59LPrewired24V DCNPN3-40 mA3mComposite€70.70
FD-Y59ALPrewired24V DCNPN2-40 mA3mComposite€61.81
CD-H7A1LPrewired24V DCNPN2-40 mA3mComposite€55.05
DD-F5PLPrewired24V DCPNP3-40 mA3mComposite€74.75
GD-G5BALPrewired24V DCNormally Open220 mm to 100 mm5-40 mA3mComposite€72.66
GD-H7BALPrewired24V DCNormally Open210 mm, 16 mm5-40 mA3mComposite€64.38
ED-M9NLPrewired24V DCNPN3-40 mA3mComposite€54.16
CD-H7A2LPrewired24V DCPNP2-40 mA3mComposite€55.05
ED-M9PLPrewired24V DCPNP3-40 mA3mComposite€54.16
SPEEDAIRE -

Position Sensor

Position Sensor
ModelItemPrice (ex. VAT)
56JD46CH6KJW€52.84
SPEEDAIRE -

Reed Switch Set 80ma 24vdc

Reed Switch Set 80ma 24vdc
ModelItemPrice (ex. VAT)
RFKSS-GAP0013AA8NET€141.41

Features

  • Speedaire Dovetail NPN switches help detect the presence or absence of pneumatic cylinders. They feature a dovetail-shaped mounting bracket which is designed to fit securely into a dovetail groove on the attached machinery being monitored. These NPN switches have a transistor output that switches to a low voltage state when a cylinder is detected within the switch's sensing range. They remain in a normally open configuration unless an external signal is passed to change the state. They also include a LED indicator to display the status of operation and can fit ports of bore diameters ranging between 3/4 and 4 inches.
  • Speedaire Dovetail reed switches utilise a magnet and a reed switch to detect the presence and absence of a magnetic field. The molded switch has an in-built indicator light that can be viewed from wide angles and include mounting hardware for allowing quick installation. They are normally open and are available in lead lengths up to 9 feet.

Frequently Asked Questions

What maintenance is required for a cylinder position sensor?

Most cylinder position sensors require little to no maintenance. However, it is important to periodically clean these sensors to remove any debris or contaminants that may interfere with the sensor's operation.

How to install Speedaire position sensors?

  • Remove the screw from the barrel nut on the end of the band assembly.
  • Insert the band into the slot at the bottom of the carrier.
  • Wrap the band around the cylinder.
  • Next, locate the hole on the band that comes closest to the barrel nut.
  • Take the cut end of the band and insert it into the cap.
  • Turn the band around and insert the screw through the deep hole in the band.
  • Wrap band around the cylinder and position the switch on it, insert a screw into barrel nut and tighten.
