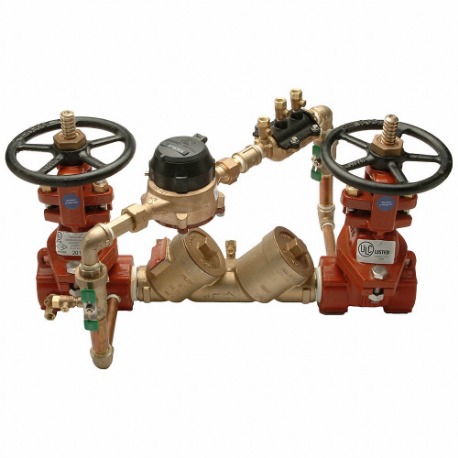

ZURN 2-950XLTDA Backflow Preventer, 950XLT, Cast Bronze, 2 Inch Size, FNPT, 175 psi Max Pressure
Get it by Wednesday, Feb 18
10.00% off
€7,211.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Backflow Preventer |
| Backflow Preventer Type | Double Check Detector Assembly (Dcda) |
| Body Material | Bronze |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Features | Ezswap Modular Check With Top Access Speeds Up Repairs And Replacements, Interlocking Connected Checks Provide 1/4 Turn To Access And Disassemble, Lead-Free (0.25% Max Weighted Average Lead Content), Low-Cost Repair Kits Extend The Lifespan At A Significantly Lower Cost, Test Ports Located On Valve'S Centerline Make Install And Testing Easy |
| Flow Rate | 240 GPM |
| For Media | Water |
| Hazard Protection Level | Low Health Hazard |
| Height | 12 3/4" |
| Includes Freeze Protection | No Freeze Sensor |
| Includes Strainer | No |
| Material | Cast Bronze |
| Max. Media Temperature | 180°F |
| Max. Pressure | 175 psi |
| Max. Pressure (cwp) | 175 psi |
| Media Temp. Range | 33°F to 180°F |
| Min. Media Temperature | 33°F |
| Mounting Orientation | Vertical |
| Overall Height | 14 3/4" |
| Overall Length | 23.25" |
| Overall Width | 18" |
| Pipe Size | 2" |
| Product Datasheet | zurn-2-950xltda.pdf |
| Protection Type | Back Pressure, Back Siphonage |
| Series | 950XLT |
| Shut-off Valve Type | Osy Gate Valve |
| Spring Material | Stainless Steel |
| Temp. Range | +33°F to +180°F |
| Valve Series | 950XLTDA Series |
| Width | 18" |
Shipping Info:
| Ship weight (kg) | 44.1 |
| Ship height (cm) | 32.39 |
| Ship length (cm) | 59.06 |
| Ship width (cm) | 45.72 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Temp. Range | Height | Backflow Preventer Type | Mounting Orientation | Overall Height | Max. Pressure | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

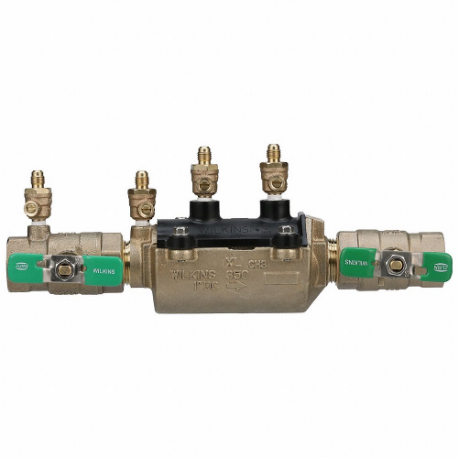

1-350XLFT | FNPT x FNPT | 0°F to +180°F | 5" | Double Check Assembly (Dc) | Horizontal, Vertical | 5" | 175 psi | Bronze | €663.29 | |
 |
112-950XL3 | MNPT x MNPT | +33°F to +180°F | 5.562" | Double Check Assembly (Dc) | Horizontal, Vertical | 5.56" | 175 psi | Bronze | €1,609.07 | |
|

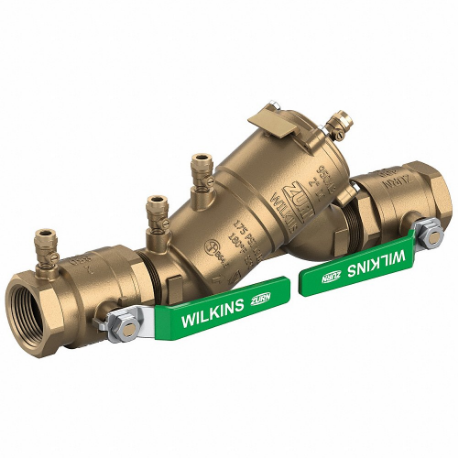

114-950XL3 | MNPT x MNPT | +33°F to +180°F | 5.438" | Double Check Assembly (Dc) | Horizontal, Vertical | 5.44" | 175 psi | Bronze | €1,499.50 | |
 |

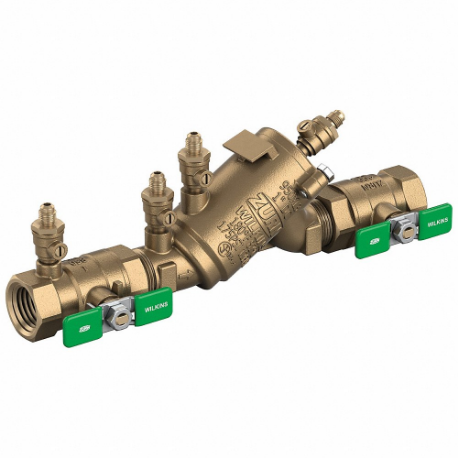

1-950XL3 | MNPT x MNPT | +33°F to +180°F | 4.312" | Double Check Assembly (Dc) | Horizontal, Vertical | 4.31" | 175 psi | Bronze | €663.29 | |
|
2-950XL3 | MNPT x MNPT | +33°F to +180°F | 6.688" | Double Check Assembly (Dc) | Horizontal, Vertical | 6.69" | 175 psi | Bronze | €1,813.67 | |
|
34-950XL3 | MNPT x MNPT | +33°F to +180°F | 14 7/8" | Double Check Assembly (Dc) | Horizontal, Vertical | 3 22/25" | 175 psi | Bronze | €605.30 | |
 |
2-950XLTBFSS | FNPT x FNPT | +33°F to +180°F | 5 7/8" | Double Check Assembly (Dc) | Vertical | 5.88" | 175 psi | Bronze | €4,216.15 |
