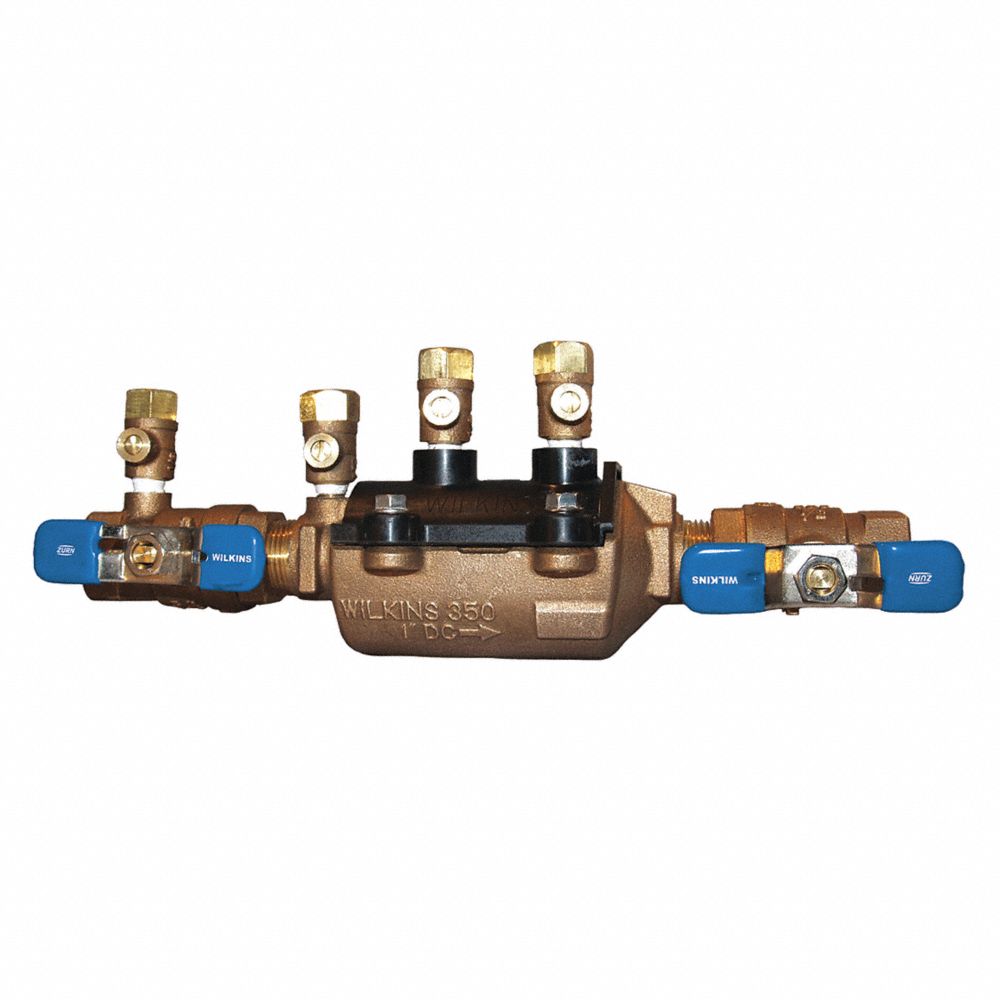

ZURN 1-350 Backflow Preventer, Bronze, MNPT Connection
Item: CF2PWKModel: 1-350Cross Ref: 454N92
7 In Stock
Ships within 2 days via
5.00% off
€447.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Backflow Preventer |
| Backflow Preventer Type | Double Check Assembly (Dc) |
| Body Material | Bronze |
| Check Valve Length | 7" |
| Configuration | Standard Configuration |
| Connection Size-side 1 | 1" |
| Connection Size-side 2 | 1" |
| Connection Type | Flange x Flange |
| Connection Type-side 1 | Flange |
| Connection Type-side 2 | Flange |
| Flow Rate | 74 GPM |
| For Media | Water |
| Handle Material | Stainless Steel |
| Hazard Protection Level | Low Health Hazard |
| Height | 4 1/8" |
| Included Freeze Protection | No Freeze Sensor |
| Included Strainer | No |
| Length | 12 1/4" |
| Material | Bronze |
| Max. Media Temp. | 180°F |
| Max. Pressure (cwp) | 175 psi |
| Max. Temp. | 180°F |
| Media Temp. | 33°F to 180°F |
| Min. Media Temp. | 33°F |
| Mounting Orientation | Horizontal, Vertical |
| Overall Height | 5" |
| Overall Length | 12.25" |
| Overall Width | 4.13" |
| Pipe Size | 1" |
| Product Datasheet | zurn-112-350xlft.pdf |
| Protection Type | Back Pressure, Back Siphonage |
| Shut-off Valve Type | Ball Valve |
| Spring Material | Stainless Steel |
| Temp. | +33°F to +180°F |
| Valve Series | 350 Series |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 10.48 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 4.45 |
| Country of Origin | TW |
Documentation:
Product Variants
| Model | Connection Type-side 1 | Connection Size-side 1 | Connection Size-side 2 | Connection Type-side 2 | Flow Rate | Overall Height | Overall Width | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

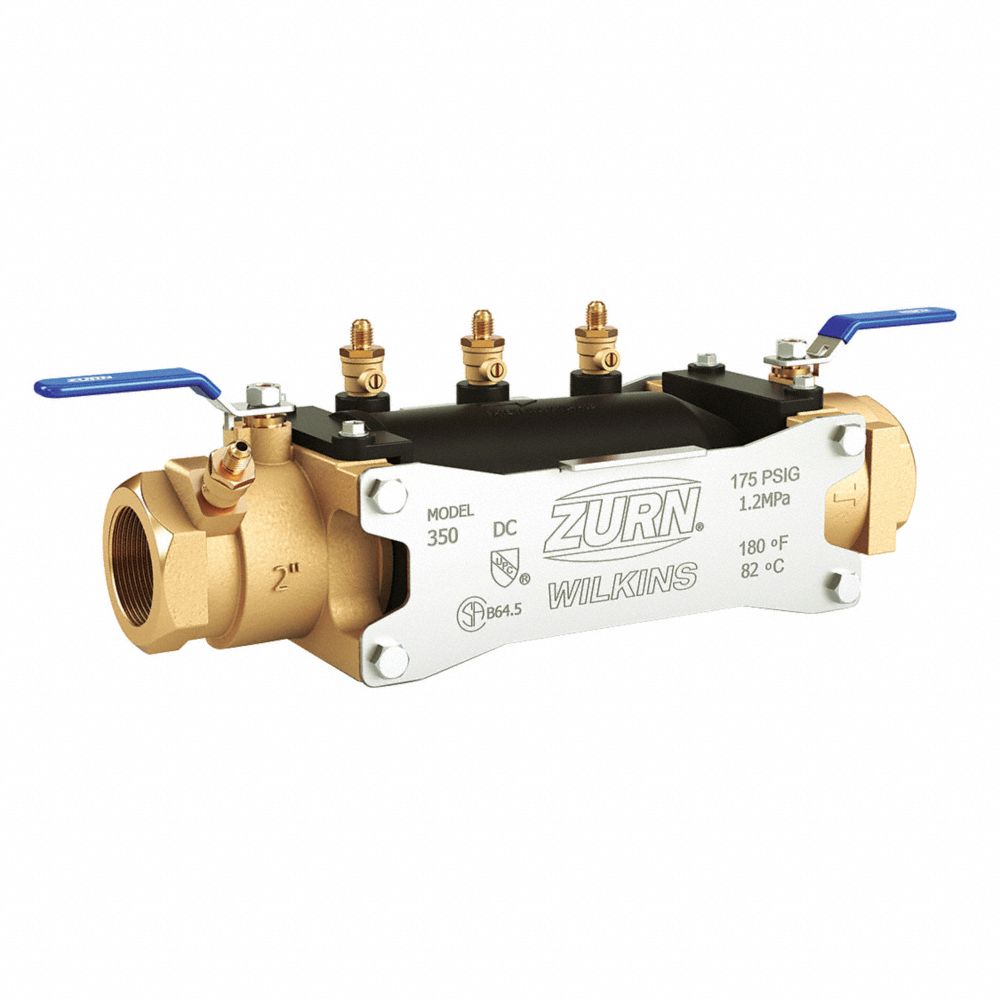

| 112-350 | Flange | 1 1/2" | 1 1/2" | Flange | 150 GPM | 6" | 6 3/4" | 6 1/4" | €1,127.35 | |
| 114-350 | NPTF | 1 1/4" | 1 1/4" | NPTF | 113 GPM | 6" | 6 3/4" | 6 1/4" | €1,051.87 | |
| 2-350 | Flange | 2" | 2" | Flange | 242 GPM | 6" | 6 3/4" | - | €1,270.90 | |

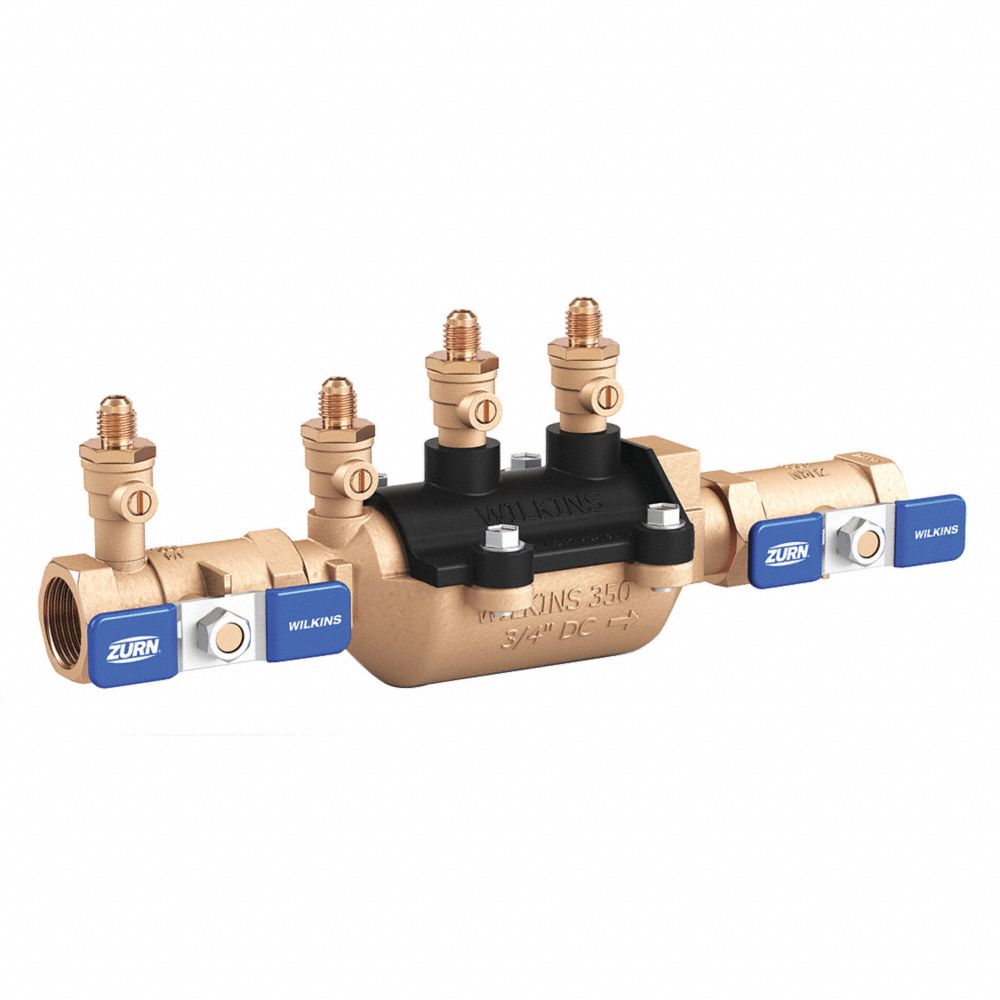

| 34-350 | Flange | 3/4" | 3/4" | Flange | 43 GPM | 4 1/4" | 3 3/4" | - | €427.10 |
