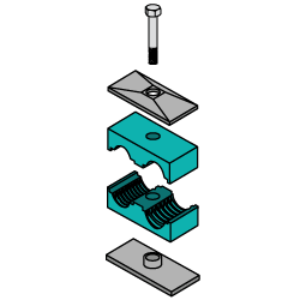

ZSI-FOSTER T4017S-SS Pipe Assembly, 3/4 Inch Size, Stainless Steel
Item: CF3ZPWModel: T4017S-SSCross Ref: 22JG66
7 In Stock
Ships within 2 days via
10.00% off
€60.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Assembly |
| Bolt Length | 2" |
| Bore Style | Ribbed |
| Bottom Plate Material | 304 Stainless Steel |
| Clamp Material | Stainless Steel |
| Clamp Type | Beta Clamp Assembly |
| Cushion Material | Polypropylene |
| For Maximum Outside Diameter | 1 1/16" |
| For Minimum Outside Diameter | 1 1/16" |
| For No. Of Lines | 2 |
| For Outside Dia. | 1 1/16" to 1 1/16" |
| For Pipe Size | 3/4" |
| Load Capacity | 1500 lbs. |
| Material | Stainless Steel |
| Material Grade | Grade 304 |
| Maximum Operating Pressure | 1500 psi |
| Maximum Operating Temperature | 194°F |
| Minimum Operating Temperature | -22°F |
| Mount Hole Center-to-center Length | 1 49/64" |
| Mount Type | Weld On |
| Overall Height | 2 11/32" |
| Overall Length | 1 13/64" |
| Overall Width | 3 11/32" |
| Resistance Properties | Shock Absorbing, Vibration Damping |
| Series | Twin Series |
| System Of Measurement | Imperial |
| Top Plate Material | Stainless Steel |
| Top Plate Material Grade | Grade 304 |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 5.95 |
| Ship length (cm) | 3.06 |
| Ship width (cm) | 8.49 |
Product Variants
| Model | Material | Overall Height | For Pipe Size | Overall Width | Height | Overall Length | Clamp Type | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| T1004-S | Steel | 1 11/16" | - | 1 29/64" | 1.69" | 1 13/64" | Beta Clamp Assembly | 1500 psi | €9.99 | |
| T1006-S | Steel | 1 11/16" | - | 1 29/64" | 1.69" | 1 13/64" | Beta Clamp Assembly | 1500 psi | €9.32 | |
| T2008-S | Steel | 1 45/64" | - | 2 5/32" | 1.71" | 1 13/64" | Beta Clamp Assembly | 1500 psi | €10.55 | |
| T2010-S | Steel | 1 45/64" | - | 2 5/32" | 1.71" | 1 13/64" | Beta Clamp Assembly | 1500 psi | €10.69 | |
| T3012-S | Steel | 2 9/64" | - | 2 3/4" | 2.14" | 1 13/64" | Beta Clamp Assembly | 1500 psi | €12.58 | |
| T3015-S | Steel | 2 9/64" | - | 2 3/4" | 2.14" | 1 13/64" | Beta Clamp Assembly | 1500 psi | €12.54 | |
| T3016-S | Steel | 2 9/64" | - | 2 3/4" | 2.14" | 1 13/64" | Beta Clamp Assembly | 1500 psi | €12.64 |
