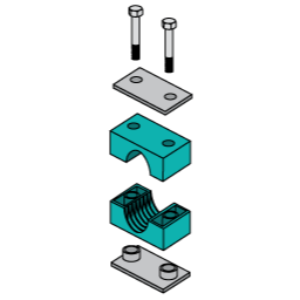

ZSI-FOSTER S1007S-SS Pipe Assembly, 1/8 Inch Size, Stainless Steel
Item: CF3XTBModel: S1007S-SSCross Ref: 22JF61
7 In Stock
Ships within 2 days via
10.00% off
€42.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Assembly |
| Bolt Length | 1 1/4" |
| Bore Style | Ribbed |
| Bottom Plate Material | 304 Stainless Steel |
| Clamp Material | Stainless Steel |
| Clamp Type | Beta Clamp Assembly |
| Cushion Material | Polypropylene |
| For Maximum Outside Diameter | 3/8" |
| For Minimum Outside Diameter | 3/8" |
| For No. Of Lines | 1 |
| For Outside Dia. | 3/8" to 3/8" |
| For Pipe Size | 1/8" |
| Load Capacity | 1500 lbs. |
| Material | Stainless Steel |
| Material Grade | Grade 304 |
| Maximum Operating Pressure | 1500 psi |
| Maximum Operating Temperature | 194°F |
| Minimum Operating Temperature | -22°F |
| Mount Hole Center-to-center Length | 25/32" |
| Mount Type | Weld On |
| Overall Height | 1 1/4" |
| Overall Length | 1 13/64" |
| Overall Width | 1 13/32" |
| Resistance Properties | Shock Absorbing, Vibration Damping |
| Series | Standard Series |
| Size | 1/8" |
| System Of Measurement | Imperial |
| Top Plate Material | Stainless Steel |
| Top Plate Material Grade | Grade 304 |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 3.06 |
| Ship width (cm) | 3.57 |
Product Variants
| Model | Material | Overall Height | Overall Length | For Pipe Size | Overall Width | Height | Size | Rod Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| S7038S-SS | Stainless Steel | 4 3/64" | 1 13/64" | 2" | 4 13/16" | 4.047" | 2" | - | €269.58 | |
| SM3025S-SS | Stainless Steel | 41 mm | 30.5 mm | - | 51.796875 mm | 1.609" | - | 25 mm | €46.43 | |
| SM4030S-SS | Stainless Steel | 48 mm | 30.5 mm | - | 59.90625 mm | 1 7/8" | - | 30 mm | €55.25 | |
| SM5035S-SS | Stainless Steel | 64 mm | 30.5 mm | - | 71.90625 mm | 2.516" | - | 35 mm | €55.10 | |
| S1004-S-SS | Stainless Steel | 1 1/4" | 1 13/64" | - | 1 13/32" | 1 1/4" | - | - | €40.70 | |
| S1006-S-SS | Stainless Steel | 1 1/4" | 1 13/64" | - | 1 13/32" | - | - | - | €38.74 | |
| S2008-S-SS | Stainless Steel | 1 35/64" | 1 13/64" | - | 1 21/32" | - | - | - | €42.90 |
