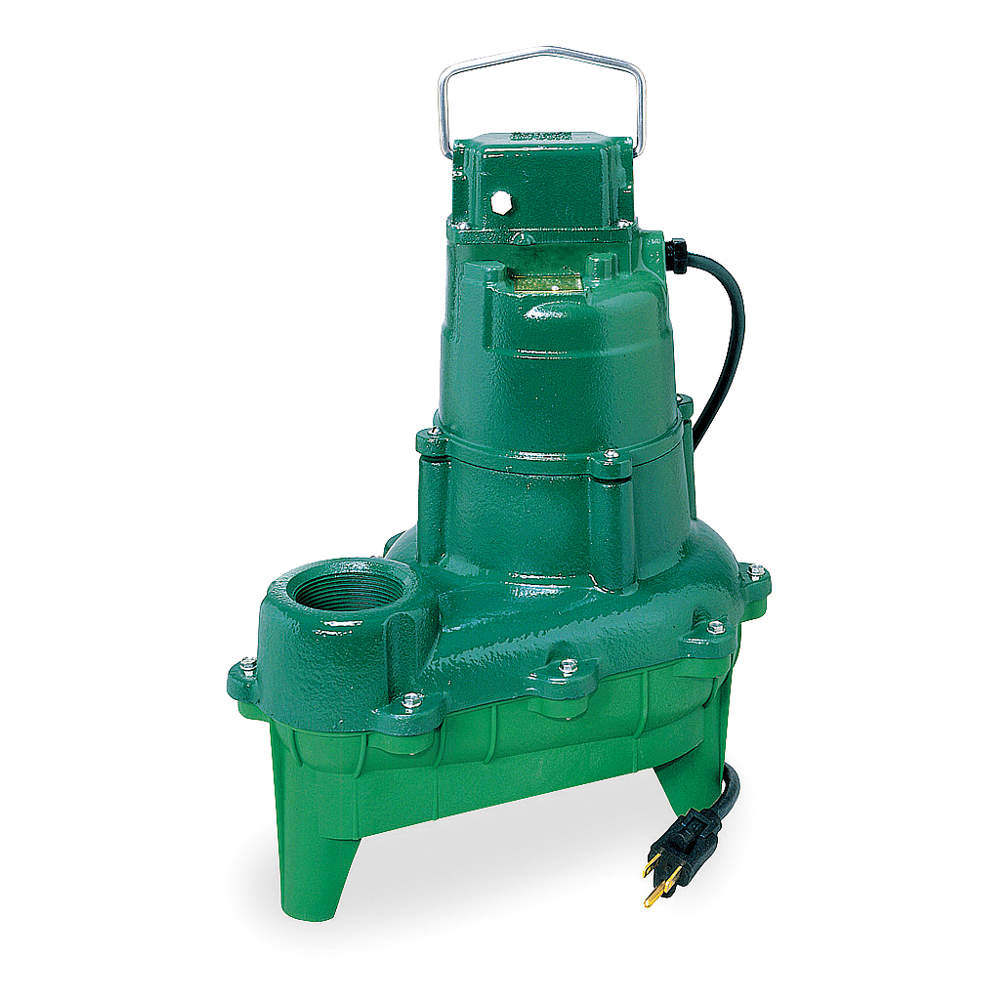

ZOELLER E264 Submersible Sewage Pump 4/10hp 230v 21 Feet
Get it by Monday, Feb 16
10.00% off
€719.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Submersible Sewage Pump |
| Amps | 4.7A |
| Base Material | Polypropylene |
| Bearing Type | Sleeve |
| Body Dia. | 13 1/8" |
| Body Material | Cast Iron |
| Cord Length | 15 ft. |
| Cord Length - Pumps | 15 ft. |
| Dia. | 13 1/8" |
| Diameter | 13 1/8" |
| Discharge Dia. | 2" |
| Discharge Gender | Female |
| Discharge Npt | 2" |
| Discharge Size | 2"-NPT |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 60 GPM |
| Flow Rate @ 10 Ft. Of Head | 60 GPM |
| Flow Rate @ 15 Ft. Of Head | 23 GPM |
| Flow Rate @ 5 Ft. | 90 GPM |
| Height | 14 3/4" |
| Housing Material | Cast Iron |
| Hp | 4/10 hp |
| Impeller Material | Thermoplastic |
| Impeller Material - Pumps | Polypropylene |
| Input Phase Ac | 1 |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Dia. Solids | 2" |
| Max. Flow Rate @ 15 Ft. | 22 GPM |
| Max. Head | 18 ft. |
| Max. Head - Pumps | 18 ft. |
| Max. Liquid Temp. | 130°F |
| Max. Media Temp. | 130°F |
| Max. Solid Dia. | 2" |
| Min. Sump Pit Dia. | 18" |
| Motor Type | Hermetically Sealed, Oil Filled, Permanent Split Capacitor |
| Off Point | 4 1/2" |
| On Point | 12 1/2" |
| Outlet | 2" Fnpt |
| Outlet Size | 2" |
| Overall Height | 14 3/4" |
| Phase | 1 |
| Phase - Pumps | 1 |
| Pump Body Material | Cast Iron |
| Pump Type | Manual |
| Rpm | 1725 RPM |
| Seal Material | Carbon Ceramic |
| Series | WASTE-MATE 264 Series |
| Shaft Seal Material | Carbon, Ceramic |
| Shaft Seal Material - Pumps | Ceramic, Carbon |
| Switch Actuation | No Switch Included |
| Switch Electrical Connection | No Switch Included |
| Switch Type | None |
| Switch Type - Pumps | No Switch Included |
| Thermal Protection | Yes |
| Top Material | Cast Iron |
| Type | Manual |
| Voltage | 230V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 15.21 |
| Ship height (cm) | 37.47 |
| Ship length (cm) | 35.31 |
| Ship width (cm) | 37.47 |
| HS code | 8413702004 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Switch Actuation | Flow Rate @ 10 Ft. | Base Material | Impeller Material | Outlet Size | Amps | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
514620 | 1 hp | No Switch Included | 160 GPM | Cast Iron | Cast Iron | 3" | 11A | Ball | €1,635.48 | |
|
514720 | 1 hp | No Switch Included | 160 GPM | Cast Iron | Cast Iron | 3" | 6.3A | Ball | €1,614.11 | |
 |
520100 | 2 hp | No Switch Included | 205 GPM | Cast Iron | Cast Iron | 3" | 18A | Ball | €2,049.45 | |
|
520150 | 2 hp | No Switch Included | 205 GPM | Cast Iron | Cast Iron | 3" | 12.6A | Ball | €1,974.36 | |
 |
M267 | 1/2 hp | Vertical Float | 85 GPM | Cast Iron | Thermoplastic | 2" | 10.4A | Oil Lubricated | €903.24 | |
 |
M282 | 1/2 hp | Vertical Float | 95 GPM | Cast Iron | Cast Iron | 3" | 10.3A | Lower Ball, Upper Sleeve | €1,837.92 | |
|
D284 | 1 hp | Vertical Float | 157 GPM | Stainless Steel | Cast Iron | 3" | 8.9A | Lower Ball, Upper Sleeve | €2,048.40 |
