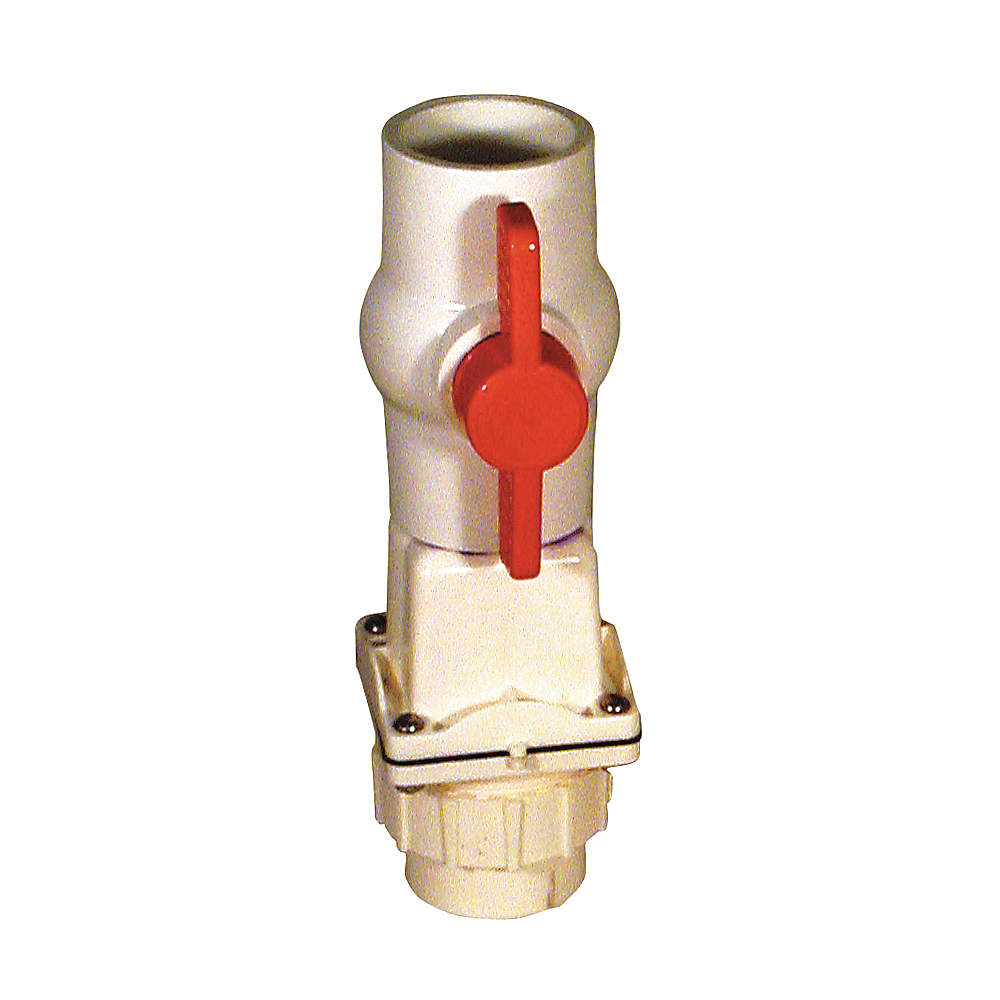

ZOELLER 30-0101 Check Valve With Ball Valve And Union Pvc
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€73.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Check Valve with Ball Valve and Union |
| 3-a Compliance | Not Rated |
| Application - Valves | Pumps |
| Body Material | PVC |
| Check Mechanism | Swing |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Type | Socket x Socket |
| Connection Type - Side 1 | Socket |
| Connection Type - Side 2 | Socket |
| Cracking Pressure | 1 psi |
| Disc Material | PVC |
| Flow Coefficient (cv) | Not Rated |
| Flow Design | Single |
| Flow Direction | Full Flow |
| Flow Rate | Not Rated |
| Flow Type | Full Flow |
| For Media | Pumps |
| Full Flow - Valves | Yes |
| Length | 11 1/2" |
| Material | PVC |
| Max. Pressure (cwp) | 25 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Temp. | 130°F |
| Media Temperature Range | 75°F to 130°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nsf Certifications For Food And Drinking Water | Not Rated |
| Operating Temperature - Maximum | 130°F |
| Operating Temperature - Minimum | 75°F |
| Overall Length | 11.5" |
| Pipe Or Tube Size | 2" |
| Pipe Or Tube Size - Check Valves | 2" |
| Seal Material | Neoprene |
| Seal Material - Check Valves | Neoprene |
| Seat Material | PVC |
| Silent Check | Standard |
| Size | 2" |
| Valve Body Style | Inline |
| Width | 9 1/2" |
Shipping Info:
| Ship weight (kg) | 1.28 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 33.02 |
| HS code | 8481809015 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Material | Connection Type | Pipe Size | Max. Temp. | Seat Material | Cracking Pressure | Seal Material | Mounting Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

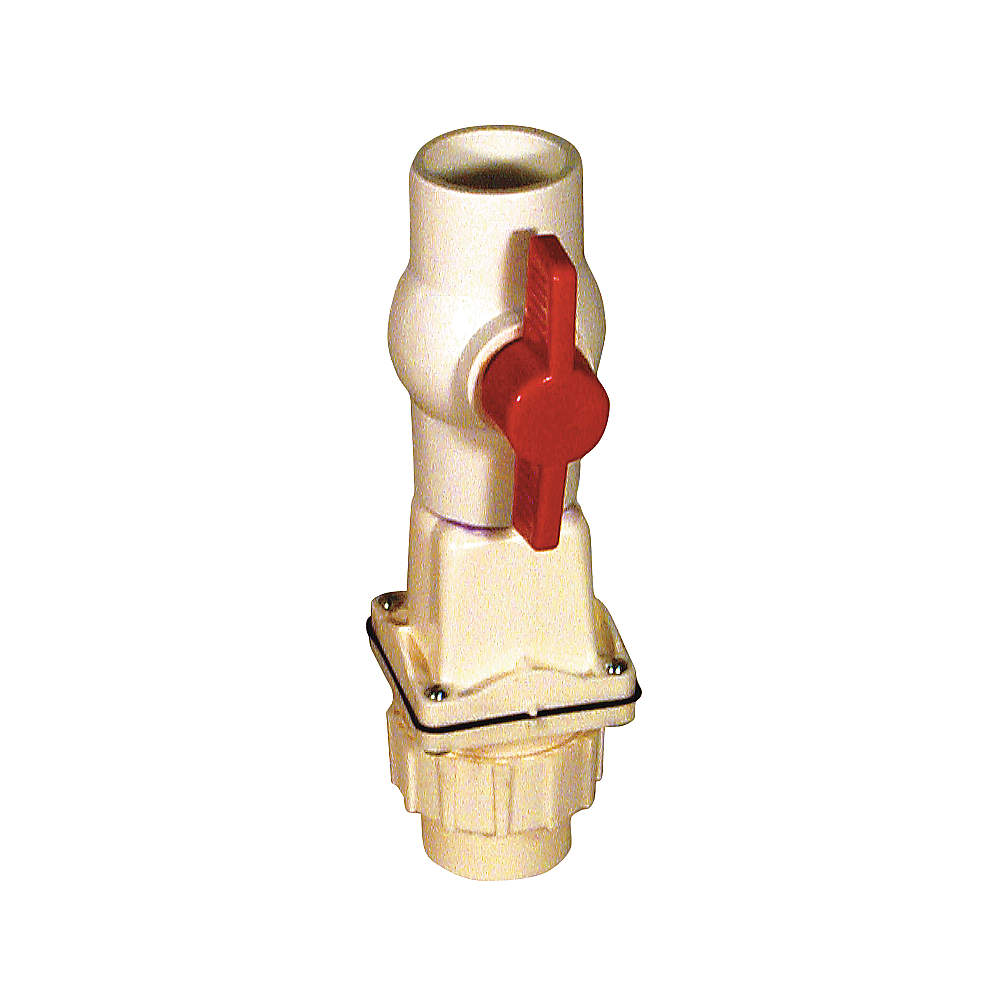

30-0100 | PVC | Socket x Socket | 1 1/2" | 130°F | PVC | 1 psi | Neoprene | Horizontal/Vertical | €70.70 |
