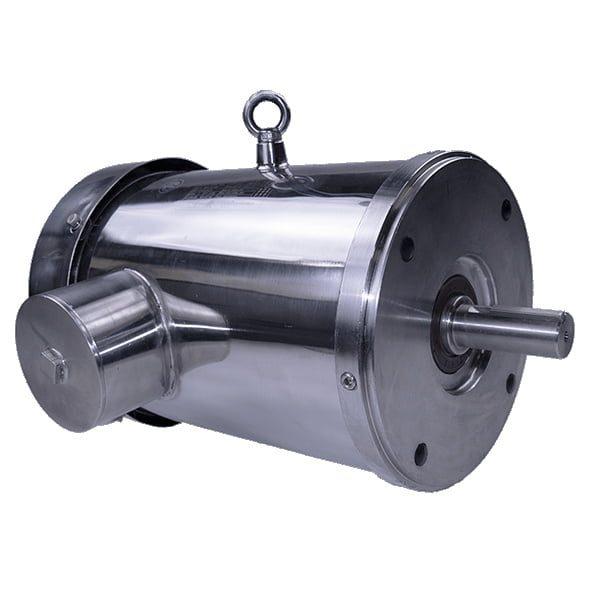

WORLDWIDE ELECTRIC SSPE15-36-254TCRD Motor, 15 HP, 3600 RPM, 208-230/460V, 254TC Frame, C-Face Round Body, Stainless Steel
€7,797.17 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Breakdown Torque (bdt) | 260% |
| Connection Diagram | 12 Lead 2 |
| Degree Of Protection | IP69K |
| Duty Cycle | S1 |
| Efficiency 75% | 90.5% |
| Efficiency @ 100% | 91% |
| Enclosure Type | Tefc (Totally Enclosed Fan Cooled) |
| F1/f2 Suitable | Unsuitable |
| Frame Size | 254tc |
| Full Load Amps @ 208v | 40A |
| Full Load Amps @ 230v | 37A |
| Full Load Amps @ 460v | 18.5A |
| Full Load Speed | 3540 RPM |
| Full Load Torque | 22 lbs.-ft. |
| Grease Type | Mobil Polyrex Em |
| Hp | 15 hp |
| Insulation Class | Class F |
| Locked Rotor Amps @ 230v | 232A |
| Locked Rotor Amps @ 460v | 116A |
| Locked Rotor Time(hot) | 12 sec. |
| Max. Ambient Temp. | 40°C |
| Max. Elevation | 3300 ft. |
| Moment Of Inertia | 0.94 lbs.-sq. ft. |
| Nema Code Letter | G |
| Nema Design | B |
| No Load Amps @ 230v | 9A |
| No Load Amps @ 460v | 4.5A |
| No. Of Starts/hr | 10 |
| Phase | 3 |
| Product Datasheet | worldwide-electric-lam1-5-12-182t.pdf |
| Rotation | Bidirectional |
| Service Factor | 1.15 |
| Slip | 1.67% |
| Sound Pressure Level | 74 dBA |
| Speed | 3600 RPM |
| Temp. Rise (c) | 80°C |
| Terminal Box Location | F1 |
Documentation:
Product Variants
| Product | Model | Hp | Slip | Moment Of Inertia | Full Load Torque | Locked Rotor Torque | Phase | Service Factor | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SSPE1.5-12-182TC | 1 1/2 hp | 2.5% | 0.416 lbs.-sq. ft. | 6.6 lbs.-ft. | 2.55 | 3 | 1.15 | C Face With Feet | €1,764.62 | RFQ
|
 |
SSPE1.5-12-182TCRD | 1 1/2 hp | 2.5% | 0.416 lbs.-sq. ft. | 6.6 lbs.-ft. | 2.55 | 3 | 1.15 | - | €1,694.68 | RFQ
|
 |
SSPE1.5-18-145TC | 1 1/2 hp | 2.78% | 0.138 lbs.-sq. ft. | 4.4 lbs.-ft. | 2.85 | 3 | 1.15 | C Face With Feet | €1,015.74 | RFQ
|
 |
SSPE1.5-18-145TCRD | 1 1/2 hp | 2.78% | 0.138 lbs.-sq. ft. | 4.4 lbs.-ft. | 2.85 | 3 | 1.15 | - | €977.33 | RFQ
|
 |
SSPE1.5-18-56C | 1 1/2 hp | 2.78% | 0.138 lbs.-sq. ft. | 4.4 lbs.-ft. | 2.85 | 3 | 1.15 | C Face With Feet | €988.29 | RFQ
|
 |
SSPE1.5-18-56CRD | 1 1/2 hp | 2.78% | 0.138 lbs.-sq. ft. | 4.4 lbs.-ft. | 2.85 | 3 | 1.15 | - | €955.35 | RFQ
|
 |
SSPE1.5-36-143TC | 1 1/2 hp | 3.33% | 0.072 lbs.-sq. ft. | 2.3 lbs.-ft. | 2.85 | 3 | 1.15 | C Face With Feet | €988.29 | RFQ
|
