WINTERS INSTRUMENTS PEM1409LF Gauge Pressure 2 Inch 0 to 160 psi
Item: AH7HGJModel: PEM1409LFCross Ref: 36TV71
7 In Stock
Ships within 2 days via
10.00% off
€16.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Grade | Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +150°F, -40°C to +65°C |
| Application | Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing |
| Basic Gauge Case Material | Steel |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Bezel Material | Steel |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth | 1.079" |
| Case Dia. | 2.07" |
| Case Finish | Painted |
| Case Material | Steel |
| Characteristics | Friction Bezel Ring |
| Cleaned For Oxygen Service | No |
| Color | Black |
| Compatible Process Media | Non-Clogging, Non-Corroding, Potable Water |
| Connection Location | Center Back |
| Connection Size | 1/4" |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dial Size | 2" |
| Field Fillable | No |
| For Use With | Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks |
| Freeze Resistant Movement | No |
| Gauge Case Color | Black |
| Gauge Case Material | Steel |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Plastic |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Nominal Dial Size | 2" |
| Non-sparking | No |
| Nsf Certified | Yes |
| Operating Temp. Range | -40°F to +150°F |
| Over-pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Lead Free Pressure Gauge |
| Pressure Range | 0 psi to 160 psi |
| Pressure Range Type | Pressure |
| Primary Application | Lead Free |
| Primary Pressure Range | 0 to 160 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Range | 0 psi to 160 psi |
| Removable Bezel | No |
| Required Gauge Adapter | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 1100 |
| Secondary Scale Units | Kpa |
| Sensor Material | Bronze |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PEM-LF Series |
| Socket Material | Lead Free Brass |
| Wetted Materials | Brass, Bronze |
| Wetted Parts Material | Lead Free Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.74 |
| Ship length (cm) | 5.26 |
| Ship width (cm) | 5.26 |
| Country of Origin | CN |
Product Details:
- Gauge Accuracy : +/-3-2-3%
- Pressure and Vacuum Gauge Type : Pressure Gauge
- Gauge Panel Mountable : No
- Liquid Filled : No
- Required Gauge Adapter : No
- Characteristics: Friction Bezel Ring
Product Variants
| Product | Model | Nominal Dial Size | Pressure Range | Case Dia. | Dial Size | Secondary Pressure Range | Primary Pressure Range | Pressure Range Type | Process Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

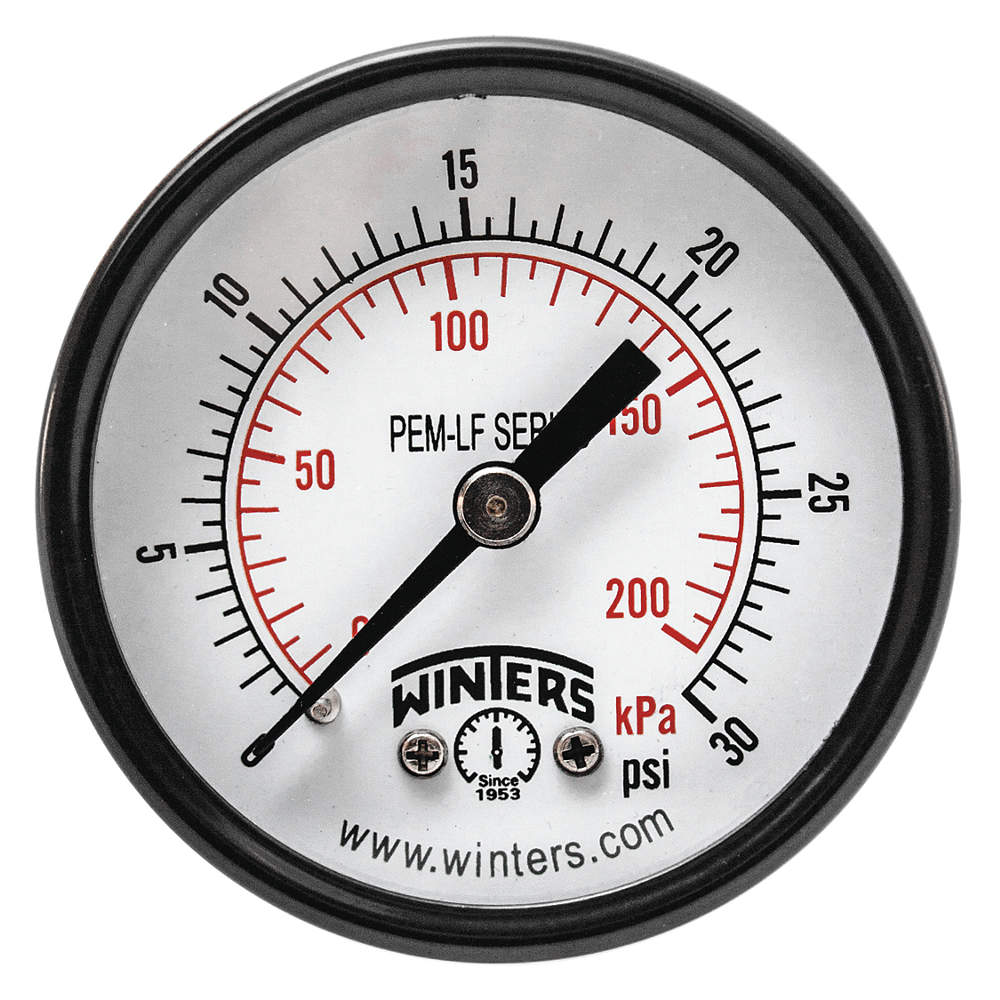

PEM1403LF | 2" | 0 psi to 30 psi | 2.07" | 2" | 0 psi to 200 psi | 0 psi to 30 psi | Pressure | Center Back | €18.28 | |
 |

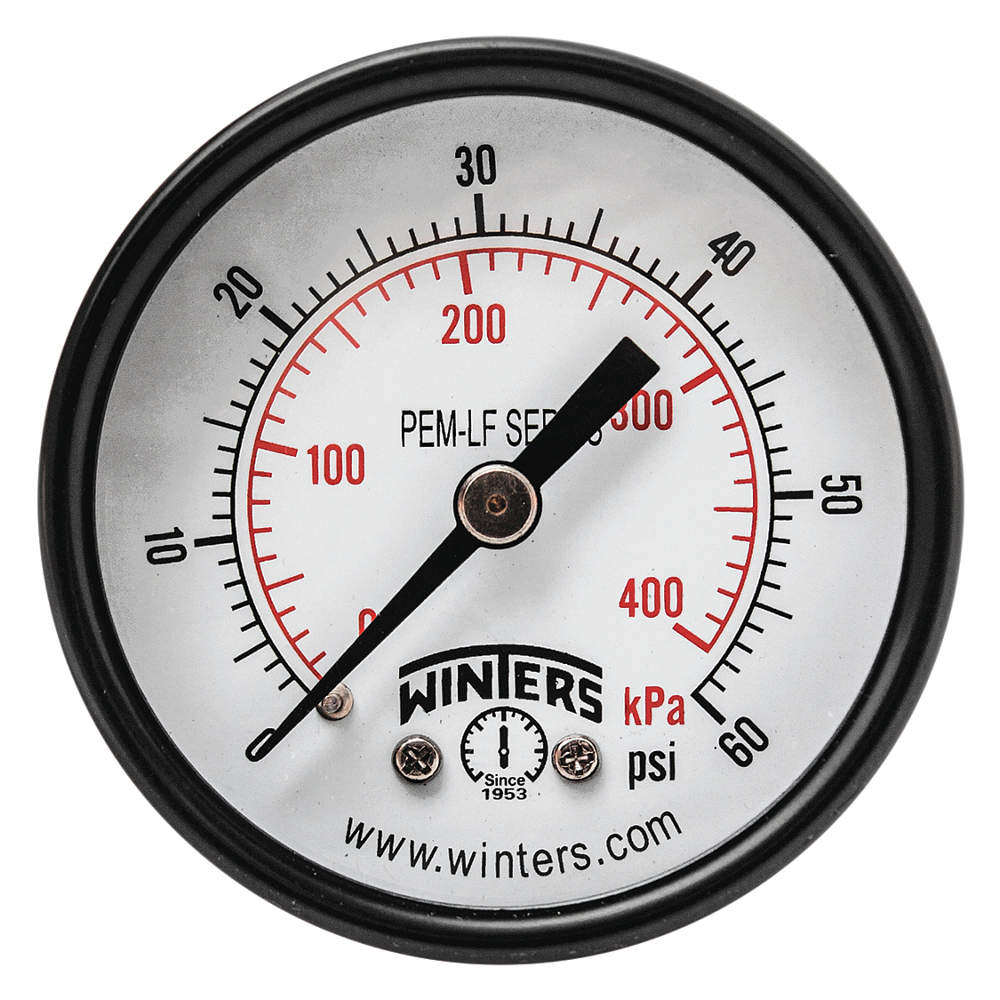

PEM1405LF | 2" | 0 psi to 60 psi | 2.07" | 2" | 0 to 410 | 0 psi to 60 psi | Pressure | Center Back | €18.28 | |
 |

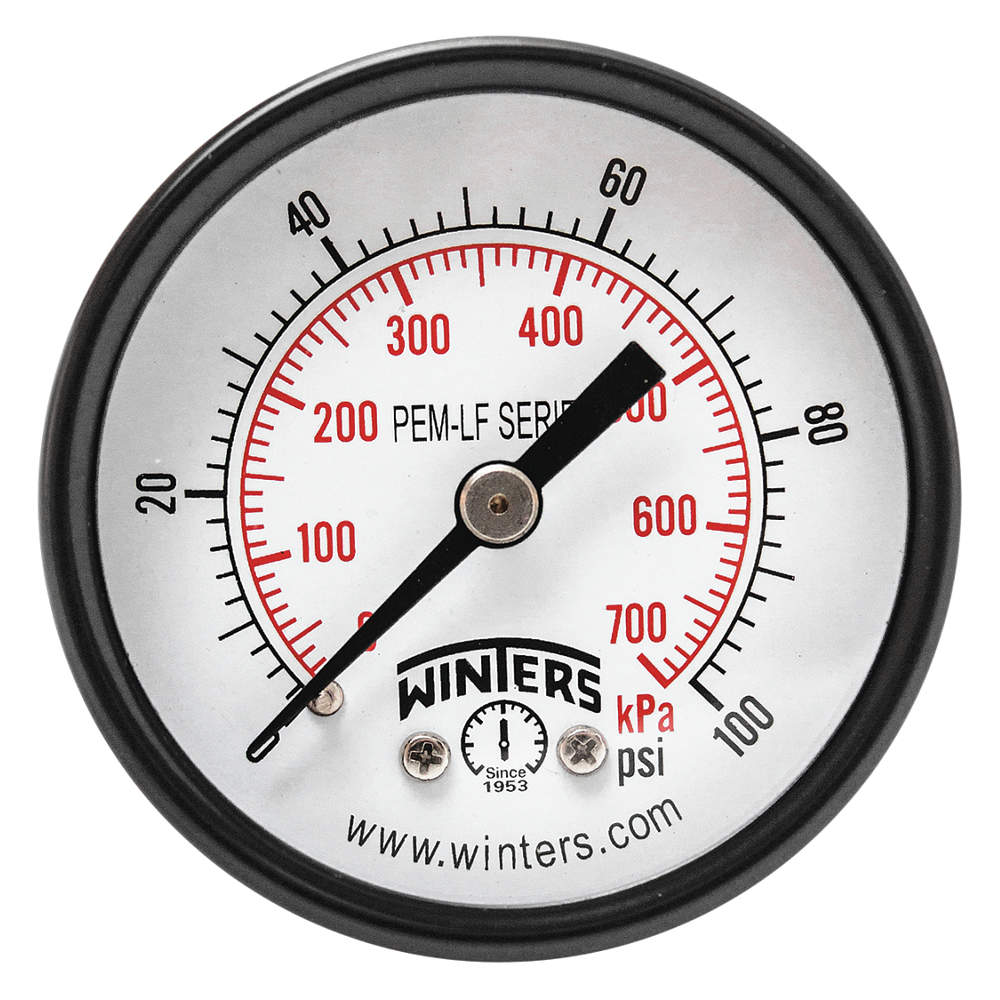

PEM1407LF | 2" | 0 psi to 100 psi | 2.07" | 2" | 0 to 690 | 0 psi to 100 psi | Pressure | Center Back | €18.28 | |
 |

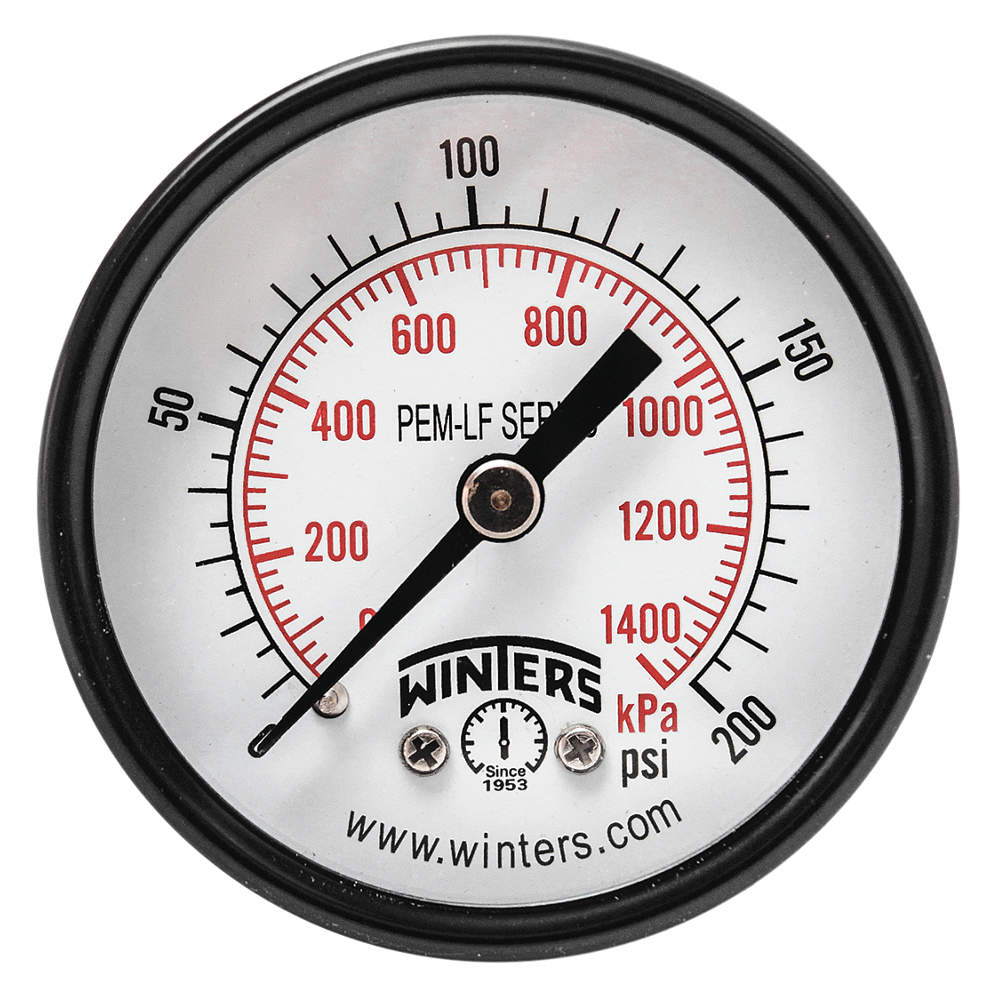

PEM1410LF | 2" | 0 psi to 200 psi | 2.07" | 2" | 0 to 1400 | 0 psi to 200 psi | Pressure | Center Back | €18.28 | |
 |

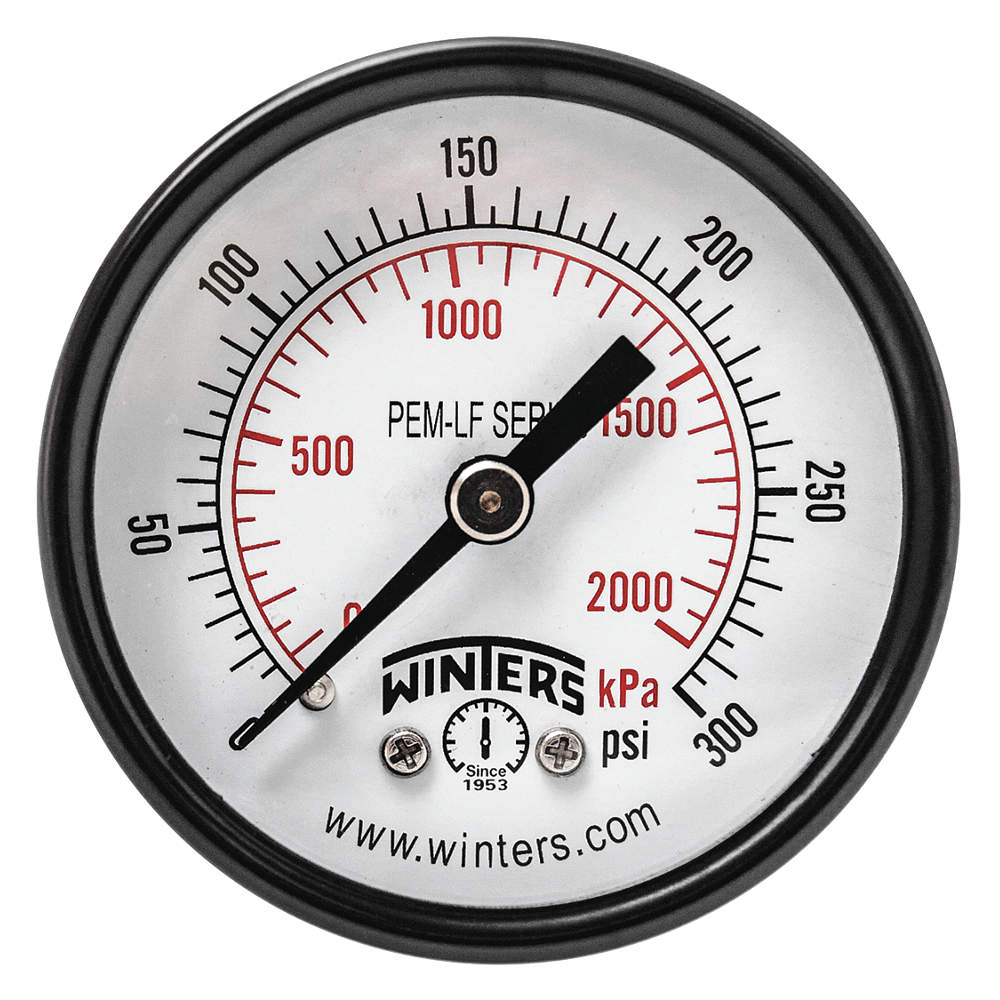

PEM1411LF | 2" | 0 psi to 300 psi | 2.07" | 2" | 0 to 2100 | 0 psi to 300 psi | Pressure | Center Back | €18.28 | |
 |
PEM1429LF | 2" | 0 psi to 15 psi | 2.07" | 2" | 0 psi to 100 psi | 0 psi to 15 psi | Pressure | Center Back | €18.28 | |
 |

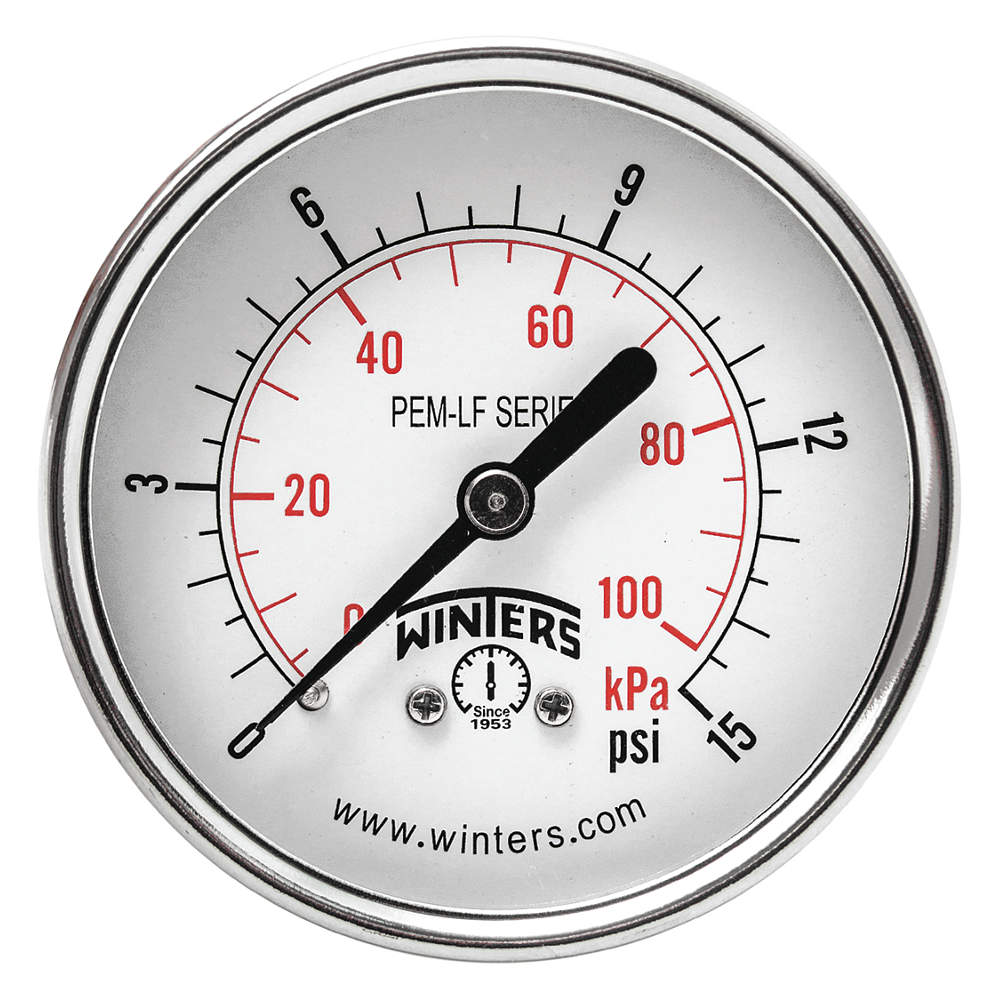

PEM1436LF | 2 1/2" | 0 psi to 15 psi | 2 1/2" | 2 1/2" | 0 psi to 100 psi | 0 psi to 15 psi | Pressure | Center Back | €17.39 |
