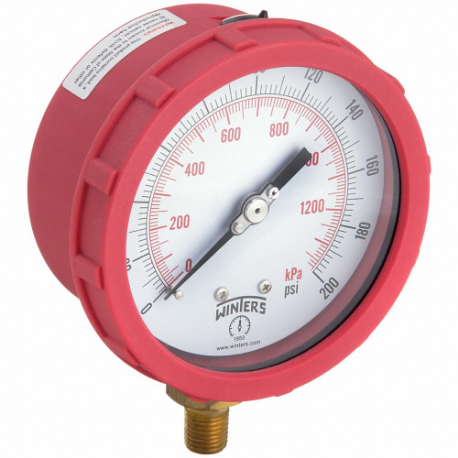

WINTERS INSTRUMENTS PCC606C-1Y Industrial Pressure Gauge, Red, 0 To 200 PSI, 4 Inch Dial, 1/4 Inch Npt Male, Plastic
Item: CV3RYWModel: PCC606C-1YCross Ref: 491F10
7 In Stock
Ships within 2 days via
10.00% off
€102.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1% to +1% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -40°F to +200°F |
| Ambient Temp. Range | -40°F to +200°F |
| Application | Compressors, Hydraulics, Machinery, Process Industries |
| Bezel Gasket Material | Silicone |
| Bezel Material | PBT |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Red |
| Case Construction | Welded Joint |
| Case Depth | 2 7/25" |
| Case Dia. | 3.94" |
| Case Material | Plastic |
| Cleaned For Oxygen Service | No |
| Dial Color | White |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | None |
| Gauge Case Material | PBT |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | IP65 |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mounting Type | Stem Mount |
| Movement Material | Brass |
| Nominal Dial Size | 4" |
| Non-sparking | No |
| Over-pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 200 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 200 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +200°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 1400 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Vibration Resistance | Field Fillable |
| Wetted Materials | Phosphor Bronze |
| Wetted Parts Material | Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 5.79 |
| Ship length (cm) | 10.01 |
| Ship width (cm) | 10.01 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Range | Case Color | Secondary Pressure Range | Primary Pressure Range | Range | Pressure Gauge Type | Pressure Range Type | Process Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PCC604C | 0 psi to 100 psi | Black | 0 kPa to 690 kPa | 0 psi to 100 psi | 0 psi to 100 psi | Industrial Pressure Gauge | Pressure | Bottom | €114.24 | |
 |
PCC601C | 0 psi to 15 psi | Black | 0 kPa to 100 kPa | 0 psi to 15 psi | 0 psi to 15 psi | Industrial Pressure Gauge | Pressure | Bottom | €114.24 | |
 |
PCC606C | 0 psi to 200 psi | Black | 0 kPa to 1400 kPa | 0 psi to 200 psi | 0 psi to 200 psi | Industrial Pressure Gauge | Pressure | Bottom | €114.24 | |
 |
PCC607C | 0 psi to 300 psi | Black | 0 kPa to 2100 kPa | 0 psi to 300 psi | 0 psi to 300 psi | Industrial Pressure Gauge | Pressure | Bottom | €114.24 | |
 |
PCC610C | 0 psi to 400 psi | Black | 0 kPa to 2800 kPa | 0 psi to 400 psi | - | Industrial Pressure Gauge | Pressure | Bottom | €121.86 | |
 |
PCC603C | 0 psi to 60 psi | Black | 0 kPa to 410 kPa | 0 psi to 60 psi | - | Industrial Pressure Gauge | Pressure | Bottom | €114.24 | |
 |
PCC604C-4Y | 0 psi to 100 psi | Blue | 0 kPa to 690 kPa | 0 psi to 100 psi | 0 psi to 100 psi | Industrial Pressure Gauge | Pressure | Bottom | €114.24 |
