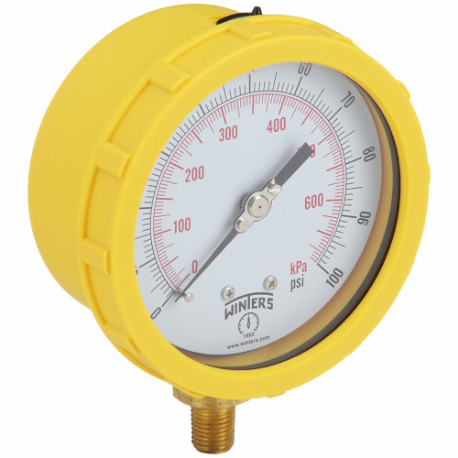

WINTERS INSTRUMENTS PCC604C-2Y Industrial Pressure Gauge, Yellow, 0 To 100 PSI, 4 Inch Dial, 1/4 Inch Npt Male, Plastic

Item: CV3RYZModel: PCC604C-2YCross Ref: 491F14

7 In Stock

Case Color

Ships within 2 days via

~~€114.24~~

10.00% off

€102.81 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Pressure Gauge
Accuracy	-1% to +1%
Accuracy Grade	ASME B40.100 Grade 1A
Accuracy Scale	Full Scale
Ambient Operating Temperature Range	-40°F to +200°F
Ambient Temp. Range	-40°F to +200°F
Application	Compressors, Hydraulics, Machinery, Process Industries
Bezel Gasket Material	Silicone
Bezel Material	PBT
Blowout Safety Back	No
Calibration Certificate Included	No
Case Color	Yellow
Case Construction	Welded Joint
Case Depth	2 7/25"
Case Dia.	3.94"
Case Material	Plastic
Cleaned For Oxygen Service	No
Connection Location	Bottom
Dial Color	White
Dial Face Material	Aluminum
Dry Dampening Feature	None
Field Fillable	Yes
For Use With	Media Compatible With Bronze
Freeze Resistant Movement	No
Gauge Case Color	Yellow
Gauge Case Liquid	None
Gauge Case Material	PBT
Gauge Connection Location	Bottom
Gauge Connection Size	1/4"
Gauge Nominal Dial Size	4"
Gauge Primary Range Units	Psi
Gauge Socket Material	Brass
Gauge Wetted Parts	Brass, Bronze
Hazardous Location Rating	Not Rated
Includes Mounting Hardware	No
Includes Vent Plug	Yes
Ip Rating, Nema Rating	IP65
Ip/nema Rating	Nema Ip65
Lens Material	Polycarbonate
Lens Material - Gauge	Plastic
Liquid Filled	No
Liquid-filled Case	No
Manufacturer Warranty Length	5 yrs.
Mounting Hardware Included	No
Mounting Type	Stem Mount
Movement Material	Brass
Nominal Dial Size	4"
Non-sparking	No
Over-pressure Limit	25%
Panel-mountable	No
Pointer Color	Black
Pointer Material	Aluminum
Pressure Gauge Type	Industrial Pressure Gauge
Pressure Range	0 psi to 100 psi
Pressure Range Type	Pressure
Primary Pressure Range	0 psi to 100 psi
Primary Scale Units	Psi
Process Connection	1/4" NPT Male
Process Connection Gender	Male
Process Connection Location	Bottom
Process Connection Size	1/4"
Process Connection Type	NPT
Process Temperature Range	-40°F to +200°F
Range	0 psi to 100 psi
Removable Bezel	No
Scale Type	Dual
Secondary Pressure Range	0 kPa to 690 kPa
Secondary Scale Units	Kpa
Sensor Material	Phosphor Bronze
Sensor Type	Bourdon Tube
Socket Material	Brass
Vibration Resistance	Field Fillable
Wetted Materials	Phosphor Bronze
Wetted Parts Material	Phosphor Bronze

Shipping Info:

Ship weight (kg)	0.45
Ship height (cm)	5.79
Ship length (cm)	10.01
Ship width (cm)	10.01
Country of Origin	CN

Product Variants

Model	Pressure Range	Case Color	Secondary Pressure Range	Primary Pressure Range	Range	Pressure Gauge Type	Pressure Range Type	Process Connection Location	Price
PCC604C	0 psi to 100 psi	Black	0 kPa to 690 kPa	0 psi to 100 psi	0 psi to 100 psi	Industrial Pressure Gauge	Pressure	Bottom	€114.24
PCC601C	0 psi to 15 psi	Black	0 kPa to 100 kPa	0 psi to 15 psi	0 psi to 15 psi	Industrial Pressure Gauge	Pressure	Bottom	€114.24
PCC606C	0 psi to 200 psi	Black	0 kPa to 1400 kPa	0 psi to 200 psi	0 psi to 200 psi	Industrial Pressure Gauge	Pressure	Bottom	€114.24
PCC607C	0 psi to 300 psi	Black	0 kPa to 2100 kPa	0 psi to 300 psi	0 psi to 300 psi	Industrial Pressure Gauge	Pressure	Bottom	€114.24
PCC610C	0 psi to 400 psi	Black	0 kPa to 2800 kPa	0 psi to 400 psi	-	Industrial Pressure Gauge	Pressure	Bottom	€121.86
PCC603C	0 psi to 60 psi	Black	0 kPa to 410 kPa	0 psi to 60 psi	-	Industrial Pressure Gauge	Pressure	Bottom	€114.24
PCC604C-4Y	0 psi to 100 psi	Blue	0 kPa to 690 kPa	0 psi to 100 psi	0 psi to 100 psi	Industrial Pressure Gauge	Pressure	Bottom	€114.24
