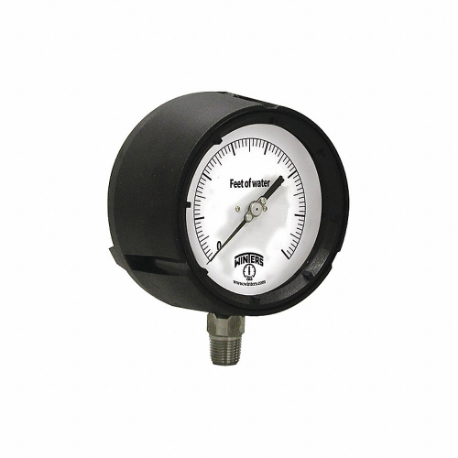

WINTERS INSTRUMENTS PAL6010ALT-STAT Altitude Pressure Gauge, Altitude, 0 To 140 Ft Wc, 4 1/2 Inch Dial, 1/4 Inch Npt Male
Item: CV3THZModel: PAL6010ALT-STATCross Ref: 491C86
7 In Stock
Ships within 2 days via
10.00% off
€125.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range | -40°F to +150°F, -40°C to +65°C |
| Ambient Temp. Range | -40°F to +150°F |
| Application | Level Measurement, Liquid Level Measurement |
| Bezel Material | Stainless Steel |
| Blowout Safety Back | No |
| Bolt Circle Dia. | 0.275" |
| Case Color | Black |
| Case Depth | 2.765" |
| Case Dia. | 4 23/25" |
| Case Diameter | 4.92" |
| Case Finish | Polished |
| Case Material | Aluminum |
| Dial Color | White |
| Flange Dia. | 4 1/2" |
| Freeze Resistant Movement | No |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Ip Rating, Nema Rating | IP52 |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Glass |
| Manufacturer Warranty Length | 5 yrs. |
| Mounting Type | Back Flange, Stem Mount |
| Movement Material | Brass |
| Nominal Dial Size | 4 1/2" |
| Over-pressure Limit | 30% |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustment |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Altitude Gauge |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 140 |
| Primary Scale Units | Ft Wc |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Reads Head Pressure | Yes |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PAL Series |
| Socket Material | Brass |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.74 |
| Ship height (cm) | 7.02 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 12.5 |
| Country of Origin | CN |
Product Variants
| Model | Nominal Dial Size | Mounting Type | Case Color | Accuracy | Sensor Material | Ip Rating, Nema Rating | Scale Type | Process Temperature Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PAL6011ALT-STAT | 4 1/2" | - | Black | -0.5% to +0.5% | Phosphor Bronze | IP52 | Single | -40°F to +150°F | €139.32 | |
| PAL6008ALT-STAT | 4 1/2" | - | Black | -0.5% to +0.5% | Phosphor Bronze | IP52 | Single | -40°F to +150°F | €139.32 | |
| PAL6083ALT-STAT | 6" | Stem Mount | Black | -0.5% to +0.5% | Brass | Not Rated | Single | -40°F to +150°F | €159.55 | |
| PAL6012ALT-STAT | 4 1/2" | Back Flange, Stem Mount | Black | -0.5% to +0.5% | Phosphor Bronze | IP52 | Single | -40°F to +150°F | €139.32 | |
| PAL6013ALT-STAT | 4 1/2" | Back Flange, Stem Mount | Black | -0.5% to +0.5% | Phosphor Bronze | IP52 | Single | -40°F to +150°F | €139.32 | |
| PAL6009ALT-STAT | 4 1/2" | Back Flange, Stem Mount | Black | -0.5% to +0.5% | Phosphor Bronze | IP52 | Single | -40°F to +150°F | €139.32 | |
| PAL6084ALT-STAT | 6" | Stem Mount | Black | -0.5% to +0.5% | Brass | Not Rated | Single | -40°F to +150°F | €159.55 |
