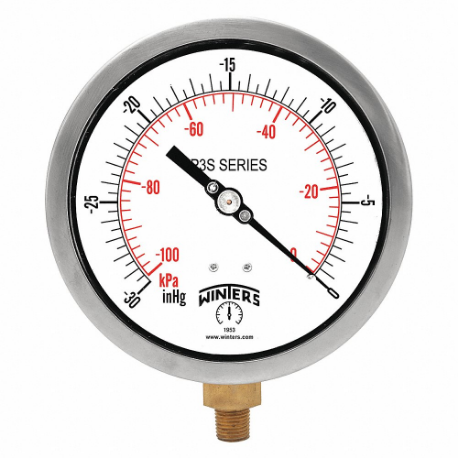

WINTERS INSTRUMENTS P3S6000 Industrial Vacuum Gauge, 4 1/2 Inch Size Dial, 1/4 Inch Size NPT Male
Item: CV3TQHModel: P3S6000Cross Ref: 491A68
7 In Stock
Ships within 2 days via
10.00% off
€115.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Operating Range | -40°F to +150°F |
| Application | Boilers |
| Bezel Material | Stainless Steel |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth | 2" |
| Case Dia. | 4 23/25" |
| Case Diameter | 4.92" |
| Case Finish | Painted |
| Case Material | Aluminum |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Air, Fresh Water, Oil, Steam |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Field Fillable | No |
| For Use With | Air, Brass, Fresh Water, Industrial Applications, Media Compatible With Copper Alloy, Oil, Steam |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A Process |
| Gauge Case Color | Black |
| Gauge Case Material | Aluminum |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Primary Range Units | In Hg |
| Gauge Socket Material | Brass |
| Gauge Special Options | Heavy Duty |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP52 |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Glass |
| Lens Material - Gauge | Glass |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mfr. Series | P3S 300 Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Brass |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
| Over-pressure Limit | 30% |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pointer Style | Black |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 in. hg to 30 in. hg |
| Pressure Range Type | Vacuum |
| Primary Pressure Range | -30 psi to 0 psi |
| Primary Scale Units | in. hg |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | -101 psi to 0 psi |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Wetted Materials | Brass |
| Wetted Parts Material | Brass |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 12.5 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Range | Accuracy | Case Color | Case Material | Lens Material | Socket Material | Sensor Material | Gauge Accuracy Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PCT320LF | - | - | Silver | Metal | Plastic | Brass | Bronze | Not Graded | €49.60 | |
 |

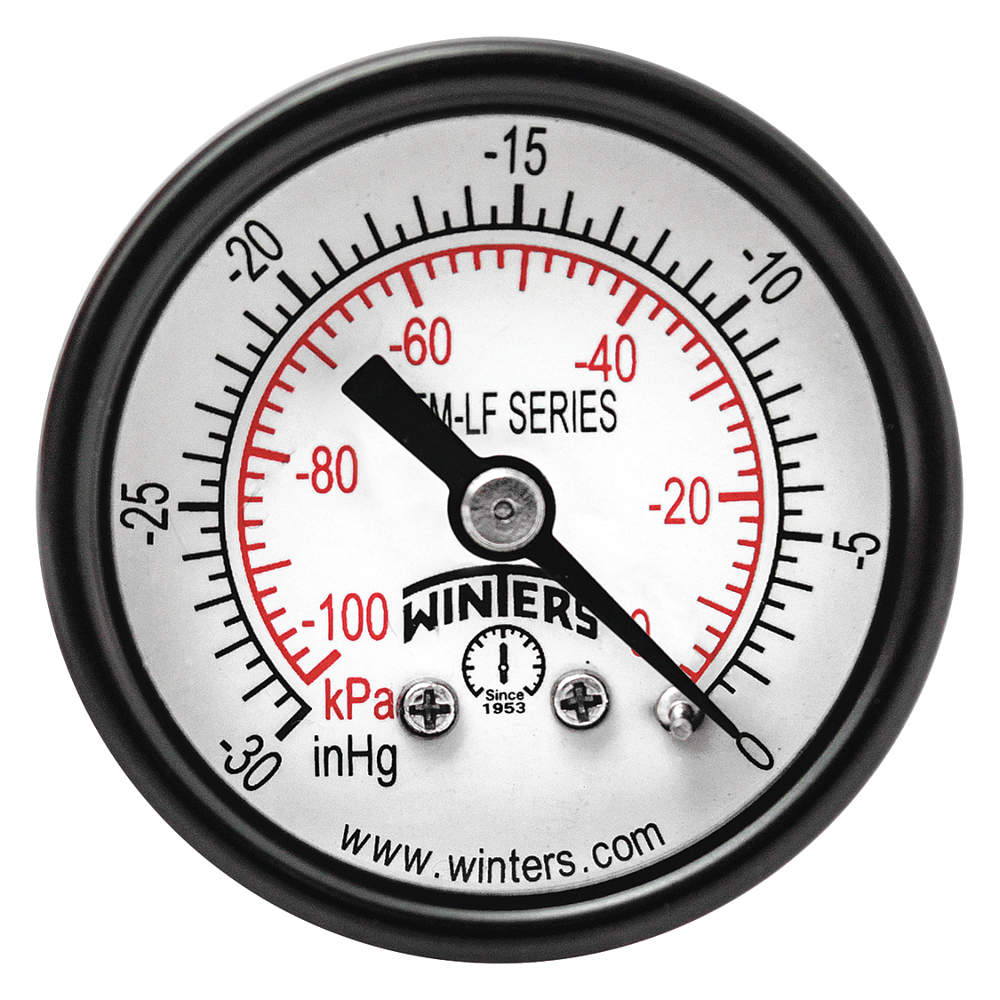

PEM1397LF | - | - | Black | Metal | Plastic | Brass | Bronze | Not Graded | €17.17 | |
 |
PEM1424LF | - | - | Black | Metal | Polycarbonate | Brass | Bronze | Not Graded | €13.11 | |
 |
P1S560 | 30 in. hg to 0 in. hg | -1% to +1% | Black | Steel | Glass | Brass | Phosphor Bronze | Grade 1A Industrial | €57.38 | |
 |

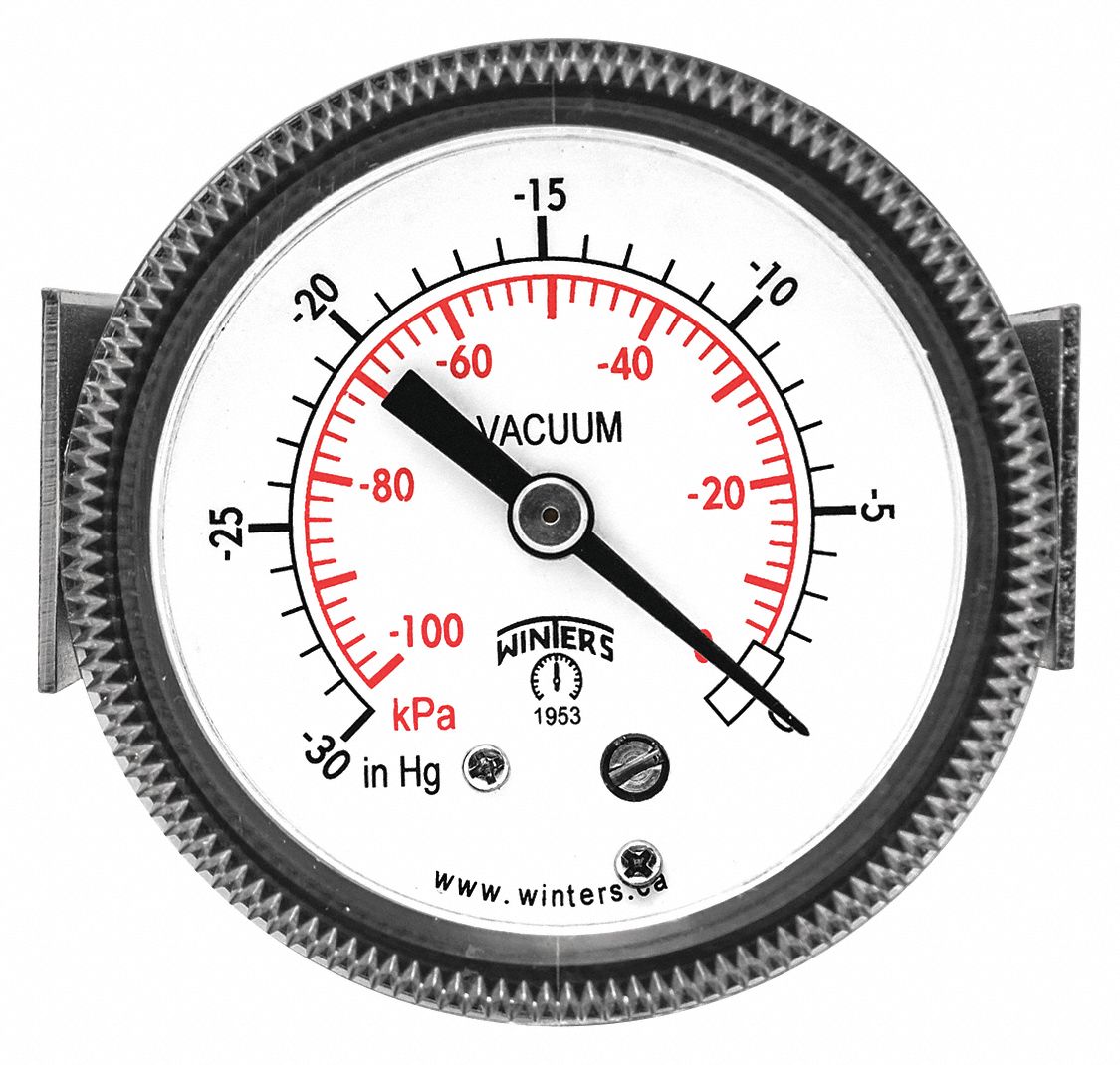

P9U901428UC | 30 in. hg to 0 in. hg | +/-2-1-2% | Black | Steel | Acrylic | Brass | Phosphor Bronze | Grade A Industrial | €25.94 | |
 |

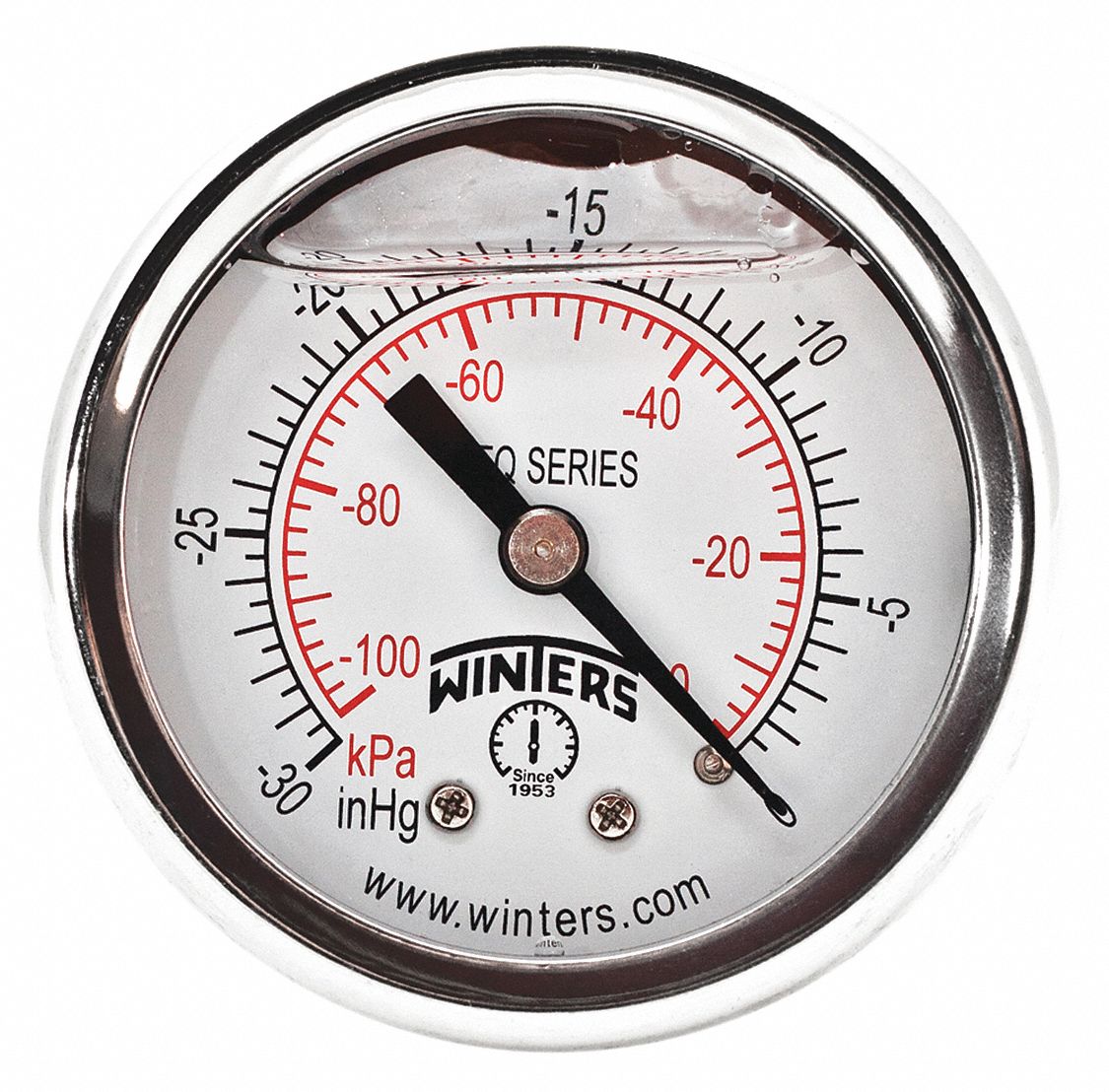

PFQ2478-DRY-2FF | 30 in. hg to 0 in. hg | -2.5% to +2.5% | Metallic | Stainless Steel | Polycarbonate | Brass OT58 | - | - | €32.12 | |
 |
P1S410 | 0 in. hg to 30 in. hg | -1% to +1% | Black | Aluminum | Glass | Brass | Phosphor Bronze | Grade 1A Industrial | €85.03 |
