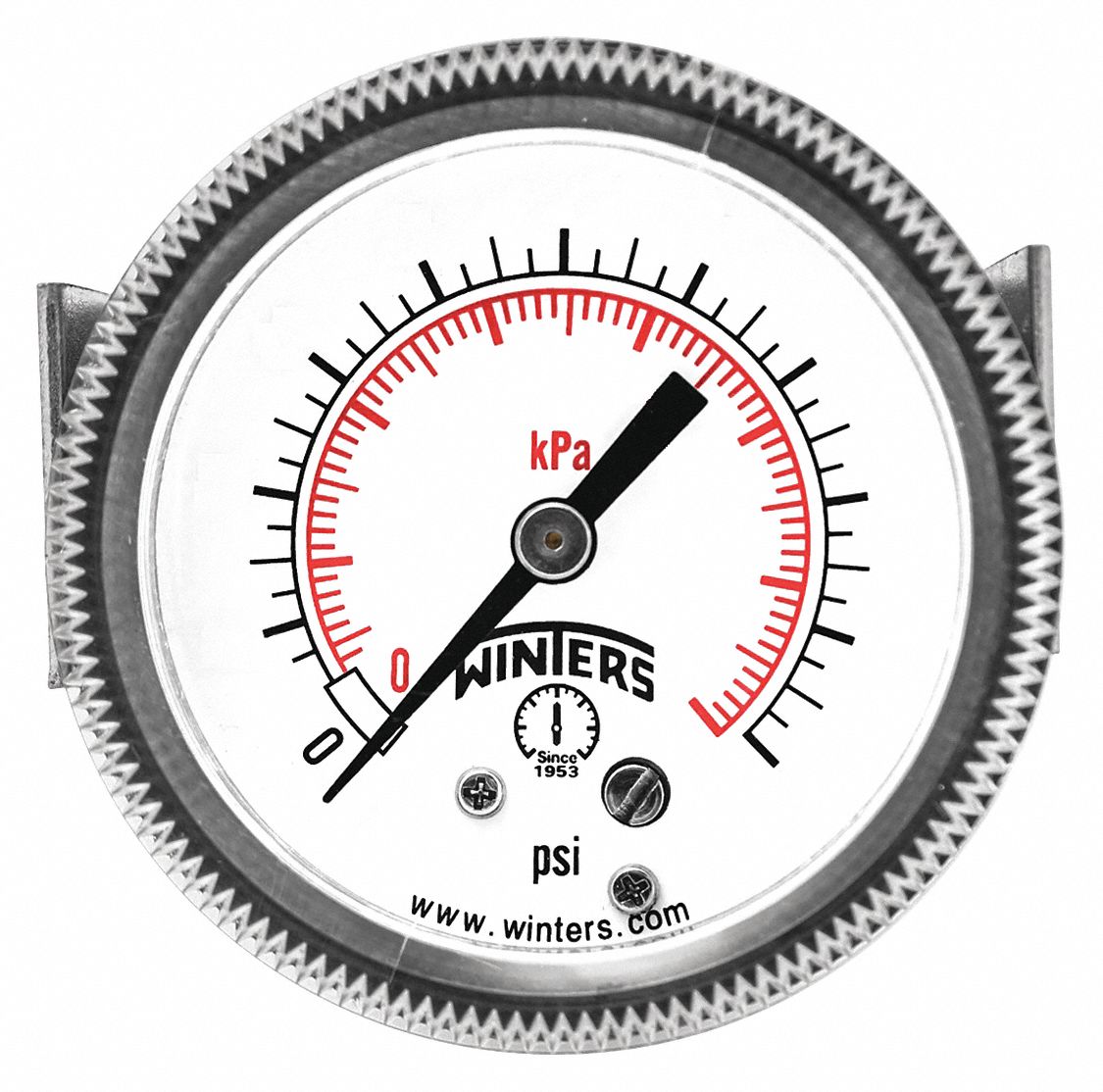

WINTERS INSTRUMENTS P1S563 Pressure Gauge, 0 To 60 Psi Range, 1/4 Inch MNPT, +/-2-1-2% Gauge Accuracy
Item: CH6QURModel: P1S563Cross Ref: 491G02
7 In Stock
Ships within 2 days via
10.00% off
€51.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1% to +1% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -40°F to +200°F |
| Application | Commercial, HVAC/R, Plumbing, Refrigeration |
| Bezel Material | Brass |
| Blowout Safety Back | No |
| Bolt Circle Diameter | 4.1" |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth | 1.5" |
| Case Diameter | 4.03" |
| Case Finish | Polished |
| Case Material | Steel |
| Cleaned For Oxygen Service | No |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Field Fillable | No |
| Flange Diameter | 4.8" |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Case Material | Steel |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | Yes |
| Includes Vent Plug | No |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Glass |
| Lens Material - Gauge | Glass |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mounting Hardware Included | Yes |
| Mounting Type | Front Flange |
| Movement Material | Brass |
| Nominal Dial Size | 3 1/2" |
| Non-sparking | No |
| Operating Temp. Range | -40°F to +150°F |
| Over-pressure Limit | 25% |
| Panel Mount Characteristics | 3 0.200 In Dia Holes On 4.10 In Dia Bolt Circle |
| Panel-mountable | Yes |
| Pointer Material | Aluminum |
| Pointer Style | Black |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 60 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 60 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +200°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 410 |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | P1S 100 Series |
| Socket Material | Brass |
| Warranty | 5 yrs. |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.24 |
| Ship width (cm) | 10.24 |
| Country of Origin | CN |
Product Variants
| Product | Model | Nominal Dial Size | Process Connection Location | Panel-mountable | Pressure Range | Mounting Type | Pointer Color | Vibration Resistance | Lens Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PETM213LF | 2 1/2" | Top | - | 0 psi to 160 psi | - | - | - | Acrylic | €41.92 | |
|
PETM217LF | 2 1/2" | Top | - | 0 psi to 300 psi | - | - | - | Acrylic | €41.92 | |
 |
P1S426-ALT | 4 1/2" | Bottom | No | - | Stem Mount | Black | - | Glass | €85.70 | |
|
P1S490 | - | - | - | - | - | - | - | - | €78.10 | |
 |
P1S564 | 3 1/2" | Center Back | Yes | 0 psi to 100 psi | Front Flange | - | - | Glass | €57.38 | |
 |
P3S6014 | 4 1/2" | Bottom | No | 0 psi to 300 psi | Stem Mount | - | - | Glass | €118.07 | |
|
P3S6014-MAXI45 | 4 1/2" | Bottom | No | 0 psi to 300 psi | Stem Mount | - | - | Glass | €217.83 |
