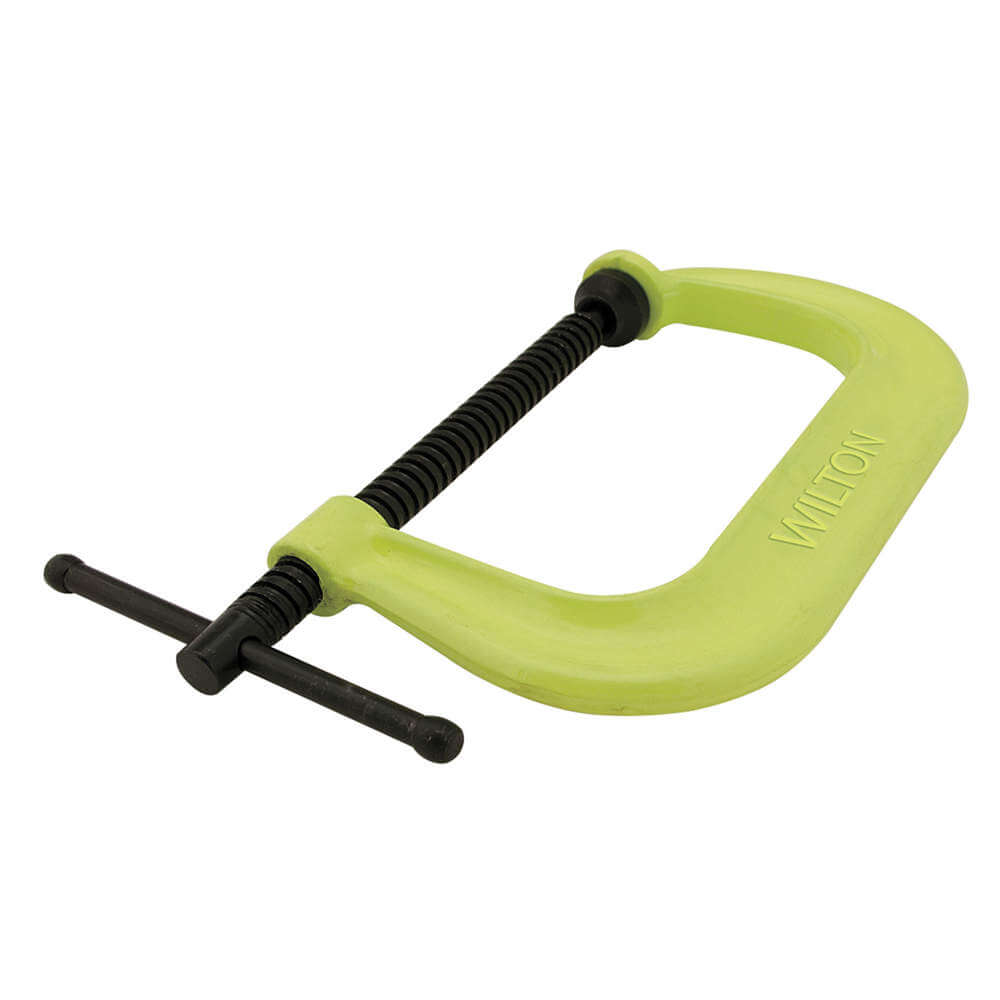

WILTON TOOLS WL9-14302 404SF C-clamp Hi-viz Yellow 4-1/4 Inch 3-1/4 Deep
Item: AA8JVJModel: WL9-14302Cross Ref: 18G721 / 404SF
7 In Stock
Ships within 2 days via
5.00% off
€101.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | C-Clamp |
| Anvil | V Grooved |
| Body Color | Yellow |
| Body Finish | Powder Coating |
| Body Finish | Powder Coated |
| Body Material | Forged Steel |
| Clamping Force | 6200 lbs. |
| Clamping Pressure | 6200 lbs. |
| Clamping Pressure | 6200 lb. |
| Color | Yellow |
| Duty Rating | Extra Heavy Duty |
| Finish | Powder Coating |
| Frames | Forged Steel |
| Handle Style | Sliding T |
| Included Handle | Yes |
| Jaw Pad Type | V Groove |
| Load Capacity | 6200 lbs. |
| Max. Jaw Opening | 4 1/4" |
| Max. Opening | 4 1/4" |
| Max. Opening | 4-1/4" |
| Min. Jaw Opening | 0" |
| Min. Opening | 0" |
| Min. Opening | 0.0" |
| Min. Proof Load Test | 6200 lbs. |
| Min. Proof Test (lb.) | 6200 |
| No. Of Anvils | 1 |
| No. Of Pieces | 1 |
| No. Of Spindles | 1 |
| Pad | Smooth |
| Release Mechanism | Standard Thread |
| Screws | Steel |
| Size | 4 1/4" |
| Spindle Finish | Black Oxide |
| Spindle Material | Steel Alloy |
| Spindle Material | Steel |
| Spindles | Black Oxide |
| Swivel Or Fixed Pad | Swivel |
| Swivel Pad | Steel |
| Throat Depth | 3 1/4" |
| Throat Shape | Standard |
| Type | High Visibility |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 14.48 |
| Ship width (cm) | 26.42 |
| HS code | 7326908588 |
| Country of Origin | CN |
Product Details:
- Conforms To (OSHA Safety Color Standards)
Product Variants
| Product | Model | Throat Depth | Spindle Material | Max. Jaw Opening | Clamping Force | Clamping Pressure | Load Capacity | Type | Duty Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WL9-14300 | 2 1/4" | Steel Alloy | - | - | 3500 lbs. | 3500 lbs. | High Visibility | Regular | €51.61 | |
 |
WL9-14301 | 2 7/16" | Steel | 3" | 3500 lbs. | 3500 lbs. | 3500 lbs. | High Visibility | Heavy Duty | €69.70 | |
 |
WL9-14303 | 4 1/16" | Steel | 6" | 6600 lbs. | 6600 lbs. | 6600 lbs. | High Visibility | Extra Heavy Duty | €155.00 | |
|
WL9-14305 | 4 15/16" | Steel | 8 1/4" | 6900 lbs. | 6900 lbs. | 6900 lbs. | High Visibility | Extra Heavy Duty | €189.42 | |
 |
WL9-14306 | 5 7/8" | Steel | 10 1/8" | 8000 lbs. | 8000 lbs. | 8000 lbs. | Drop Forged | Extra Heavy Duty | €225.34 | |
 |
WL9-14307 | 6 1/4" | Steel | 12 1/4" | 9300 lbs. | 9300 lbs. | 9300 lbs. | High Visibility | Extra Heavy Duty | €371.37 |
