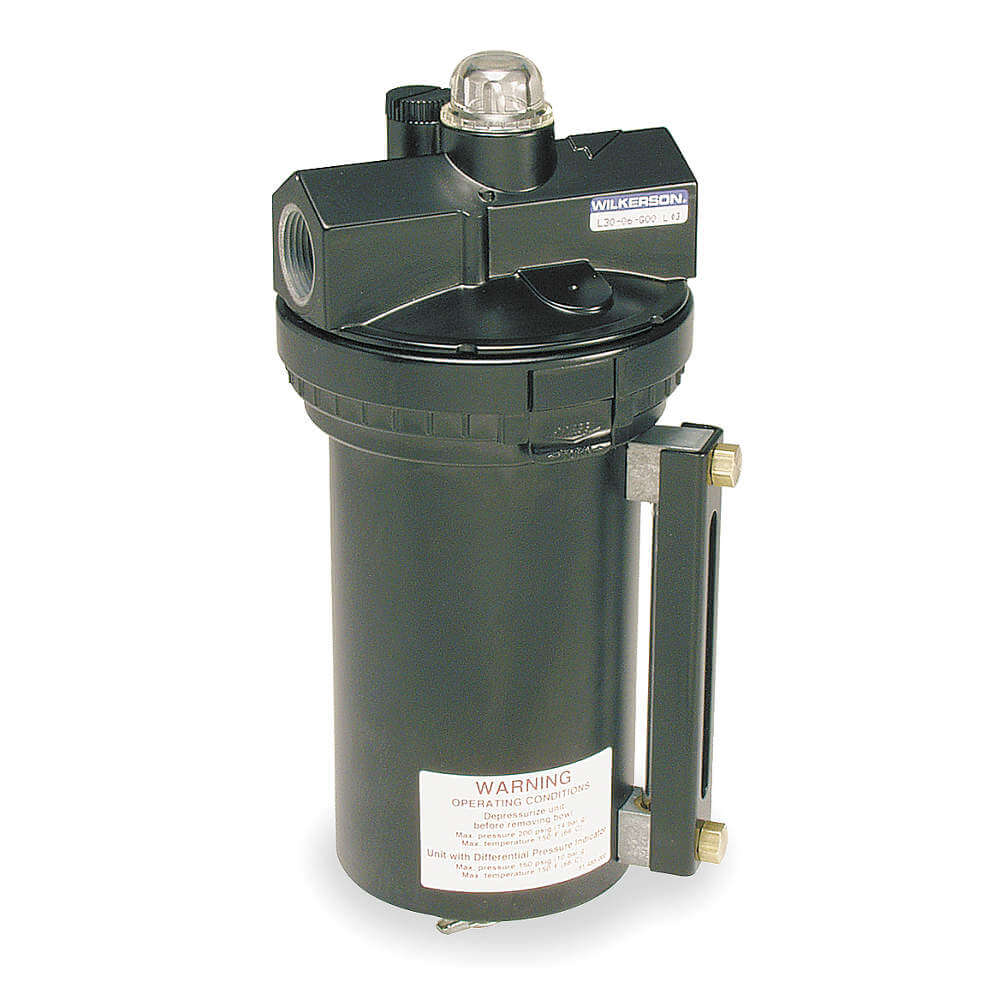

WILKERSON L30-06-G00 Lubricator 3/4 In
Item: AE8GFWModel: L30-06-G00Cross Ref: 6D801
7 In Stock
Ships within 2 days via
5.00% off
€398.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Line Lubricator |
| Adjustment Mechanism | Screwdriver |
| Adjustment Type | Screwdriver |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/4" |
| Air Outlet Type | NPT |
| Body Material | Zinc |
| Bowl Material | Metal |
| Bowl Size | 26 oz. |
| Connection Style | Air Line |
| Dome | Full View Sight |
| Dome Material | Nylon |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Height | 10.9" |
| Included | Bowl And Sight Gauge, Quick Disconnect Clamp Ring, Siphon Tube Filter |
| Inlet Size | 3/4 |
| Inlet Type | NPT |
| Lubricator Bowl Capacity | 26 oz. |
| Lubricator Bowl Guard Included | No |
| Lubricator Bowl Material | Metal |
| Lubricator Type | Mist |
| Max. Flow Rate | 170 CFM , 196 CFM |
| Max. Operating Pressure | 200 psi |
| Max. Pressure | 200 psi |
| Max. Temp. | 150°F |
| Min. Operating Temp. | 32°F |
| No. Of Air Inlets | 1 |
| No. Of Air Outlets | 1 |
| Npt | 3/4" |
| Oil Capacity | 26 oz. |
| Oil Feed Type | Mist |
| Overall Depth | 4 13/16" |
| Overall Height | 10 15/16" |
| Overall Length | 4.63" |
| Overall Width | 4 5/8" |
| Pressure Drop | 5 Psi |
| Recommended Lubricant | Airline Oil F442001 |
| Seal Material | Fluorocarbon |
| Series | L30 Series |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
| System Location | Air Line |
| Width | 4.79" |
Shipping Info:
| Ship weight (kg) | 2.84 |
| Ship height (cm) | 27.78 |
| Ship length (cm) | 12.22 |
| Ship width (cm) | 11.75 |
| HS code | 8479899899 |
| Country of Origin | US |
Product Details:
- Oil Feed (Adjustable)
Product Variants
| Product | Model | Max. Flow Rate | Overall Height | Max. Operating Pressure | Air Inlet Size | Bowl Material | Lubricator Bowl Material | Air Outlet Size | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L30-08-000 | 340 CFM | 10 3/8" | 150 psi | 1" | Plastic | Polycarbonate | 1" | 150 psi | €366.63 | |
 |

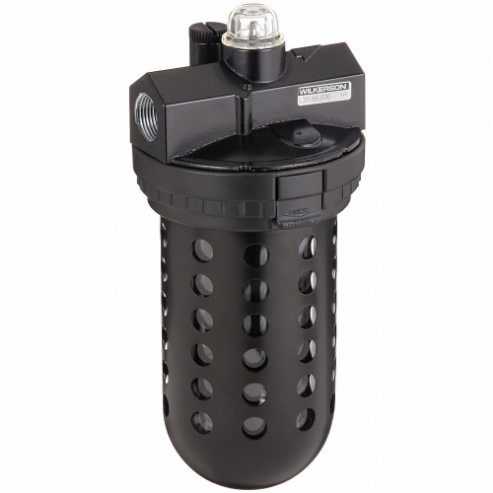

L30-06-000 | 170 CFM | 10 3/8" | 150 psi | 3/4" | Plastic | Polycarbonate | 3/4" | 150 psi | €320.01 | |
 |

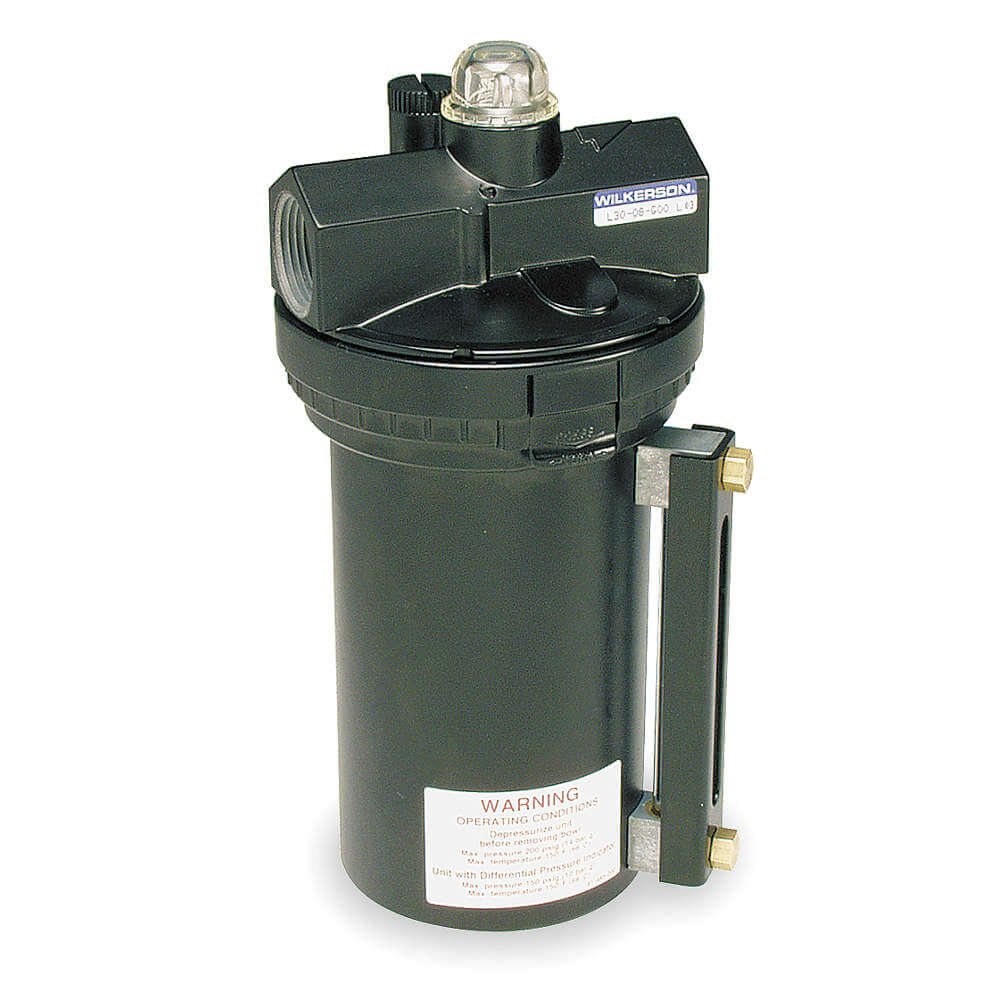

L30-08-G00 | 340 CFM | 10 15/16" | 200 psi | 1" | Metal | Metal | 1" | 200 psi | €365.20 |
