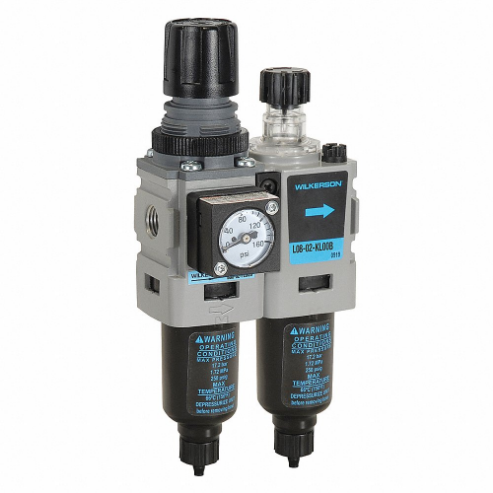

WILKERSON D08-02-FLG0B Filter/Regulator/Lubricator, 1/4 NPT, 28 Cfm Max. Flow
Item: CH6NUDModel: D08-02-FLG0BCross Ref: 55CR03
7 In Stock
Ships within 2 days via
10.00% off
€194.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Filter/Regulator/Lubricator |
| Adjustable Pressure Range | 0 psi to 125 psi |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Acetal |
| Adjustment Range | 0 psi to 125 psi |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1/4" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Bowl Size | 0.6 oz. |
| Connection Size | 1/4" |
| Drain Included | Yes |
| Drain Type | Manual |
| Filter Bowl Capacity | 0.6 oz. |
| Filter Bowl Guard Material | Aluminum |
| Filter Bowl Material | Aluminum |
| Filter Element Material | Polyethylene |
| Filter Rating | 5 µm |
| For Fluid Type | Oil |
| For Maximum Pipe Run | 100 ft. |
| For Substance Type | Air |
| Includes | Flush-Mount Pressure Gauge, Modular T-Bracket/Joiner Assembly |
| Iso Class | Class 3 |
| Lubricator Bowl Capacity | 0.6 oz. |
| Lubricator Bowl Guard Material | Aluminum |
| Lubricator Bowl Material | Aluminum |
| Lubricator Type | Micro Mist |
| Max. Flow | 28 CFM |
| Max. Inlet Pressure | 250 psi |
| Max. Temp. | 150°F |
| Maximum Operating Pressure | 250 psi |
| Minimum Operating Temperature | 14°F |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Number Of Pieces | 2 |
| Oil Capacity | 0.6 oz. |
| Overall Depth | 3 3/16" |
| Overall Height | 6 15/16" |
| Overall Width | 3 1/8" |
| Pipe Length | 100 ft. |
| Pressure Control Type | Relieving |
| Pressure Drop | 14.5 psig |
| Pressure Gauge Included | Yes |
| Pressure Gauge Port Size | 1/8" |
| Pressure Gauge Port Type | NPT |
| Seal Material | Nitrile |
| Series | D08 Series |
| Sight Dome Included | Yes |
| Sight Gauge Included | No |
| Standards | ISO |
| Weight | 1.43 lbs. |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 17.62 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 7.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Filter Bowl Material | Max. Temp. | Lubricator Bowl Material | Lubricator Bowl Guard Material | Air Inlet Size | Air Inlet Type | Filter Rating | Lubricator Bowl Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D08-02-FKG0B | Polycarbonate | 125°F | Polycarbonate | Polycarbonate | 1/4" | NPT | 5 µm | 0.6 oz. | €202.16 |
