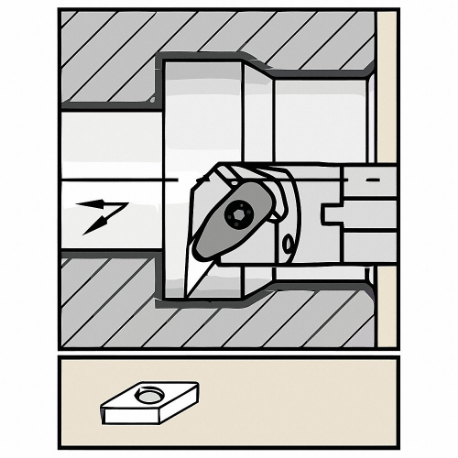

WIDIA A25RDTFNL16KC04 A25RDTFNL16KC04 Indexable Thread Turning Tool Holder, TN Insert, Left Hand
Item: CV3NYDModel: A25RDTFNL16KC04Cross Ref: 287KT7 / A25RDTFNL16KC04
7 In Stock
Ships within 2 days via
5.00% off
€427.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Tool Holder |
| Adapter/shank/bore Dia. | 0.984" |
| Ansi Code | A25RDTFNL16KC04 |
| Ansi Number | A25RDTFNL16KC04 |
| Axial Rake Angle | -5° |
| Center To Cutting Tip | 0" |
| Coolant Fed | Coolant Through |
| Coolant Supply Size | 1/4"-18 |
| Cutting Application | Inside Diameter Chamfering, Inside Diameter Chamfering And Profiling |
| Cutting Direction | Left Hand |
| F Dimension | 0.669" |
| Gage Insert | TN 160408 |
| Insert Holding Type | Top Clamping |
| Insert Size | 160408 |
| Insert Style | Tn |
| Iso Number | A25RDTFNL16KC04 |
| Measurement System | Metric |
| Min. Bore Dia. | 32 mm |
| Minimum Bore Diameter | 1.26" |
| Number Of Coolant Holes | 1 |
| Overall Length | 200 mm |
| Radial Rake Angle | -14° |
| Rake | -14° Radial, -5° Axial |
| Shank Length | 160.92 mm |
| Shank Material | High Speed Steel |
| Thread Type | NPT |
| Tool Length | 7.874" |
| Toolholder Style | A-DTF-KC04 |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 19.99 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Cutting Direction | Shank Width | Shank Dia. | Coolant Fed | Shank Material | Insert Holding Type | Shank Shape | Shank Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2010068 | Right Hand | - | 8 mm | Coolant Through | Carbide | Screw Clamping | Offset | - | €437.03 | |
 |
6461967 | Left Hand | 3/4" | - | Coolant Through | High Speed Steel | Clamp | Square | 3/4" | €302.64 | |
 |
5696077 | Right Hand | - | 40 mm | Coolant Through | High Speed Steel | Top Clamping | - | - | €580.73 | |
|
2023613 | Left Hand | - | 16 mm | Coolant Through | Carbide | Screw Clamping | Offset | - | €886.71 | |
 |
2031021 | Right Hand | - | 10 mm | Coolant Through | Carbide | Screw Clamping | Offset | - | €516.29 | |
|
2031026 | Left Hand | - | 20 mm | Coolant Through | Carbide | Screw Clamping | Offset | - | €1,147.10 | |
 |
5696306 | Right Hand | - | 2 1/2" | Coolant Through | High Speed Steel | Top Clamping | - | - | €766.01 |
