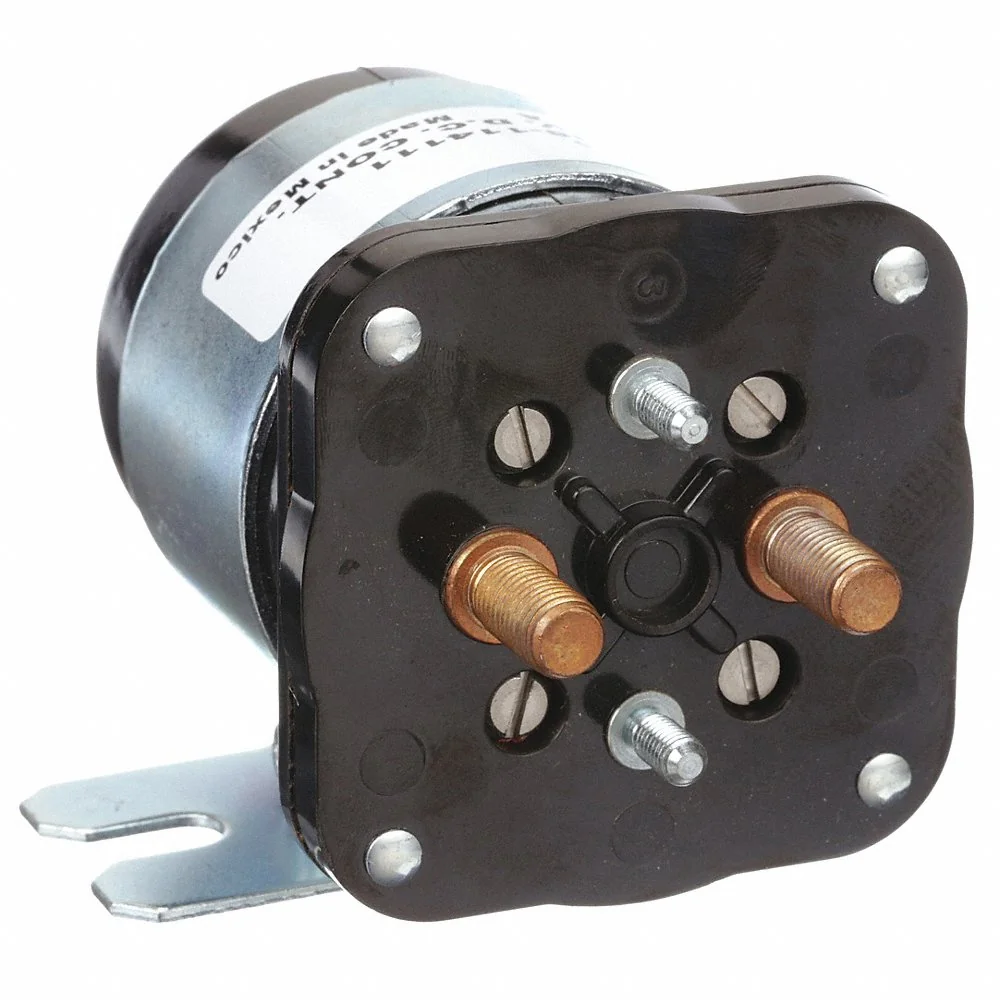

WHITE-RODGERS 586-114111 DC Power Solenoid 24V Amps 200
Get it by Wednesday, Dec 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Power Solenoid |
| Amps | 200/100A |
| Coil Termination | #10-32 UNF-2A Thread |
| Coil Type | Isolated |
| Coil Voltage | 24V DC |
| Contact Form | SPST/NO |
| Contact Material | Silver Alloy |
| Contact Termination | 5/16"-24 Unf-2A Thread |
| Current Rating | 200A |
| Duty Cycle | Continuous |
| Enclosure | Water Resistant |
| Mounting Base | Standard Bracket |
| Resistance Properties | Water Resistant |
| Series | 586 Series |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 12.45 |
| Ship width (cm) | 11.18 |
| HS code | 8505908000 |
| Country of Origin | US |
Product Details:
- Coil Termination (#10-32 UNF-2A Thread)
- Coil Voltage DC (24)
- Contact Termination (5/16-24 UNF-2A Thread)
- Mounting Base (Std. Bracket)
Product Variants
| Product | Model | Contact Form | Coil Type | Duty Cycle | Amps | Coil Volts | Price | |
|---|---|---|---|---|---|---|---|---|
 |
120-105711 | SPST/NO | Isolated | Continuous | 100A | - | €46.16 | |
|
120-106131 | SPST/NO | Isolated | Intermittent | 80A | - | €34.51 | |
|
120-106132 | SPST/NO | Isolated | Intermittent | 80A | - | €42.38 | |
 |
124-105111 | SPST/NO | Isolated | Continuous | - | - | €85.90 | |
|
124-114111 | SPST/NO | Isolated | Continuous | - | - | €85.07 | |
|
124-117111 | SPST/NO | Isolated | Continuous | - | - | €88.48 | |
 |
124-305111 | SPDT | Isolated | - | - | - | €118.83 |
