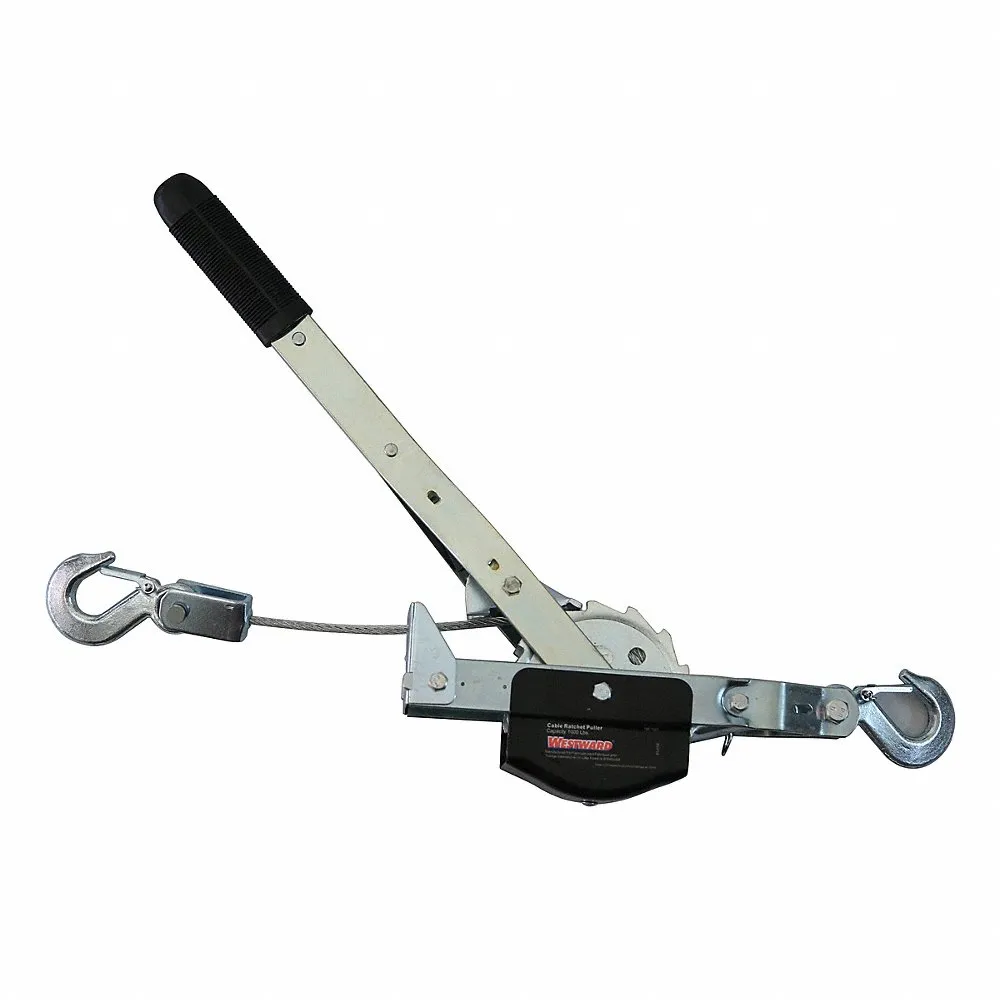

WESTWARD 61LA35 Cable Ratchet Puller, 1000 lb Lifting Capacity, 1000 lb Pull Capacity, 15 ft
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€103.38 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ratchet Puller |
| Body Depth | 2 21/32" |
| Body Finish | Powder Coated, Zinc Plated |
| Body Material | Steel |
| Body Width | 4 9/16" |
| Cord Dia. | 3/16" |
| Cord Material | Steel |
| Cord Type | Cable |
| Finish | Black Paint, Zinc Plated |
| For Outdoor Use | Yes |
| Headroom | 16" |
| Hoist Mount | Hook Mounted - No Trolley |
| Hook Opening | 3/4" |
| Includes Brake | No |
| Includes Clutch | Clutch Not Included |
| Lever Length | 15" |
| Lifting Capacity | 1000 lbs. |
| Lifting Hook Material | Steel |
| Lifting Hook Opening Width | 3/4" |
| Lifting Hook Type | Hook With Safety Latch |
| Line Dia. | 0.188" |
| Line Diameter | 3/16" |
| Line Length | 15 ft. |
| Line Material | Steel |
| Line Type | Cable |
| Material | Steel |
| Max. Line Length | 15 ft. |
| Maximum Lifting Length | 15 ft. |
| Min. Between Hooks | 16" |
| Minimum Line Length | 15 ft. |
| Mounting Type | Hook Mounted - No Trolley |
| Number Of Reeves | 1 |
| Operating Position | Horizontal/Vertical |
| Product Type | Cable Ratchet Puller |
| Pulling Capacity | 1000 lbs. |
| Ratchet | Dual Interlocking |
| Ratchet Interlock System | Dual Interlocking |
| Resistance Properties | Corrosion Resistant |
| Rope Dia., Cable Dia. | 3/16" |
| Strap Width | Not Applicable |
| Tonnage - Lifting Capacity | 0.5 ton. |
Shipping Info:
| Ship weight (kg) | 3.08 |
Product Variants
| Product | Model | Pulling Capacity | Hook Opening | Lifting Capacity | Lever Length | Headroom | Line Length | Max. Line Length | Maximum Lifting Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
61LA36 | 1500 lbs. | 7/8" | 1500 lbs. | 17" | 20 1/2" | 7.21875 ft. | 7.219 ft. | 7.21875 ft. | €163.61 |
