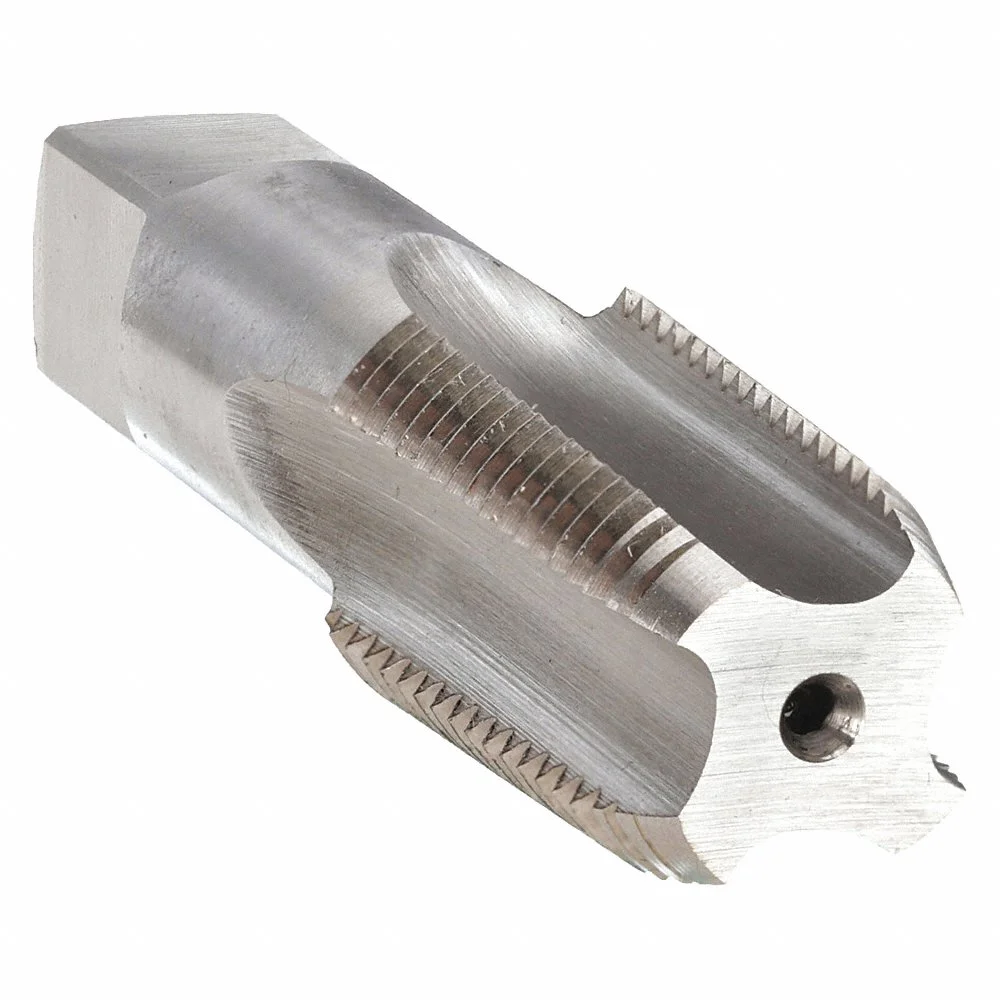

WESTWARD 5TWX0 Tap Taper Pipe 3/8 In
Item: AE6MAZModel: 5TWX0
7 In Stock
Ships within 2 days via
10.00% off
€37.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Tap |
| 75% Thread Drill Size | 0.5625" |
| Class Of Fit | Class 3B |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 37/64" |
| Features | For Use With A Wide Variety Of Materials |
| Finish | Uncoated |
| Flute Type | Straight |
| Material | High Speed Steel |
| Material Grade - Machining | Grade M2 |
| No. Of Pieces | 1 |
| Number Of Flutes | 4 |
| Overall Length | 2 9/16" |
| Pitch Diameter Limit | Not Rated |
| Pitch Diameter Limits | 3B |
| Primary Material Application | All Materials |
| Shank Dia. | 3/4" |
| Shank Length | 1 1/2" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | 3/8" |
| Square Size | 0.515" |
| Standards | Asme |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Semi Bottoming |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| Tap Material | High Speed Steel |
| Tap Style | Pipe |
| Tap Thread Size | 3/8"-18 |
| Tap Type | Pipe |
| Thread Direction | Right Hand |
| Thread Length | 1 1/16" |
| Thread Size | 3/8"-18 |
| Thread Standard | NPT |
| Threads Per Inch | 18 |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.13 |
| Ship width (cm) | 2.54 |
| HS code | 8207403000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Thread Length | Overall Length | Number Of Flutes | 75% Thread Drill Size | Thread Size | Shank Dia. | Shank Length | Square Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2LWT6 | 3/4" | 2 1/8" | 4 | Q | 1/8"-27 | 7/16" | 1 3/8" | 0.234" | €33.49 | |
|
5PXH0 | 3/4" | 2 1/8" | 4 | Q | 1/8"-27 | 5/16" | 1 3/8" | 0.234" | €51.54 | |
|
5PXH1 | 3/4" | 2 1/8" | 4 | Q | 1/8"-27 | 7/16" | 1 3/8" | 0.234" | €16.60 | |
|
5PXH2 | 1 1/16" | 2 7/16" | 4 | 0.4375" | 1/4"-18 | 9/16" | 1 3/8" | 0.421" | €60.08 | |
 |
5PXH3 | 1 1/16" | 2 9/16" | 4 | 0.5625" | 3/8"-18 | 3/4" | 1 1/2" | 0.515" | €78.80 | |
|
5PXH4 | 1 3/8" | 3 1/8" | 4 | 0.7031" | 1/2"-14 | 11/16" | 1 3/4" | 0.515" | €127.95 | |
 |
5PXH5 | 1 3/8" | 3 1/4" | 5 | 0.9063" | 3/4"-14 | 29/32" | 1 7/8" | 0.679" | €169.10 |
