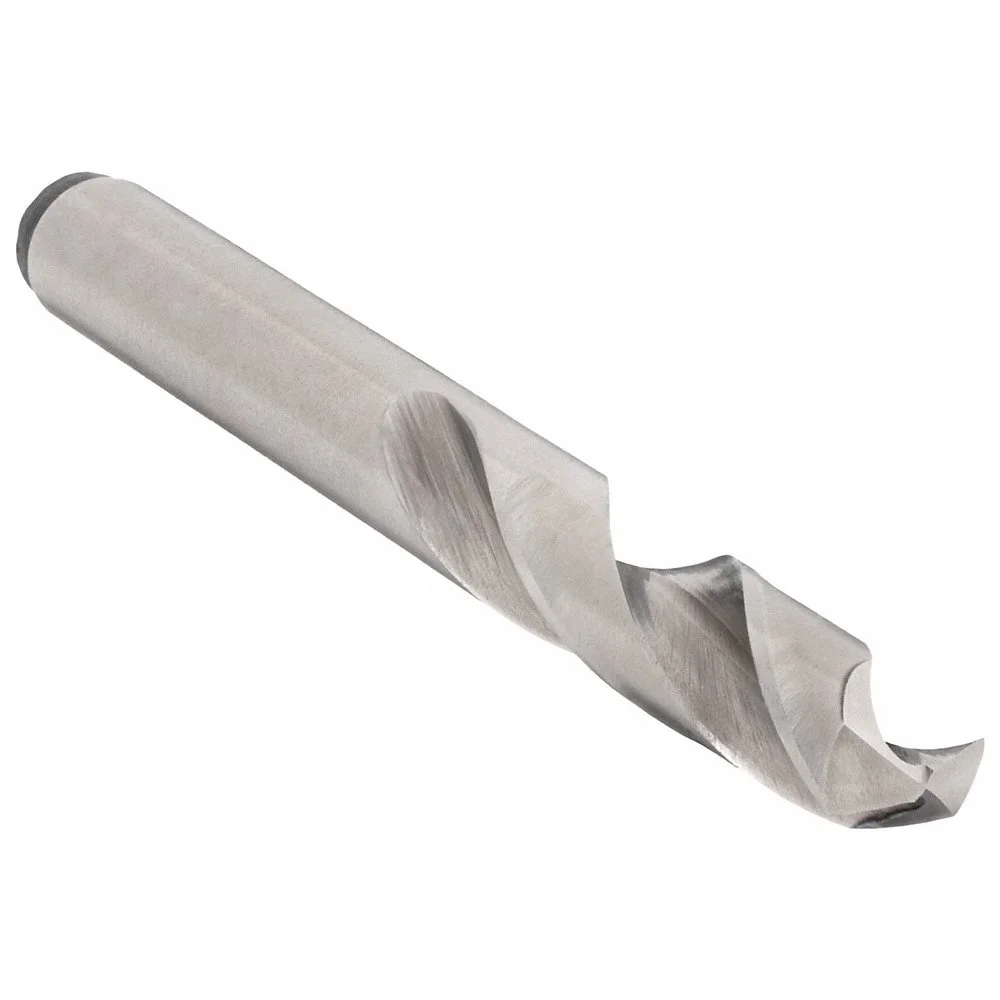

WESTWARD 5TVU1 Screw Machine Drill Bit, 1/4 Inch Size, 135 Deg. Split Point, Straw/Bronze Cobalt
Item: AE6LRUModel: 5TVU1
7 In Stock
Ships within 2 days via
13.00% off
€7.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill |
| Application | Stainless, Alloy Steel, Cast Iron, Copper, Aluminum |
| Color | Amber |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 1/4" |
| Depth Dia. Ratio | 5X |
| Dimensions Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1/4" |
| Drill Length Class | Screw Machine Length |
| Drill Point | 135° |
| Finish | Amber |
| Finish-machining | Straw, Bronze |
| Flute Length | 1 3/8" |
| Flute Type | Spiral |
| Fractional Size | 1/4" |
| Grade | General Purpose |
| Helix Angle | 32° |
| Material | Cobalt |
| Material Grade-machining | General Purpose |
| Material-machining | Cobalt |
| Max. Drilling Depth | 1 3/8" |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 2 1/2" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Non Ferrous Material |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 1/4" |
| Shank Length | 1 1/8" |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 1.02 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 8.89 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Product | Model | Flute Length | Drill Bit Size | Shank Dia. | Fractional Size | Decimal Equivalent | Max. Drilling Depth | Depth Dia. Ratio | Drill Length Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5TVT3 | 7/8" | 1/8" | 1/8" | 1/8" | 0.125 | 7/8" | 3xd | Screw Machine Length | €5.31 | |
 |
5TVT4 | 15/16" | 9/64" | - | 0.141" | 0.1406 | 15/16" | - | Screw Machine Length | €2.46 | |
|
5TVT5 | 10" | 5/32" | - | 0.156" | 0.1562 | 1" | - | Screw Machine Length | €2.22 | |
|
5TVU9 | 1 13/16" | 3/8" | 3/8" | 3/8" | 3/8" | 1 13/16" | 3xd | Screw Machine Length | €17.60 | |
|
5TVX5 | 2 1/8" | 15/32" | - | 0.469" | 0.4688 | - | - | Screw Machine Length | €17.62 | |
 |
5TVX7 | 2 1/4" | 1/2" | - | 1/2" | 1/2" | 2 1/4" | - | Screw Machine Length | €26.16 |
