WESTWARD 5TVJ2 Aircraft Drill 3/16 x 6 Inch High Speed Steel Black Oxide
Item: AE6LNUModel: 5TVJ2
7 In Stock
Ships within 2 days via
10.00% off
€8.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Aircraft Extension Drill |
| Aircraft Drill | Yes |
| Application | Tool Steels, Carbon Steel, Plastic, Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1875 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 3/16" |
| Drill Length Class | Jobber Length |
| Drill Point | 135° |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 2 5/16" |
| Flute Type | Spiral |
| Fractional Size | 3/16" |
| Grade | High Performance |
| Helix Angle | 32° |
| List Number | 502 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade | Heavy Duty |
| Material Grade - Machining | HIGH PERFORMANCE |
| Maximum Drilling Depth | 2 5/16" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Number Of Pieces | 1 |
| Overall Length | 6" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Non Ferrous Material |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 0.188" |
| Shank Length | 1 3/16" |
| Shank Type - Machining | Straight |
| Size | 3/16" |
| Spiral Direction | Right Hand |
| Standards | Asme |
| System Of Measurement | Fractional Inch |
| Type | Aircraft |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.6 |
| Ship width (cm) | 7 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Overall Length | Flute Length | Drill Bit Size | Shank Dia. | Max. Drilling Depth | Fractional Size | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5TVH8 | 0.062" | 6" | 7/8" | - | 0.062" | 7/8" | 1/16" | 1/16" | €7.33 | |
|

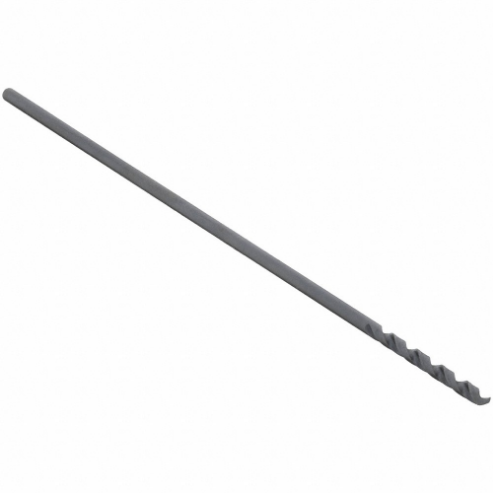

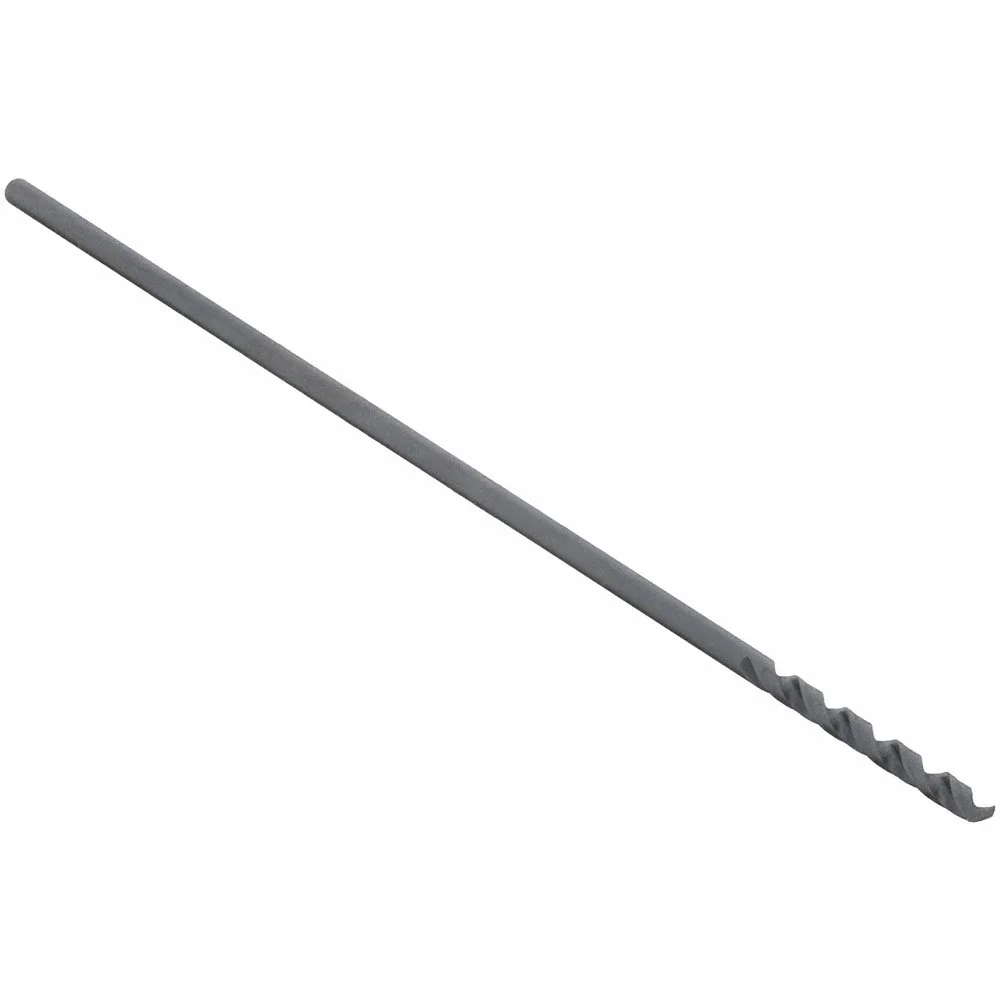

5TVH9 | 0.0938 | 6" | 1 3/16" | 3/32" | 0.094" | - | 3/32" | 3/32" | €6.92 | |
|
5TVJ0 | 0.125 | 6" | 1 5/8" | 1/8" | 1/8" | - | 1/8" | 1/8" | €7.00 | |
 |

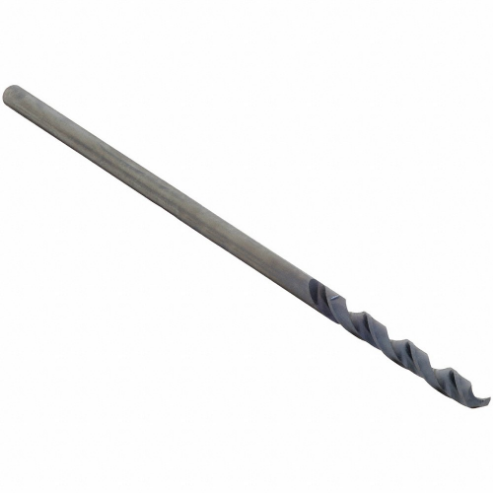

5TVJ3 | 0.2188 | 6" | 2 1/2" | 7/32" | 0.219" | 2 1/2" | 7/32" | 7/32" | €7.56 | |
 |

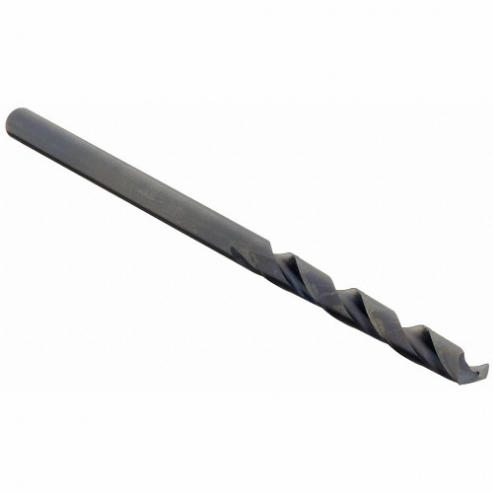

5TVJ4 | 0.25 | 6" | - | 1/4" | - | 2 3/4" | 1/4" | - | €10.30 | |
 |

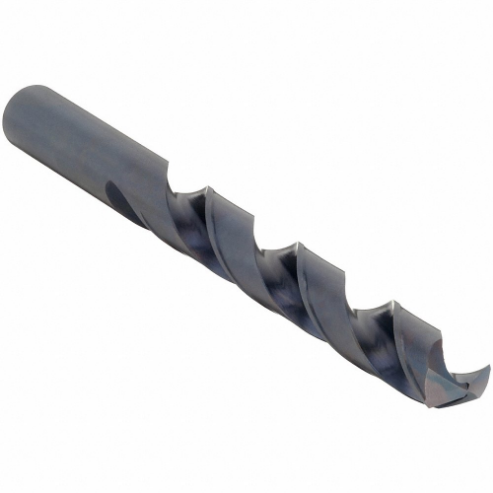

5TVJ5 | 0.281" | 6" | 2.938" | - | 0.281" | 2 15/16" | 9/32" | 9/32" | €11.57 | |
|
5TVJ6 | 0.3125 | 6" | 3 3/16" | 5/16" | 0.312" | 3 3/16" | 5/16" | 5/16" | €14.13 |
