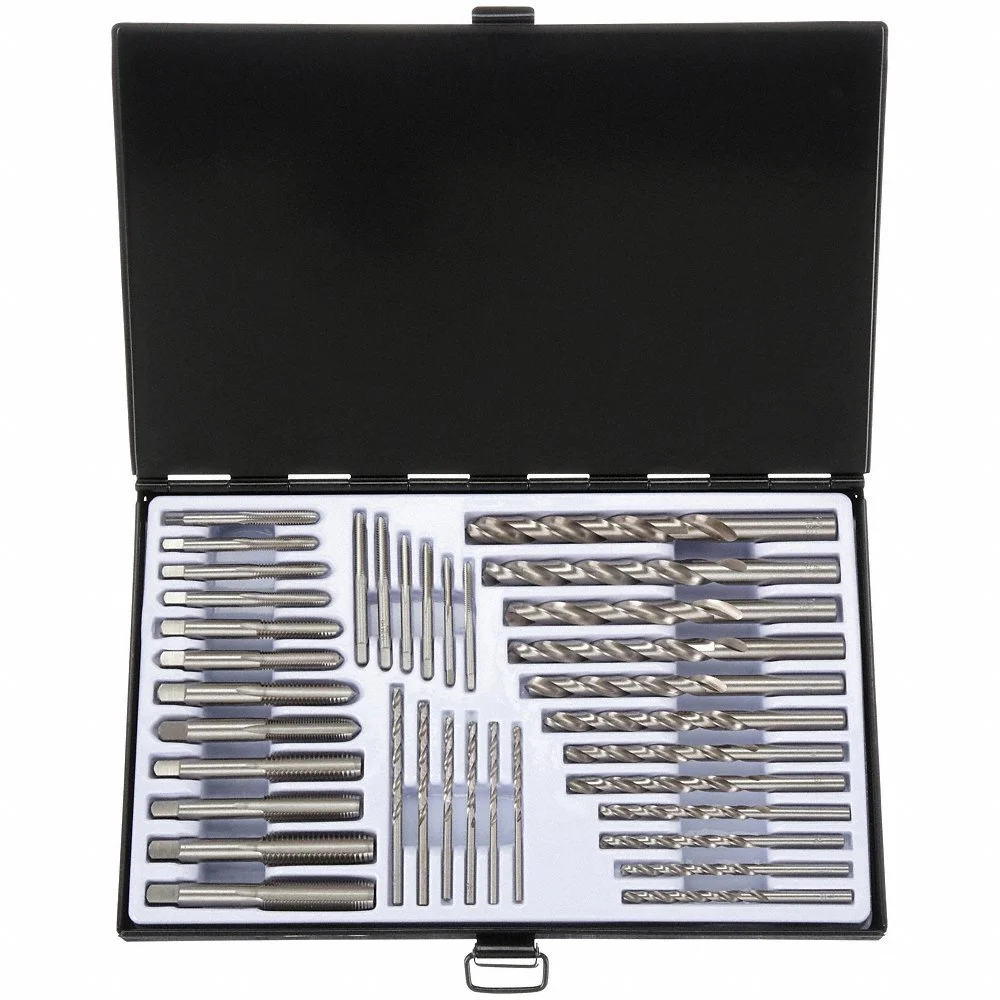

WESTWARD 5PXJ5 Hand Tap/drill Bit Set 36 Pcs
Item: AE6CYJModel: 5PXJ5
7 In Stock
Ships within 2 days via
10.00% off
€519.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Drill and Tap Set |
| Coolant Fed | Non-Coolant Through |
| Dimensions Standard | ANSI 94.9 |
| Drill Bit Dia. Included | #3, #7, #15, #16, #21, #25, #29, #33, #36, 5/16", 25/64", 27/64", 29/64", F, I, Q, U |
| Drill Bit Finish | Bright (Uncoated) |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Series | 334 Series |
| Drill Sizes | #15, #16, #21, #25, #29(2), #3, #33, #36, #7, 25/64", 27/64", 29/64", 5/16", F, I, Q, U |
| Features | Specified For 75% Of Thread Height |
| Finish | Bright |
| Impact Rated | No |
| Includes | Metal Index Case |
| Largest Drill Bit Dia. | 29/64" |
| Largest Drill Bit Size | 29/64" |
| Largest Thread Size | 1/2" |
| Material | High Speed Steel |
| No. Of Pieces | 36 |
| Number Of Drills | 18 |
| Number Of Pieces | 36 |
| Number Of Taps | 18 |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | 10.1, 4.1, 6.1, 7.1, 8.1, 9.1 |
| Secondary Material Application | Alloyed Aluminum, Alloyed Nickel, Malleable Cast Iron |
| Secondary Material Application Iso Code | 1.1, 1.2, 2.1, 21, 22, 23, 24, 25, 26, 31, 32, 33, 34, 35, 36 |
| Size Range | #6 to 1/2" |
| Smallest Drill Bit Dia. | #36 |
| Smallest Thread Size | #6 |
| System Of Measurement | Fractional Inch, Letter, Wire |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch, Machine |
| Tap Drill Size | #15, #16, #21, #25, #29 (2), #3, #33, #36, #7, 25/64", 27/64", 29/64", 5/16", F, I, Q, U |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Number Of Flutes | 7 |
| Tap Series | 334 Series |
| Tap Sizes Included | #6-32, #6-40, #8-32, #8-36, #10-24, #10-32, #12-24, #12-28, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 |
| Tap Style | 5305 |
| Tap Type | Hand Tap |
| Thread Direction | Right Hand |
| Thread Limit | H2, H3 |
| Thread Sizes Included | #8-36, #12-24, #12-28, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 10-24, 10-32, 6-32, 6-40, 8-32 |
| Thread Standard | UNC, UNF |
| Thread Type | UNC, UNF |
| Threads Per Inch | 13, 14, 16, 18, 20, 24, 28, 32, 36, 40 |
| Type | Hand Tap |
Shipping Info:
| Ship weight (kg) | 1.37 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 28.96 |
| Ship width (cm) | 19.05 |
| HS code | 8207502055 |
| Country of Origin | CN |
Product Details:
- Drill Sizes (36, 33, 29(2), 25, 21, 16, 15, 7, 3, F, I, 5/16, Q, U, 25/64, 27/64, 29/64)
- Drill Style (150D)
Product Variants
| Product | Model | Tap Material | Tap Sizes Included | Finish | Material | Primary Material Application | Number Of Pieces | Tap Style | Tap Chamfer | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5PXJ0 | Carbon Steel | - | Black Oxide | Carbon Steel | Steel | 13 | Taper | Taper | €34.45 | |
 |
5PXJ1 | High Speed Steel | #6-32, #8-32, #10-24, #10-32, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 | Bright | High Speed Steel | Stainless Steel, Steel | 18 | 5301 | Plug | €254.03 | |
 |
5PXJ2 | High Speed Steel | #6-32, #8-32, #10-24, #10-32, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 | Bright | High Speed Steel | Stainless Steel, Steel | 18 | 5305 | Plug | €245.12 | |
 |
5PXJ3 | High Speed Steel | #6-32, #8-32, #10-24, #10-32, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 | Tin Coat | High Speed Steel | Stainless Steel, Steel | 18 | 2305 | Plug | €431.23 | |
 |
5PXJ4 | High Speed Steel | M2.5 x 0.45, M3 x 0.5, M3.5 x 0.6, M4 x 0.7, M5 x 0.8, M6 x 1, M8 x 1.25, M10 x 1.5, M12 x 1.75 | Black Oxide | High Speed Steel | Stainless Steel, Steel | 18 | 5353 | Plug | €245.46 |
