FREE delivery on orders over €150

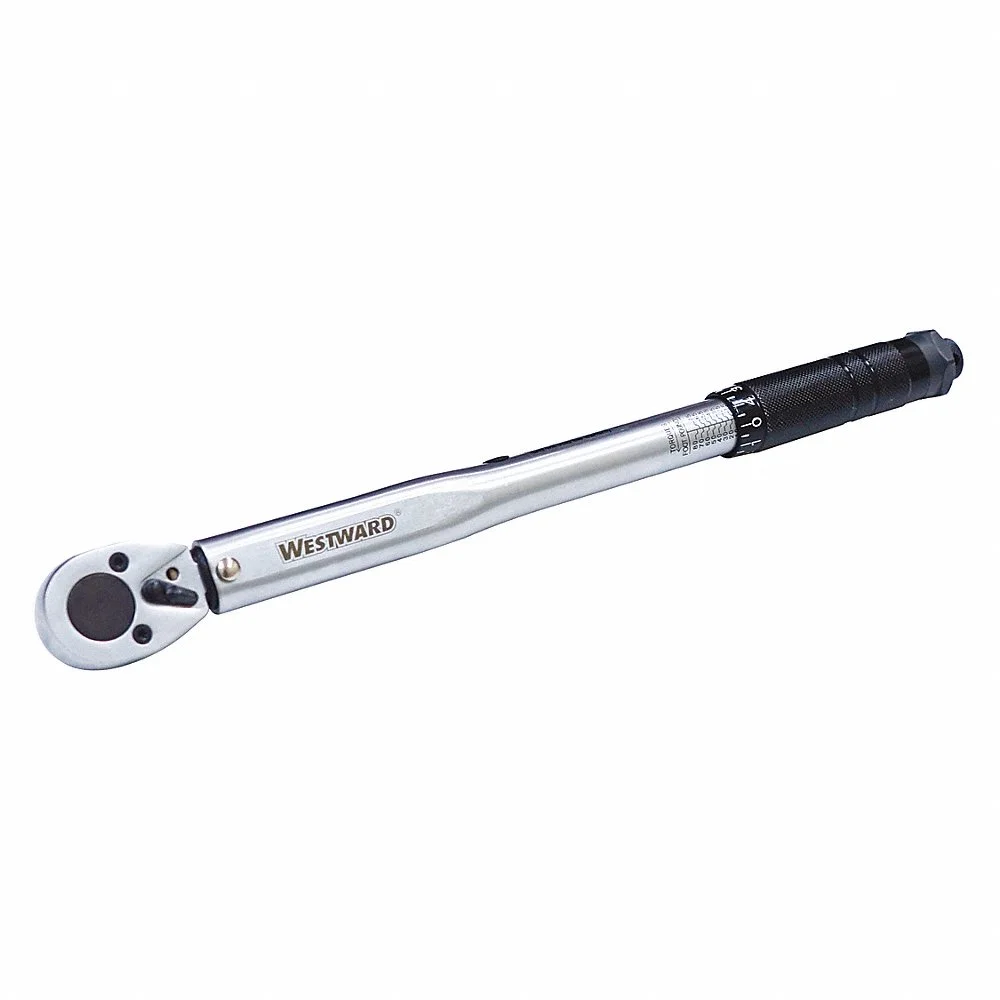

WESTWARD 4DA95 Micrometer Torque Wrench, Foot-Pound/Newton-Meter, 3/8 Inch Drive Size
Item: CU9ZVWModel: 4DA95
7 In Stock
Ships within 2 days via
5.00% off
€93.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Micrometer Torque Wrench |
| Calibration Certificate Included | No |
| Clockwise Accuracy | -4% to +4% |
| Corrosion Resistance | No |
| Counterclockwise Accuracy | -4% to +4% |
| Drive Size | 3/8" |
| Dual Scale | Yes |
| Finish | Chrome |
| Handle Color | Black |
| Handle Material | Alloy Steel |
| Handle Type | Kurled |
| Head Movement | Adjustable |
| Head Type | Standard |
| Includes | (1) Case |
| Insulated | No |
| Material | Alloy Steel |
| Min. Arc Swing | 15.5° |
| Non-sparking | No |
| Number Of Geared Teeth | 24 |
| Overall Length | 14" |
| Primary Scale Maximum Torque | 80 lbs.-ft. |
| Primary Scale Minimum Torque | 10 lbs.-ft. |
| Ratcheting | Yes |
| Rotation | CW |
| Secondary Scale Maximum Torque | 108.5 N-m |
| Secondary Scale Minimum Torque | 13.6 N-m |
| Teeth | 24 |
| Tether Style | Tether Capable |
| Torque Adjustability | Adjustable |
| Torque Increments | 0.5 ft.-lbs., 0.6 N-m , 0.5 lbs.-ft., 0.6 N-m |
| Torque Limiting Mechanism | Click Type |
| Torque Measurement Type | Newton Meter |
| Torque Range | 10 lbs.-ft. to 80 lbs.-ft. |
| Torque Setting | Adjustable |
| Visual/audible Indicators | Audible Click |
| Width | 1 3/8" |
Shipping Info:
| Ship weight (kg) | 1.17 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 3.49 |
| Country of Origin | TW |
Product Variants
| Product | Model | Drive Size | Rotation | Calibration Certificate Included | Torque Range | Torque Increments | Primary Scale Maximum Torque | Primary Scale Minimum Torque | Tether Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6PAH9 | 3/8" | CW/CCW | Yes | 15 lbs.-ft. to 80 lbs.-ft. | 0.5 lbs.-ft., 0.7 N-m | 80 lbs.-ft. | 15 lbs.-ft. | Tether Capable | €190.38 | |
 |
55JA95 | 3/8" | CW/CCW | Yes | 20 lbs.-ft. to 100 lbs.-ft. | 0.5 lbs.-ft., 0.7 N-m | 100 lbs.-ft. | 20 lbs.-ft. | Not Tether Capable | €125.93 | |
 |
55JA97 | 3/8" | CW/CCW | Yes | 10 lbs.-ft. to 80 lbs.-ft. | 0.5 lbs.-ft., 0.7 N-m | 80 lbs.-ft. | 10 lbs.-ft. | Not Tether Capable | €144.78 | |
 |
55JA92 | 3/8" | CW/CCW | Yes | 40 lbs.-in. to 200 lbs.-in. | 0.11 N-m, 1 lbs.-in. | 200 lbs.-in. | 40 lbs.-in. | Not Tether Capable | €143.74 | |
 |
55JA99 | 1/2" | CW/CCW | Yes | 50 lbs.-ft. to 250 lbs.-ft. | 1 lbs.-ft., 1.4 N-m | 250 lbs.-ft. | 50 lbs.-ft. | Not Tether Capable | €168.75 | |
 |
55JA98 | 1/2" | CW/CCW | Yes | 20 lbs.-ft. to 150 lbs.-ft. | 1 lbs.-ft., 1.4 N-m | 150 lbs.-ft. | 20 lbs.-ft. | Not Tether Capable | €206.00 | |
 |
55JC01 | 3/4" | CW/CCW | Yes | 120 lbs.-ft. to 600 lbs.-ft. | 2 lbs.-ft. | 600 lbs.-ft. | 120 lbs.-ft. | Not Tether Capable | €437.33 |
