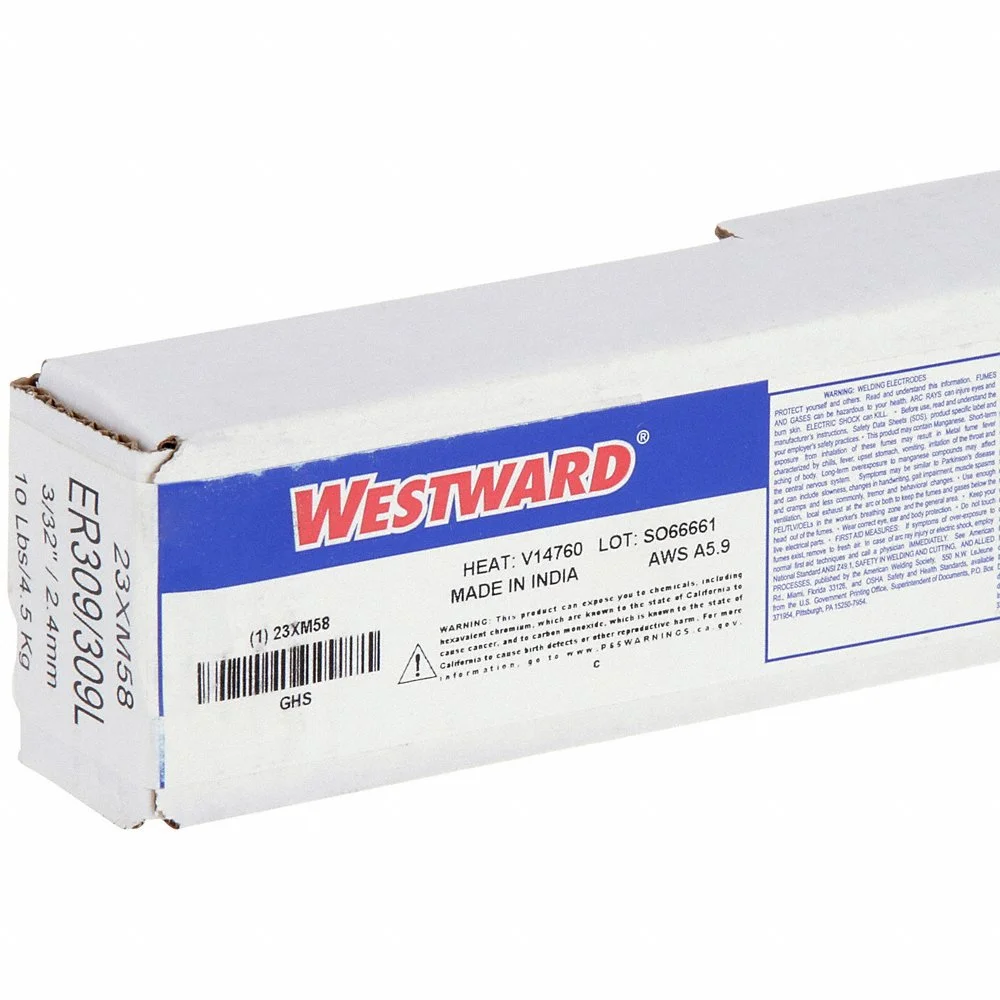

WESTWARD 23XM58 TIG Welding Rod, Stainless Steel, ER309/309L, 3/32 Inch x 36 Inch, 10 lb
Item: CV2ANDModel: 23XM58
7 In Stock
Ships within 2 days via
€175.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tig Welding Rod |
| Aws Classification | ER309, ER309L |
| Compatible Shielding Gas | 100% Argon, Argon With < 5% Hydrogen, Argon With Up To 50% Helium |
| Container Type | Box |
| Elongation | 36% |
| Elongation (as Welded) | 36% |
| For Material Grade | Grade 309S |
| For Material Type | Stainless Steel To Carbon Steel, Stainless Steel To Low-Alloy Steel, Stainless Steel To Stainless Steel |
| For Welding Position | Flat, Horizontal, Overhead, Vertical Down, Vertical Up |
| Length | 36" |
| Material | Stainless Steel |
| Min. Tensile Strength | 85 ksi |
| Minimum Required Elongation | 36% |
| Minimum Required Yield Strength | 58 ksi |
| Overall Diameter | 0.0938" |
| Overall Length | 36" |
| Process | TIG Welding |
| Rod Length | 36" |
| Series | ER309/309L |
| Tensile Strength (as Welded) | 85 ksi |
| Welding Current Designation | DCEN |
| Yield Strength (as Welded) | 58 ksi |
Shipping Info:
| Ship weight (kg) | 4.73 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 0.24 |
| Ship width (cm) | 0.24 |
| Country of Origin | US |
Product Variants
| Model | Tensile Strength | Diameter | Aws Classification | Container Type | Process | Container Size | Tensile Strength (as Welded) | Yield Strength (as Welded) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 23XM57 | 75000 psi | 1/16" | ER309, ER309L | Box | TIG Welding (GTAW) | 10 lbs. | 85 ksi | 58 ksi | €155.03 | |
| 23XM59 | 75000 psi | 1/8" | ER309, ER309L | Box | TIG Welding (GTAW) | 10 lbs. | 85 ksi | 58 ksi | €150.42 | |
| 23XM65 | 75000 psi | 1/16" | ER347SI | Box | TIG Welding (GTAW) | 10 lbs. | - | - | €160.05 | |
| 23XM66 | 75000 psi | 3/32" | ER347SI | Box | TIG Welding (GTAW) | 10 lbs. | - | - | - | RFQ
|
| 23XM67 | 75000 psi | 1/8" | ER347SI | Box | TIG Welding (GTAW) | 10 lbs. | - | - | - | RFQ
|
| 23XM68 | 75000 psi | 5/32" | ER347SI | Box | TIG Welding (GTAW) | 10 lbs. | - | - | €155.95 | |
| 24D954 | - | 1/16" | ER308, ER308L | Tube | TIG Welding (GTAW) | 10 lbs. | 88 ksi | 59 ksi | €138.77 |
