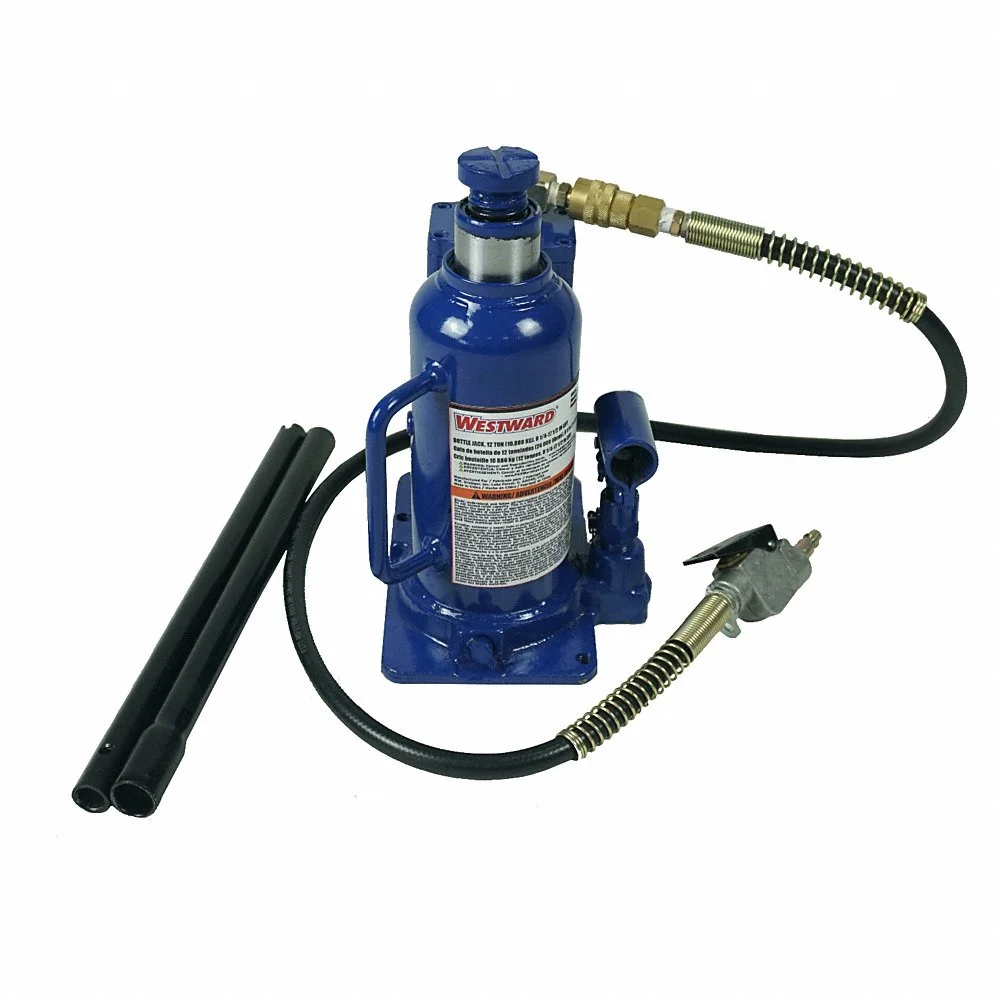

WESTWARD 1ZKX7 Bottle Jack 12 Ton 9 1/2-18 1/2 Inch Lift
Get it by Wednesday, Dec 24
10.00% off
€567.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bottle Jack |
| Air Hose Length | 48" |
| Base Length | 8 3/32" |
| Base Size | 7 7/8" x 6 3/8" |
| Base Width | 5 29/32" |
| Body Finish | Baked Enamel |
| Body Material | Steel |
| Body Material Finish | Baked Enamel |
| Construction | Steel |
| Extension Screw Length | 2 3/8" |
| Features | Internally Protected From Overjumping And Overloading, Pump Positioned Directly Below The Reservoir |
| Finish | Durable Baked Enamel |
| Handle Length | 25 19/32" |
| Hydraulic Stroke | 5 1/2" |
| Includes | Air Hose: D 8X13 Mm, W.P 20 Bar/290 psi |
| Jack Type | Bottle Jack |
| Lifting Actuator | Manual Handle |
| Lifting Capacity | 12 ton. |
| Lifting Height Max. | 18 1/2" |
| Load Capacity | 12 ton. |
| Material | Steel |
| Max. Lift Height | 17 1/2" |
| Maximum Operating Pressure | 175 psi |
| Min. Height | 9 1/4" |
| Min. Lifting Height | 9 1/4" |
| Minimum Lift | 9 1/4" |
| Minimum Operating Pressure | 110 psi |
| Power Source | _Air/Mechanical |
| Stroke | 5 7/8" |
| Type | Air, Manual |
| Work Orientation | Horizontal, Vertical |
Shipping Info:
| Ship weight (kg) | 11.58 |
| Ship height (cm) | 28.45 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 21.34 |
| HS code | 8425490000 |
| Country of Origin | US |
Product Details:
- Extension Screw (3-1/2")
- Recommended Air Supply (7.8 CFM @ 90 to 175 psi)
Product Variants
| Product | Model | Lifting Height Max. | Stroke | Hydraulic Stroke | Lifting Capacity | Min. Lifting Height | Handle Length | Min. Height | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1ZKX8 | 18 3/4" | 5" | 5" | 20 ton. | 9 3/4" | 23 1/2" | 9 3/4" | Air, Manual | €710.97 |
