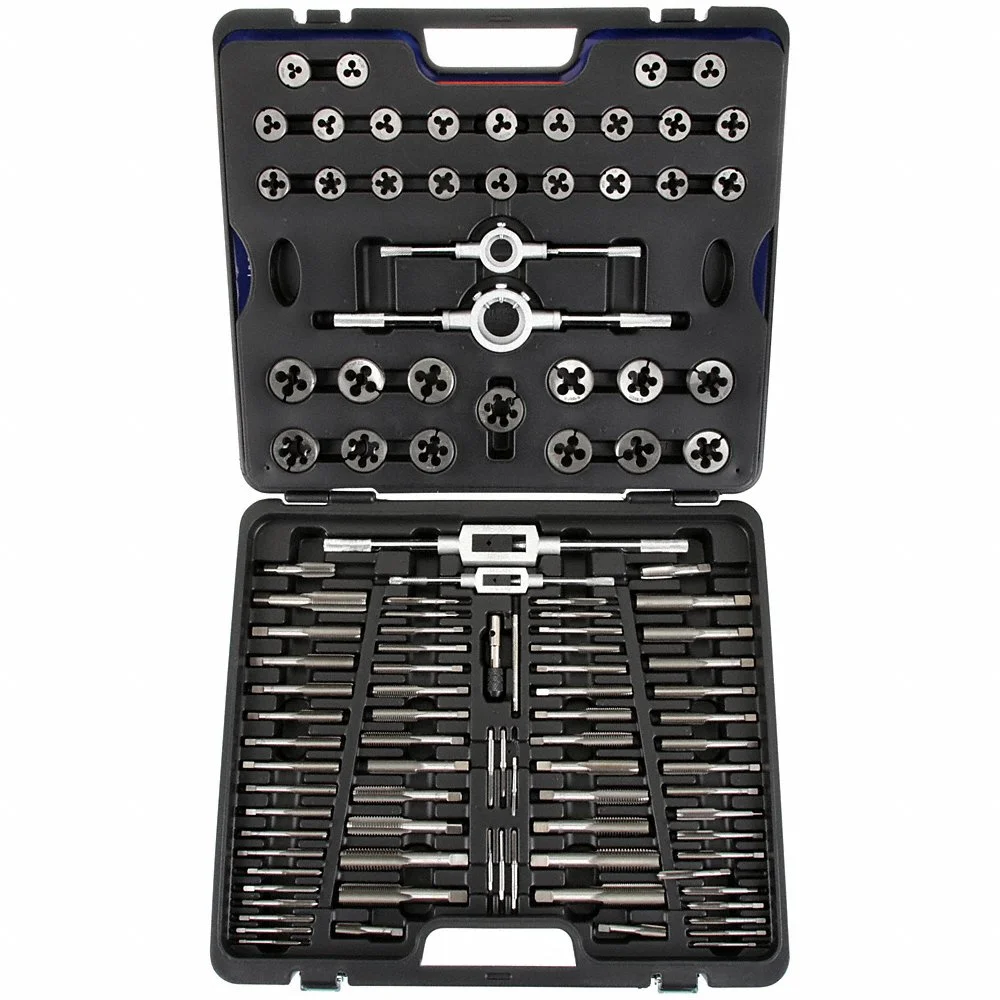

WESTWARD 1PZ54 Tap & Die Set, #4-40 Min. Tap Thread Size, M18 Max. Tap Thread Size, 110 Pieces
Get it by Friday, Aug 21
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€687.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tap and Die Set |
| Case Type | Plastic Case |
| Class Of Fit | Class 2A |
| Coolant Fed | Non Coolant Through |
| Cutting Size | 35 |
| Cutting Sizes | 35 |
| Die Finish | Bright (Uncoated) |
| Die Material | Carbon Steel |
| Die Shape | Round |
| Die Thread Size Included | #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, M6X1, M8X1.25, M10X1.5, M11X1.5, M12X1.5, M12X1.75, M14X1.25, M18X1.5, 1/4"-18Npt, 1/8"-27 Npt, M10X1 |
| Die Type | Adjustable |
| Die Type | 1" OD Solid, 1-1/2" OD Adjustable (No. 1PZ54) 1 and 1-1/2" OD Solid (No. 1PZ38) |
| Dimensions Standard | ANSI B1.1 |
| Drill Bit Size | Metric, NPT |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Included | 2 Straight Tap Wrenches, T-Handle Tap Wrench, Die Stocks, Plastic Case |
| Material | Carbon Steel |
| Material-machining | Carbon Steel |
| Max. Die Thread Size | 3/4"-16 |
| Max. Tap Thread Size | M18 |
| Min. Tap Thread Size | #4-40 |
| No. Of Dies In Set | 35 |
| No. Of Flutes | 35 |
| No. Of Pieces | 110 |
| Primary Material Application | Ferrous Metal |
| Primary Material Application Iso Code | H |
| Sae Or Metric | SAE |
| Size/range | #4 to 3/4", M6 to M18, 1/8 to 1/4" NPT |
| Size/range | #4 to 3/4", M6 to M18, 1/8" to 1/4" |
| Sizes | 4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/8-27NPT, 1/4-18NPT, 1/4-20, 1/4-24, 1/4-28, 1/4-32, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18, 3/4-10, 3/4-16, M6 x 1.0, M8 x 1.25, M10 x 1.0, M10 x 1.5, M |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
| Tap Chamfer | Plug, Taper |
| Tap Finish | Bright |
| Tap Material | Carbon Steel |
| Tap Material Grade | Grade GCR15 |
| Tap Shank Dia. | 0.14", 0.18", 0.2", 0.22", 0.24", 0.28", 0.31", 0.35", 0.41", 0.43", 0.47", 0.55" |
| Tap Size Included | #4 to 3/4", M6 to M18 |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Size Included | #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, M6X1, M8X1.25, M10X1.5, M11X1.5, M12X1.5, M12X1.75, M14X1.25, M18X1.5, M10X1 |
| Thread Standard | Metric, NPT, UNC, UNF |
| Thread Type | Metric, NPT, UNC, UNF |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 46.99 |
| Ship width (cm) | 7.62 |
| HS code | 8207406000 |
| Country of Origin | CN |
Product Details:
Westward 1PZ54 tap and die set create threads for nuts, bolts and screws. The taps cut or form the female portion while the dies cut or form the male portion of the mating pair.
Features:
- Westward tap and die set includes high carbon steel tools for hand threading.
- This set comes in a plastic case for easy carrying and safe storage.
- It includes taps having shank diameters ranging from 0.14 to 0.55 inches.
- This set has taps featuring 35 flutes to impart high strength and reduce space or chip flow.
Standards and Approvals:
- ASME / ANSI
Frequently Asked Questions:
Q. In which direction does this kit create threads?
A. Westward tap and die set create threads in the right-hand direction.
Q. Does this tap and die set have SAE or metric threads?
A. Westward tap and die set includes SAE threads only.
Product Variants
| Product | Model | Material | Tap Material | Die Material | Max. Tap Thread Size | Die Thread Size Included | Thread Size Included | Tap Size Included | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1PZ38 | High Speed Steel | High Speed Steel | High Speed Steel | 3/4"-16 | 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, M6, M8, M10, M11, M12, M14, M18, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32 | 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32 | 1/2"-13, 1/2"-20, 1/4"-18, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 1/8"-27, 10-24, 10-32, 12-24, 3/4"-10, 3/4"-16, 3/8"-16, 3/8"-24, 4-40, 5/16"-18, 5/16"-24, 5/8"-11, 5/8"-18, 6-32, 7/16"-14, 7/16"-20, 8-32, 9/16"-12, 9/16"-18 | UNC, UNF, Metric, NPT | €1,035.07 |
