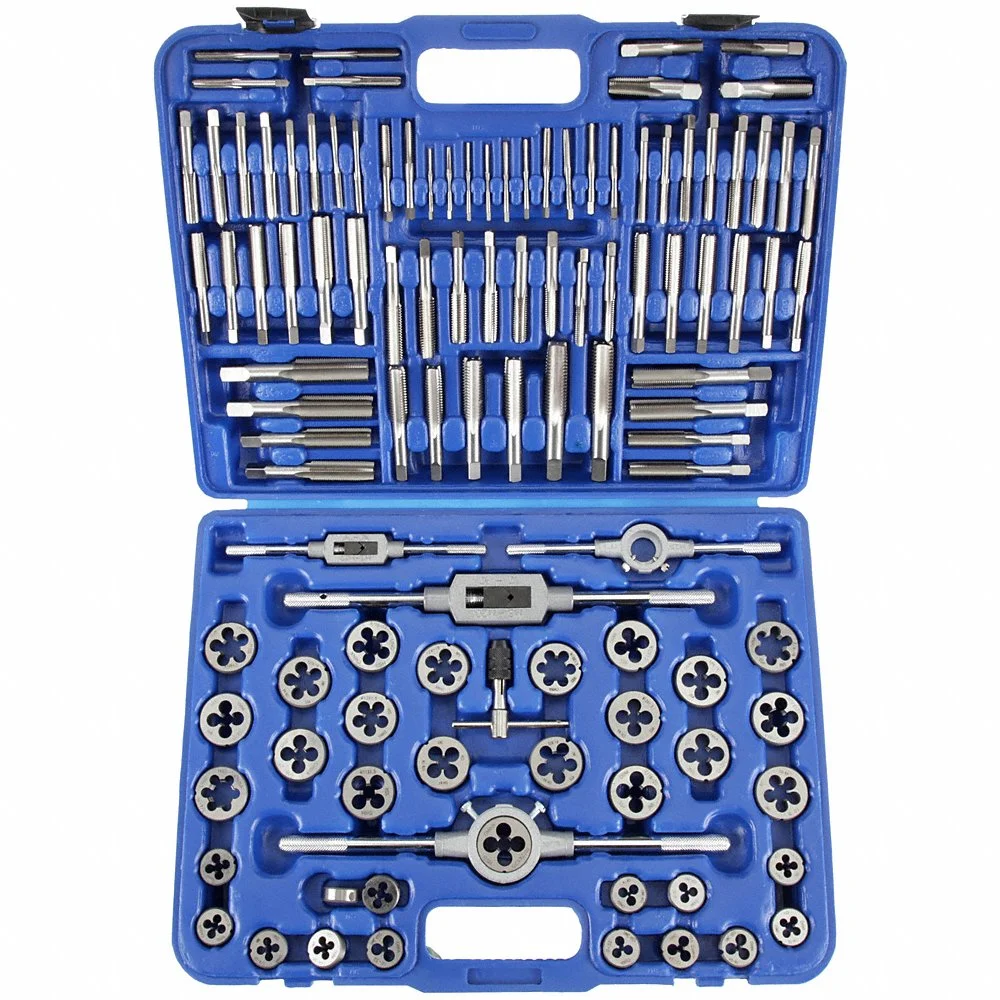

WESTWARD 1PZ38 Tap/die Set 110 Piece Hss
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,209.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tap and Die Set |
| 75% Thread Drill Size | #17, #21, #25, #29, #3, #36, #4, #43, #8, 11/16", 17/32", 21/32", 27/64", 29/64", 37/64", 5/16", 7/16", 7/32", F, I, Q, R, U, W |
| Case Type | Plastic Case |
| Class Of Fit | Class 2B |
| Coolant Fed | No |
| Cutting Sizes | 35 |
| Die Finish | Bright (Uncoated) |
| Die Material | High Speed Steel |
| Die Material Grade | M2 |
| Die Series | 314 Series |
| Die Shape | Round Fixed |
| Die Thread Sizes Included | 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, M6, M8, M10, M11, M12, M14, M18, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32 |
| Die Type | Solid |
| Die Type | 1" OD Solid, 1-1/2" OD Adjustable (No. 1PZ54) 1 and 1-1/2" OD Solid (No. 1PZ38) |
| Dimensions Standard | ASME B94.9 |
| Drill Bit Size | #36, #4, #43, #8, 11/16", 17/32", 17#, 21/32", 21#, 25#, 27/64", 29/64", 29#, 3#, 37/64", 5/16", 7/16", 7/32", F, I, Q, R, U, W |
| Features | Fully-Ground Tooling In A Custom-Fit |
| Finish - Machining | Bright (Uncoated) |
| Includes | 2 Straight Tap Wrenches, T-Handle Tap Wrench, Die Stock, Plastic Case |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Die Thread Size | 3/4"-16 |
| Max. Tap Thread Size | 3/4"-16 |
| Min. Tap Thread Size | #4-40 |
| No. Of Pieces | 110 |
| Number Of Pieces | 110 |
| Number Of Taps | 70 |
| Primary Material Application | Alloy Steel, Austenitic Stainless Steel, Magnetic Soft Steel, Plain Carbon Steel |
| Primary Material Application Iso Code | 10.1, 4.1, 6.1, 7.1, 8.1, 9.1 |
| Sae Or Metric | SAE |
| Secondary Material Application | Alloyed Aluminum, Alloyed Nickel, Alloyed Titanium |
| Secondary Material Application Iso Code | 1.1, 1.2, 2.1, 21, 22, 23, 24, 25, 26, 31, 32, 33, 34, 35, 36 |
| Size/range | #4 to 3/4", M6 to M18, 1/8 to 1/4" NPT |
| Size/range | #4 to 3/4", M6 to M18, 1/8" to 1/4" |
| Sizes | 4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/8-27NPT, 1/4-18NPT, 1/4-20, 1/4-24, 1/4-28, 1/4-32, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18, 3/4-10, 3/4-16, M6 x 1.0, M8 x 1.25, M10 x 1.0, M10 x 1.5, M |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch, Wire |
| Tap Chamfer | Plug, Taper |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Material Grade | Grade M2 |
| Tap Overall Length | 1.875", 2", 2.125", 2.375", 2.4375", 2.5", 2.71875", 2.9375", 3.15625", 3.375", 3.59375", 3.8125", 4.03125", 4.25" |
| Tap Series | 440 Series |
| Tap Shank Standard | ANSI |
| Tap Sizes Included | 1/2"-13, 1/2"-20, 1/4"-18, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 1/8"-27, 10-24, 10-32, 12-24, 3/4"-10, 3/4"-16, 3/8"-16, 3/8"-24, 4-40, 5/16"-18, 5/16"-24, 5/8"-11, 5/8"-18, 6-32, 7/16"-14, 7/16"-20, 8-32, 9/16"-12, 9/16"-18 |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Limit | H2, H3, H4, H5 |
| Thread Sizes Included | 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32 |
| Thread Standard | UNC, UNF, Metric, NPT |
| Thread Type | Metric, NPT, UNC, UNF |
| Threads Per Inch | 10, 11, 12, 13, 14, 16, 18, 20, 24, 27, 28, 32, 40 |
Shipping Info:
| Ship weight (kg) | 5.63 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 46.23 |
| Ship width (cm) | 33.53 |
| HS code | 8207403000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Tap Material | Die Material | Die Shape | Thread Sizes Included | Die Thread Sizes Included | Max. Tap Thread Size | Material | Die Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1PZ54 | Carbon Steel | Carbon Steel | Round | #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, M6X1, M8X1.25, M10X1.5, M11X1.5, M12X1.5, M12X1.75, M14X1.25, M18X1.5, M10X1 | #4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, M6X1, M8X1.25, M10X1.5, M11X1.5, M12X1.5, M12X1.75, M14X1.25, M18X1.5, 1/4"-18Npt, 1/8"-27 Npt, M10X1 | M18 | Carbon Steel | Adjustable | €763.87 |
