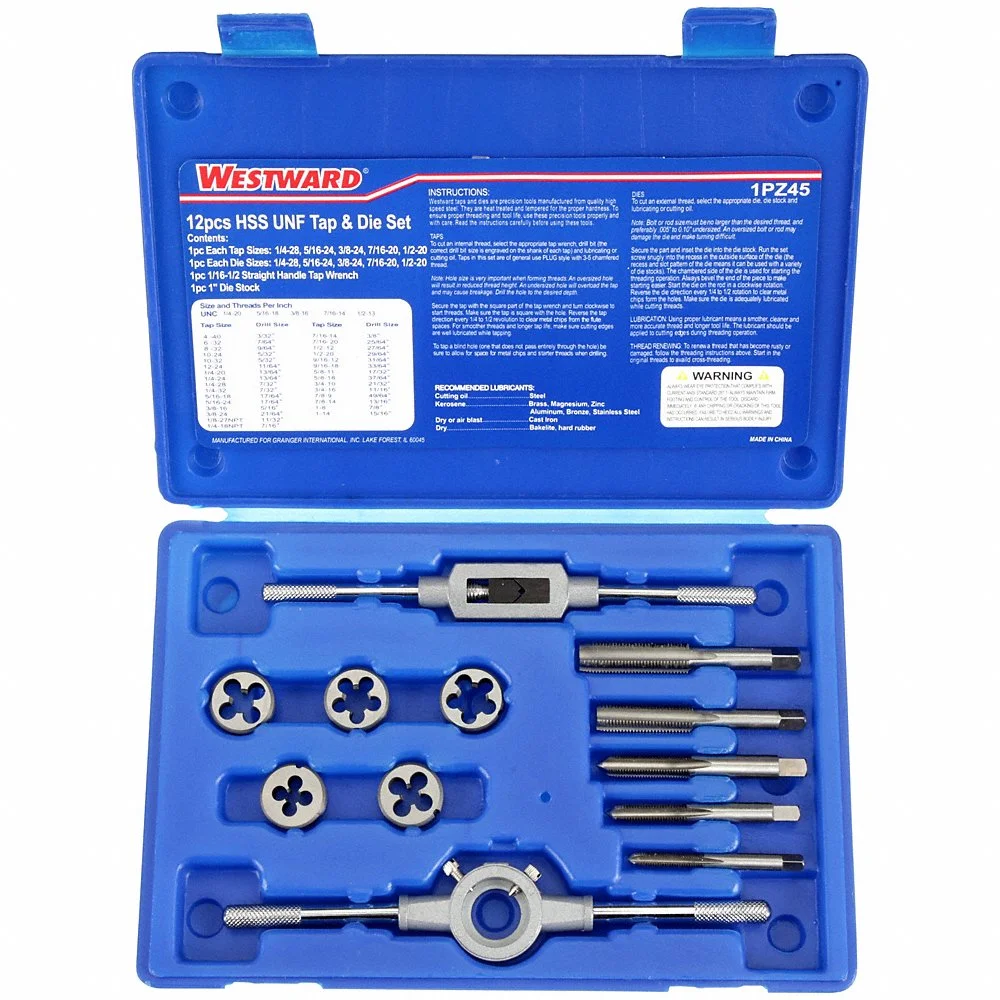

WESTWARD 1PZ45 Tap And Die Set, 1/4-28 Inch Min. Tap Thread Size, 1/2-20 Inch Max. Tap Thread Size

Item: AB2ZMRModel: 1PZ45

7 In Stock

Ships within 2 days via

~~€89.88~~

13.00% off

€78.20 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Tap and Die Set
75% Thread Drill Size	#3, 29/64", I, Q, W
Case Type	Plastic Case
Class Of Fit	Class 2B
Coolant Fed	No
Cutting Size	5
Cutting Sizes	5
Die Finish	Bright (Uncoated)
Die Material	High Speed Steel
Die Material Grade	M2
Die Series	314 Series
Die Shape	Round Fixed
Die Thread Size Included	1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20
Die Type	Solid
Die Type	1" OD Solid
Dimensions Standard	ASME B94.9
Drill Bit Size	29/64", 3#, I, Q, W
Features	Fully-Ground Tooling In A Custom-Fit
Finish-machining	Bright (Uncoated)
Included	Straight Handle Tap Wrench, Die Stock, Plastic Case
Material	High Speed Steel
Material-machining	High Speed Steel
Max. Die Thread Size	1/2"-20
Max. Tap Thread Size	1/2"-20
Min. Tap Thread Size	1/4"-28
No. Of Pieces	12
No. Of Taps	5
Primary Material Application	Alloy Steel, Austenitic Stainless Steel, Magnetic Soft Steel, Plain Carbon Steel
Primary Material Application Iso Code	10.1, 4.1, 6.1, 7.1, 8.1, 9.1
Sae Or Metric	SAE
Secondary Material Application	Alloyed Aluminum, Alloyed Nickel, Alloyed Titanium
Secondary Material Application Iso Code	1.1, 1.2, 2.1, 21, 22, 23, 24, 25, 26, 31, 32, 33, 34, 35, 36
Size/range	1/4 to 1/2"
Sizes	1/4-28, 5/16-24, 3/8-24, 7/16-20, 1/2-20
Spiral Direction	Right Hand
System Of Measurement	Imperial
Tap Chamfer	Plug
Tap Dimension Type	Inch
Tap Finish	Bright
Tap Material	High Speed Steel
Tap Material Grade	Grade M2
Tap Overall Length	2.5", 2.71875", 2.9375", 3.15625", 3.375"
Tap Series	440 Series
Tap Shank Standard	ANSI
Tap Size Included	1/2"-20, 1/4"-28, 3/8"-24, 5/16"-24, 7/16"-20
Tap Type	Hand
Thread Direction	Right Hand
Thread Limit	H4, H5
Thread Size Included	1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20
Thread Type	Fine
Threads Per Inch	20, 24, 28
Type	Fractional

Shipping Info:

Ship weight (kg)	0.99
Ship height (cm)	27.94
Ship length (cm)	18.8
Ship width (cm)	4.57
HS code	8207403000
Country of Origin	CN

Product Variants

Model	Max. Die Thread Size	Min. Tap Thread Size	Max. Tap Thread Size	Die Thread Size Included	Cutting Size	No. Of Pieces	No. Of Taps	Tap Chamfer	Price
1PZ33	3/4"-16	1/4"-28	3/4"-16	1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20, 5/8"-18, 3/4"-16	7	16	7	Plug	€116.46
1PZ34	3/4"-10	1/4"-20	3/4"-10	1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 5/8"-11, 3/4"-10	7	16	7	Plug	€116.46
1PZ35	-	-	-	-	14	30	14	Plug	€235.82
1PZ36	1/2"-20	#4-40	1/2"-20	1/8"-27, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32	17	39	17	Plug, Taper	€286.02
1PZ37	1"-14	#4-40	1"-14	1/8"-27, 1/4"-18, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 7/8"-9, 7/8"-14, 1"-8, 1"-14, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32	28	64	28	Plug, Taper	€863.69
1PZ44	1/2"-13	1/4"-20	1/2"-13	1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13	5	12	5	Plug	€161.06
1PZ46	3/4"-10	1/4"-20	3/4"-10	1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 9/16"-12, 5/8"-11, 3/4"-10	8	21	8	Plug	€238.78
