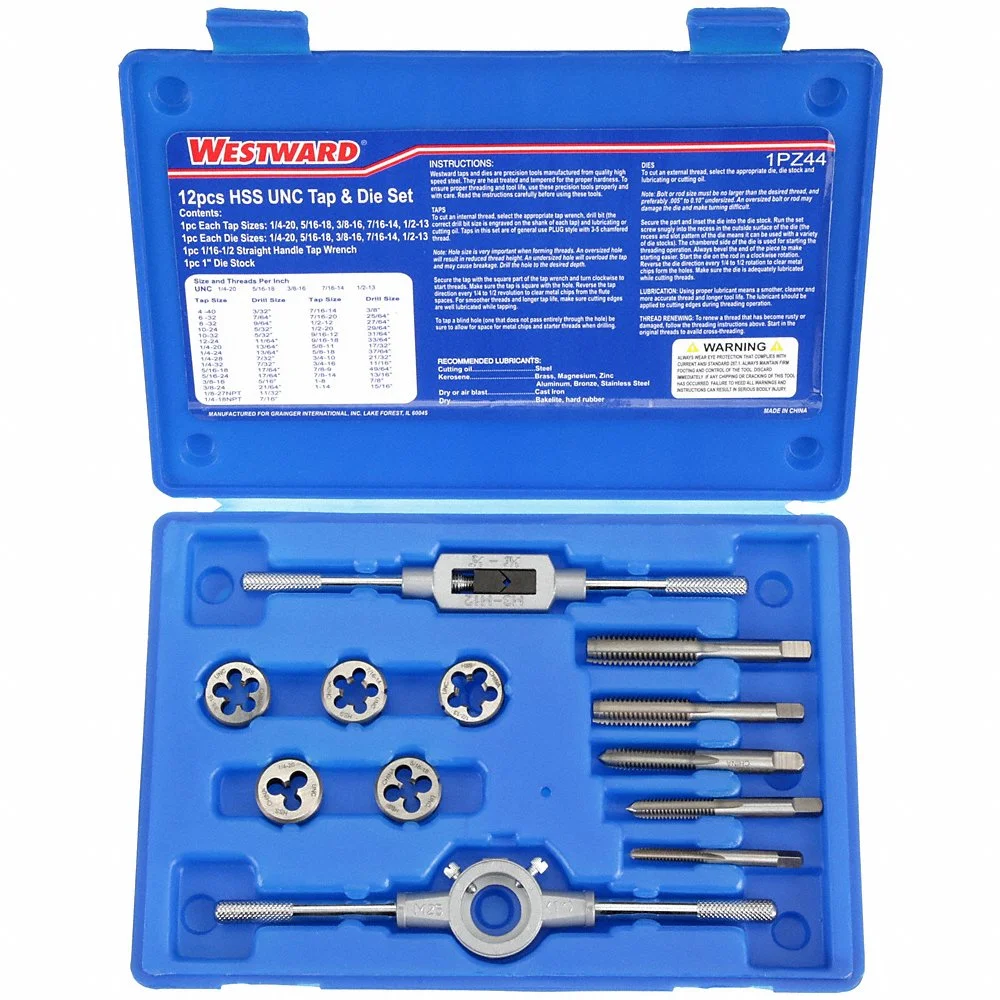

WESTWARD 1PZ44 Tap/die Set 12 Pieces
Item: AB2ZMQModel: 1PZ44
7 In Stock
Ships within 2 days via
10.00% off
€202.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap and Die Set |
| 75% Thread Drill Size | #8, 27/64", 5/16", F, U |
| Case Type | Plastic Case |
| Class Of Fit | Class 2B |
| Coolant Fed | No |
| Cutting Sizes | 5 |
| Die Finish | Bright (Uncoated) |
| Die Material | High Speed Steel |
| Die Material Grade | M2 |
| Die Series | 314 Series |
| Die Shape | Round Fixed |
| Die Thread Sizes Included | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 |
| Die Type | Solid |
| Die Type | 1" OD Solid |
| Dimensions Standard | ASME B94.9 |
| Drill Bit Size | #8, 27/64", 5/16", F, U |
| Features | Fully-Ground Tooling In A Custom-Fit |
| Finish - Machining | Bright (Uncoated) |
| Includes | Straight Handle Tap Wrench, Die Stock, Plastic Case |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Die Thread Size | 1/2"-13 |
| Max. Tap Thread Size | 1/2"-13 |
| Min. Tap Thread Size | 1/4"-20 |
| No. Of Pieces | 12 |
| Number Of Pieces | 12 |
| Number Of Taps | 5 |
| Primary Material Application | Alloy Steel, Austenitic Stainless Steel, Magnetic Soft Steel, Plain Carbon Steel |
| Primary Material Application Iso Code | 10.1, 4.1, 6.1, 7.1, 8.1, 9.1 |
| Sae Or Metric | SAE |
| Secondary Material Application | Alloyed Aluminum, Alloyed Nickel, Alloyed Titanium |
| Secondary Material Application Iso Code | 1.1, 1.2, 2.1, 21, 22, 23, 24, 25, 26, 31, 32, 33, 34, 35, 36 |
| Size/range | 1/4 to 1/2" |
| Sizes | 1/4-20, 5/16-18, 3/8-16, 7/16-14, 1/2-13 |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Material Grade | Grade M2 |
| Tap Overall Length | 2.5", 2.71875", 2.9375", 3.15625", 3.375" |
| Tap Series | 440 Series |
| Tap Shank Standard | ANSI |
| Tap Sizes Included | 1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14 |
| Tap Type | Hand |
| Thread Direction | Right Hand |
| Thread Limit | H4, H5 |
| Thread Sizes Included | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 |
| Thread Type | Coarse |
| Threads Per Inch | 13, 14, 16, 18, 20 |
| Type | Fractional |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 27.69 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 4.57 |
| HS code | 8207403000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Tap Chamfer | Number Of Pieces | Thread Sizes Included | Die Thread Sizes Included | Min. Tap Thread Size | Max. Tap Thread Size | Max. Die Thread Size | Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1PZ33 | Plug | 16 | 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20, 5/8"-18, 3/4"-16 | 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20, 5/8"-18, 3/4"-16 | 1/4"-28 | 3/4"-16 | 3/4"-16 | Fine | €137.09 | |
 |
1PZ34 | Plug | 16 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 5/8"-11, 3/4"-10 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 5/8"-11, 3/4"-10 | 1/4"-20 | 3/4"-10 | 3/4"-10 | Coarse | €137.09 | |
 |
1PZ35 | Plug | 30 | - | - | - | - | - | Coarse/Fine | €276.02 | |
 |
1PZ36 | Plug, Taper | 39 | 1/8"-27, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32 | 1/8"-27, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32 | #4-40 | 1/2"-20 | 1/2"-20 | NPT, UNC, UNF | €392.90 | |
 |
1PZ37 | Plug, Taper | 64 | 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 7/8"-9, 7/8"-14, 1"-8, 1"-14, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32 | 1/8"-27, 1/4"-18, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 7/8"-9, 7/8"-14, 1"-8, 1"-14, 10-24, 10-32, 12-24, 4-40, 6-32, 8-32 | #4-40 | 1"-14 | 1"-14 | UNC, UNF | €983.85 | |
 |
1PZ45 | Plug | 12 | 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20 | 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20 | 1/4"-28 | 1/2"-20 | 1/2"-20 | Fine | €105.21 | |
 |
1PZ46 | Plug | 21 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 9/16"-12, 5/8"-11, 3/4"-10 | 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 9/16"-12, 5/8"-11, 3/4"-10 | 1/4"-20 | 3/4"-10 | 3/4"-10 | Coarse | €279.47 |
