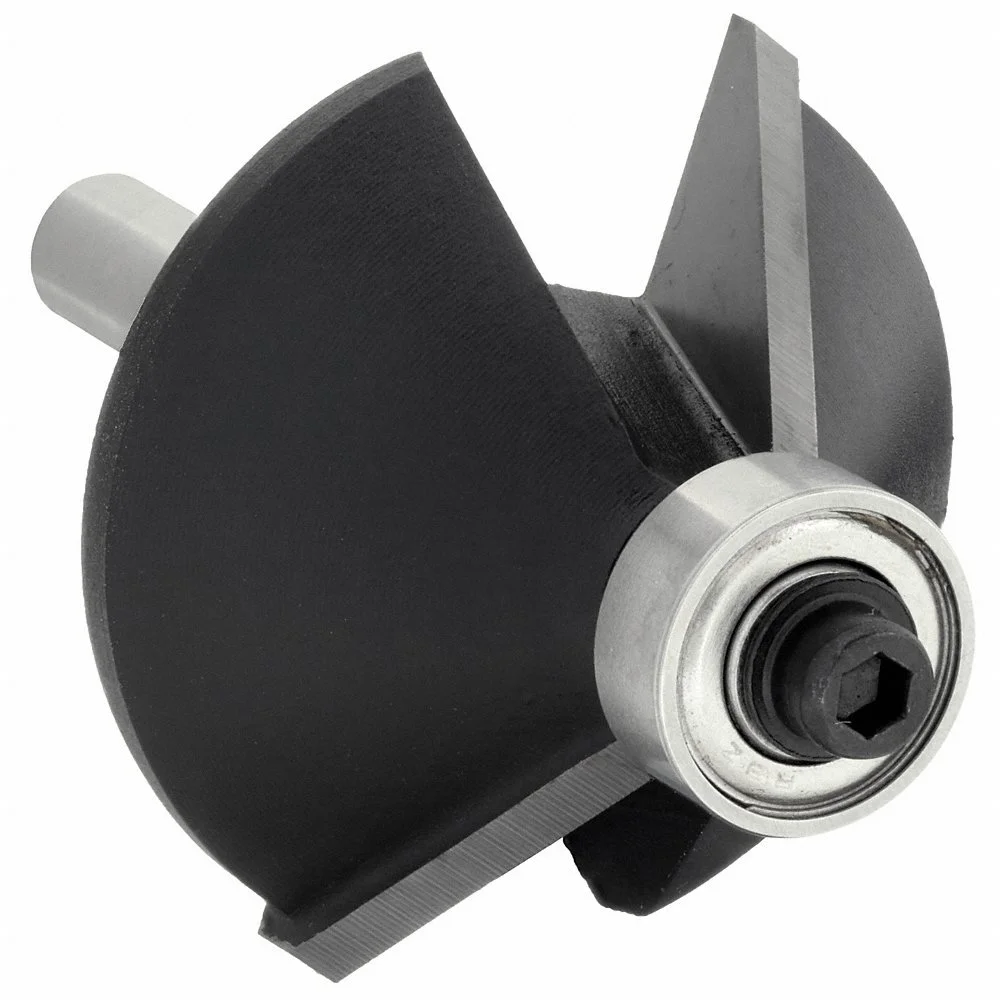

WESTWARD 16Y609 Chamfer Router Bit Carbide Tipped 1-1/4 In
Item: AA8BYRModel: 16Y609
7 In Stock
Ships within 2 days via
10.00% off
€29.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Forming Router Bit |
| Angle | 45° |
| Bearing Dia. | 3/8" |
| Bearing Dia. (in.) | 3/8 |
| Cutter Dia. | 1 1/4" |
| Cutting Depth | 0.594" |
| Cutting Dia. | 1 1/4" |
| Cutting Length | 0.562" |
| Depth Of Cut | 19/32 In. |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| Flute Length | 3/8" |
| Included Angle | 45° |
| Length Of Cut | 3/8" |
| Material | Carbide Tipped |
| Material - Machining | Carbide Tipped |
| Measurement System | Fractional Inch |
| Number Of Flutes | 2 |
| Overall Length | 2 5/8" |
| Primary Material Application | Wood |
| Primary Material Application Iso Code | O |
| Shank Diameter | 1/2" |
| Shank Length | 1 21/32" |
| Shape | Chamfer |
| Sub-category | Chamfer Router Bit |
| Tip Material | Carbide |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 7.87 |
| Ship width (cm) | 3.81 |
| HS code | 8207703040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Overall Length | Shank Length | Flute Length | Shape | Material | Cutter Dia. | Cutting Length | Number Of Flutes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
16Y608 | 2 11/16" | 1 7/32" | 9/16" | Chamfer | Carbide Tipped | 1 1/4" | 0.562" | 2 | €31.92 |
