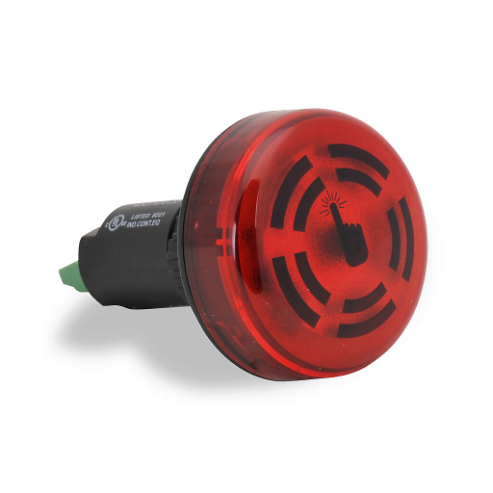

WERMA 45010055 Buzzer, 24VDC, 80 dB Decibels, Indoor/Outdoor, Surface/Wall, 2.9063 Inch Height
Item: CU9VZGModel: 45010055Cross Ref: 452U50
7 In Stock
Ships within 2 days via
€198.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Buzzer |
| Audible Alarm Type | Buzzer |
| Color | Black |
| Connection Type | Screw Terminal |
| Control Protocol | Direct Wire |
| Depth | 2.203" |
| Dia. | 1.969" |
| Features | LED Continuous Light With Switchable Continuous Tone For Two-Stage Signaling, Positive And Negative Control Logic, Potential-Free Output For Feedback Of Buzzer Switch-Off To The Control System, Switching Off The Acoustic Signal Is Made Possible By Pressing Lightly Acknowledgement Function |
| Flashes Per Minute | 0 FPM |
| For Location | Indoor, Outdoor |
| Height | 2.906" |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Included Mounting Hardware | Mounting Hardware Included |
| Indoor/outdoor | Indoor, Outdoor |
| Ip Rating | IP65 |
| Lens Color | Red |
| Lens Material | ABS, Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 50000 hrs. |
| Light Operating Mode | Steady |
| Light Source | LED |
| Max. Alarm Volume @ 1 M | 80 dBA |
| Max. Alarm Volume @ 10 Ft. | 80 dB |
| Max. Operating Temp. | 50°C |
| Min. Operating Temp. | -20°C |
| Mounting | Surface, Wall |
| Mounting Location | Wall Mount |
| Mounting Style | Surface Mount |
| Nema Rating | Nema 12 |
| No. Of Sound Patterns | 1 |
| Noise Level | 80 dBA |
| Operating Amps | 0.08A |
| Operating Temp. | -4°F to +122°F |
| Operating Voltage | 24V DC |
| Overall Dia. | 1 31/32" |
| Overall Height | 3 1/16" |
| Overall Length | 3 1/16" |
| Overall Width | 1 31/32" |
| Power Source | Wire |
| Product Type | Buzzer And Led |
| Rating | IP 65 |
| Sound Continuity | Continuous |
| Sound Pattern | Continuous, Pulse |
| Sound Style | Tone |
| Vibrating | No |
| Vibration | No Vibration |
| Visual Indicator Type | Beacon |
| Voltage | 24V DC |
| Width | 1.969" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 7.38 |
| Ship length (cm) | 5.6 |
| Ship width (cm) | 5 |
| HS code | 853180 |
| Country of Origin | DE |
Product Variants
| Product | Model | Voltage | Depth | Housing Color | Housing Material | Operating Temp. | Color | Sound Pattern | Visual Indicator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10700060 | 115-230V AC | 1.922" | Black | Fiberglass | -20°C to +50°C | Black | Continuous | No Visual Indicator | €53.09 | |
 |
10700070 | 12/24V AC/DC | 1.922" | Black | Fiberglass | -20°C to +50°C | Black | Continuous | No Visual Indicator | €56.25 | |
 |
15010067 | 115V AC | 2.094" | Black | Polycarbonate | -4°F to +122°F | Black | Continuous, Pulse | Beacon | €128.58 | |
 |
10901077 | 115V AC/DC | 0.938" | Black | Polycarbonate, ABS Blend | -4°F to +122°F | Black | Pulse | No Visual Indicator | €113.47 | |
 |
10900077 | 115V AC/DC | 0.938" | Black | Polycarbonate, ABS Blend | -4°F to +122°F | Black | Continuous, Pulse | No Visual Indicator | €114.26 | |
 |
10701060 | 115V AC/DC | 1.922" | Black | Fiberglass | -4°F to +122°F | Black | Pulse | No Visual Indicator | €59.93 | |
 |
10900075 | 24V AC/DC | 0.938" | Black | Polycarbonate, ABS Blend | -4°F to +122°F | Black | Continuous, Pulse | No Visual Indicator | €102.87 |
