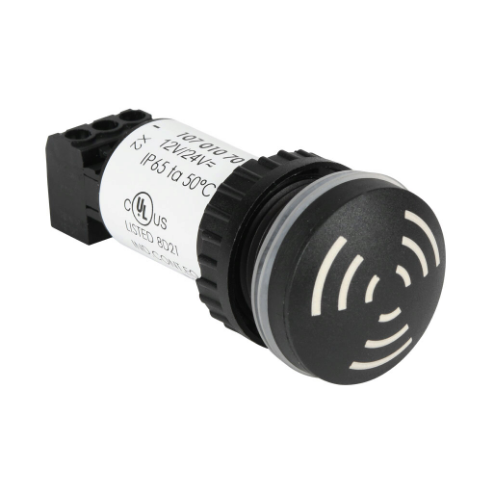

WERMA 10701070 Buzzer, 24VAC/DC, 80 dB Decibels, Indoor/Outdoor, Wall, 2.4063 Inch Height
Item: CU9VZDModel: 10701070Cross Ref: 792XV6
7 In Stock
Ships within 2 days via
10.00% off
€69.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Buzzer |
| Alarm Volume @ 1 M - Maximum | 60 dBA |
| Alarm Volume @ 1 M - Minimum | 60 dB |
| Alarm Volume @ 10 Ft - Maximum | 60 dB |
| Alarm Volume @ 10 Ft - Minimum | 60 dB |
| Audible Alarm Type | Buzzer |
| Color | Black |
| Connection Type | Screw Terminal |
| Control Protocol | Direct Wire |
| Depth | 1.922" |
| Diameter | 1.109" |
| Features | Easy Connection Via Connector Plug |
| Flashes Per Minute | 0 FPM |
| For Location | Indoor/Outdoor |
| Height | 2.406" |
| Housing Color | Black |
| Housing Material | Fiberglass |
| Includes Mounting Hardware | Mounting Hardware Included |
| Indoor/outdoor | Indoor/Outdoor |
| Ip Rating | IP65 |
| Material | Polyamide, Glass Fiber |
| Mounting | Wall |
| Mounting Style | Surface Mount |
| Nema Rating | NEMA 4X |
| Noise Level | 80 dBA |
| Number Of Sound Patterns | 1 |
| Operating Current | 0.008A |
| Operating Temp. Range | -4°F to +122°F |
| Operating Temperature - Maximum | 50°C |
| Operating Temperature - Minimum | -20°C |
| Operating Voltage | 12/24V AC/DC |
| Overall Depth | 61 mm |
| Overall Diameter | 28 mm |
| Power Source | Wire |
| Product Type | Buzzer |
| Rating | IP65 |
| Sound Continuity | Pulse |
| Sound Pattern | Pulse |
| Sound Principle | Resonating |
| Sound Style | Buzzer |
| Vibrating | No |
| Vibration | No Vibration |
| Visual Indicator Type | No Visual Indicator |
| Voltage | 24V AC/DC |
| Volume Selection | Fixed Volume |
| Wattage | 0.73 W |
| Width | 1.109" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 6.11 |
| Ship length (cm) | 4.88 |
| Ship width (cm) | 2.82 |
| HS code | 853180 |
| Country of Origin | DE |
Product Variants
| Product | Model | Voltage | Diameter | Depth | Housing Color | Housing Material | Color | Sound Pattern | Visual Indicator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10700060 | 115-230V AC | 28 mm | 1.922" | Black | Fiberglass | Black | Continuous | No Visual Indicator | €81.19 | |
 |
10700070 | 12/24V AC/DC | 28 mm | 1.922" | Black | Fiberglass | Black | Continuous | No Visual Indicator | €77.15 | |
 |
15010067 | 115V AC | 1.953" | 2.094" | Black | Polycarbonate | Black | Continuous, Pulse | Beacon | €190.17 | |
 |
10901077 | 115V AC/DC | 2.047" | 0.938" | Black | Polycarbonate, ABS Blend | Black | Pulse | No Visual Indicator | €154.78 | |
 |
10900077 | 115V AC/DC | 2.047" | 0.938" | Black | Polycarbonate, ABS Blend | Black | Continuous, Pulse | No Visual Indicator | €154.78 | |
 |
10701060 | 115V AC/DC | 1.109" | 1.922" | Black | Fiberglass | Black | Pulse | No Visual Indicator | €81.19 | |
 |
10900075 | 24V AC/DC | 2.047" | 0.938" | Black | Polycarbonate, ABS Blend | Black | Continuous, Pulse | No Visual Indicator | €141.08 |
