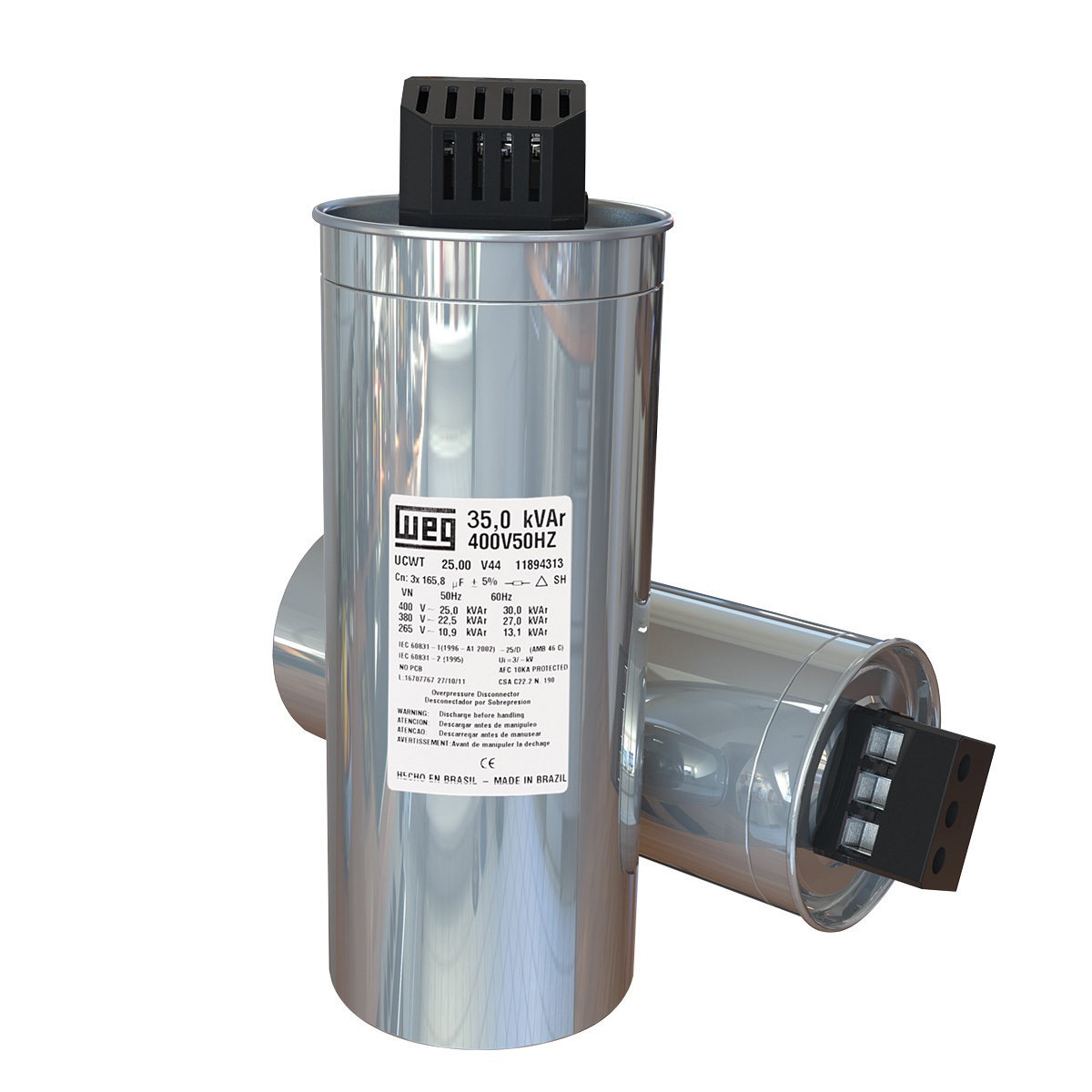

WEG UCWT15V29 O24 11131849 Capacitive Unit, 230.3 microfarad, 15.0 kVAr, 240V, 60Hz
Item: BC2DQEModel: UCWT15V29 O24Cross Ref: 11131849
7 In Stock
Ships within 2 days via
€273.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Capacitor |
| Capacitance | 230.3 µF |
| Capacitance Tolerance | -5% to +5% |
| Complement | Does Not Contain |
| Discharge Resistance Conection | Fast On |
| Impregnation | Polyurethane Resin |
| Lifespan | 100 hrs. |
| Max. Short Circuit Capacity | 10 kA |
| Operating Frequency | 60 Hz |
| Protection Degree | IP20 |
| Rated Operational Frequency | 60 Hz |
| Rated Operational Voltage | 240V , 240V at 60HZ |
| Reactive Power | 15 k var |
| Series | E Series |
| Temp. Class | -25/Class D , -25° |
| Terminal Type | Screw |
Shipping Info:
| Ship weight (kg) | 2.86 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Rated Operational Voltage | Reactive Power | Series | Lifespan | Discharge Resistance Conection | Temp. Class | Capacitance | Terminal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UCWT0.5V53 L10 | 480V | 0.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 1.9 µF | Screw | €79.79 | |
 |
UCWT10V53 N20 | 480V | 10 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 38.4 µF | Screw | €139.29 | |
|
UCWT1.5V53 L10 | 480V | 1.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 5.8 µF | Screw | €79.79 | |
|
UCWT25V53 S26 | 480V | 25 k var | F Series | 150 hrs. | Fast On | -25/Class D , -25° | 95.9 µF | Screw | €300.96 | |
|
UCWT7.5V53 N20 | 480V | 7.5 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 28.8 µF | Screw | €125.45 | |
|
UCWT0.75V53 L10 | 480V | 0.75 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 2.9 µF | Screw | €69.07 | |
 |
UCWT20V53 O24 | 480V | 20 k var | E Series | 100 hrs. | Fast On | -25/Class D , -25° | 76.8 µF | Screw | €245.42 |
