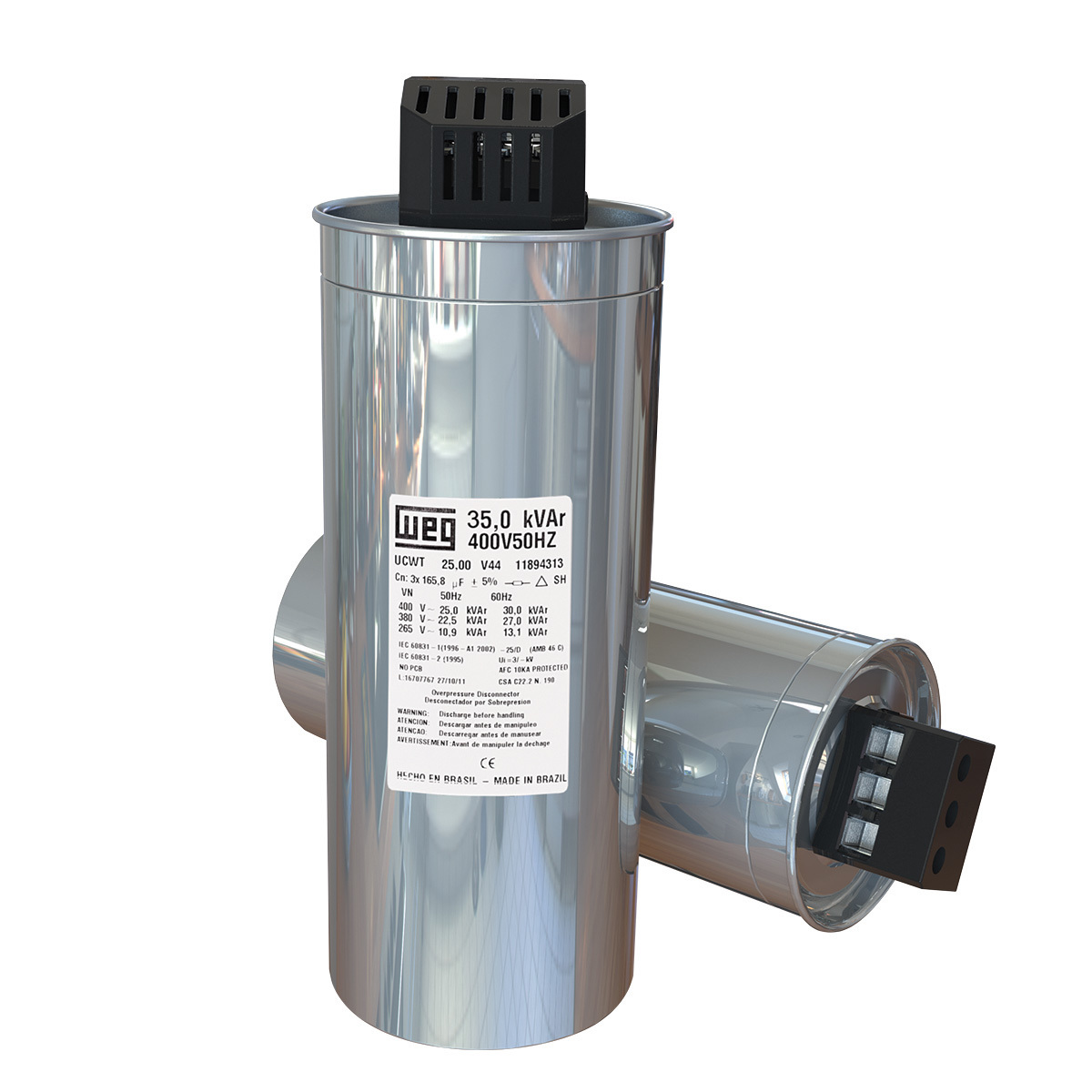

WEG UCWT-Series Three Phase Capacitive Units
Filter
A
B
C
D
E
F| Style | Model | Rated Operational Voltage | Reactive Power | Series | Lifespan | Discharge Resistance Conection | Temp. Class | Capacitance | Terminal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | UCWT10V25 Q26 | 220V | 10 k var | F Series | 150 hrs. | Fast On | -25/Class D , -25° | 182.7 µF | Screw | €202.75 | |
| B | UCWT1.5V25 L10 | 220V | 1.5 k var | D Series | 150000 hrs. | Internal | -25° | - | Screw | €84.42 | |
| B | UCWT2V25 L10 | 220V | 2 k var | D Series | 150000 hrs. | Internal | -25° | - | Screw | €90.02 | |
| C | UCWT0.75V25 L10 | 220V | 0.75 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 13.7 µF | Screw | €72.14 | |
| D | UCWT5V25 N20 | 220V | 5 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 91.3 µF | Screw | €142.00 | |
| E | UCWT12.5V25 O24 | 220V | 12.5 k var | F Series | - | - | - | - | Screw | €242.43 | |
| C | UCWT0.5V25 L10 | 220V | 0.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 9.1 µF | Screw | €69.07 | |
| A | UCWT12.5V25 Q26 | 220V | 12.5 k var | F Series | 150 hrs. | Fast On | -25/Class D , -25° | 228.4 µF | Screw | €284.06 | |
| D | UCWT7.5V25 N22 | 220V | 7.5 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 137 µF | Screw | €162.21 | |
| D | UCWT15V25 O24 | 220V | 15 k var | E Series | 100000 hrs. | Fast On | -25° | - | Screw | €273.51 | |
| C | UCWT3V25 L16 | 220V | 3 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 54.8 µF | Screw | €102.30 | |
| C | UCWT2.5V25 L16 | 220V | 2.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 45.7 µF | Screw | €97.64 | |
| F | UCWT15V25 S26 | 220V | 15 k var | F Series | 150 hrs. | Fast On | -25/Class D , -25° | 274 µF | Screw | €299.90 | |
| B | UCWT1V25 L10 | 220V | 1 k var | D Series | 150000 hrs. | Internal | -25° | - | Screw | €76.73 | |
| D | UCWT10V25 N22 | 220V | 10 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 182.7 µF | Screw | €184.80 | |
| C | UCWT2.5V29 L16 | 240V | 2.5 k var | D Series | 150 hrs. | Internal | -25/Class D | 38.4 µF | Screw | €97.64 | |
| B | UCWT3V29 L16 | 240V | 3 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 46.1 µF | Screw | €102.30 | |
| D | UCWT7.5V29 N22 | 240V | 7.5 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 115.1 µF | Screw | €162.21 | |
| B | UCWT0.5V29 L10 | 240V | 0.5 k var | D Series | 150000 hrs. | Internal | -25° | - | Screw | €69.07 | |
| A | UCWT12.5V29 O24 | 240V | 12.5 k var | F Series | - | - | - | - | Screw | €242.43 | |
| C | UCWT1.5V29 L10 | 240V | 1.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 23 µF | Screw | €84.42 | |
| A | UCWT0.75V29 L10 | 240V | 0.75 k var | D Series | - | - | - | - | Screw | €67.62 | |
| D | UCWT5V29 N20 | 240V | 5 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 76.8 µF | Screw | €142.00 | |
| C | UCWT1V29 L10 | 240V | 1 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 15.4 µF | Screw | €76.73 | |
| C | UCWT2V29 L10 | 240V | 2 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 30.7 µF | Screw | €94.86 | |
| A | UCWT15V29 O24 | 240V | 15 k var | E Series | 100 hrs. | Fast On | -25/Class D , -25° | 230.3 µF | Screw | €273.51 | |
| D | UCWT10V29 N22 | 240V | 10 k var | E Series | 150000 hrs. | Fast On | -25° | - | Screw | €184.80 | |
| E | UCWT17.5V53 O24 | 480V | 17.5 k var | F Series | 100000 hrs. | Fast On | -25° | - | Screw | €231.26 | |
| B | UCWT2V53 L10 | 480V | 2 k var | D Series | 150000 hrs. | Internal | -25° | - | Screw | €85.93 | |
| B | UCWT1V53 L10 | 480V | 1 k var | D Series | 150000 hrs. | Internal | -25° | - | Screw | €72.14 | |
| A | UCWT15V53 Q26 | 480V | 15 k var | F Series | 150 hrs. | Fast On | -25/Class D , -25° | 57.6 µF | Screw | €174.24 | |
| C | UCWT0.5V53 L10 | 480V | 0.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 1.9 µF | Screw | €79.79 | |
| A | UCWT17.5V53 Q26 | 480V | 17.5 k var | F Series | 150 hrs. | Fast On | -25/Class D , -25° | 67.2 µF | Screw | €254.50 | |
| D | UCWT12.5V53 N22 | 480V | 12.5 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 48 µF | Screw | €150.03 | |
| C | UCWT5V53 L16 | 480V | 5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 19.2 µF | Screw | €107.68 | |
| C | UCWT1.5V53 L10 | 480V | 1.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 5.8 µF | Screw | €79.79 | |
| A | UCWT25V53 S26 | 480V | 25 k var | F Series | 150 hrs. | Fast On | -25/Class D , -25° | 95.9 µF | Screw | €300.96 | |
| D | UCWT7.5V53 N20 | 480V | 7.5 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 28.8 µF | Screw | €125.45 | |
| C | UCWT0.75V53 L10 | 480V | 0.75 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 2.9 µF | Screw | €69.07 | |
| E | UCWT20V53 O24 | 480V | 20 k var | E Series | 100 hrs. | Fast On | -25/Class D , -25° | 76.8 µF | Screw | €245.42 | |
| C | UCWT3V53 L10 | 480V | 3 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 11.5 µF | Screw | €92.98 | |
| A | UCWT22.5V53 S26 | 480V | 22.5 k var | F Series | 150 hrs. | Fast On | -25/Class D , -25° | 86.3 µF | Screw | €285.12 | |
| C | UCWT2.5V53 L10 | 480V | 2.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 9.6 µF | Screw | €90.02 | |
| D | UCWT10V53 N20 | 480V | 10 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 38.4 µF | Screw | €139.29 | |
| D | UCWT22.5V53 O24 | 480V | 22.5 k var | E Series | 100 hrs. | Fast On | -25/Class D , -25° | 86.3 µF | Screw | €259.78 | |
| C | UCWT0.75V57 L10 | 535V | 0.75 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 2.3 µF | Screw | €69.07 | |
| E | UCWT15V57 N22 | 535V | 15 k var | E Series | 150000 hrs. | Fast On | -25° | - | Screw | €192.19 | |
| D | UCWT10V57 N20 | 535V | 10 k var | E Series | 150 hrs. | Fast On | -25/Class D | 30.9 µF | Screw | €167.71 | |
| C | UCWT2.5V57 L10 | 535V | 2.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 7.7 µF | Screw | €88.53 | |
| B | UCWT3V57 L10 | 535V | 3 k var | D Series | 150000 hrs. | Internal | -25° | - | Screw | €92.98 | |
| C | UCWT2V57 L10 | 535V | 2 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 6.2 µF | Screw | €85.93 | |
| B | UCWT1.5V57 L10 | 535V | 1.5 k var | D Series | 150000 hrs. | Internal | -25° | - | Screw | €78.28 | |
| D | UCWT7.5V57 N20 | 535V | 7.5 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 23.2 µF | Screw | €157.84 | |
| C | UCWT1V57 L10 | 535V | 1 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 3.1 µF | Screw | €72.14 | |
| C | UCWT5V57 L16 | 535V | 5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 15.4 µF | Screw | €107.68 | |
| D | UCWT12.5V57 N22 | 535V | 12.5 k var | E Series | 150 hrs. | Fast On | -25/Class D , -25° | 38.6 µF | Screw | €177.41 | |
| C | UCWT0.5V57 L10 | 535V | 0.5 k var | D Series | 150 hrs. | Internal | -25/Class D , -25° | 1.5 µF | Screw | €66.00 |
