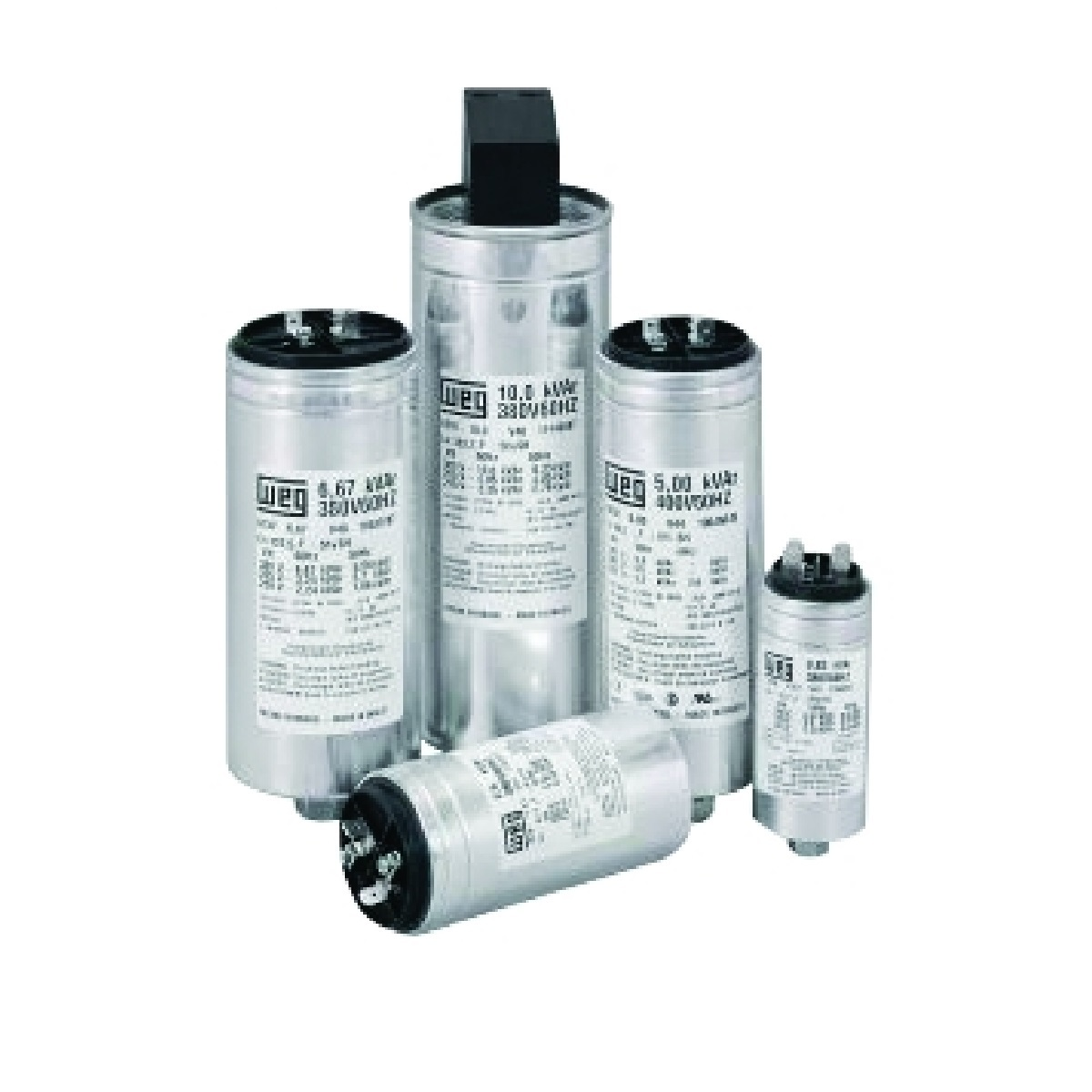

WEG UCW8.33V53 N14 11449954 Capacitive Unit, 95.9 microfarad, 8.33 kVAr, 480V, 60Hz
Item: BB4YRVModel: UCW8.33V53 N14Cross Ref: 11449954
7 In Stock
Ships within 2 days via
€142.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Capacitor |
| Capacitance | 95.9 µF |
| Capacitance Tolerance | -5% to +5% |
| Complement | Does Not Contain |
| Discharge Resistance Conection | Fast On |
| Impregnation | Polyurethane Resin |
| Lifespan | 100 hrs. |
| Max. Short Circuit Capacity | 10 kA |
| Operating Frequency | 60 Hz |
| Protection Degree | IP20 |
| Rated Operational Frequency | 60 Hz |
| Rated Operational Voltage | 480V , 480V at 60Hz |
| Reactive Power | 8.33 k var |
| Series | C Series |
| Temp. Class | -25/Class D , -25° |
| Terminal Type | Screw |
Shipping Info:
| Ship weight (kg) | 1.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Rated Operational Voltage | Reactive Power | Operating Frequency | Series | Capacitance | Discharge Resistance Conection | Terminal Type | Max. Short Circuit Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UCW3.33V29 L10 | 240V | 3.33 k var | 60 Hz | B Series | 153.4 µF | Not Applicable | Screw | 10 kA | €82.86 | |
| UCW1.67V29 L6 | 240V | 1.67 k var | 60 Hz | B Series | - | - | Screw | - | €54.68 | |
| UCW3.33V57 L6 | 535V | 3.33 k var | 60 Hz | B Series | 30.9 µF | Not Applicable | Screw | 10 kA | €59.87 | |
| UCW1.67V25 L6 | 220V | 1.67 k var | 60 Hz | B Series | 91.5 µF | Not Applicable | Screw | 10 kA | €58.31 | |
| UCW2.5V29 L8 | 240V | 2.5 k var | 60 Hz | B Series | 115.1 µF | Not Applicable | Screw | 10 kA | €66.00 | |
| UCW3.33V25 L10 | 220V | 3.33 k var | 60 Hz | B Series | 182.5 µF | Not Applicable | Screw | 10 kA | €82.86 | |
| UCW0.83V29 L6 | 240V | 0.83 k var | 50 Hz | B Series | 38.2 µF | Not Applicable | Screw | 10 kA | €42.97 |
