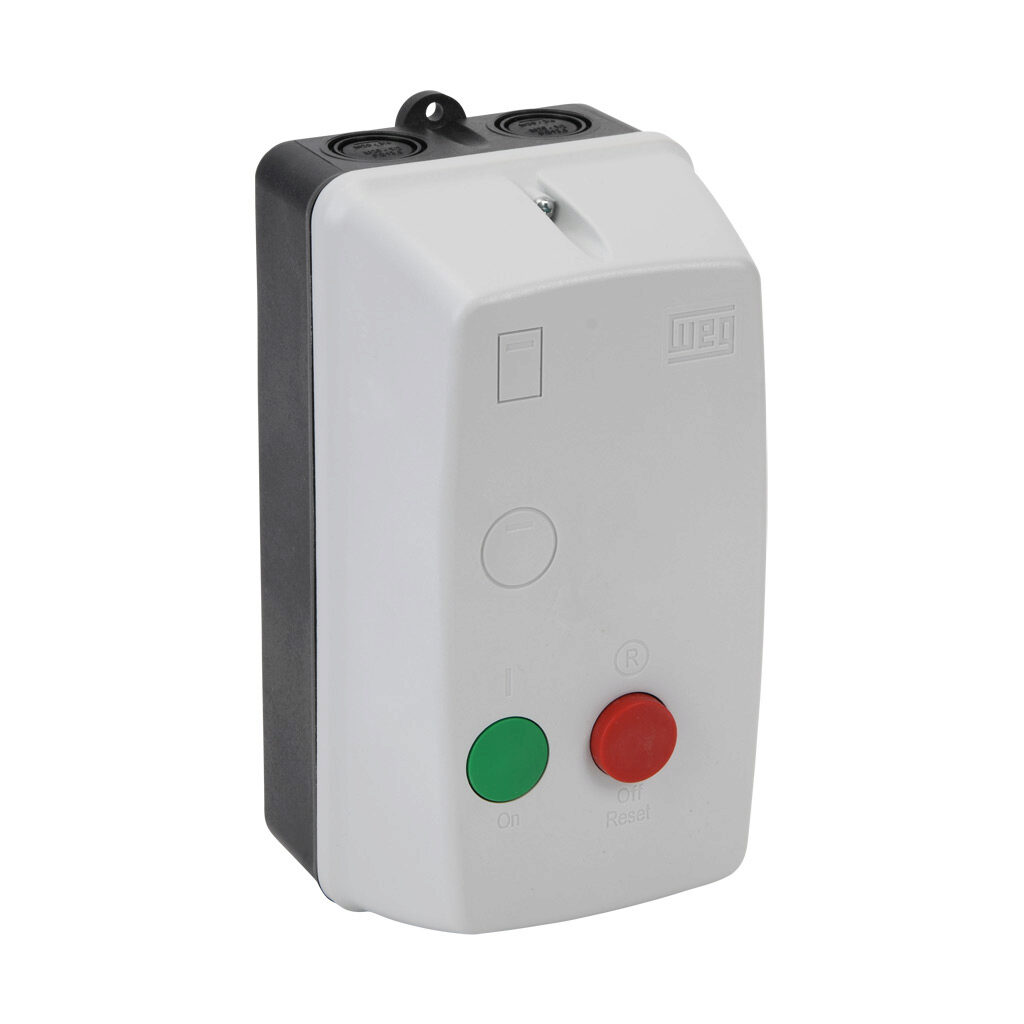

WEG PESWS-B9D15AX-RM63 14655834 Enclosed Starter, 1 Phase, 9A Rated, 7-10 A Range, On/Off Control, Plastic Crate, 120V50/60HZ
Item: CV6UDKModel: PESWS-B9D15AX-RM63Cross Ref: 14655834
7 In Stock
Ships within 2 days via
€148.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor Starter |
| Amps | 9A |
| Assembly Method | Plastic Crate |
| Assembly Method (start Key) | Plastic Crate |
| Auxiliary Contacts | NO/NC |
| Button Color | Not Specified |
| Button Type | Unspecified |
| Coil Frequency | 50/60 Hz |
| Connection Type | Screw Terminal |
| Control Devices | A On Off Button |
| Control Voltage | 120V |
| Degree Of Protection | NEMA 4X |
| Enclosure Type | NEMA 4/4X |
| Frequency | 60/50 Hz |
| Full Load Amps | 7-10A |
| Hp | 1 1/2 hp |
| Included | Start, Stop And Reset Pushbuttons |
| Maximum Power Rating | Not Applicable |
| Measuring Tool And Accessories | Not Applicable |
| Mounting | Wall |
| No. Of Phase | 1 |
| No. Of Poles | 2 |
| Over Load | 7-10A |
| Overload Relay | 7-10A |
| Overload Type | Bi-Metallic |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Product Datasheet | weg-esw-b12d15a-r30.pdf |
| Rated Amps (ac-3) | 9A (CWB9) |
| Rated Operational Voltage | 600V |
| Reference | PESWS |
| Sccr Rating | 5 kA |
| Series | PESWS Series |
| Start Type | Direct Single Phase |
| Starter Type | Non Combination |
| Starters Complements | Does Not Contain |
| Trip Class | Class 10 |
| Voltage | 600V AC |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 22.95 |
| Ship length (cm) | 11.26 |
| Ship width (cm) | 12.4 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Amps | Coil Voltage | No. Of Phase | Rated Amps (ac-3) | Control Devices | Start Type | Overload Relay | Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PESW-18V04EX-R32 | - | - | - | - | - | - | - | - | €124.05 | RFQ
|
 |
PESW-B18D15AX-R65 | 18A | - | 3 | 18A (CWB18) | A On Off Button | Direct Three Phase | 10-15A | 50/60 Hz | €230.57 | |
|
PESW-B18V24AX-R65 | 18A | - | 3 | 18A (CWB18) | A On Off Button | Direct Three Phase | 10-15A | 50/60 Hz | €230.57 | |
 |
PESW-B18D15AX-R67 | 18A | - | 3 | 18A (CWB18) | A On Off Button | Direct Three Phase | 15-23A | 50/60 Hz | €230.57 | |
|
PESW-B18D39AX-R65 | 18A | - | 3 | 18A (CWB18) | A On Off Button | Direct Three Phase | 10-15A | 50/60 Hz | €230.57 | |
|
PESW-B18D39AX-R67 | 18A | - | 3 | 18A (CWB18) | A On Off Button | Direct Three Phase | 15-23A | 50/60 Hz | €230.57 | |
 |
PESW-B18V24AX-R67 | 18A | - | 3 | 18A (CWB18) | A On Off Button | Direct Three Phase | 15-23A | 50/60 Hz | €230.57 |
