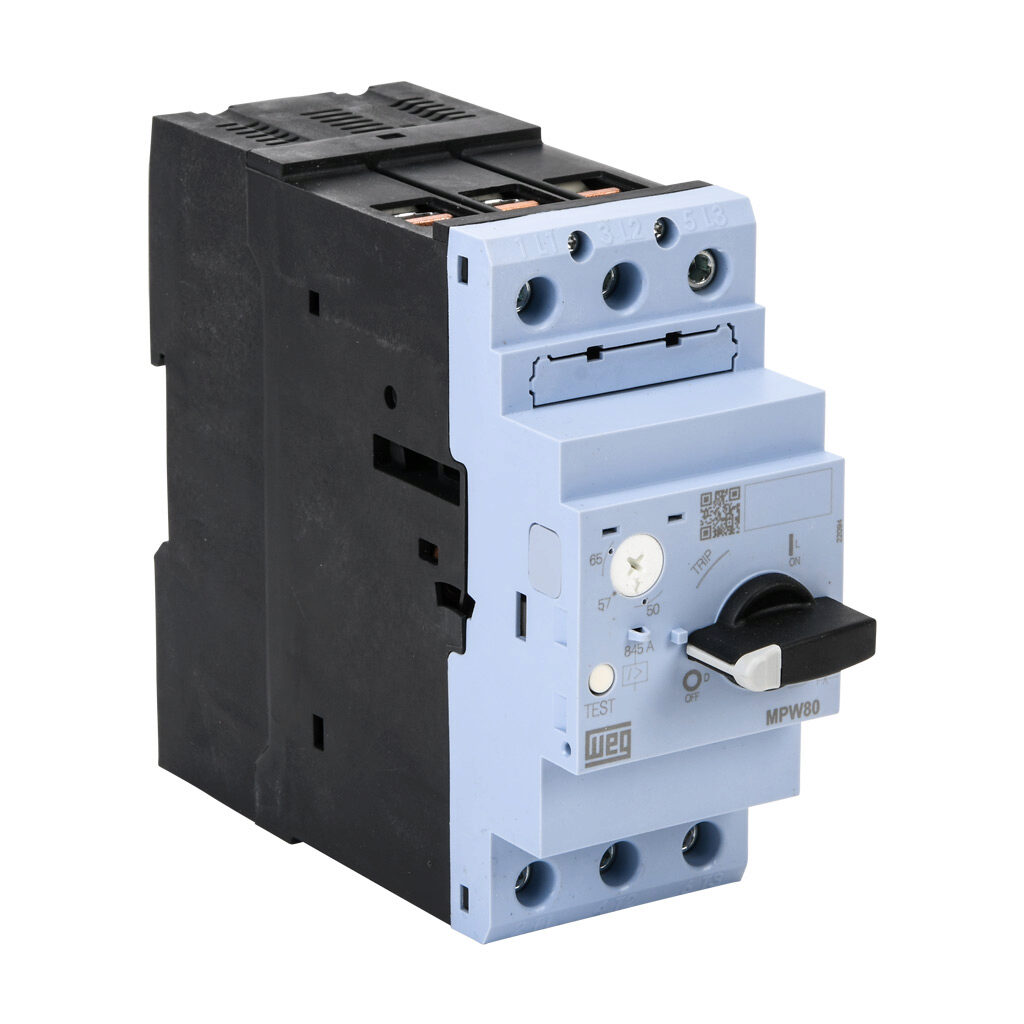

WEG MPW80-3-U065 12425429 Manual Motor Protector, Rotary, 65A, Thermal Overload, 50-65A Adjustable
Get it by Tuesday, Mar 31
€316.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Protector |
| Actuator Type | Rotary |
| Amps Rating | 65A |
| Connection Type | Screw Terminal |
| Depth | 6.18" |
| Enclosure Type | Open |
| Frame Size | 54 mm |
| Full Load Amperage Range | 50-65A |
| Gross Weight | 2.485 lbs. |
| Height | 4.92" |
| Horsepower Rating | 50 hp |
| Instantaneous Trip Rating | 845A |
| Max. Operating Frequency | 15 Hz |
| Max. Rated Amps | 80A |
| Mounting | DIN Rail |
| Mounting Size | 35 mm |
| Number Of Poles | 3 |
| Operation Type | Bi-Metallic |
| Overload Protection | Yes |
| Phase Failure Sensitivity | Yes |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Product Datasheet | weg-tsb.pdf |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Rated Insulation Voltage | 690V |
| Rated Operational Frequency | 50/60 Hz |
| Rated Operational Voltage | 690V |
| Relay Type | Thermal Overload |
| Sccr Rating | 35 kA |
| Series | MPW80 Series |
| Setting Range For Thermal Release | 50-65A |
| Short-circuit Release | 13 Times Lemax |
| Starter Type | Manual |
| Terminal Type | Box |
| Trip Class | Class 10 |
| Trip Indication | Yes |
| Trip Test | Yes |
| Tripping Class | Class 10 |
| Voltage Rating | 600V AC |
| Width | 2.13" |
Shipping Info:
| Ship weight (kg) | 1.11 |
| Ship height (cm) | 12.5 |
| Ship length (cm) | 15.7 |
| Ship width (cm) | 5.41 |
| Country of Origin | BR |
