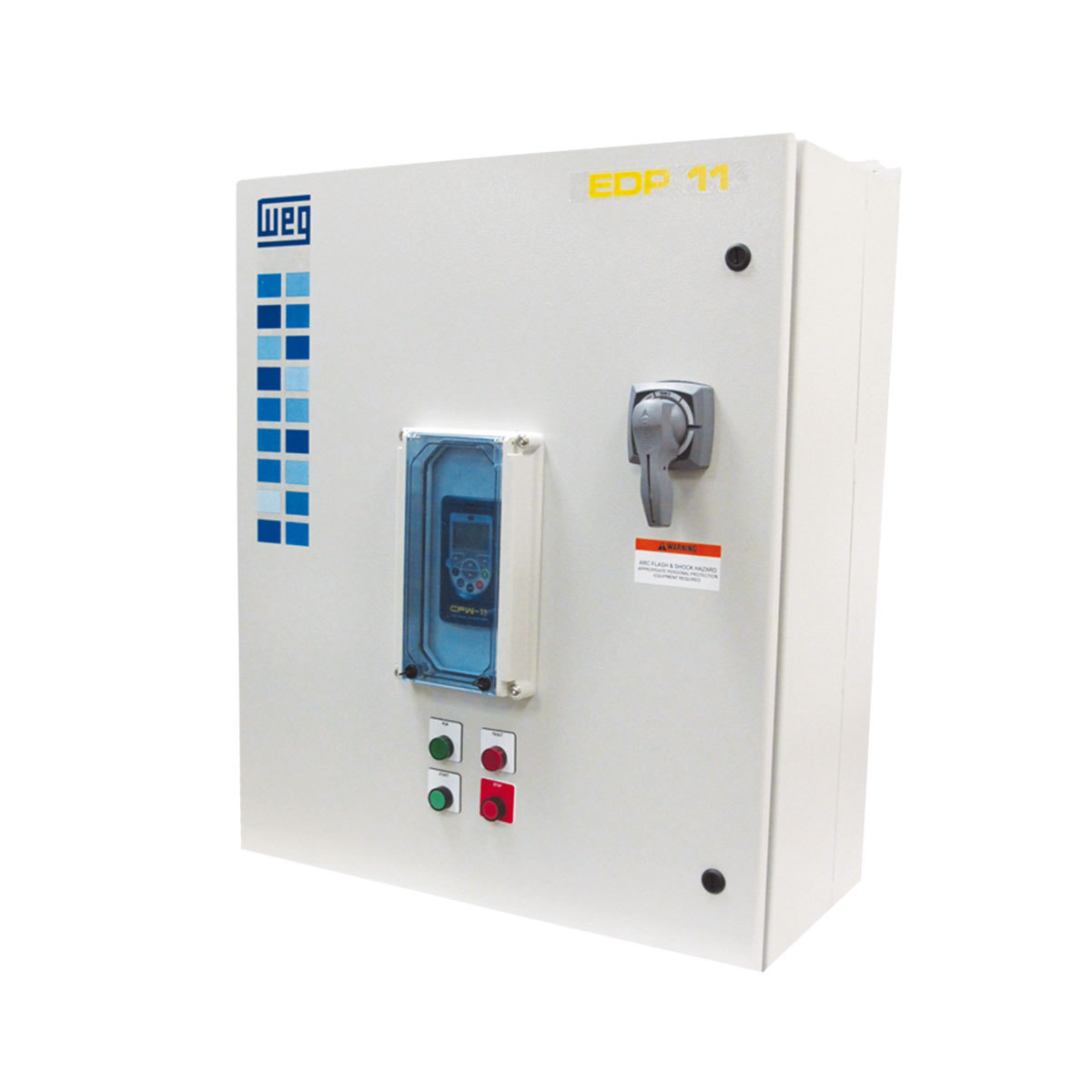

WEG EDP11S105GN3R 14404472 Drive Panel, 75 HP, 460 V, Keypad, Enclosure Heater
75 hp
€19,535.67 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panel |
| By-pass Type | None |
| Communication | None |
| Contact Rating | 120V |
| Control Options | Start Pushbutton, Stop Pushbutton, Run Light, Fault Light And Keypad |
| Disconnect Switch Type | Circuit Breaker Rotary Handle Disconnect |
| Enclosure Rating | Type 3R |
| Enclosure Type | Wall Mount |
| Frequency | 60 Hz |
| General Enclosure Options | Lightning Arrestor |
| Hp | 75 hp |
| Input Phase | 3 |
| Input Voltage | 400-480V, 3 Phase |
| Main Voltage | 460V |
| Nominal Depth | 254 mm |
| Nominal Height | 48" |
| Nominal Width | 30" |
| Open Control Power Transformer | 100 VA |
| Panel Type | Vfd |
| Reactor/filter | None |
| Sccr Rating | 5 kAIC |
| Series | EDP Series, EDP11 Series |
| Thermal Managment | Enclosure Heater |
| Type Of Drive | Fan, Pump, HVAC, Pre Engineered Drive Panel |
| Ventilated/mounting | Non Ventilated, Wall Mounted |
Shipping Info:
| Ship height (cm) | 121.92 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 76.2 |
Product Variants
| Product | Model | Hp | Main Voltage | Enclosure Rating | Nominal Depth | Nominal Height | Nominal Width | Open Control Power Transformer | Enclosure Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EDP11S016DN12 | 5 hp | 230V | Type 12 | 203.2 mm | 23 3/5" | 20" | 100 VA | Wall Mount | €7,051.77 | RFQ
|
 |
EDP11S017GN1211000 | 10 hp | 460V | Type 12 | 203.2 mm | 30" | 24" | 100 VA | Wall Mount | €9,533.70 | RFQ
|
|
EDP11S024GN1201000 | 15 hp | 460V | Type 12 | 203.2 mm | 23 3/5" | 20" | 100 VA | Wall Mount | €8,498.16 | RFQ
|
 |
EDP11S024GN3R | 15 hp | 460V | Type 3R | 203.2 mm | 23 3/5" | 20" | 100 VA | Wall Mount | €9,555.48 | RFQ
|
|
EDP11S031GN1201000 | 20 hp | 460V | Type 12 | 203.2 mm | 23 3/5" | 20" | 100 VA | Wall Mount | €9,249.57 | RFQ
|
|
EDP11S033DN1211000 | 10 hp | 230V | Type 12 | - | - | - | - | - | €11,656.26 | RFQ
|
|
EDP11S070DN12 | 25 hp | 230V | Type 12 | 203.2 mm | 30" | 24" | 100 VA | Wall Mount | €12,040.38 | RFQ
|
