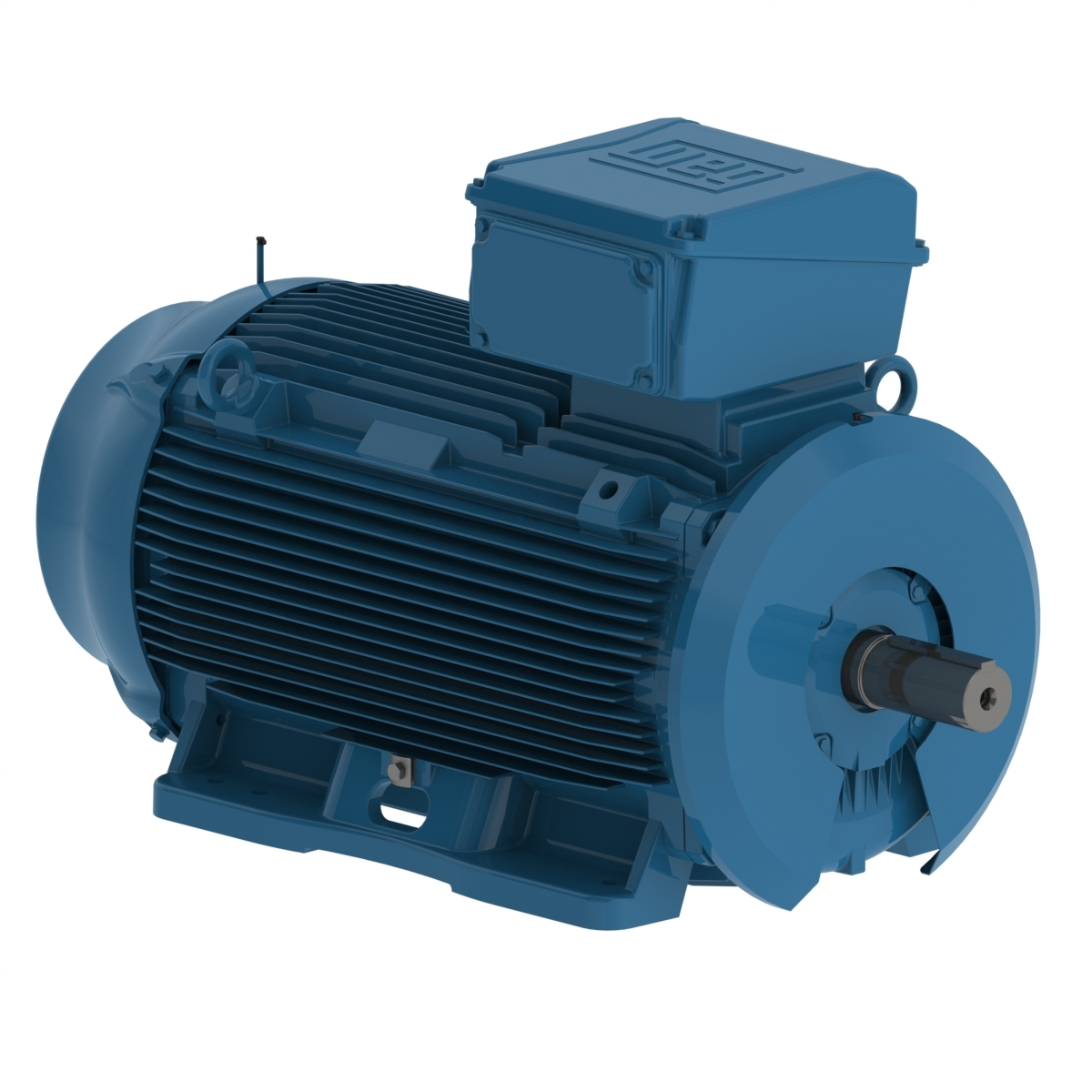

WEG E20012EP3YAX315LF3-W 14352811 Hazardous Area IEC-Ex/ATEX Motor, EX-EC, 200 kW, 6 Poles, 315L Frame, 3 Phase, 380-400-415/660-690//460 V, 50 Hz, IC411-TEFC, B3T Mounting
Get it by Tuesday, Sep 1
€76,693.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 219/380A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Break Down Torque | 270% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 95.3% |
| Efficiency 75% | 95.4% |
| Efficiency @ 100% | 95.2% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange | Without |
| Flange Type | Without |
| Frame | 315L |
| Frame Material | Cast Iron |
| Frequency | 50 Hz , 60 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 1575/2736A , 2763A |
| Locked Rotor Time (cold) | 21 sec. |
| Locked Rotor Torque | 229% |
| Main Terminal Box Hole | 2 x M63 x 1.5 |
| Main Terminal Box Hole Size | M63 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia (j) | 240 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | B3T , Foot Mounted |
| Nde Bearing Seal | Yes |
| No Load Amps | 86.4/150A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 6 |
| Noise Level | 68 dBA |
| Output Rating | 200 kW , 270 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 205P (ISO 12944-C3) |
| Phase | 3 |
| Power Factor 100% | 0.84 |
| Power Factor 50% | 0.69 |
| Power Factor 75% | 0.8 |
| Regreasing System | Extended, At Drive End And Non Drive End , Extended, At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.9% |
| Speed | 1000 RPM , 991 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1000 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Top |
| Terminal Type | BMC |
| Torque | 1420 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 380-400-415/660-690/460V , 380-400-415/660-690/460V AC , 380/660V |
| Winding Thermal Protection | Thermistor 2 Wires 1 Per Phase 140°C, Thermistor 2 Wires 1 Per Phase 155°C , Thermistor-2 Wires 1 Per Phase 140°C |
Shipping Info:
| Ship weight (kg) | 1545.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Frequency | Hp | Frame | No. Of Poles | Synchronous Speed | Shaft Material | Mounting | Output Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E04512EP3YAX280SMF3W | 50 Hz | 60 hp | 280 S/M | 6 | 1000 RPM | Carbon Steel | Foot Mounted | 60 hp | €23,462.45 | |
 |
E00418EP3YAX112MF3-W | 50 Hz | 5 1/2 hp | 112 M | 4 | 1500 RPM | Carbon Steel | Foot Mounted | 5 1/2 hp | €1,655.98 | |
|
E09018EP3YAX280SMF3W | 50 Hz | 125 hp | 280 S/M | 4 | 1500 RPM | Carbon Steel | Foot Mounted | 125 hp | €24,408.69 | |
|
E11012EP3YAX315SMF3W | 60 Hz | 150 hp | 315S/M | 6 | 1000 RPM | Carbon Steel | Foot Mounted | 150 hp | €36,453.57 | |
 |
E01812EP3YAX200LF3-W | 50 Hz | 25 hp | 200 L | 6 | 1000 RPM | Carbon Steel | Foot Mounted | 18.5 kW | €8,590.64 | |
 |
E01512EP3YAX180LF3-W | 60 Hz | 20 hp | 180 L | 6 | 1000 RPM | Carbon Steel | Foot Mounted | 20 hp | €6,172.34 | |
|
E05518EP3YAX250SMF3W | 50 Hz | 75 hp | 250 S/M | 4 | 1500 RPM | Carbon Steel | Foot Mounted | 75 hp | €16,443.53 |
