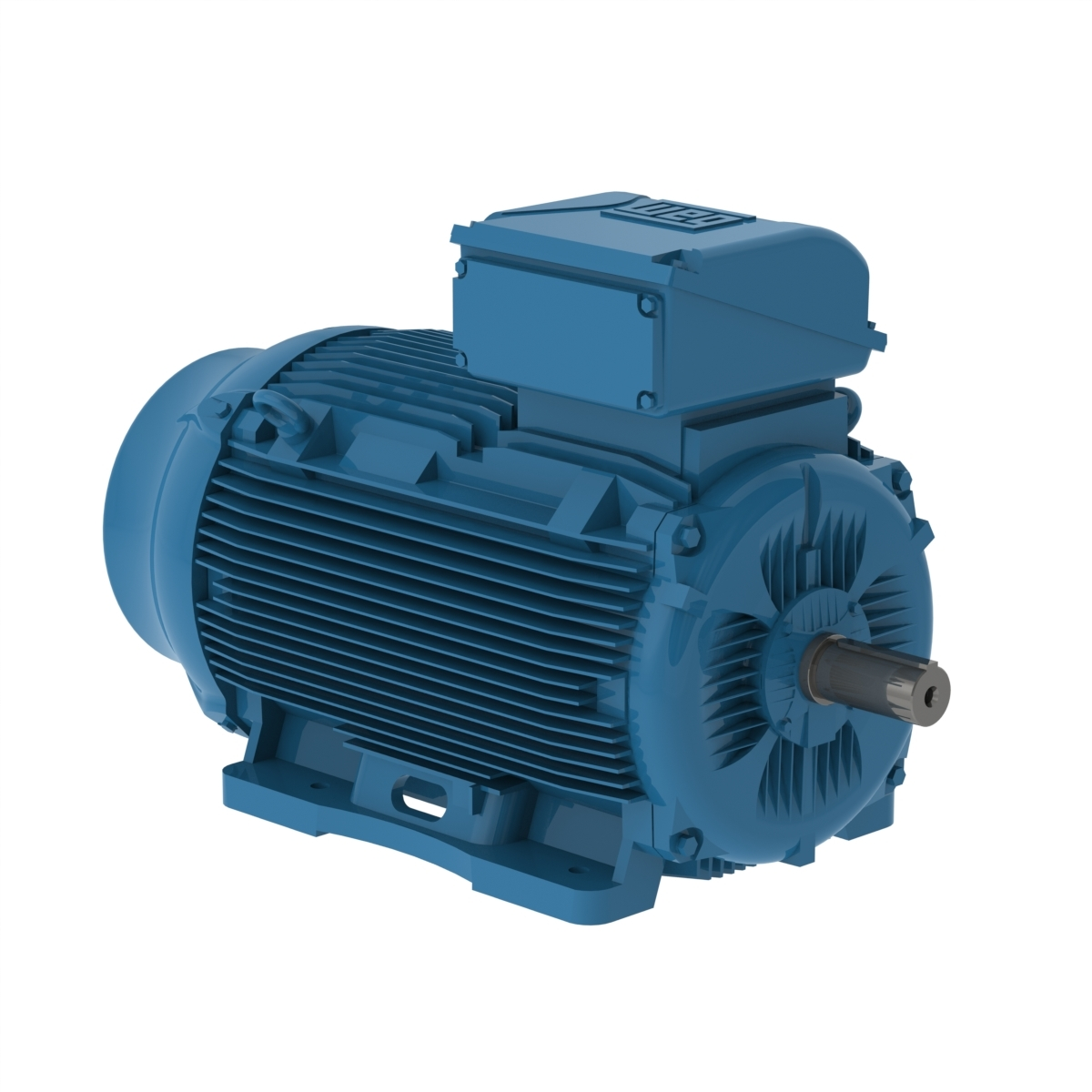

WEG E15012ET3YAX315LF3W2 Electric Motor, 150Hp, 50Hz, 1000 Rpm | BC3FLY

WEG E15012ET3YAX315LF3W2 14394465 Hazardous Area IEC-Ex/ATEX Motor, EX-EC, IE3 150 KW, 6 Poles, 315L Frame, 3 Phase, 380-400-415/660-690//460 V, 50 Hz, IC411-TEFC-B3T

Item: BC3FLYModel: E15012ET3YAX315LF3W2Cross Ref: 14394465
Check Availability
In Stock

Get it by Tuesday, Jul 14

€94,752.50 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 161/280A
Balancing Method 1/2" Key
Bearing Cap Yes
Break Down Torque 229%
Composition Cast Iron
Connection Cables Quantity 6
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 95.4%
Efficiency 75% 95.7%
Efficiency @ 100% 95.7%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Aluminum
Flange Without
Flange Type Without
Frame 315L
Frame Material Cast Iron
Frequency 50 Hz
Grounding Lugs Double
Hp 200 hp
Impregnation Method Constant Resin Flow
Insulation Class Class F
L. R. Amps 967/1680A
Locked Rotor Time (cold) 45 sec.
Locked Rotor Time(hot) 25 sec.
Locked Rotor Torque 210%
Main Terminal Box Hole 2 x M63 x 1.5
Main Terminal Box Hole Size M63 x 1.5
Moment Of Inertia (j) 189 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting B3T , Foot Mounted
No Load Amps 57.6/100A
No. Of Holes 2
No. Of Pins 6
No. Of Poles 6
Noise Level 68 dBA
Output Rating 150 kW , 200 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 205P (ISO 12944-C3)
Phase 3
Power Factor 100% 0.85
Power Factor 50% 0.69
Power Factor 75% 0.8
Regreasing System At Drive End And Non Drive End , At Drive End And Non-Drive End
Rotation CW, CCW
Screw Cap Stainless Steel
Service Factor 1
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 4140
Slip 1%
Speed 1000 RPM , 990 RPM
Starting Method Direct On Line
Synchronous Speed 1000 RPM
Temp. Rise 80 K
Terminal Block BMC
Terminal Box Top
Terminal Type BMC
Torque 1070 lbs.-ft.
Tropicalized Painting Without
Voltage 380-400-415/660-690/460V AC , 380/660V
Winding Thermal Protection Thermistor-2 Wires 1 Per Phase 140°C

Shipping Info:

Ship weight (kg) 1260
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelFrequencyHpFrameNo. Of PolesSynchronous SpeedMountingOutput RatingImpregnation MethodPrice
WEG E04512EP3YAX280SMF3W Electric Motor, 60Hp, 50/60Hz, 1000/1200 Rpm | BB4JBR E04512EP3YAX280SMF3W50 Hz60 hp280 S/M61000 RPMFoot Mounted60 hpConstant Resin Flow€23,462.45
WEG E00418EP3YAX112MF3-W Electric Motor, 5.5Hp, 50/60Hz, 1500/1800 Rpm | BB6BTL E00418EP3YAX112MF3-W50 Hz5 1/2 hp112 M41500 RPMFoot Mounted5 1/2 hpDip And Bake Polyester€1,655.98
WEG E09018EP3YAX280SMF3W Electric Motor, 125Hp, 50/60Hz, 1500/1800 Rpm | BB6KEP E09018EP3YAX280SMF3W50 Hz125 hp280 S/M41500 RPMFoot Mounted125 hpConstant Resin Flow€24,408.69
WEG E11012EP3YAX315SMF3W Electric Motor, 150Hp, 50/60Hz, 1000/1200 Rpm | BB6KVY E11012EP3YAX315SMF3W50 Hz150 hp315S/M61000 RPMFoot Mounted150 hpConstant Resin Flow€36,453.57
WEG E01812EP3YAX200LF3-W Electric Motor, 25Hp, 50/60Hz, 1000/1200 Rpm | BB6UPC E01812EP3YAX200LF3-W50 Hz25 hp200 L61000 RPMFoot Mounted18.5 kWDip And Bake Polyester€8,590.64
WEG E01512EP3YAX180LF3-W Electric Motor, 20Hp, 50/60Hz, 1000/1200 Rpm | BB6XHF E01512EP3YAX180LF3-W50 Hz20 hp180 L61000 RPMFoot Mounted20 hpDip And Bake Polyester€6,172.34
WEG E05518EP3YAX250SMF3W Electric Motor, 75Hp, 50/60Hz, 1500/1800 Rpm | BB6ZLL E05518EP3YAX250SMF3W50 Hz75 hp250 S/M41500 RPMFoot Mounted75 hpConstant Resin Flow€16,443.53
