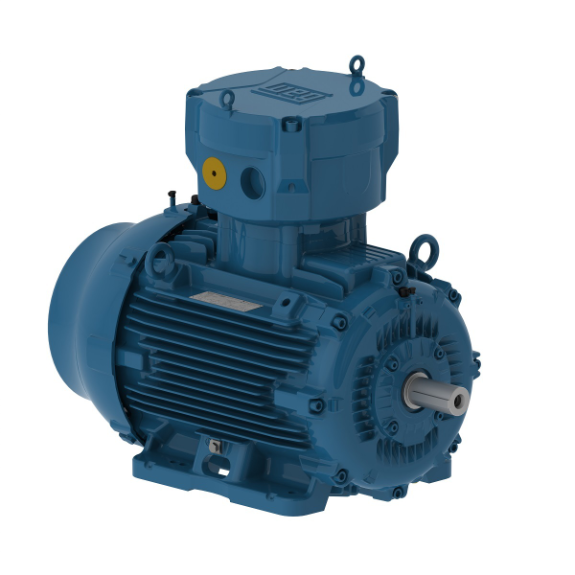

WEG E04536XP3YAX225SMF3W 12430195 Electric Motor, 45Hp, 50Hz, 3000 Rpm
Get it by Tuesday, Aug 25
€19,766.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 68.2A |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Cold Locked Rotor Time | 16 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| De Bearing Seal | Viton Oil Seal |
| Degree Of Protection | IP56 |
| Design | N |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 225 S/M |
| Frame Material | Cast Iron |
| Frequency | 50 Hz |
| Grade | Grade 316 |
| Grounding Lugs Type | Double |
| Hp | 60 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| Joints Seal | Lumomoly |
| L. R. Amps | 559A |
| Locked Rotor Time(hot) | 9 sec. |
| Main Terminal Box Hole | 2 x M50 x 1.5 |
| Material | Stainless Steel |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | B3T , Foot Mounted |
| Nde Bearing Seal | Viton Oil Seal |
| No. Of Poles | 2 |
| Output Rating | 45 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Space Heater Voltage | 200-240V |
| Speed | 3000 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3000 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Bmc 6 Pins |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 380-400-415/660-690/460V AC , 380-415/460/660-690V |
| Winding Thermal Protection | Thermistor 2 Wires 1 Per Phase 150°C |
Shipping Info:
| Ship weight (kg) | 483.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Frame | Insulation Class | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E01818XP3YAX180MF3-W | 380/660V AC | 50 Hz | - | 25 hp | 180M/L | Class F | 4 | 1500 RPM | €6,426.87 | |
 |
E01536XP3YAX160MF3-W | 380-400-415/660-690/460V AC | 60 Hz | - | 15 hp | 160M | F | 2 | 3000 RPM | €5,640.79 | |
|
E01118XP3YAX160MF3-W | 380-400-415/660-690/460V AC | 60 Hz | - | 15 hp | 160M | F | 4 | 1500 RPM | €4,798.66 | |
|
E01112XP3YAX160LF3-W | 380-400-415/660-690/460V AC | 50 Hz | 1 | 15 hp | 160M/L | Class F | 6 | 1000 RPM | €5,601.63 | |
|
E02212XP3YAX200LF3-W | 380-400-415/660-690/460V AC | 60 Hz | 1 | 30 hp | 200M/L | Class F | 6 | 1000 RPM | €10,062.99 | |
 |
E01136XP3YAX160MF3-W | 380-400-415/660-690/460V AC | 50 Hz | 1 | 15 hp | 160M/L | Class F | 2 | 3000 RPM | €4,795.17 | |
|
E01518XP3YAX160LF3-W | 380-400-415/660-690/460V AC | 50 Hz | 1 | 20 hp | 160M/L | Class F | 4 | 1500 RPM | €5,278.79 |
