WEG E00718XP3YAX132MF3-W 12430295 Electric Motor, 7 1/2Hp, 50Hz, 1500 Rpm
Get it by Thursday, Jul 16
€4,259.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 12.6A |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 350% |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| Cooling | IC411 |
| De Bearing Seal | Oil Seal |
| Degree Of Protection | IP56 |
| Design | N |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum , Plastic |
| Flange | Without |
| Frame | 132M |
| Frame Material | Cast Iron |
| Frequency | 50 Hz , 60 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hp | 10 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Joints Seal | Lumomoly |
| L. R. Amps | 106A |
| Locked Rotor Time(hot) | 6 sec. |
| Locked Rotor Torque | 240% |
| Main Terminal Box Hole Size | M32 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia | 1.25 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | B3T |
| Mounting Type | B3T |
| Nde Bearing Seal | Lip Seal |
| No Load Amps | 6.5A |
| No. Of Poles | 4 |
| No. Of Terminal Block Pins | 6 |
| Noise Level | 58 dBA |
| Output Rating | 7.5 kW |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL 5009 205P (ISO 12944 - C4) |
| Phase | 3 |
| Rated Speed | 1770 RPM |
| Rated Torque | 29.9 lbs.-ft. |
| Rated Voltage | 460V |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Space Heater Voltage | 200-240V |
| Speed | 1500 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1500 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Bmc 6 Pins |
| Terminal Block Material | BMC |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 380-400-415/660-690/460V AC , 380-415/460/660-690V |
| Winding Thermal Protection | Thermistor 2 Wires 1 Per Phase 150°C , Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 100.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Hp | Frame | Mounting Type | Output Rating | Enclosure Type | No. Of Poles | Synchronous Speed | Fan Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
E00218XP3WAX100LF3-W | 3 hp | 100L | B3T | 3 hp | Tefc | 4 | 1500 RPM | Plastic | €2,074.06 | |
 |
E00318XP3YAX112MF3-W | 4 hp | 112M | B3T | 3 kW | XP | 4 | 1500 RPM | Aluminum | €2,327.19 | |
 |
E00736XP3YAX132SF3-W | 7 1/2 hp | 132S | B3T | 7.5 kW | XP | 2 | 3000 RPM | Aluminum | €4,110.84 | |
|
E00158XP3WAX100LF3-W | 2 hp | 100L | B3T | 2 hp | Tefc | 4 | 1500 RPM | Plastic | €1,775.30 | |
 |

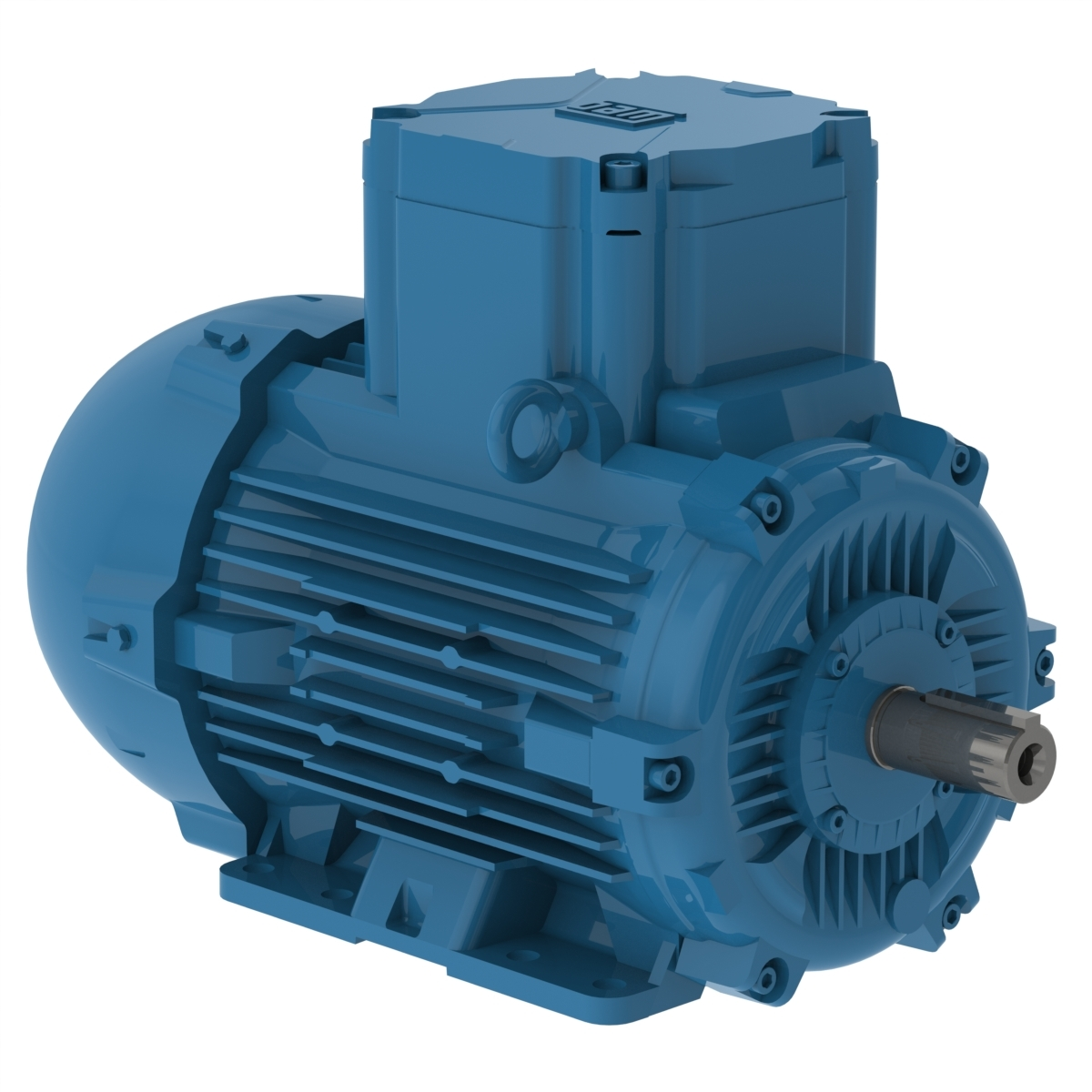

E00418XP3YAX112MF3-W | 5 1/2 hp | 112M | Foot Mounted | 5 1/2 hp | Tefc | 4 | 1500 RPM | Plastic | €2,870.89 | |
|
E00336XP3WAX100LF3-W | 4 hp | 100L | B3T | 4 hp | Tefc | 2 | 3000 RPM | Plastic | €2,231.10 | |
|
E00436XP3YAX112MF3-W | 5 1/2 hp | 112M | B3T | 5 1/2 hp | Tefc | 2 | 3000 RPM | Aluminum | €2,628.84 |
