WEG E00436XP3YAX112MF3-W 13585579 Electric Motor, 4Hp, 50Hz, 3000 Rpm
Get it by Friday, Aug 21
€2,628.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 4.53/7.87A , 7.87/4.53A |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 250% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| Cooling | IC411 |
| De Bearing Seal | Oil Seal |
| Degree Of Protection | IP56 |
| Design | No |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 78% , 86.6% |
| Efficiency 75% | 86% |
| Efficiency @ 1 % | 90% |
| Efficiency @ 100% | 85.8% |
| Efficiency @ 75 % | 87% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange | Without |
| Frame | 112M |
| Frame Material | Cast Iron |
| Frequency | 50 Hz , 60 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 5 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Joints Seal | Lumomoly |
| L. R. Amps | 30.4/52.7A , 52.7/30.4A , 54A |
| Locked Rotor Time (cold) | 18 sec. |
| Locked Rotor Time(hot) | 10 sec. |
| Locked Rotor Torque | 200% |
| Main Terminal Box Hole | M32 x 1.5 |
| Main Terminal Box Hole Size | M32 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia | 0.2079 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.2079 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | CW, CCW |
| Mounting | B3T |
| Mounting Type | B3T |
| Nameplate Speed | 2875 RPM |
| Nde Bearing Seal | Lip Seal |
| No Load Amps | 1.5/2.6A , 2.60/1.5A |
| No. Of Pins | 6 |
| No. Of Poles | 2 |
| No. Of Terminal Block Pins | 6 |
| Noise Level | 64 dBA |
| Output | 5 1/2 hp |
| Output Rating | 4 kW , 5 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL 5009 205P (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor 100% | 0.9 |
| Power Factor 50% | 0.78 |
| Power Factor 75% | 0.87 |
| Power Factor @ 1 % | 85.8 |
| Power Factor @ 50 % | 86.6 |
| Power Factor @ 75 % | 86 |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 4.17% |
| Space Heater Voltage | 200-240V |
| Speed | 2875 RPM , 3000 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3000 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Block Material | BMC |
| Terminal Box | Top |
| Torque | 9.81 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 380-415/660/460V , 380/660V , 380/660V AC |
| Winding Thermal Protection | Thermistor 2 Wires 1 Per Phase 150°C , Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 59.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Hp | Frame | Mounting Type | Output Rating | Enclosure Type | No. Of Poles | Synchronous Speed | Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

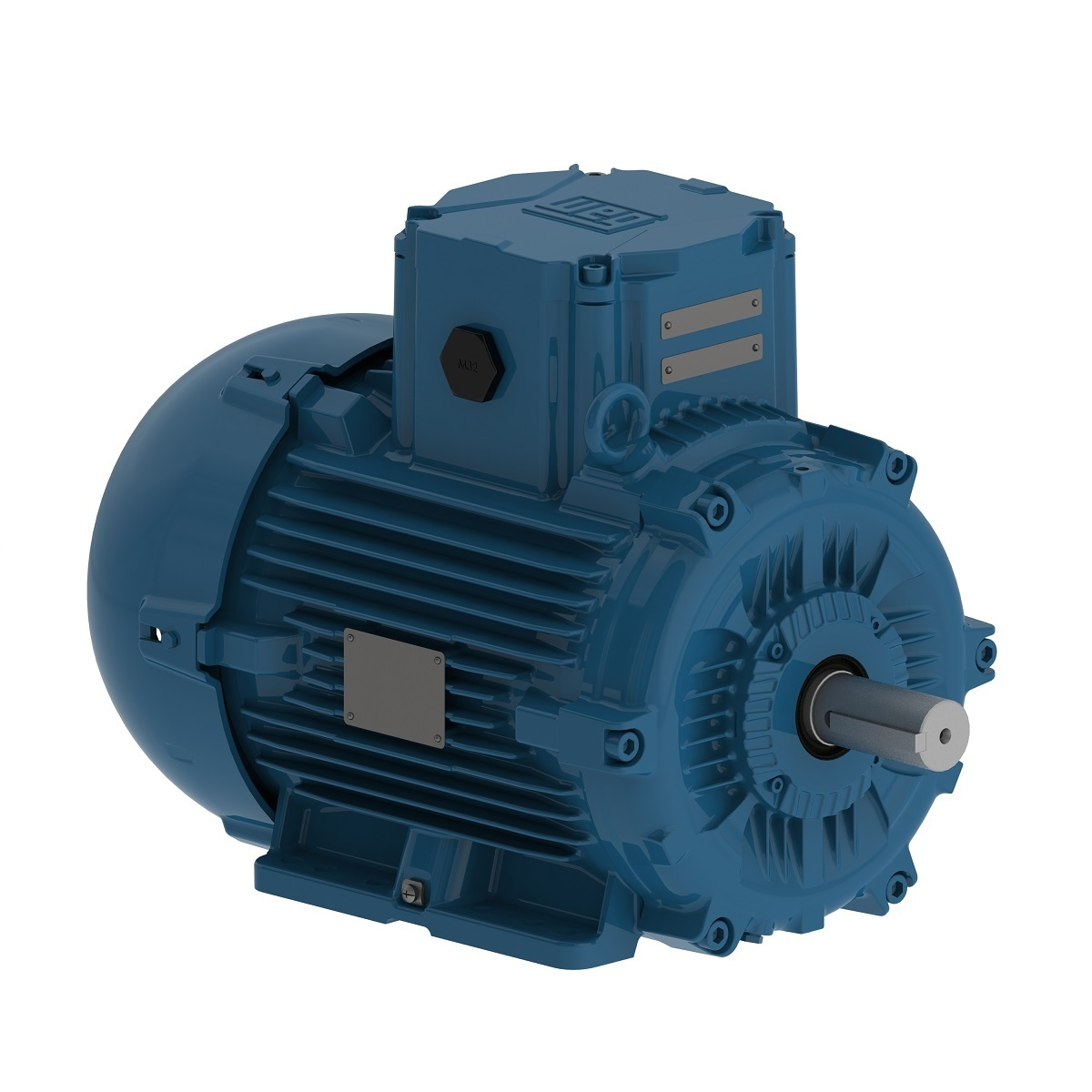

E00218XP3WAX100LF3-W | 3 hp | 100L | B3T | 3 hp | Tefc | 4 | 1500 RPM | N | €2,074.06 | |
 |

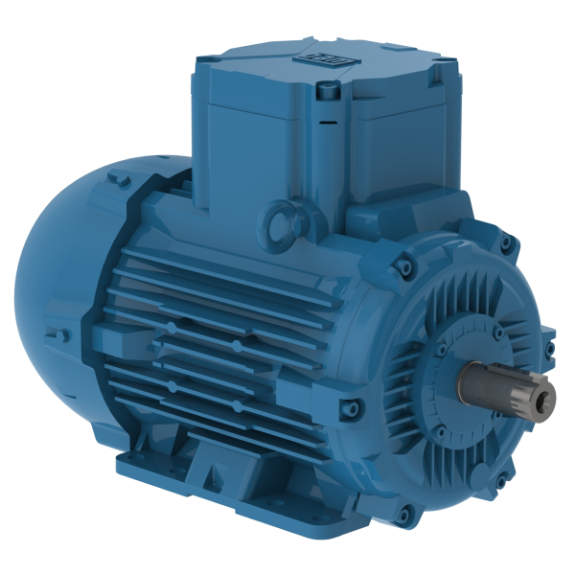

E00318XP3YAX112MF3-W | 4 hp | 112M | B3T | 4 hp | XP | 4 | 1500 RPM | N | €2,327.19 | |
 |
E00736XP3YAX132SF3-W | 7 1/2 hp | 132S | B3T | 7.5 kW | XP | 2 | 3000 RPM | N | €4,110.84 | |
|
E00158XP3WAX100LF3-W | 2 hp | 100L | B3T | 2 hp | Tefc | 4 | 1500 RPM | N | €1,775.30 | |
 |
E00418XP3YAX112MF3-W | 5 1/2 hp | 112M | Foot Mounted | 5 1/2 hp | Tefc | 4 | 1500 RPM | N | €2,870.89 | |
|
E00336XP3WAX100LF3-W | 4 hp | 100L | B3T | 4 hp | Tefc | 2 | 3000 RPM | N | €2,231.10 | |
|
E00312XP3YAX132SF3-W | 4 hp | 132S/M | Foot Mounted | 4 hp | Tefc | 6 | 1000 RPM | N | €3,489.13 |
