WEG E00318ET3WAXL100LF3W Electric Motor, 3Hp, 50Hz, 1500 Rpm | BC3JLN

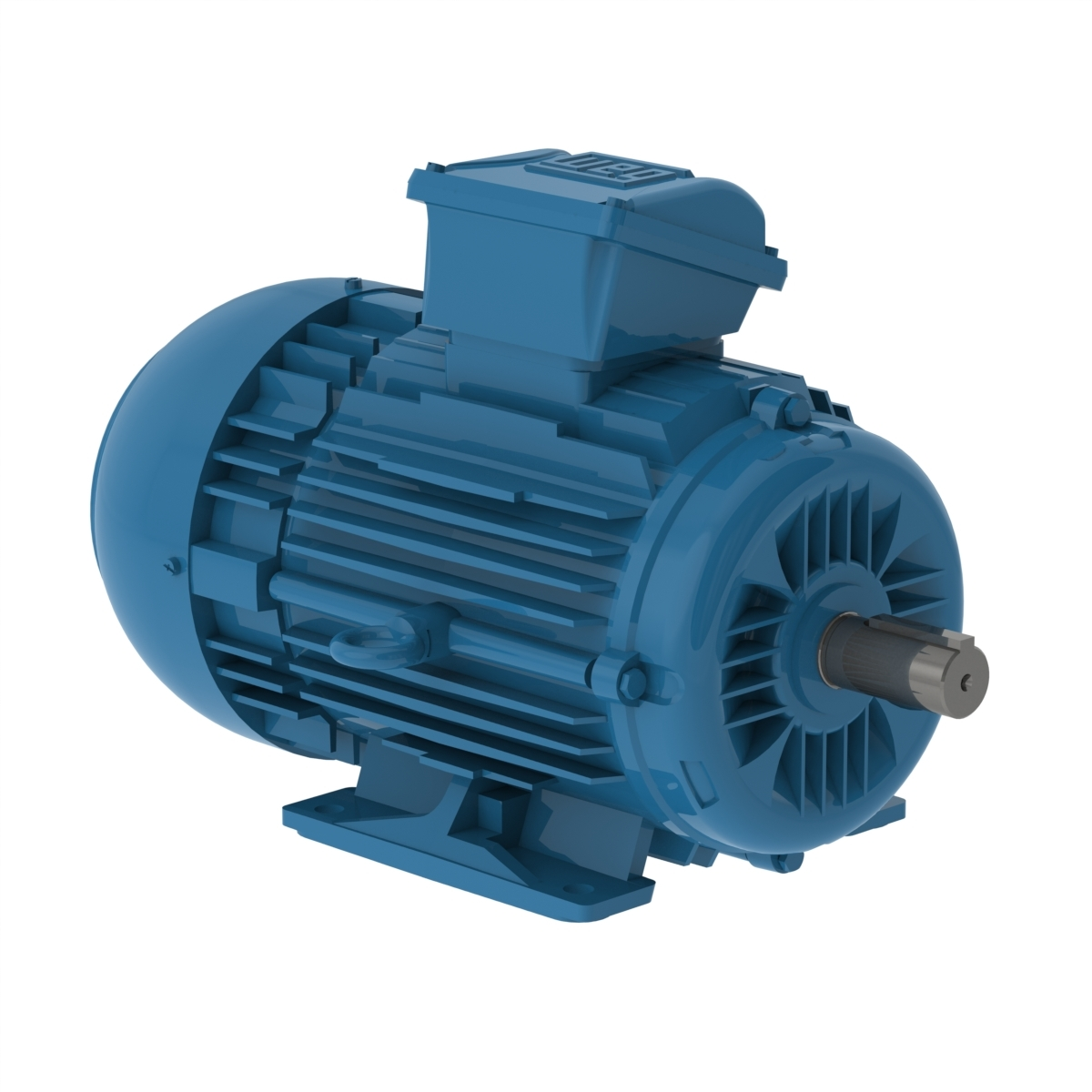

WEG E00318ET3WAXL100LF3W 12861349 Electric Motor, 3Hp, 50Hz, 1500 Rpm

Item: BC3JLNModel: E00318ET3WAXL100LF3WCross Ref: 12861349
Check Availability
In Stock

Get it by Tuesday, Aug 25

€1,601.12 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 6.26/10.8A
Balancing Method 1/2" Key
Bearing Cap No
Break Down Torque 280%
Composition Cast Iron
Connection Cables Quantity 6
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 87.7%
Efficiency 75% 88%
Efficiency @ 100% 87.7%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Conductive Plastic , Plastic
Flange Without
Flange Type Without
Frame L100L
Frame Material Cast Iron
Frequency 50 Hz
Grounding Lugs Double
Hp 4 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 48.8/84.3A
Locked Rotor Time (cold) 27 sec.
Locked Rotor Time(hot) 15 sec.
Locked Rotor Torque 350%
Main Terminal Box Hole 2 x M25 x 1.5
Main Terminal Box Hole Size M25 x 1.5
Moment Of Inertia (j) 0.2838 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting B3T , Foot Mounted
No Load Amps 3/5.18A
No. Of Holes 2
No. Of Pins 6
No. Of Poles 4
Noise Level 53 dBA
Output Rating 3 kW , 4 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 205P (ISO 12944-C3)
Phase 3
Power Factor 100% 0.83
Power Factor 50% 0.65
Power Factor 75% 0.77
Rotation CW, CCW
Screw Cap Stainless Steel
Service Factor 1
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 4.67%
Speed 1430 RPM , 1500 RPM
Starting Method Direct On Line
Synchronous Speed 1500 RPM
Temp. Rise 80 K
Terminal Block BMC
Terminal Box Top
Terminal Type BMC
Torque 14.8 lbs.-ft.
Tropicalized Painting Without
Voltage 220-230-240/380-400-415/460V AC , 220/380V
Winding Thermal Protection Thermistor-2 Wires 1 Per Phase 140°C

Shipping Info:

Ship weight (kg) 38.7
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelFrequencyHpFrameNo. Of PolesSynchronous SpeedShaft MaterialMountingOutput RatingPrice
WEG E04512EP3YAX280SMF3W Electric Motor, 60Hp, 50/60Hz, 1000/1200 Rpm | BB4JBR E04512EP3YAX280SMF3W50 Hz60 hp280 S/M61000 RPMCarbon SteelFoot Mounted60 hp€23,462.45
WEG E00418EP3YAX112MF3-W Electric Motor, 5.5Hp, 50/60Hz, 1500/1800 Rpm | BB6BTL E00418EP3YAX112MF3-W50 Hz5 1/2 hp112 M41500 RPMCarbon SteelFoot Mounted5 1/2 hp€1,655.98
WEG E09018EP3YAX280SMF3W Electric Motor, 125Hp, 50/60Hz, 1500/1800 Rpm | BB6KEP E09018EP3YAX280SMF3W50 Hz125 hp280 S/M41500 RPMCarbon SteelFoot Mounted125 hp€24,408.69
WEG E11012EP3YAX315SMF3W Electric Motor, 150Hp, 50/60Hz, 1000/1200 Rpm | BB6KVY E11012EP3YAX315SMF3W60 Hz150 hp315S/M61000 RPMCarbon SteelFoot Mounted150 hp€36,453.57
WEG E01812EP3YAX200LF3-W Electric Motor, 25Hp, 50/60Hz, 1000/1200 Rpm | BB6UPC E01812EP3YAX200LF3-W50 Hz25 hp200 L61000 RPMCarbon SteelFoot Mounted18.5 kW€8,590.64
WEG E01512EP3YAX180LF3-W Electric Motor, 20Hp, 50/60Hz, 1000/1200 Rpm | BB6XHF E01512EP3YAX180LF3-W60 Hz20 hp180 L61000 RPMCarbon SteelFoot Mounted20 hp€6,172.34
WEG E05518EP3YAX250SMF3W Electric Motor, 75Hp, 50/60Hz, 1500/1800 Rpm | BB6ZLL E05518EP3YAX250SMF3W50 Hz75 hp250 S/M41500 RPMCarbon SteelFoot Mounted75 hp€16,443.53
