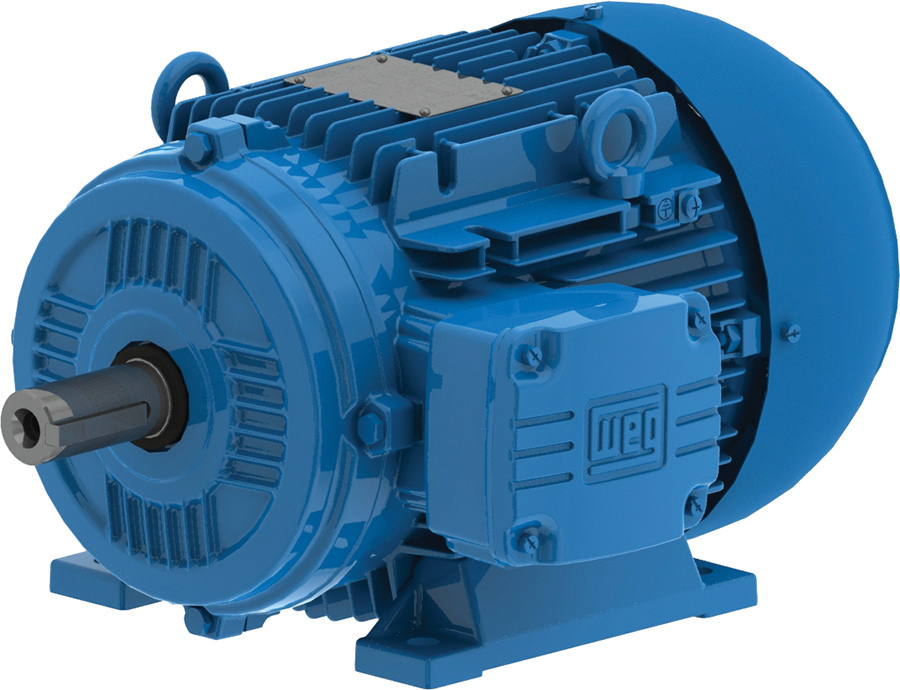

WEG E00212EP3YAL112MF3 12957971 Electric Motor, 3Hp, 50Hz, 1000/1200 Rpm
Get it by Wednesday, Dec 17
€1,159.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | No |
| Break-down Torque | 229% |
| Cold Locked Rotor Time | 30 sec. |
| Connection Cables Quantity | 6 |
| Design | N |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 74% |
| Efficiency At 50 % | 54% |
| Efficiency At 75 % | 67% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 112M |
| Frame Material | Aluminum |
| Frequency | 50 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 17 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Kw | 2.2 kW |
| L. R. Amps | 30/17.3A |
| Locked Rotor Torque | 220% |
| Lrc | 5.5 |
| Main Terminal Box Hole Size | M32 x 1.5 |
| Moment Of Inertia | 0.6091 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 945 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 2.7/1.55A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 6 |
| Noise Level | 49 dBA |
| Output | 2.2 kW |
| Output Rating | 2.2 kW |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 82.8 |
| Power Factor At 50 % | 82 |
| Power Factor At 75 % | 82.4 |
| Rated Current | 5.46/3.14A |
| Rated Torque | 16.4 lbs.-ft. |
| Rated Voltage | 380/660V AC |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 5.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1000 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Top |
| Terminal Type | BMC |
| Tropicalized Painting | Without |
| Voltage | 380-415/660/460V AC |
Shipping Info:
| Ship weight (kg) | 40.17 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 39.29 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Frame | Frame Material | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E07512EP3Y315SMF3-W2 | 380-400-415/660-690/460V AC | 50 Hz | 1 | - | 315 S/M | Cast Iron | 6 | 1000 RPM | €16,046.02 | |
| E03718EP3Y225SMF3-W2 | 380-400-415/660-690/460V AC | 50 Hz | 1 | - | 225 S/M | Cast Iron | 4 | 1500 RPM | €6,800.11 | |
| E02212EP3Y200LF3-W22 | 380-400-415/660-690/460V AC | 50 Hz | 1 | - | 200 L | Cast Iron | 6 | 1000 RPM | €4,837.96 | |
| E02236EP3Y180MF3-W22 | 380-400-415/660-690/460V AC | 50 Hz | 1 | - | 180 M | Cast Iron | 2 | 3000 RPM | €3,431.07 | |
| E09036EP3Y280SMF3-W2 | 380-400-415/660-690/460V AC | 50 Hz | 1 | - | 280 S/M | Cast Iron | 2 | 3000 RPM | €16,280.86 | |
| E11036EP3Y315SMF3-W2 | 380-400-415/660-690/460V AC | 50 Hz | 1 | - | 315 S/M | Cast Iron | 2 | 3000 RPM | €20,465.64 | |
| E01112EP3Y160LF3-W22 | 380-400-415/660-690/460V AC | 50 Hz | 1 | - | 160 L | Cast Iron | 6 | 1000 RPM | €3,105.10 |
