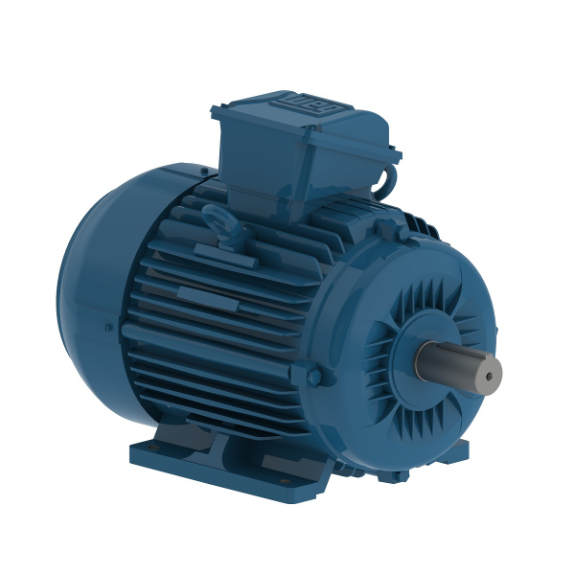

WEG E00152EP3WAX100LF3-W Electric Motor, 1 1/2Hp, 50Hz, 1000 Rpm | BB9HEQ

WEG E00152EP3WAX100LF3-W 14387245 Hazardous Area IEC-Ex/ATEX Motor, EX-EC, 1.5 kW, 6 Poles, 100L Frame, 3 Phase, 220-230-240/380-400-415//460 V, 50 Hz, IC411-TEFC, B3T Mounting

Item: BB9HEQModel: E00152EP3WAX100LF3-WCross Ref: 14387245
Check Availability
In Stock

Get it by Tuesday, Sep 1

€1,040.38 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 m.a.s.l.
Ambient Temp. -20°C to +40°C
Amps 3.2A
Balancing Method 1/2 Key , 1/2" Key
Bearing Cap No
Cold Locked Rotor Time 41 sec.
Connection Cables Quantity 6
De Bearing Seal V Ring
Degree Of Protection IP55
Design N
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Conductive Plastic , Plastic
Flange Without
Flange Type Without
Frame 100L
Frame Material Cast Iron
Frequency 50 Hz , 60 Hz
Grade Grade 316
Grounding Lugs Double
Grounding Lugs Type Double
Hp 1 1/2 hp
Impregnation Method Dip And Bake Polyester
Insulation Class F
Locked Rotor Time(hot) 23 sec.
Main Terminal Box Hole 2 x M25 x 1.5
Main Terminal Box Hole Size M25 x 1.5
Material Stainless Steel
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting Foot Mounted , Foot-Mounted, B3T
Nde Bearing Seal V Ring
No. Of Holes 2
No. Of Pins 6
No. Of Poles 6
Output Rating 1.5 kW
Overload Protector Without Overload Protector
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer , RAL5009 205P (ISO 12944-C3)
Phase 3
Rotation CW And CCW
Shaft Locking Device Without
Shaft Material Carbon Steel , SAE 1040/45 Carbon Steel
Shaft Material Grade Grade 1040/45
Speed 1000 RPM
Starting Method Direct On Line
Synchronous Speed 1000 RPM
Temp. Rise 80 K
Terminal Block Bmc 6 Pins
Terminal Box Top
Terminal Type BMC
Tropicalized Painting Without
Voltage 220-230-240/380-400-415/460V AC , 220/240/380/415/460V
Winding Thermal Protection Thermistor 2 Wires 1 Per Phase 140°C, Thermistor 2 Wires 1 Per Phase 155°C , Thermistor-2 Wires 1 Per Phase 140°C

Shipping Info:

Ship weight (kg) 30.52
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelFrequencyHpFrameNo. Of PolesSynchronous SpeedShaft MaterialMountingOutput RatingPrice
WEG E04512EP3YAX280SMF3W Electric Motor, 60Hp, 50/60Hz, 1000/1200 Rpm | BB4JBR E04512EP3YAX280SMF3W50 Hz60 hp280 S/M61000 RPMCarbon SteelFoot Mounted60 hp€23,462.45
WEG E00418EP3YAX112MF3-W Electric Motor, 5.5Hp, 50/60Hz, 1500/1800 Rpm | BB6BTL E00418EP3YAX112MF3-W50 Hz5 1/2 hp112 M41500 RPMCarbon SteelFoot Mounted5 1/2 hp€1,655.98
WEG E09018EP3YAX280SMF3W Electric Motor, 125Hp, 50/60Hz, 1500/1800 Rpm | BB6KEP E09018EP3YAX280SMF3W50 Hz125 hp280 S/M41500 RPMCarbon SteelFoot Mounted125 hp€24,408.69
WEG E11012EP3YAX315SMF3W Electric Motor, 150Hp, 50/60Hz, 1000/1200 Rpm | BB6KVY E11012EP3YAX315SMF3W60 Hz150 hp315S/M61000 RPMCarbon SteelFoot Mounted150 hp€36,453.57
WEG E01812EP3YAX200LF3-W Electric Motor, 25Hp, 50/60Hz, 1000/1200 Rpm | BB6UPC E01812EP3YAX200LF3-W50 Hz25 hp200 L61000 RPMCarbon SteelFoot Mounted18.5 kW€8,590.64
WEG E01512EP3YAX180LF3-W Electric Motor, 20Hp, 50/60Hz, 1000/1200 Rpm | BB6XHF E01512EP3YAX180LF3-W60 Hz20 hp180 L61000 RPMCarbon SteelFoot Mounted20 hp€6,172.34
WEG E05518EP3YAX250SMF3W Electric Motor, 75Hp, 50/60Hz, 1500/1800 Rpm | BB6ZLL E05518EP3YAX250SMF3W50 Hz75 hp250 S/M41500 RPMCarbon SteelFoot Mounted75 hp€16,443.53
