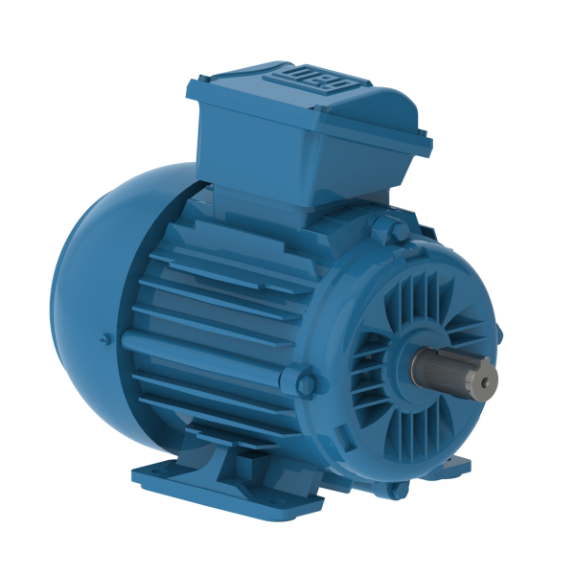

WEG E0.7536EP3WAX80F3-W2 12381967 Hazardous Area IEC-Ex/ATEX Motor, EX-EC, 0.75 kW, 2 Poles, 80 Frame, 3 Phase, 220-230-240/380-400-415//460 V, 50 Hz, IC411-TEFC, B3T Mounting
Get it by Wednesday, Jul 15
€595.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 1.56A |
| Balancing Method | Not Balanced |
| Bearing Cap | No |
| Cold Locked Rotor Time | 28 sec. |
| Composition | Steel |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Conductive Plastic , Plastic |
| Flange | Without |
| Frame | 80 |
| Frame Material | Cast Iron |
| Frequency | 50 Hz , 60 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hp | 3/4 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 12.5A |
| Locked Rotor Time(hot) | 16 sec. |
| Main Terminal Box Hole | 2 x M20 x 1.5 |
| Main Terminal Box Hole Size | M20 x 1.5 |
| Material | Stainless Steel |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | Foot Mounted , Foot-Mounted, B3T |
| Nde Bearing Seal | V Ring |
| No. Of Pins | 6 |
| No. Of Poles | 2 |
| Output Rating | 0.75 kW |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 205P (ISO 12944-C3) |
| Phase | 3 |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Speed | 3000 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3000 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Bmc 6 Pins |
| Terminal Box | Top |
| Terminal Type | BMC |
| Tropicalized Painting | Without |
| Voltage | 220-230-240/380-400-415/460V AC , 220/240/380/415/460V |
| Winding Thermal Protection | Thermistor 2 Wires 1 Per Phase 140°C, Thermistor 2 Wires 1 Per Phase 155°C , Thermistor-2 Wires 1 Per Phase 140°C |
Shipping Info:
| Ship weight (kg) | 14.44 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Frequency | Hp | Frame | No. Of Poles | Synchronous Speed | Mounting | Output Rating | Impregnation Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E04512EP3YAX280SMF3W | 50 Hz | 60 hp | 280 S/M | 6 | 1000 RPM | Foot Mounted | 60 hp | Constant Resin Flow | €23,462.45 | |
 |
E00418EP3YAX112MF3-W | 50 Hz | 5 1/2 hp | 112 M | 4 | 1500 RPM | Foot Mounted | 5 1/2 hp | Dip And Bake Polyester | €1,655.98 | |
|
E09018EP3YAX280SMF3W | 50 Hz | 125 hp | 280 S/M | 4 | 1500 RPM | Foot Mounted | 125 hp | Constant Resin Flow | €24,408.69 | |
|
E11012EP3YAX315SMF3W | 50 Hz | 150 hp | 315S/M | 6 | 1000 RPM | Foot Mounted | 150 hp | Constant Resin Flow | €36,453.57 | |
 |
E01812EP3YAX200LF3-W | 50 Hz | 25 hp | 200 L | 6 | 1000 RPM | Foot Mounted | 18.5 kW | Dip And Bake Polyester | €8,590.64 | |
 |
E01512EP3YAX180LF3-W | 50 Hz | 20 hp | 180 L | 6 | 1000 RPM | Foot Mounted | 20 hp | Dip And Bake Polyester | €6,172.34 | |
|
E05518EP3YAX250SMF3W | 50 Hz | 75 hp | 250 S/M | 4 | 1500 RPM | Foot Mounted | 75 hp | Constant Resin Flow | €16,443.53 |
